-FUE0002-

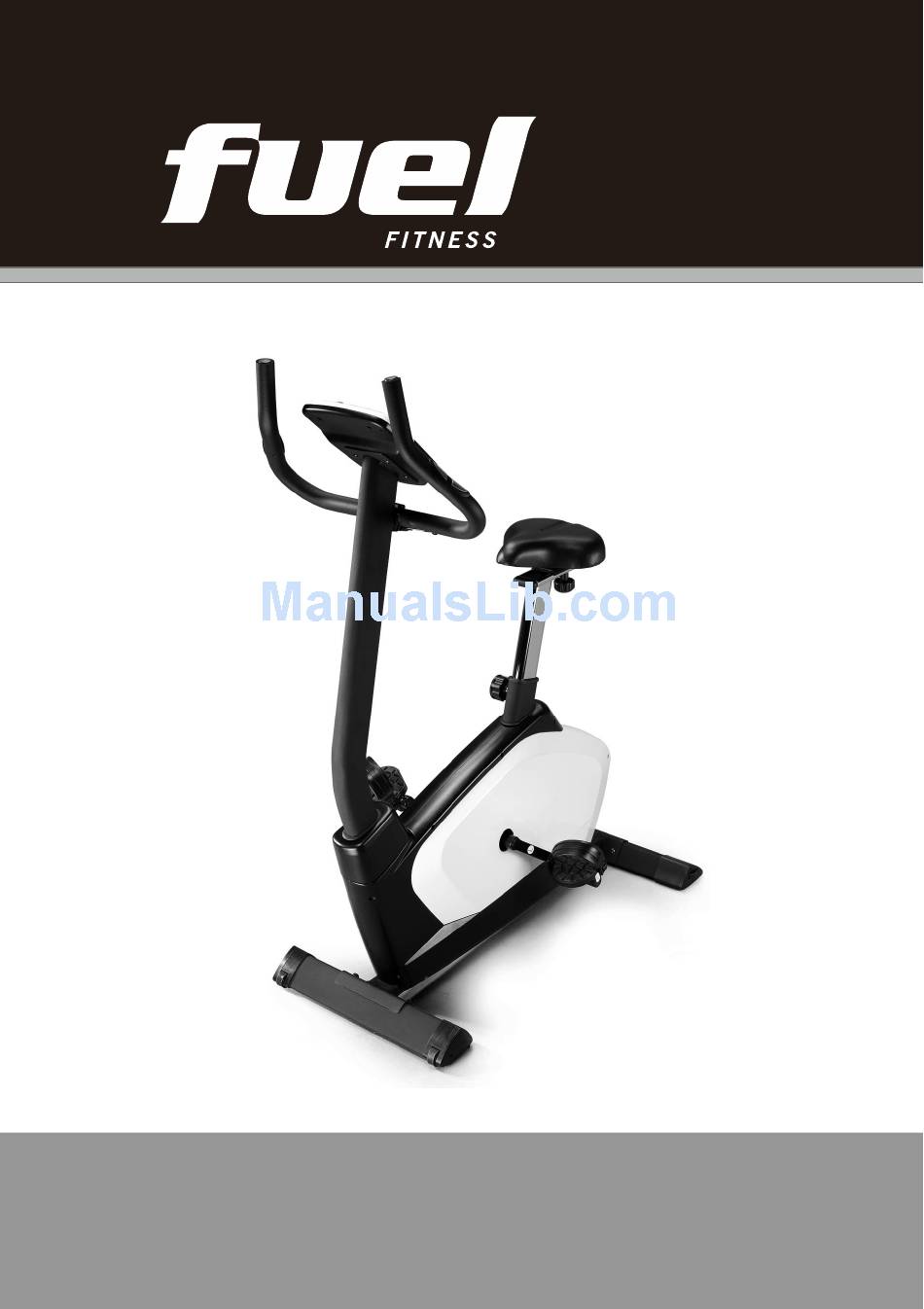

FUEL BIKE 4.0
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL
BEFORE OPERATING YOUR UPRIGHT BIKE!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUEL BIKE 4.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fuel Fitness FUEL BIKE 4.0

Summary of Contents for Fuel Fitness FUEL BIKE 4.0

  • Page 1 -FUE0002- FUEL BIKE 4.0 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR UPRIGHT BIKE!
  • Page 2 Safety Hints WARNING Read all instructions before using this appliance Do not operate upright on deeply padded, plush or shag carpet. Damage to ■ both carpet and upright may result. Keep children away from the upright. There are obvious pinch points and ■...
  • Page 3 Assembly Pack Check List STEP 1. #33- 5/16" Flat #34- 5/16" Curved Washer (8pcs) Washer (1pc) #35- 5/16"X1.5T Split #32- 5/16" × 3/4" Socket Washer (9pcs) Head Cap Bolt (9pcs) STEP 2. #41- M5 × 12 mm Phillips Head Screw (4pcs) #72- 3/8”...
  • Page 4 Assembly Instructions STEP 1: 1. Locate the Console Mast (2) and slide on the Console Mast Cover (60). Make sure the cover is facing the correct direction, as shown below, before sliding onto mast. Install the wiring harness (80) into the bottom of the mast and out the top. Be careful when installing the console mast to the mainframe so as not to pinch or cut the wiring harness, damage to the console may occur.
  • Page 5 STEP 2: 1. Install Handle Bar (3) on Console Mast (2) and lock with Quick Release lever (19). Install the Hand Pulse Cable (82) through the console mounting plate as shown below. 2. Connect Computer Cable (80) and Hand Pulse Sensor Cable (82) to the Console (48) and assemble on the Console Mast (2) using Phillips Head Screw Driver (43) to tighten 4pcs of M5 ×...

  • Page 6: Key Functions

    Console Key Functions START/STOP: 1. Starts & Pauses workouts. 2. Starts body fat measurement. 3. Holding key for 3 seconds will reset all functions and values to zero. DOWN: Decreases value of selected workout parameter: TIME, DISTANCE, etc. During the workout it will decrease the resistance load.
  • Page 7 Functions: SPEED: Displays current training speed. Maximum speed is 99.9 KM/H or MILE/H. RPM: Displays current pedal rotations per minute. TIME: Accumulates workout time from 00:00 to 99:59. Or users can preset the target time desired. DIST: Accumulates the workout distance form 0.00 up to 999.9 KM or Mile. Or users can preset the target distance they want to reach.

  • Page 8: Program Operation

    More About Workout Parameters Setting Default Increment/ Parameter Description Range Value Decrement 1. When display is 0:00, Time will count Time 0:00~ 99:00 00:00 ± 1:00 2. When time is 1:00-99:00, It will count down to 0. 1.When display is 0.0, Distance Distance will count up.
  • Page 9 Pre-programs (P2~P13) Program profile ROLLING VALLEY FAT BURN RAMP STEPS OBSTACLE INTERVALS PLATEAU CLIMBING OFF ROAD HILL FASTREK...
  • Page 10 There are 12 pre-set program profiles ready for use ： ： ： ： R OLLING, VALLEY, FAT BURN, RAMP, STEPS, OBSTACLE, INTERVALS, PLATEAU, CLIMBING, OFF ROAD, HILL, FASTREK. All program profiles have 24 levels of resistance. Setting Parameters for Pre-set programs Select one of pre-set programs using UP OR DOWN KEY then pressing ENTER KEY.
  • Page 11 BODY FAT MEASUREMENT Setting Data for Body Fat Select “BODY FAT” using UP OR DOWN KEY then pressing ENTER. “Male” will flash indicating the Gender can be adjusted using UP OR DOWN KEY. Press ENTER to save gender setting & move to next setting. A Height of “175”...
  • Page 12 Note: If your Pulse measurement is above or below (± 5) the TARGET H.R setting, the computer will adjust the resistance load automatically; it will check approximately every 10 seconds. If the heart rate signal disappears, the computer will keep the resistance load constant for 60 seconds then it will decrease the resistance load 1 level every 10s.
  • Page 13 HEART RATE CONTROL Program Program profile There are 4 selection for target pulse: HRC- 55% TARGET H.R= 55% of (220-AGE) HRC - 65% TARGET H.R= 65% of (220-AGE) HRC - 75% TARGET H.R= 75% of (220-AGE) HRC - 85% TARGET H.R= 85% of (220-AGE) Setting Parameters for HEART RATE CONTROL Select one of the “Heart Rate Control Program”...
  • Page 14 User Program Program profile 4 User programs allow the user to create their own personal program. Setting Parameters for User Program Select “User” using UP OR DOWN KEY then press ENTER KEY. The 1 parameter, “Time” will flash indicating the value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value &...
  • Page 15 Parts List DESCRIPTION O'TY Main Frame Console Mast Handle Bar Front Stabilizer Rear Stabilizer Inner Slide Sliding Seat Mount Crank Axle Idler Bracket Idler Wheel Crank Arm (L) Crank Arm (R) Crank Arm End Cap M10 × 1.25m/m_Nut Pedal Flywheel Drive Pulley Belt Quick Release lever...
  • Page 16 DESCRIPTION O'TY 5/16" × 19 × 1.5T_Curved Washer 5/16" × 1.5T_Split Washer 4 × 12L_Sheet Metal Screw 1/4" × 5/8"_Hex Head Bolt 1/4" × 5.5L_Nyloc Nut 1/4" × 13 × 1T_Flat Washer 1/4"_Split Washer M5 × 12L_Phillips Head Screw 5 × 16L_Tapping Screw Combination M5 Allen Wrench &...
  • Page 17 DESCRIPTION O'TY 5/16" × 6T_Nyloc Nut End Cap Console Mast End Cap Seat Post Cover 3/8" × 1-1/2"_Carriage Bolt Ø3/8" × Ø30 × 2T_Flat Washer Flywheel Magnets Mounting Plate 5/16" × 2-1/2"_Button Head Socket Bolt M5-75L_Phillips Head Screw M5-5T_Nyloc Nut 15m/m_Wrench 1600m/m_Computer Cable Power Adaptor...
  • Page 19 WARRANTY, SAFETY AND ASSEMBLY INFORMATION FUE0002 – Bike 4.0 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their bikes to be free from defects in material and workmanship under normal use and service conditions.
  • Page 20 This Fuel Bike 4.0 is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
  • Page 21 A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product.
