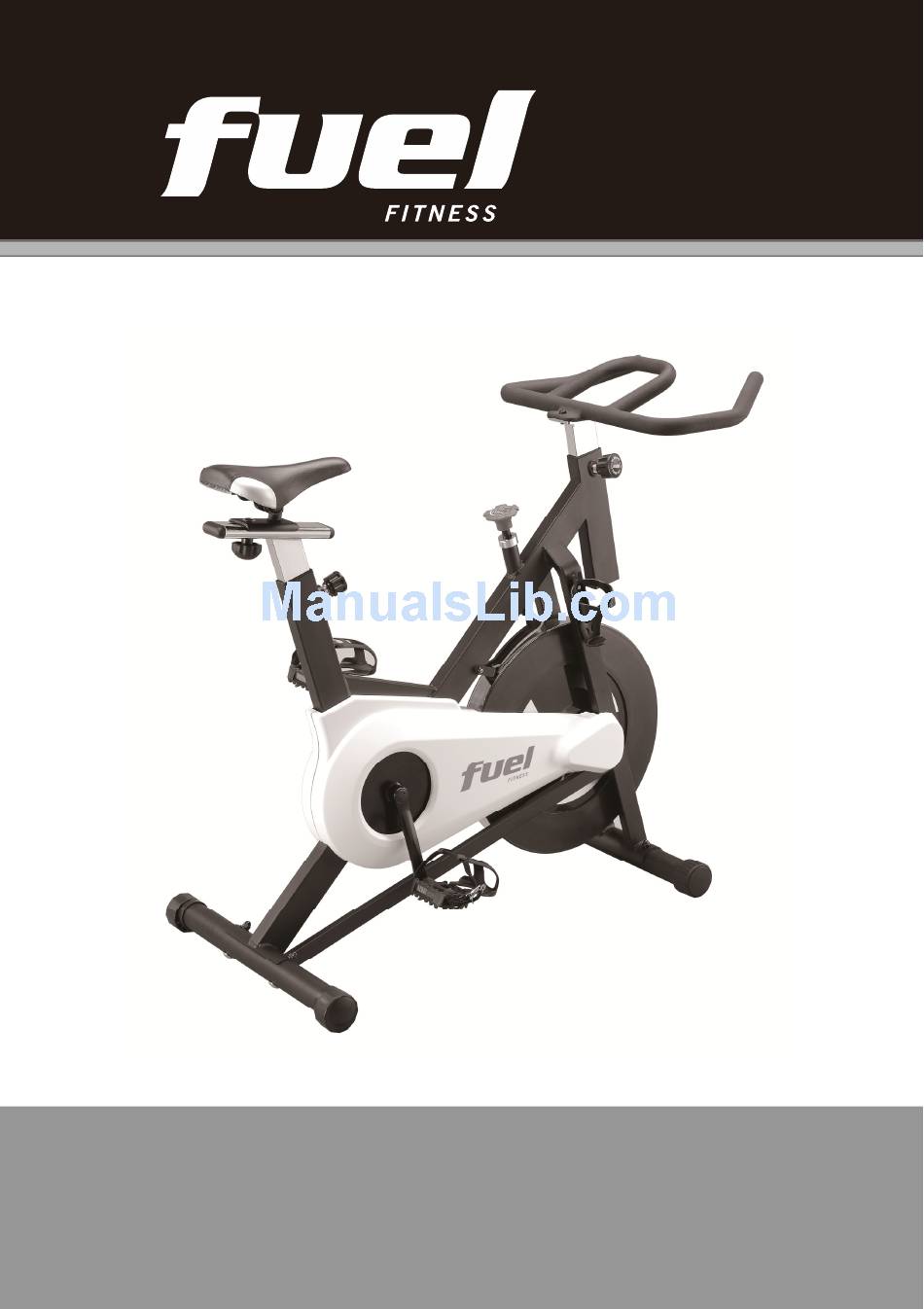

- Page 1 -FUE0009- SPIN BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR SPIN BIKE!
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPENT Use this equipment only for its intended use as described in this manual. Do not attempt to ride this bike at high pedal speeds until you have ridden the bike for some time and are comfortable riding at slower pedal speeds. -
Page 3: Guidelines For Safe Operation
GUIDELINES FOR SAFE OPERATION WARNING! AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES: YOU SHOULD MAKE THIS MANUAL AVAILABLE TO ALL USERS. Obtain a complete physical examination from your medical doctor and enlist a health/fitness professional’s aid in developing an exercise program suitable for your current health status. -
Page 4: Adjusting The Bike For A Proper Fit
ADJUSTING THE BIKE FOR A PROPER FIT Take some time to learn how to properly adjust the bike to your body; it will make your workouts more pleasant and a safer experience too. Riding the bike when it is incorrectly adjusted can result in discomfort and increase your risk of injury. Adjustment of Seat Position: Seat Height Adjustment Standing next to the bike, adjust seat until it is about hip... -
Page 5: Basic Operation
BASIC OPERATION Now that you have established a proper riding position, take a few minutes to ride the bike and determine that your position is comfortable. Start pedaling at a slow pace with your toes and knees pointed directly forward. Hold the handlebar lightly and in a position that allows your shoulders and upper body to relax. -
Page 6: Assembly Tools
Assembly Tools #85.14/15m/m_Wrench(2pcs) #86. M6_Combination M6 Allen Wrench & Phillips Head Screw Driver(1pc) Assembly Instructions Install the front and rear stabilizers onto the Main Frame (1) with four 3/8"×3-1/2" carriage bolts (81), four 3/8" curved washers(83) and four 3/8" cap nuts(82). by using the 14/15mm Wrench (85). - Page 7 Insert Handlebar Post(4) into Main Frame (1). Next insert Locking Knob(19) into Main Frame (1) and make sure that Front Column is through the Handlebar Post(4) before securing and tightening. 3. Install the handlebars(6) onto the Handlebar Post (4), with the three of 5/16" x 5/8” Socket Head Cap Bolt (88) and three of 5/16"...
- Page 8 Install the Left (25L) and Right (25R) pedals to the crank arms. Please note that the Left pedal has a reverse threaded bolt and needs to be tightened in a counterclockwise direction. The pedals are identified by either an R or L stamped into the end of the bolt. #85.14/15m/m Wrench #85.14/15m/m...
- Page 9 5. Secure Drink Bottle Holder(23) on the Main Frame(1) by using Combination M6 Allen Wrench & Phillips Head Screw Driver (86) to tighten 2pcs of M5 × 10m/m_Tapping Screw (93). #93.Tapping #86. M6_Combination M6 Screw(2pcs) Allen Wrench & Phillips Head Screw Drive 6.
-
Page 10: Parts List
PARTS LIST DESCRIPTION O'TY Main Frame Front Stabilizer Rear Stabilizer Handlebar Post Seat Post Handlebar Sliding Seat Mount Braking Pad Holder Brake Pad - Wool Felt Bushing Braking Pad Holder Ø14 × Ø10 × 25.5L_Sleeve Ø17.2 × Ø7/8" × 5m/m_Sleeve M10 ×... - Page 11 DESCRIPTION O'TY 3/8" × 21T_Cap Nut M6 × 6T_Nyloc Nut Chain Joint Crank Arm Chainwheels Assembly Crank Arm End Cap Ø17 × 118m/m_Crank Arm Axle M20 × P1.0 × 12.5T_Nyloc Nut Ø50m/m_Transportation Wheel Ø50_Round Cap 5/16" × 1.5T_Spring Washer Hollow Plug Side Case(R) Side Case(L) Spacer for Stopper Axle...
-
Page 12: Exploded View Drawing
Exploded View Drawing... - Page 13 WARRANTY, SAFETY AND ASSEMBLY INFORMATION SPIN BIKE FUE0009 – IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their SPIN BIKE to be free from defects in material and workmanship under normal use and service conditions.
-
Page 14: Warranty Information
WARRANTY INFORMATION FUE0009 Congratulations on your purchase! As of January 1 2012, new legislation under the Australian Consumer Law requires certain information to be included in any product warranty issued in Australia. This warranty compliments the warranty found in the manual and has been developed in line with the Australian Consumer Law. - Page 15 A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product.
