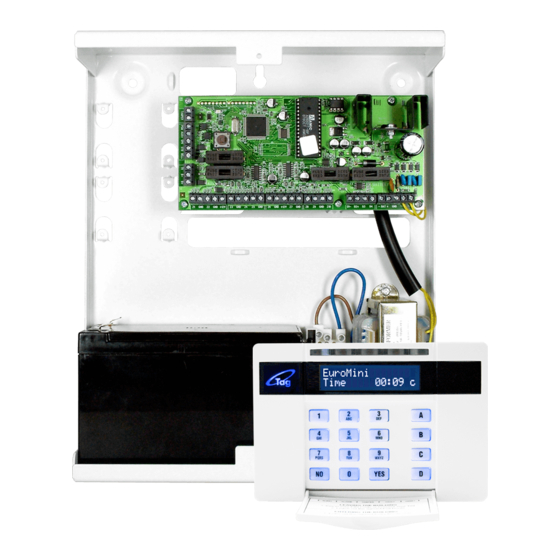

- Page 1 User Manual For use with end station 28, MSX 44 MSX 76, MSX 280 software: Version 6.00 or above RINS1020-6...
-
Page 2: Table Of Contents
This equipment may be used in systems installed to a lower grade, which will be agreed with your installation company. There are no user serviceable parts contained in this product. © Castle Care-Tech 2008 (RINS1020) Issue 4 Page 1... - Page 3 You’ve Made the Right Choice Using your Euro-MERiDIAN Alarm System just couldn’t be easier! This is the Keypad from where you control your Alarm System* Note: For your security, the keypad becomes disabled for 90 seconds after 30 incorrect key-presses, or after 6 attempts to present invalid tags.
-
Page 4: Tag
The Euro Keypad display gives MAINS FAIL important messages. It will alert you if you need to call your alarm installation engineer. The 10 digit numeric keypad is where you use your PIN code. The A B C D keys help simplify use, Euro 1 Time: 15:02 and will illuminate to highlight your... - Page 5 Warning Indications All setting points (Keypads or Tag Readers) have lamps clearly indicate what is happening. Alert Alarm Tamper Fault Unset The ‘Alert’ lamp will flash if there is information available to you. Enter your code to see the information. After a code has been entered, one of the following lamps will light: Alarm, tamper or fault.
- Page 6 Using Tags Euro-MERiDIAN’s High Security Proximity Tag (or Card) will set or unset your Alarm system with the minimum of fuss or complexity. The Tag contains NO batteries and is completely maintenance free. Just touch the Tag to the fascia below the logo to use.
- Page 7 Security Checks Before you set your system: You must ensure all doors and windows are securely closed and any pets or people are excluded from areas protected by movement sensors. Close Windows Close Doors Exclude Pets & People Page 6...
- Page 8 Leaving the Building If you are leaving the building, go Euro 1 to Keypad and key in your PIN Time: 15:02 code, or present your Tag. Exit tone Starts The appropriate area (ABCD) keys will illuminate. (If flexi-set is enabled you will be able to choose which areas you set, see page 19) Leave by agreed Exit Route Close and Lock the Final Exit...
- Page 9 Faults when you Switch On If when you key in your PIN code (or present your Tag) a warning tone sounds and the fault lamp comes on, the keypad display will show the nature of the problem. An appropriate A B C D key will flash to indicate within which area the fault exists.
- Page 10 Faults when Leaving the Building If when you have closed the final exit door (and pushed the ‘Push to Set’ button if fitted), the exit tone continues sound interrupted tone… “beep – beep – beep – “ have probably left protected door on the exit route open.
- Page 11 Entering the Building To enter the building you must use the agreed entry route and go straight to the keypad. ENTRY [020] Entry tone will be sounding TIME “beep – beep – beep –“ ENTRY [010] Key in your PIN code, or present TIME your Tag.
- Page 12 Using an External Proximity Reader Setting the Euro One with the Proximity Reader Action Visual Sequence Present a valid The GREEN LED tag to the will come on reader and then remove it. Present the The RED LED may same tag to the...
- Page 13 Part Setting the System Intelligent Set (if programmed) If you wish to set Euro-MERiDIAN and stay in the building (eg set the alarm at night), the Euro- MERiDIAN’s intelligent operating system will realise which level of security you require and will set only part of the system.
- Page 14 Using an External Proximity Reader Intelligent Set To Part Set Euro-MERiDIAN go to the keypad and enter your PIN code or present your Tag. The appropriate A B C D keys will illuminate Exit tone will start Leave the protected area and retire to the un-protected area (eg upstairs).
-
Page 15: When Problems Arise
Using an External Proximity Reader When Problems Arise, Just Key in your PIN Code or present your Page 14... -
Page 16: Silencing Alarms
Silencing Alarms If an Alarm tone sounds, the Alert lamp will flash: Just key in your PIN code or Present your Tag. The Alarm will stop sounding display will indicate Alarm Silenced Low Volts problem. Press the ‘YES’ Key Euro-MERiDIAN will advise you on Call Engineer Low Volts any action that is needed. -
Page 17: Engineer Reset
You will be required to quote a 6-digit code by telephone (advise them that the Quote G19867 system is a Castle Euro-MERiDIAN). You Anti-Code Needed will then be given a special code which will reset the system for that one occasion only. - Page 18 Automatic Inhibit Euro-MERiDIAN designed automatically disable certain functionality. The factory default settings are as shown below: Intruder After 3* unconfirmed alarms Alarm same area Signal confirmed alarm. Tamper After 3* unconfirmed alarms Alarm same area Signal confirmed alarm. Keypad After 30 keypresses without entering a valid code, keys are disabled for 90 seconds.
- Page 19 The A B C D Keys Sometimes your security needs Euro 1 will be a little more complex and Time:15:20 you will need to use the A B C D keys. Your Installer also give names to all four of the A B C D areas, so that you can easily identify them.
- Page 20 Codes with Flexi-Set For greater flexibility in setting SET AREAS parts of your system, you can [ABCD] make a choice at the keypad. Key in your PIN code or present your Tag. If you do not wish to set all the areas assigned to your code/Tag, simply select the areas you wish to pressing...
- Page 21 Flexi-UnSet When Euro-MERiDIAN is already set Euro 1 and you wish to unset: Time:15:25 Key in your PIN code or present your Tag. If entry timer has started: All areas for which the Tag or PIN is valid will be Unset. Any areas set for which the code is not valid will remain set, eg if A and B are set: If an ‘A’...
- Page 22 Flexi-UnSet If your codes have been set up with Flexi-Unset enabled, will always have a choice of what areas you would like to set or unset, regardless of whether the entry timer is running or not – providing you have a code valid for the relevant areas.
-
Page 23: Chime Facility
The Chime Facility The ‘C’ key can be used to select ‘chime’ facility while system is Unset. For example, you may wish to be alerted if someone enters through a particular door during the day. Simply press the ‘C’ key. The display will show a ‘C’... - Page 24 Deliberately omitting an Input when leaving the Building In a domestic setting you may wish to ignore a window you have deliberately left open in the summer time. There may be another fault on the system which you want to ignore when you set the system.
- Page 25 Deliberately omitting an Input when leaving the Building OMIT INPUT? At some time you may wish to isolate a detector if a room is occupied. Enter your PIN code or Tag. While the exit tone is sounding press the ‘YES’ key. When the ‘OMIT INPUT’...
-
Page 26: Keypad Hold Up/Personal Attack
Keypad Hold-Up ever need summon personal assistance Euro 1 emergency, Euro-MERiDIAN allows Time:15:40 you to do so. Simply press the ‘1’ and ‘7’ keys at the same time. To reset: Enter you PIN code or present your Tag. Note ghgfiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii This facility is only available if it has been enabled... -
Page 27: Manager Menu
Manager Menu To enter Manager Menu, press ‘D’ and then key in your code or present your Tag. The screen will display any relevant information; simply press ‘No’ to move into Manager Menu. We recommend that your system is fully disarmed Manager Menu functions. - Page 28 Manager Menu The manager menu is accessed by Euro 1 pressing ‘D’ and then keying in your Time: 15:45 Manager PIN code. You then have a choice of: Set Date & Time? (see page 29) Omit Inputs? (see page 30) Change Code(s)? * (see page 31) Review Logs? *...
- Page 29 Manager Menu Press ‘D’ and key in your Manager PIN code or user code. The first Menu choice asks you if SET DATE & you wish to ‘Set Date & Time?’ TIME? If you wish to enter the menu, press ‘YES’. But if you wish to move on to other Manager Menu items press ‘NO’.
-
Page 30: Set Date And Time
Set Date and Time Press ‘NO’ to move to next menu. SET DATE & TIME? Press ‘YES’ (Press ‘NO’ to move to the next menu) Enter Year (eg 06=2006) YEAR (00-99) [06] Press ‘YES’ Enter Month MONTH (1-12) [08] Press ‘YES’ Enter Day (1-31) [12]... - Page 31 Omit Inputs Some of your doors may rarely be used. Opening them, even with Omit Inputs[--] Euro-MERiDIAN Unset, designed to cause an alarm. If you need to open these doors you can omit them from the system as shown below. (Only zones of ‘tamper’...
- Page 32 Changing or Adding PIN Codes or Tags A record should be kept as shown on Page 51 CHANGE CODES? Press ‘YES’ (Press ‘NO’ to move to the next Menu) Press ‘YES’ Change User Codes? (Press ‘NO’ to programme the Master Manager Code) Turn to the next page to continue to programme user codes.
- Page 33 Changing or Adding PIN Codes or Tags Euro-MERiDIAN identifies each user USER NUMBER [02] by a different ‘User Number’. Eg ‘John’ would be user 01 – ‘Jane’ would be user 02 etc. Now key in the ‘User Number’ whose PIN code/Tag you wish to add or change.
- Page 34 Changing or Adding PIN Codes or Tags Choose the level of authority the User Type code-holder is allowed. (User) User – cannot access Manager Menu. Manager – can use Manager Menu. (Use ‘B & D’ keys to make your choice). Press ‘YES’...
- Page 35 Changing or Adding PIN Codes or Tags Flexi-Set gives you the opportunity to choose the areas you require to Flexi Set set when you use your PIN code or Tag. If you do not choose Flexi-Set your Code/Tag will simply set the areas Flexi Set assigned without offering you the opportunity to choose.
- Page 36 Changing or Adding PIN Codes or Tags Using the numeric keys, you can enter a user name, similar to typing a text message on a mobile phone. Use ‘0’ key for space. The A B C D keys on the keypad are used as follows: ‘A’...
-
Page 37: Review History Log
Review History Log REVIEW LOG? Press ‘YES’ (Press ‘NO’ to move to the next menu) Panel Log? Press ‘YES’ To advance through the logs: Date & Time Press ‘D’ <EVENT> For added information: <Area Involved> Press ‘C’ <User Involved> To move backward to previous events: Press ‘B’... - Page 38 Review History Log If Access Control Facility is in use, a separate log is available dedicated to events using this function. Follow same procedure described on page 36, but press ‘NO’ to choose between ‘PANEL LOG’ and ‘ACCESS LOG’. Access Control is available if your panel is fitted with an MSX-44, MSX-76 or MSX-280 card.
-
Page 39: Sms Phonebook
SMS Phone Book Press ‘YES’ PHONEBOOK? (Press ‘NO’ to move to the next Menu) Use the ‘D’ key to scroll to which SMS Numbers SMS telephone number you wish to change (1-4). Press ‘YES’ Using the numeric keys, type in the Mobile No. -
Page 40: Walk Test
Walk Test Press ‘YES’ WALK TEST? (Press ‘NO’ to move to the next Menu) Choose the area(s) you wish to test by pressing the appropriate ABCD keys. Press ‘YES’ Walk Test Zone Front Door All detectors waiting to be tested will scroll in the display. -
Page 41: Testing Your Sounder
Testing your Sounders Press ‘YES’ WALK TEST? (Press ‘NO’ to move to the next Menu) Testing Siren Press ‘YES’ Siren will sound, Strobe will flash SIREN TEST? Press ‘NO’ to move to next menu. Page 40... - Page 42 Test CHC Communications Your system may have been configured to send messages to a mobile telephone. If so, the system will call the appropriate messaging bureau and forward the message to your mobile telephone whenever an even occurs that is important to you. Message calls are charged at the normal network rate current at the time of the call.
- Page 43 Test CHC Communications It is recommended that this test is only undertaken under supervision your alarm installation engineer. Press ‘NO’ to move to the next menu TEST CHC COMMUNICATIONS? (Press ‘YES’ to make the test (under the direction of an alarm engineer), the test call will be via a premium rate number) If your alarm panel is connected to Press Y if using...
-
Page 44: Dial Out Menu
Dial Out Menu Your alarm system DIAL OUT MENU? configured so that you can control the system via a PC. If you wish to continue… Press ‘YES’ (Press ‘NO’ to move to the next menu) Use the ‘D’ key to select the Select PC to dial required PC from the list (1-4) and... -
Page 45: Allow Engineer Menu
Allow Engineer Menu When your alarm installation engineer comes to your premises ALLOW ENGINEER for a maintenance visit or to correct MENU? a fault after an alarm he will require access to the programming of the system. Press ‘YES’ Allow Engr Menu? Use ‘B &... -
Page 46: Block Remote Set
PC. Should you wish to block this access you can do so through this menu. Press ‘YES’ Block Remote Set Make your choice with the ‘B’ and ‘D’ keys. This option is not available on the Euro ONE 28. Page 45... - Page 47 Block UDL wish that your alarm company can only dial into your system with their PC whilst their engineer is on site, this can be set up through the ‘Block UDL’ menu. Page 46...
- Page 48 You will be required to quote this 6-digit code by telephone (advise Eng Restore Required G15234 them that the system is a Castle Euro-MERiDIAN). You will then be given a special code which will reset the system for that one occasion only.
- Page 49 User Programmable Functions Persons holding Manager codes to Euro-MERiDIAN have access to the following programming options: Set Date & Time (page 28) Change User Codes (page 31) Change Mobile Telephone Numbers (page 38) Allow Engineer Access (page 44) Inhibit (omit) Zones from the system (page 29) Allow Remote Set (page 45) To do so, press ‘D’...
- Page 50 Menu Exit To exit from Manager Menu and EXIT MANAGER return to normal mode. MENU? Press ‘YES’ If you wish to select any of the Manager Menu items again press the ‘NO’ key until your choice is displayed (see page 32). Page 49...
-
Page 51: Service Information
Service Information sure that will delighted with your Euro-MERiDIAN Alarm installation. For your personal reference here is a record relevant service information. Service Company Date of Installation Month Year Site Reference 24hr Service Number Tel: Keyholders Name Tel: Name Tel: Panel Type Software Version (See below) -
Page 52: User Codes
User Codes Warning: This information should be removed from the manual and stored in a secure location. Photocopy this page if you have more users. Access Name Type Areas Attributes FlexiSet Reader John Manager ABCD Set/Unset 1 2 8 Page 51... - Page 53 Castle Care-Tech Ltd. Castle Control Panels have an embedded premium rate telephone number that is used to contact a Castle host computer prior to commissioning, in order to download...
