- Page 1 EURO User Manual For use with EURO 28 (version 6), EURO 44, EURO plus 76, MSX 162, MSX 280 software: Version 7.00 or above RINS1302-3...
-
Page 2: Table Of Contents

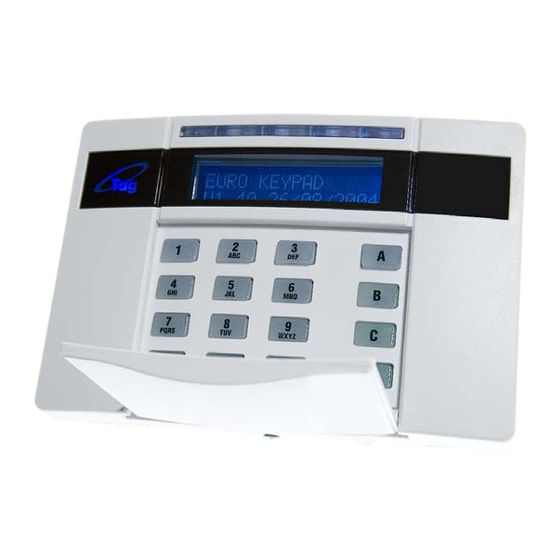

38-39 Service & Codeholder Records 40-41 Disclaimer Note the specification of EURO panels may vary between models, and some facilities in the manual may not be available. Check with your installer for full details. This equipment may be used in systems installed to a lower grade, which will be agreed with your installation company. - Page 3 EURO User Manual You’ve Made the Right Choice Using your EURO Alarm System just couldn’t be easier! This is the Keypad from where you control your Alarm System* *Please note that Keypad design may differ from that shown. Note: For your security, the keypad becomes disabled for 90 seconds after 30 incorrect key-presses, or after 6 attempts to present invalid tags.
- Page 4 EURO User Manual The Euro Keypad display gives MAINS FAIL important messages. It will alert you if you need to call your alarm installation engineer. The 10 digit numeric keypad is where you use your PIN code. The A B C D keys help simplify use,...
- Page 5 EURO User Manual Warning Indications All setting points (Keypads or Tag Readers) have LEDs to clearly indicate what is happening. Alert Alarm Tamper Fault Unset The ‘Alert’ LED will flash if there is information available to you. Enter your code to see the information. After a code has been entered, one of the following LEDs will light: Alarm, tamper or fault.
- Page 6 EURO User Manual Using Tags The EURO high security proximity tag (or card) will set or unset your alarm system with the minimum of fuss or complexity. The tag contains NO batteries and is completely maintenance free. Just touch the tag to the illuminated logo to use.
-
Page 7: Using Euro Panel With Code Or Tag
(if fitted) that is mounted screen. externally by the final exit door. If you use a Push-to- Set button, or final- The Exit Tone will cease door-set, you will see the screen below. Leave via Exit Route EURO is now SET Page 6... - Page 8 “beep – beep – beep –“ ENTRY [010] Key in your PIN code, or present TIME your tag. The Entry Tone will cease To indicate that the system has unset, unset will illuminate for five seconds. EURO is now UNSET Page 7...
- Page 9 EURO User Manual Using an External Proximity Reader Setting your EURO panel with the External Proximity Reader Present a valid tag to the reader and then remove it. The GREEN LED will come on Present the same tag to the reader, and then remove it.
-
Page 10: Intelligent Setting
EURO User Manual Intelligent Set If you wish to set your EURO panel and stay in the building (e.g. set the alarm night), EURO’s intelligent operating system will realise which level of security you require and will set only part of the system. -
Page 11: Silencing The Alarm
The display will indicate the why Alarm Silenced Low Volts the alarm has activated. Press the ‘YES’ Key EURO will advise you on any Call Engineer Low Volts action that is needed. If the ‘Alert’ LED indication remains lit, there is additional information available. -
Page 12: Engineer Reset
You will be required to quote a 6-digit code by telephone (advise them that the Quote G19867 system is a Castle Euro ONE). You will Anti-Code Needed then be given a special code which will reset the system for that one occasion only. -
Page 13: Setting Individual Areas
EURO User Manual The A B C D Keys Euro 1 Sometimes your security needs Time:15:20 will be a little more complex and you will need to use the A B C D keys. Your installer can also give names... - Page 14 To change your mind, press the relevant A B C D key(s) again. Press the Yes key to accept Setting areas will now be displayed, SETTING with the corresponding area keys ALL AREAS being lit. EURO will now set the selected areas. Page 13...
- Page 15 EURO User Manual Flexi-Unset When EURO is already set and you Euro 1 wish to unset: Time:15:25 Key in your PIN code or present your tag. If entry timer has started: All areas for which the tag or PIN code is valid will be unset.
- Page 16 EURO User Manual Flexi-Unset If your codes have been set up with Flexi-Unset enabled, will always have a choice of what areas you would like to set or unset, regardless of whether the entry timer is running or not – providing you have a code valid for the relevant areas.
-
Page 17: Chime Facility
EURO User Manual The Chime Facility The ‘C’ key can be used to select ‘chime’ facility while system is Unset. For example, you may wish to be alerted if someone enters through a particular door during the day. Simply press the ‘C’ key. -
Page 18: Omitting Inputs
EURO User Manual Deliberately omitting an Input when leaving the Building In a domestic setting you may wish to ignore a window you have deliberately left open in the summer time. There may be another fault on the system which you want to ignore when you set the system. - Page 19 If it has been accepted it will be displayed on the screen. Repeat for any other inputs that need to be omitted. After 10 seconds EURO will begin to set These inputs will be omitted for this one period only.
-
Page 20: Keypad Hold Up/Personal Attack
EURO User Manual Keypad Hold-Up If you need to summon personal assistance in an emergency, EURO Euro 1 allows you to do so. Time:15:40 Simply press the ‘1’ and ‘7’ keys at the same time. To reset: Enter you PIN code or present your Tag. -
Page 21: Manager Menu
EURO User Manual Manager Menu The manager menu is accessed by Euro 1 pressing ‘D’ and then keying in your Time: 15:45 Manager PIN code. You then have a choice of: Set Date & Time? (see page 21) Omit Inputs? -
Page 22: Changing Date & Time
EURO User Manual Set Date and Time Press ‘NO’ to move to next menu. SET DATE & TIME? Press ‘YES’ (Press ‘NO’ to move to the next menu) Enter Year (eg 06=2006) YEAR (00-99) [06] Press ‘YES’ Enter Month MONTH (1-12) [08] Press ‘YES’... -
Page 23: Omitting 24 Hr Inputs
EURO User Manual Omit Inputs Some of your doors may rarely be used (e.g fire doors) and your Omit Inputs[--] system may be designed such that if they are opened your panel will generate an alarm, even if the panel is unset. If you need to open these doors you can omit them from the system as shown below. -
Page 24: Change/Add Codes Or Tags
EURO User Manual Changing or Adding PIN Codes or Tags A record should be kept as shown on Page 41 CHANGE CODES? Press ‘YES’ (Press ‘NO’ to move to the next Menu) Press ‘YES’ Change User Codes? (Press ‘NO’ to program the Master... - Page 25 EURO User Manual Changing or Adding PIN Codes or Tags EURO identifies each user by a USER NUMBER [02] different ‘User Number’. Eg ‘John’ would be user 01 – ‘Jane’ would be user 02 etc. Now key in the ‘User Number’...
- Page 26 EURO User Manual Changing or Adding PIN Codes or Tags Choose the level of authority the User Type user is allowed. (User) User – cannot access Manager Menu. Manager – can use Manager Menu. (Use ‘B & D’ keys to make your choice).
- Page 27 EURO User Manual Changing or Adding PIN Codes or Tags Flexi-Set gives you the opportunity to choose the areas you require to Flexi Set set when you use your PIN code or Tag. If you do not choose Flexi-Set your...
- Page 28 EURO User Manual Changing or Adding PIN Codes or Tags Using the numeric keys, you can enter a user name, similar to typing a text message on a mobile phone. Use ‘0’ key for space. The A B C D keys on the keypad are used as follows: ‘A’...
-
Page 29: Review History Log
EURO User Manual Review History Log REVIEW LOG? Press ‘YES’ (Press ‘NO’ to move to the next menu) Panel Log? Press ‘YES’ To advance through the logs: Date & Time Press ‘D’ <EVENT> For added information: <Area Involved> Press ‘C’... -
Page 30: Sms Phonebook
EURO User Manual SMS Phone Book Press ‘YES’ PHONEBOOK? (Press ‘NO’ to move to the next Menu) Use the ‘D’ key to scroll to which SMS Numbers SMS telephone number you wish to change (1-4). Press ‘YES’ Using the numeric keys, type in the Mobile No. -
Page 31: Walk Testing Detectors
EURO User Manual Testing your System Press ‘YES’ WALK TEST? (Press ‘NO’ to move to the next Menu) Choose the area(s) you wish to test by pressing the appropriate ABCD keys. Press ‘YES’ Walk Test Zone Front Door All detectors waiting to be tested will scroll in the display. -
Page 32: Sms Messaging System
The fee for routine checking is collected automatically via a premium rate number when the EURO panel makes its regular authorisation and routing call to the Castle Host Computer (CHC). Should this call fail, the display will show ‘CHC Test Fail’... - Page 33 EURO User Manual Test CHC Communications It is recommended that this test is only undertaken under supervision your alarm installation engineer. Press ‘NO’ to move to the next menu TEST CHC COMMUNICATIONS? (Press ‘YES’ to make the test (under the...
-
Page 34: Dial Out Menu
EURO User Manual Dial Out Menu Your alarm system DIAL OUT MENU? configured so that you can control the system via a PC. If you wish to continue… Press ‘YES’ (Press ‘NO’ to move to the next menu) Use the ‘D’ key to select the... -
Page 35: Testing Your Sounder
EURO User Manual Allow Engineer Menu When your alarm installation engineer comes your premises ALLOW ENGINEER maintenance visit or to correct a fault MENU? after an alarm he will require access to the programming of the system. Press ‘YES’ Allow Engr Menu? Use ‘B &... -
Page 36: Block Remote Set
EURO User Manual Block Remote Set Your alarm system BLOCK REMOTE configured that your alarm SET? installation company or company manager can set or unset the system remotely via PC. Should you wish to block this access you can do so through this menu. - Page 37 You will be required to quote this 6-digit code by telephone (advise Eng Restore Required G15234 them that the system is a Castle Euro ONE). You will then be given a special code which will reset the system for that one occasion only. Press ‘YES’...
-
Page 38: Programming Options
EURO User Manual Menu Exit To exit from Manager Menu and return EXIT MANAGER to normal mode. MENU? Press ‘YES’ If you wish to select any of the Manager Menu items again press the ‘NO’ until your choice displayed (see page 20). -
Page 39: Troubleshooting
EURO User Manual Troubleshooting Help with Setting your System If when you key in your PIN code (or present your Tag) a warning tone sounds and the fault LED comes on, the keypad display will show the nature of the problem. - Page 40 EURO User Manual Troubleshooting Problems when leaving Building If when you have closed the final exit door (and pushed the ‘Push to Set’ button if fitted), the exit tone continues sound interrupted tone… “beep – beep – beep – “...
-
Page 41: Service & Codeholder Records
Software Version (See below) Installed to Grade Environmental Class 2 All EURO panels are suitable for use in installations designed to meet the European requirements of Grade 3. External set/unset readers and access control readers meet the requirements of environmental class 4. -
Page 42: User Codes
EURO User Manual User Codes Warning: This information should be removed from the manual and stored in a secure location. Photocopy this page if you have more users. Access Name Type Areas Attributes FlexiSet Reader John Manager ABCD Set/Unset 1 2 8... -
Page 43: Disclaimer
EURO User Manual Disclaimer EURO includes the facility to send electronic signals to an Alarm Receiving Centre (ARC), and also to send SMS text messages to mobile telephones. Alarm, etc. signals may be transmitted via a PSTN link, using a variety of formats, to suitable receiving equipment located at the premises of an independently operated Alarm Receiving Centre. - Page 44 Areas Descriptions Page 43...
