CASTLE Meridian User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Welcome to
Welcome to
Security and
Peace of Mind
C A S T L E

Advertisement

loading

Related Manuals for CASTLE Meridian

Summary of Contents for CASTLE Meridian

  • Page 1 Welcome to Welcome to Security and Peace of Mind C A S T L E...

  • Page 2: Table Of Contents

    Contents Introduction A1-3 Using Meridian with your PIN Code B1-7 Using Meridian with your Tag C1-8 When Problems Arise D1-2 Chime Facility Continual Protection Omitting Zones Masked Detectors Keypad Personal Attack Changing or Adding Codes or Tags Changing Date and Time...

  • Page 3: Introduction A1-3

    THIS INFORMATION IS FOR USE BY THE INSTALLER ONLY To simplify operation for the user and to avoid unnecessary confusion, the Meridian User Manual can be made up to include only relevant information. Select the modules you require and insert into the binder supplied Sections Content ✔...
  • Page 4 You've Made the Right Choice Using your Meridian Alarm System just couldn't be easier! This is the Keypad from where you control your Alarm System.

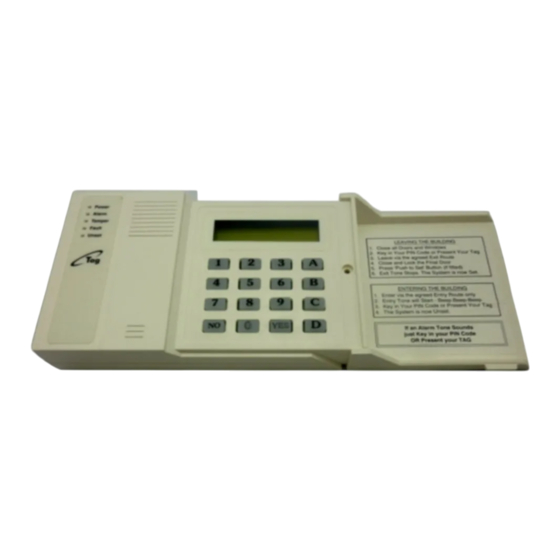

  • Page 5 The Meridian Keypad The display gives you any MAINS FAIL important messages. The 12 digit numeric keypad is where you use your PIN code. MAINS FAIL The A B C D keys help simplify use. The 4 display lights show the status of the protected areas controlled by your Alarm.
  • Page 6 Security Checks Before you switch Meridian on you must ensure all doors and windows are securely closed and any pets are excluded from areas protected by movement sensors. Close Windows Close Doors Exclude Pets...
  • Page 7 Using the Keypad With Your 4 Digit PIN Code...
  • Page 8 Leaving the building MERIDIAN TIME: If you are leaving the building, go to the Keypad and key in your 4 digit PIN code. Exit tone starts. SETTING Leave by the agreed exit route.
  • Page 9 Finally, press the 'Push to Set' button (if fitted) that is mounted externally by the final exit door. Exit tone will cease. Meridian is now set. (If the exit tone continues with an interrupted tone, you must re-enter the building, note the message on the display, and switch the alarm off with your PIN Code.)
  • Page 10 Keypad. Entry tone will be sounding. "Beep - Beep - Beep - - - " MERIDIAN TIME: Key in your 4 digit PIN code. Entry tone will cease. Meridian is now UNSET.
  • Page 11 Part - Setting Meridian If you wish to set Meridian and stay in the building. (eg set the alarm at night) Simply follow the same procedure. Meridian's intelligent operating system will realise what you require and set only part of the system.
  • Page 12 Intelligent Setting Staying in the building To part set Meridian go to the MERIDIAN Keypad and key in your TIME: 4 digit PIN code. Exit tone will start. Leave the protected area and SETTING B retire to the unprotected area BEDTIME (eg upstairs).
  • Page 13 Without Intelligent Setting Staying in the building To part set Meridian go to the MERIDIAN Keypad and key in your TIME: 4 digit PIN code and press 'B'. Exit tone will start. Leave the protected area and SETTING B BEDTIME retire to the unprotected area (eg upstairs).
  • Page 14 Unsetting Meridian To unset Meridian Go to the Keypad Entry tone will be sounding "Beep - Beep - Beep- - -" MERIDIAN TIME: Key in your 4 digit PIN code. Entry tone will cease. Meridian is now unset.

  • Page 15: Proximity Tag

    Using a Proximity Tag...
  • Page 16 Using Tag Meridian's High Security Proximity Tag can be used to set or unset your Alarm System with the minimum of fuss or complexity. The Tag contains NO batteries and is completely maintenance free. Just touch the Tag to the logo...
  • Page 17 Leaving the building To set Meridian, simply touch the Meridian Keypad as shown with the Tag. The Keypad will "Beep" to acknowledge the Tag. SETTING Exit tone starts. Leave by the agreed exit route.
  • Page 18 Leaving the building Close and lock the final exit door Finally, press the 'Push to Set' button (if fitted) that is mounted externally by the final exit door. Exit tone will cease. Meridian is now set.
  • Page 19 Keypad. Entry tone will be sounding "Beep - Beep - Beep - - -". Touch your Tag to the Keypad. Entry tone will stop. MERIDIAN Meridian is now UNSET. TIME:...
  • Page 20 Part - Setting Meridian If you wish to set Meridian and stay in the building (eg set the alarm at night) Meridian's intelligent operating system will realise what you require and set only part of the system. You will NOT need to press a 'Push-to-Set' button if you set only part of the system.
  • Page 21 Intelligent Setting Staying in the building To Part Set Meridian go to the Keypad and touch your Tag to the Keypad. The Keypad will "Beep" to acknowledge the Tag. Exit tone will start. Leave the protected area and retire to the un-protected area (eg Upstairs).
  • Page 22 Without Intelligent Setting Staying in the building To Part Set Meridian go to the Keypad and touch your Tag to the Keypad. The Keypad will "Beep" to acknowledge the Tag. Immediately Press the 'B' key. The "B' light will come on.
  • Page 23 Unsetting Meridian To Unset Meridian Go to the Keypad. Entry tone will be sounding. "Beep - Beep - Beep - - -" Touch your Tag to the Keypad Entry tone will stop. Meridian is now Unset MERIDIAN TIME:...

  • Page 24: Pin Code

    When Problems Arise Just Key In Your PIN Code Present Your Tag...
  • Page 25 Just key in your PIN code Present your Tag. The Alarm will stop sounding. The display will indicate LOW VOLTS the problem. ALARM SILENCED Press the 'YES' key. Meridian will advise you on the LOW VOLTS action to take. CALL ENGINEER...
  • Page 26 They will require you to quote this 4-digit code by telephone (advise them it is for a Castle 'MERIDIAN' system). In exchange you will be given a special code which will reset the system for that one occasion...
  • Page 27 More Advanced Functions...
  • Page 28 The A B C D Keys Sometimes your security MERIDIAN needs will be a little more TIME: complex and you will need to use Meridian's A B C D keys. This will be true if you need more than just a 'Day' and 'Night' setting.
  • Page 29 Your Installer can give names to two of the keys (B and D), so that you can easily identify their functions. MERIDIAN TIME: For example: A = Set or Unset 'All of the System' B = Set or Unset 'Bedtime'...
  • Page 30 The 'Chime' Facility For example, you may wish to be alerted if someone enters MERIDIAN through a particular door TIME: during the day. Simply press the 'C' key. The 'C' light will come on. If the door is opened now you will be alerted by a Chime.
  • Page 31 Protection of Other Areas MERIDIAN Maybe during the day you wish TIME: to protect your Garage, Shed or Storeroom Simply enter your 4 digit PIN Code and Press 'D'. Present your Tag and Press 'D'. The 'D' light will come on.

  • Page 32: Continual Protection E6

    Continual Protection If Meridian is set at night, protecting Downstairs and the Storeroom (D), you may wish to leave the Storeroom protected when you switch the Alarm off in the morning. MERIDIAN TIME: In this case, enter your 4 digit PIN Code and press 'D'.
  • Page 33 To summarise Pressing one of the function keys within 5 seconds of entering your PIN Code, or presenting your Tag, will force Meridian to Set or Unset in a specific way. MERIDIAN TIME: CODE/Tag and 'A' = Set 'ALL' CODE/Tag and 'B' = Set 'BEDTIME'...
  • Page 34 Omitting a zone when leaving the building At some time you may wish to manually omit a zone. MERIDIAN For example, to isolate a OMIT ZONE? ..detector if a pet is in a room. Enter your PIN Code or present your Tag.

  • Page 35: Masked Detectors E9

    Simply key in your PIN Code or present your Tag to set Meridian as usual. If the 'masked' message appears in the display: LOUNGE...

  • Page 36: Keypad Personal Attack E10

    Keypad Personal Attack If you ever need to summon personal assistance in an emergency, Meridian allows you to do so silently. MERIDIAN TIME: Simply Press the '4' and '6' keys at the same time. This will send a silent signal to the monitoring centre.

  • Page 37: Manager Menu

    Manager Menu...
  • Page 38 Manager Menu MERIDIAN The Manager Menu is accessed TIME: by keying in your Manager PIN Code. You then have a choice of: Set System? Change Codes? (Tags) Set Date and Time? View Logs? Walk Test? WALK TEST Bell Test? Exit Manager Menu?
  • Page 39 TIME: To enter the Manager Menu Key in your MANAGER PIN Code The first Menu choice asks you if you wish to 'Set System'? To Set Meridian SET SYSTEM? Press'YES' To move to the next Menu Press 'NO' Remember 'YES' will let you...
  • Page 40 Change or add new PIN Codes/Tags Press 'YES' CHANGE CODES? (Press 'NO' To move to the next Menu) Meridian identifies each of the 15 Users by a different User Number. eg. 'John' would be user USER NUMBER>_ _ 01 - 'Jane' would be user 02 etc.
  • Page 41 Change Date and Time Press'YES' SET DATE & TIME? (Press 'NO' To move to the next Menu) Enter Year eg. 96 YEAR 96 - 59 = _ _ Press'YES' Enter Month eg. 10 MONTH 1 - 12 = _ _ Press'YES' Enter Date eg.
  • Page 42 Review History Log Press'YES' REVIEW LOG? (Press 'NO' To move to the next Menu) USER LOG Press'YES' To advance through the Logs Press 'YES' AN EVENT DATE AND TIME: To stop Review REVIEW LOG? Press 'NO' To move to the next Menu, press 'NO' again.
  • Page 43 Check all detectors are working WALK TEST? Press 'YES' (Press 'NO' To move to the next Menu) All zones to test will scroll in FRONT DOOR the display Walk around the building and operate all the detectors When all detectors have been NONE activated and are working, the display will show 'NONE'...
  • Page 44 Press 'YES' BELL ON Bell will sound Press 'YES' STROBE ON Strobe light will flash Press 'NO' BELL TEST? to escape to Main Menu To exit from Manager Menu and return to normal Mode EXIT MANAGER? Press 'YES' MERIDIAN TIME:...
