Hercules DJ-1800 User Manual

Mac edition with dj-1800

Using a Hercules DJ Console (Mac Edition) with DJ-1800

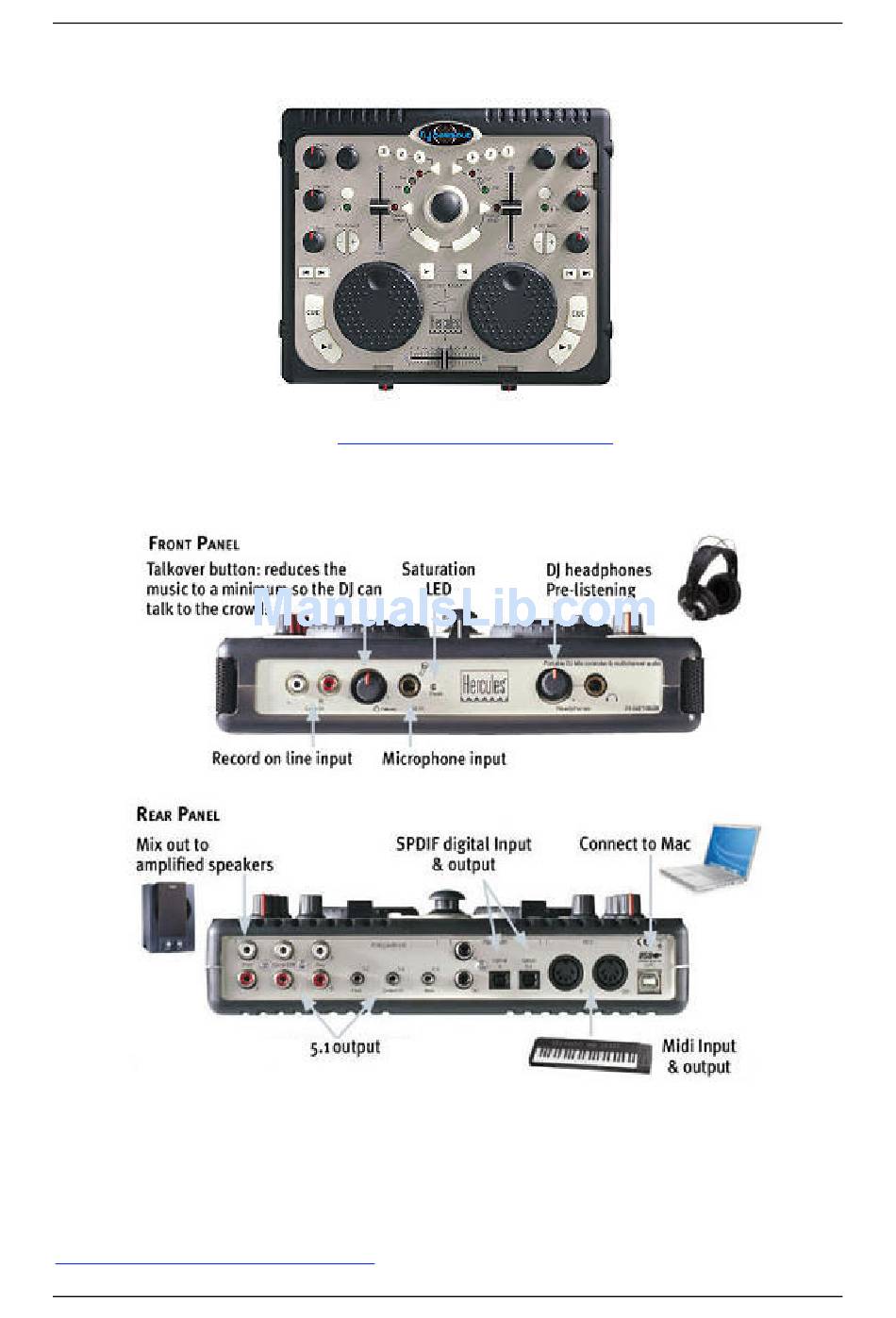

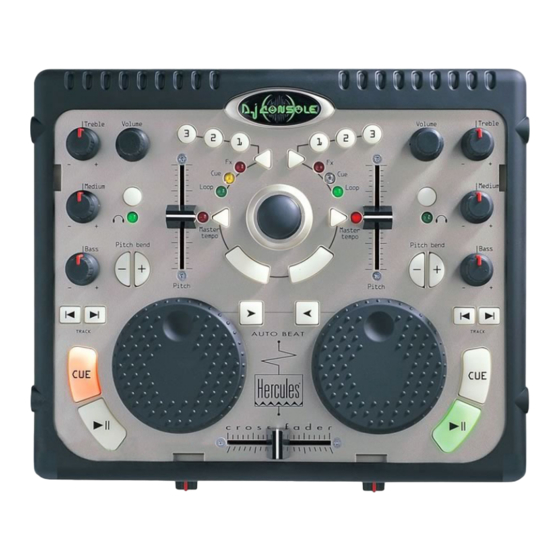

The Hercules DJ Console (Mac Edition) -

http://www.hercules.com/uk/DJ-Music/

- is a small but full-featured

MIDI DJ controller and 6-channel sound card. It includes 2 sets of controls, which can be used to control CD

Players 1 and 2 in DJ-1800. They can even be used to control DJ-1800 when it is in the background. The

Console also features an amplified headphone output and a microphone 'talkover' input.

To use a Hercules DJ Console (Mac Edition) – or "HDJC" - with DJ-1800 v3.0 or later under OS X, simply plug the

HDJC into your Mac, and then launch DJ-1800. The lights on the HDJC will flash on and off to indicate that the

console has been recognized by DJ-1800.

Note: This documentation describes the set up process for the original "Hercules DJ Console (Mac Edition)". If

you are using the newer "Hercules DJ Console MK2", or the "Hercules DJ Control MP3", please see the

appropriate documentation for those controllers, which can be downloaded from

http://www.dj1800.com/controlhardware.php.

1 of 4

Page

Table of Contents

Need help?

Do you have a question about the DJ-1800 and is the answer not in the manual?

Page 1 Console also features an amplified headphone output and a microphone ‘talkover’ input. To use a Hercules DJ Console (Mac Edition) – or “HDJC” - with DJ-1800 v3.0 or later under OS X, simply plug the HDJC into your Mac, and then launch DJ-1800. The lights on the HDJC will flash on and off to indicate that the console has been recognized by DJ-1800.
Page 2 Using a Hercules DJ Console (Mac Edition) with DJ-1800 Hercules DC Console (Mac Edition) controls for DJ-1800 Name on Equivalent to layout above Track |< Clicking on “Prev Track” button on the CD player Track >| Clicking on “Next Track” button on the CD player Pitch Bend - Clicking on the “Pitch Bend –“...
Page 3 The “Master Tempo” button has a small red light next to it on the HDJC. This button and LED are used for setting and showing the Pitch Lock status (on or off) in DJ-1800. The red light reflects the status of the green Pitch Lock LED on the corresponding DJ-1800 CD Player.
Page 4 Using the Hercules DJ Console (Mac Edition) as an audio output in DJ-1800 As well as providing a useful control interface for DJ-1800, the HDJC also features a 6-channel (3 x stereo) USB audio device. When plugged in to your Mac, the HDJC appears in DJ-1800’s Output Preferences as a 6- channel device, as shown in the picture below.
