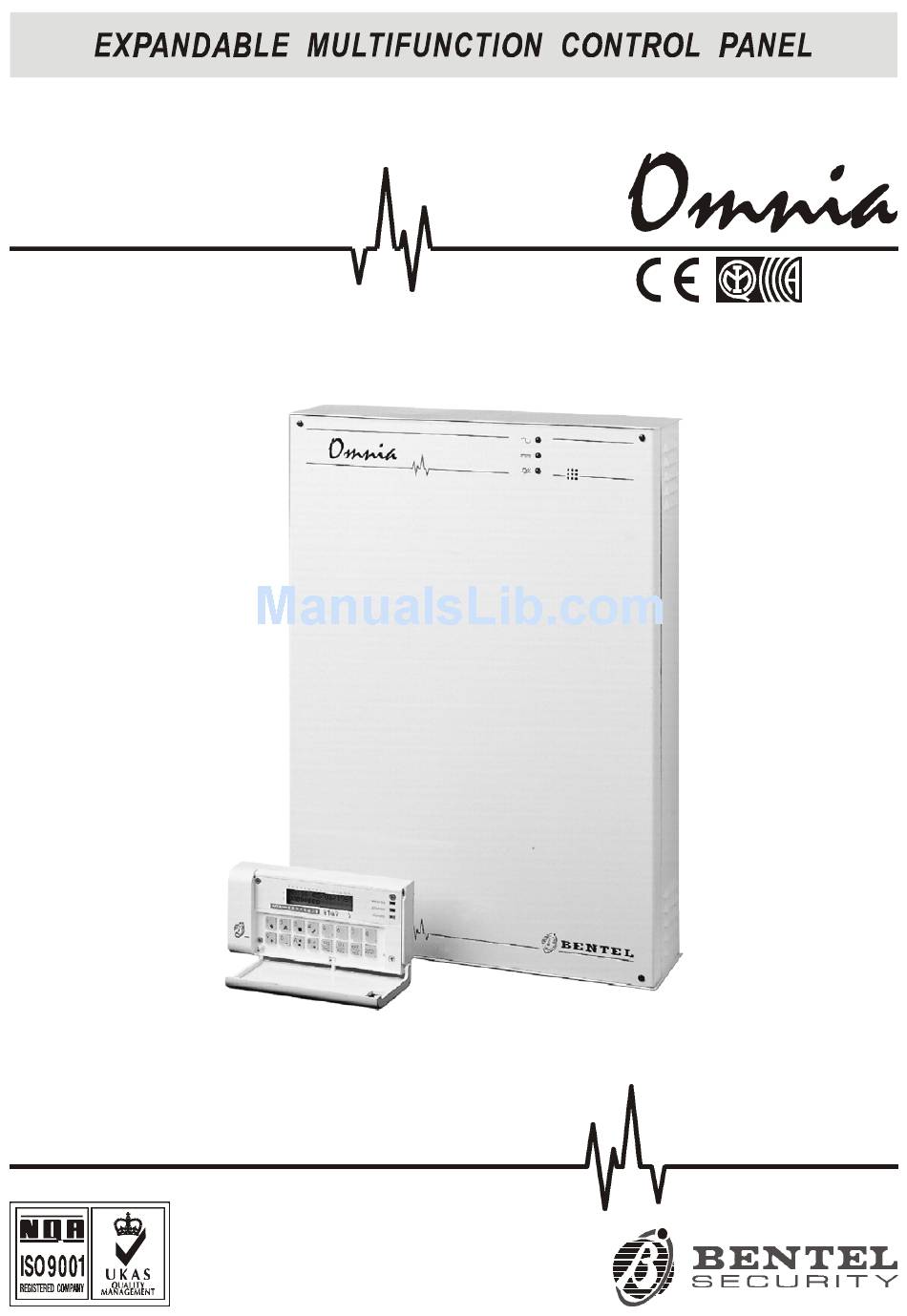

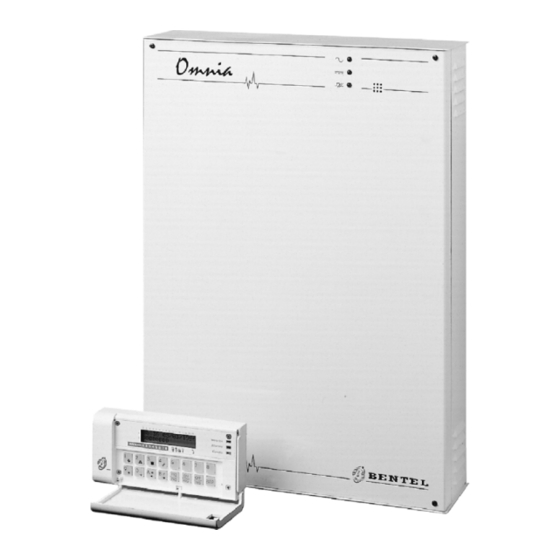

- Page 1 Omnia/S DAT n. U0805 USER MANUAL ®...
- Page 2 Installation of these systems must be carried out strictly in accordance with the instructions de- scribed in this manual, and in compliance with the local laws and bylaws in force. The above mentioned Omnia/S has been designed and made to the highest standards of quality and per- formance.
-
Page 3: Table Of Contents
CONTENTS Type A arming (Amber) ....16 KEYPAD OPTIONS Type B arming (green) ....16 LEDs . - Page 4 Figure 1 OmniaTAST-R (a) and MIA-S (b) Expandable multifunction control panel Omnia...
-
Page 5: Keypad Options
CONTROLLING THE SYSTEM VIA KEYPAD This section describes the OmniaTAST-R and MIA-S keypads. All basic security system options, and the Ad- vanced options provided by this Panel can be programmed and controlled from the keypads. This Control panel supports up to 8 keypads (see Figure 1a for OmniaTAST-R and Figure 1b for MIA-S ). The instructions for use are common to both keypads (if not otherwise stated), therefore, only the OmniaTAST-R keypad will be mentioned and illustrated. -
Page 6: Leds
False Key/Card at Reader BPI bus device Trouble The status of the Teleservice and Answer machine options will be shown to the right of the trouble warning: directly above an icon means the corresponding option is enabled. Expandable multifunction control panel Omnia... -
Page 7: Basic Options
Icons and meanings ICON MEANING Teleservice enabled Answering machine option enabled The last icon indicates the telephone line status. above the icon means the Panel has engaged the telephone line. ICON MEANING Telephone line engaged Basic options Five basic options are available from standby status. Enter a User code PIN (4 to 6 digits) then press the relevant key. -
Page 8: View Trouble
Low battery Low battery : battery needs recharging Warn.pow.troub. Warn.pow.troub. : battery trouble or the battery protection fuse has blown Warn.pow.station Warn.pow.station: remote power station trouble (mains failure, fuses, battery down or not working properly) Expandable multifunction control panel Omnia... -
Page 9: User Menu Options
User menu options <PIN> + Key in a valid User code PIN then press to access the USER MENU. A Welcome message will be shown, and it will be possible to select the various User menu options. The Welcome message can be disabled by the installer. to scroll the Options. -
Page 10: View Buffer
If the zone is double-balanced----the status may be: Stdby (Standby) Alarm Short Tamper Press to step back to the USER MENU. Press to view open or bypassed status zones of armed keypad partitions. Expandable multifunction control panel Omnia... -
Page 11: Arm/Disarm Partitions
Arm/Disarm partitions Select this option to arm/disarm partitions. The current status of the zone will be shown for example: The current status of the zone will be shown for example: North Perimeter ↑↓ Disarmed to scroll the enabled partition). Press to arm/disarm the selected partition. -
Page 12: Enable/Disable Teleservice [En./Dis.teleser.]
Press to Activate/Deactivate the selected output. Only outputs programmed as Reserved for manual control can be used for this purpose. A similar option is available via telephone (refer to TELEPHONE OPTIONS). Expandable multifunction control panel Omnia... -
Page 13: Code Programming
Programming Codes This option is available to Master codes only. The Code hierarchy (Masters and Slaves) must be programmed by the Installer. Master codes can select/deselect the Active status of their Slave codes, and change their PINs. Active User codes An Active User code can operate its enabled partitions and options only. If the Active status is deselected the User code will be unable to operate the system. - Page 14 Key Readers: a) PROXI Proximity Reader; b) PROXI-CARD; c) ECLIPSE Flush mounting,Contactless Reader; d) SAT Contactless Key; e) BP13 Flush mounting Reader with Contacts; f) BP13W Wall mounting Reader with Con- tacts; DKC key with contacts. Expandable multifunction control panel Omnia...
-
Page 15: Key Options
----type B arming mode the (Green LED) Keys/Cards The Omnia system supports 250 Keys/Cards (see Figure 2), and an unlimited number of clones of key/card 250. Each key/card can be programmed with specific attributes, and can be enabled on selected partitions, as per Cus- tomer requirements. -
Page 16: Global Arming
To Stop Alarms: use a valid Key at a Reader. If the Enable Panel-Alarm Stop with valid Electronic Key option is active, the Control panel alarms will also be interrupted. If the Key/Card is programmed to stop calls----the ongoing call will be interrupted and the call queue will be cleared. Expandable multifunction control panel Omnia... -
Page 17: Telephone Options
TELEPHONE OPTIONS The optional OmniaVOX board will allow the Panel to manage incoming and outgoing telephone calls (DTMF only). 7 User codes are available for Panel control via telephone. The installer can enable/disable User code options and partitions----as per customer requirements. There are two ways of accessing Panel control via telephone: ---- Dialler Mode Access (after receiving a Dialler call);... -
Page 18: Commands From The Telephone Keypad
This option applies to outputs that are Reserved for manual control. If the User code is not enabled for this option, or a non-reserved output is requested the Panel will emit an error beep. Arm Partition Press then press the Partition Identifier number key (refer to the MEMO). Expandable multifunction control panel Omnia... -
Page 19: Global Arming
The panel will arm the Partition then step back to Enter data status and emit a ready beep. Global arming Press to arm all the partitions of the User code in question. The panel will arm the enabled partitions only then step back to Enter data status and emit a ready beep. Disarm Partition Press then press the partition identifier number key (refer to the MEMO). -
Page 20: Memo
The MEMO below must be filled in by the Installer. Each User should have a copy for reference purposes. Cut along the dotted line and fold the chart in two (parts A and B back to back) then seal it in a plastic cover. Expandable multifunction control panel Omnia... -
Page 21: User Notes
USER NOTES USER NOTES... - Page 22 Expandable multifunction control panel Omnia...
-
Page 23: Quick Guide
Quick Guide Use the keys shown in the following table to operate the basic options. Global arming: User code Type A arming: User code Type B arming: User code Global disarming: User code Alarm reset: User code Stop Alarm: User code Clear call queue: User code FOR SERVICE CONTACT:... - Page 24 BENTEL SECURITY s.r.l. C.da Ravigliano, Z.I. S. Scolastica 64013 CORROPOLI (TE) - ITALY Tel.: +39 0861 839060 Fax: +39 0861 839065 e-mail: bentel@bentelsecurity.com http://www.bentelsecurity.com ISTOMNIAUSO-UK 4.0 020703 V4.2...
