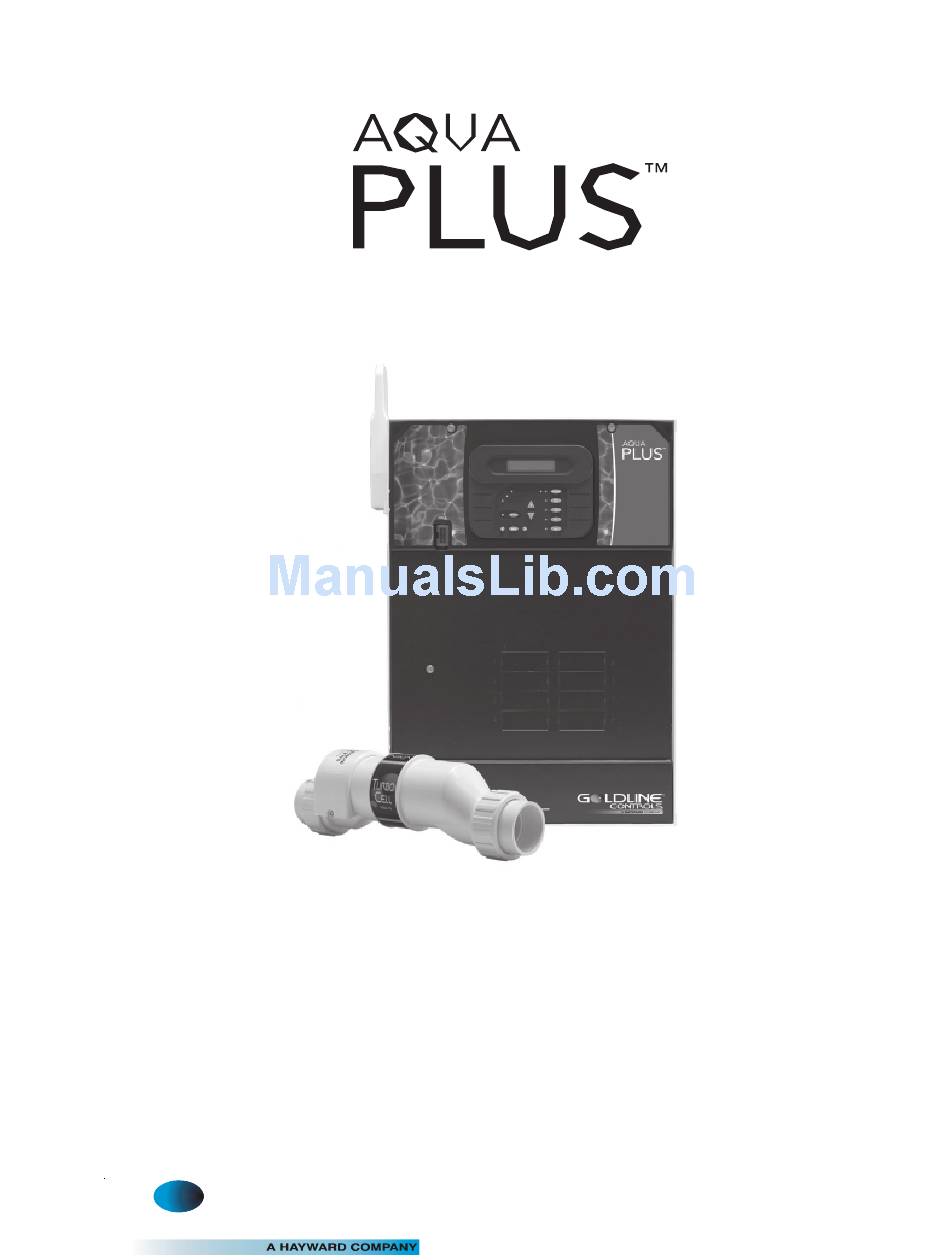

Goldline PL-PLUS Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Automation and Chlorination
Operation Manual
for models
PL-PLUS
PL-PLUS-20
G
LD
LINE
www.goldlinecontrols.com
C
ON TROLS
888-921-7665

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Goldline PL-PLUS

Summary of Contents for Goldline PL-PLUS

  • Page 1 Automation and Chlorination Operation Manual for models PL-PLUS PL-PLUS-20 LINE www.goldlinecontrols.com ON TROLS 888-921-7665...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS • • WARNING: Disconnect all AC power during installation. • WARNING: Water in excess of 100 degrees Fahrenheit may be hazardous to your health.

  • Page 3: Table Of Contents

    Table of Contents System Overview Block Diagram............... 1 Automation................1 Chlorination................1 Default Display............... 2 Manual System Filter Pump................3 Operation Lights and Aux Outputs............4 Pool/Spa Valves..............4 Service..................4 Automatic System Using the Programming Buttons.......... 5 Operation Programming Menu Flow Chart........... 6 (Programming) Settings Menu................

  • Page 4: System Overview Block Diagram

    System Overview The Aqua Plus is a multifunction pool controller used to fully manage your pool/spa system. The Aqua Plus can control pumps, valves, lighting, heaters, and chlorination. Although the Aqua Plus is easy to use, it is important to completely read through this operating manual before attempting to operate the control.

  • Page 5: Default Display

    The actual amount of chlorination required to properly sanitize a pool varies due to bather load, rainfall, temperature, and the pool’s cleanliness. For pools larger than 40,000 gallons, the Aqua Plus can control one or more Goldline Aqua Rite chlorinators to supplement chlorine production.

  • Page 6: Manual System Filter Pump

    Manual System Operation While the main objective of the Aqua Plus is to automate the operation of your pool/spa system, there may be certain times when you want to override the automatic operation and control the equipment manually. To operate the pool equipment manually while keeping the automation active, perform the following procedures.

  • Page 7: Operation Lights And Aux Outputs

    Lights, Aux1 and Aux2 Outputs Standard Relay: Manual operation of all 3 relays is identical. Assuming that the relay is currently off, simply press the appropriate button to turn on the relay. If the relay does not turn on, it probably is due to the “interlock” feature (which was set up in the Configuration Menu) being activated that requires the filter pump to be running and the valves to be in the pool-only position.

  • Page 8: Automatic System Using The Programming Buttons

    Automatic System Operation The Aqua Plus controls most of your pool equipment automatically in order to minimize the time spent working on your pool. Most of the pool equipment can be programmed to operate on a timeclock basis. In addition, the desired pool and spa temperatures and pool and spa chlorinator settings can be programmed.

  • Page 9: Operation Programming Menu Flow Chart

    Programming Menu Flowchart The Aqua Plus’s six menus have many items that allow you to customize the operation of your pool/spa equipment. The chart below shows the Aqua Plus’s menus as well as each menu’s specific settings. default menu day and time water temperature air temperature chlorinator setting...

  • Page 10: (Programming) Settings Menu

    The Default Menu is a series of informative displays (temperatures, salt levels, chlorinator settings, etc.) with nothing to set. The Aqua Plus will automatically switch to the default menu when no keys have been pressed for 2 minutes and will then scroll through each display. The Settings Menu and the Timers Menu are the menus you will be using most often to adjust the operation of your pool.
  • Page 11 Turn super chlorinate on or off Super Chlorinate Move to previous/next menu item This display only appears if the chlorinator function is enabled. If an AQL-CHEM is being used, super chlorinate will not be available if chemical sensing is enabled and ORP is in Auto Sensing (see AQL- CHEM manual).
  • Page 12 Pool High Speed Adjust the desired high speed for variable speed operation 100% Move to previous/next menu item This setting will appear if “spa only” is not selected and variable speed filter pump is enabled. This setting determines the speed of the pump during high speed pool or spillover operation. This value can be set from 20% to “Highest Speed”...

  • Page 13: Timers Menu

    Teach Wireless Push to start process + to start Move to previous/next menu item Press and hold Press any button on wireless remote wireless button Move to previous/next menu item Teach Wireless Move to previous/next menu item Successful Teach Wireless Move to previous/next menu item NOT Successful Teach Wireless...
  • Page 14 Adjust time setting Set Day and Time Filter T1-all Wednesday 10:37P 8:30A to 4:00P Move between start and stop times & to previous/next menu item Adjust time setting Filter T1-wkend 8:30A to 4:00P Move between start and stop times & to previous/next menu item Adjust time setting Filter T1-wkday 8:30A to 4:00P...
  • Page 15 Adjust time setting Set Day and Time Lights-all Wednesday 10:37P 8:00P to 11:00P Move between start and stop times & to previous/next menu item Adjust time setting Lights-wkend 8:00P to 11:00P Move between start and stop times & to previous/next menu item Adjust time setting Lights-wkday 8:00P to 11:00P...

  • Page 16: Configuration Menu

    Set Day and Time Valve3-all Adjust time setting Adjust time s Wednesday 10:37P 8:30A to 4:00P Move between start and stop times & to previous/next menu item Valve3-wkend Adjust time setting 8:30A to 4:00P Move between start and stop times & to previous/next menu item Adjust time setting Valve3-wkday 8:30A to 4:00P...
  • Page 17 Pool/Spa Config. Push to access Pool/Spa options + to view/change Move to previous/next configuration menu Rotates between Pool Only (default), Spa Only and Pool/Spa Setup Pool and Spa Pool and Spa Move to next menu item if “Pool and Spa” is selected Spa - CountDn Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15..., (default is 4:00)) 00:30...
  • Page 18 Filter Config. Push to access pump options + to view/change Move to previous/next configuration menu Filter Pump Rotates between 1-speed (default), 2-speed and variable speed options 1 Speed Move to next menu item if “Variable Speed” is selected Adjust the lowest speed desired for variable speed operation Lowest Speed Move to next menu item if “Variable Speed”...
  • Page 19 Heater1 Config. Push to access heater options + to view/change Move to previous/next configuration menu Toggle between Enabled and Disabled (default) Heater 1 Heater1 Disable Move to next menu item or previous/next configuration menu if “Heater1” is enabled Heater1 Cooldown Toggle between Enabled and Disabled (default) Heater 1 Cooldown Disabled Move to next menu item...
  • Page 20 Solar Config. Push to access solar options + to view/change Move to previous/next configuration menu Toggle between Enabled and Disabled (default) Solar Solar Disabled Move to next menu item or previous/next configuration menu if “Solar” is enabled Toggle between Enabled and Disabled (default) Solar Extend Solar-Extend Disabled Move to next menu item...
  • Page 21 Lights Config. Push to access Lights options + to view/change Move to previous/next configuration menu Rotates between Manual On/Off (default), Countdown Timer, Lights Function Low Speed- Filter, Timeclock, Solar, and Super Chlorinate Manual On/Off Move to next menu item for manual on/off, countdown timer and timeclock functions Lights Relay Toggle between Standard (default) and Dimmer...
  • Page 22 Lights External Input Interlock When Lights External Input Interlock is enabled, the lights output will be forced off when the external input is active. This will have precedence over freeze protection. Lights External Input Interlock is not available for solar, low speed filter pump, dimmer, super chlorinate, or pH dispense functions. Lights Freeze Protection This function helps protect equipment that is wired to the lights relay against freeze damage.
  • Page 23 Aux1 Interlock If “Enabled”, this feature will override the function (Manual On/Off, Countdown Timer, Timeclock), selected above and turn the aux1 off when: filter pump is off, first 3 minutes of filter pump operation (allows the pump to prime and get water flowing), when the pool/spa suction return valves are in any position other than “pool only”, or for the first 3 minutes after solar turns on (allows air in the solar panels to be purged).
  • Page 24 Valve3 Freeze Protection This function protects the pool and plumbed equipment against freeze damage. If Freeze Protection is enabled and the AIR temperature falls sensor falls below the selected freeze temperature threshold, the Aqua Plus will turn on the valve to allow circulation of the water. IMPORTANT: this only enables operation of the valve3 output during freeze--see the “Filter Pump Config.”...

  • Page 25: Maintenance Menu

    Toggle between 12 hour AM/PM (default) and 24 hour time format options Time Format 12 hour AM/PM Move to previous/next configuration menu Toggle between ºF and PPM (default) and ºC and g/L (Metric) options Units ºF and PPM Move to previous/next configuration menu Reset Config.

  • Page 26: Quick "How To" Operate The Spa - Manually

    Quick “How To” Guide Operate the Spa—Manually 1. Press the “Pool/Spa” button to go to “spa-only” operation (right LED illuminated). In some cases, this may take more than one press of the button. 2. If the filter pump is not already on, press the “FILTER” button to turn it on. 3.

  • Page 27: Start/Stop Superchlorination

    Note: Separate chlorinator output levels for the pool and spa must be set. If the valves are in the pool-only or spa spillover positions, then the chlorinator will operate according to the pool setting. If the valves are in the spa-only position then the chlorinator will operate according to the spa setting.

  • Page 28: Chlorinator Operation/Saturation Index

    Chlorinator Operation / Water Chemistry General Water Chemistry Salt is required when using the chlorinator feature on the Aqua Plus Control. Refer to the description of the Aqua Plus configuration menu for information on enabling/disabling the chlorinator (see page 13). Water Chemistry The table below summarizes the levels that are recommended by the Association of Pool and Spa Professionals (APSP).

  • Page 29: Water Chemistry Salt Level

    Salt Salt Level Use the chart on the following page to determine how much salt in pounds or (Kgs) should be added to reach the recommended levels. Use the equations below (measurements are in feet/gallons and meters/liters) if pool size is unknown.

  • Page 32: System Maintenance Servicing And Cleaning The Turbo Cell

    System Maintenance To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The Aqua Plus will remind you to do this by displaying the message “Inspect/Clean Cell” after approximately 500 hours of operation. The Aqua Plus electrolytic cell has a self cleaning feature incorporated into the electronic control’s logic.

  • Page 33: Troubleshooting & Service Mode

    While both of the features are primarily intended for the use of the professional service technician, their function is fully explained below. If you believe your system is not operating properly or have questions regarding the opera- tion, call the Goldline Technical Service Department from Monday through Friday, 8AM to 8PM EST at 888- 921-7665.
  • Page 34 • No Cell Power -- If no chlorinator cell power is detected on the printed circuit board. • Check Flow Switch -- If the flow switch input is invalid. • Cell Power Error -- If a chlorinator cell power error is detected on the printed circuit board. •...

  • Page 35: Diagnostic Menu

    Diagnostic Menu To enter the Diagnostic Menu, press the “Menu” button repeatedly until the display shows “Diagnostic Menu”. At this point, you can use either the “<” or “>” buttons to scroll through the various menu items which are described below: Press to switch chlorinator operation to opposite polarity (15 second delay) +23.45 Set Day and Time...
  • Page 36 Remote A r1.00 Move to previous/next menu item Available displays depend on configuration. If you call the Goldline Technical Service Dept. for assistance, they may ask for the software revisions of both the main unit and each of the display/ keypads or other devices that are attached to the system.
  • Page 39 (3) years. Hayward/Goldline also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year. These warranties are applicable from the initial date of installation on private residential swimming pools in the US and Canada.
  • Page 40 Add cyanuric acid to increase. Calcium 200 - 400 ppm Add calcium to increase. Drain and add water to decrease. Electrolytic Cell inspect & clean Refer to section in manual. LINE ON TROLS 092360D North Kingstown, RI 02852 USA Copyright © 2009 Goldline Controls...
