POWER REQUIREMENTS:
EA200-12: 11 to 14 VDC @ 120mA
EA200-24: 23 to 26 VDC @ 120mA
PWR IN
PWR OUT
Zone 2
STEP 1: CONNECT POWER AND PROBE(S)
Connect power to the PWR IN terminals, as shown in Figure 1. Be sure to observe proper polarity. Connect the probe(s) to the
zone(s) you intend to monitor. Extend the length of probe wiring up to 1,000' (304.8m) using 22-18 AWG twisted pair.
EA200 NOTE:
Zone 1 is dedicated for the on-board temperature sensor. Remote probes must be programmed on Zone 2.
There is only one input for a remote probe on the EA200 - this is Zone 2.
EA400 NOTE:
The EA400 does not have an on-board temperature sensor and uses only remote probes.
STEP 2: UNLOCK CONSOLE FOR PROGRAMMING
To unlock the console, press and simultaneously release the ENTER and ALARM SILENCE buttons. The
"lock" icon should change to "unlocked".
STEP 3: SET THE TIME AND DATE
Press the TIME/DATE button. Using either the INCREASE or DECREASE button, adjust the hours and then press the ENTER
button. Continue in this manner to set the minutes, AM/PM, year, month, and day. If power is lost, the time and date must
be reset.
STEP 4: PROGRAM THE ZONE(S)
1. Press the ZONE button. The active zone number will be flashing.
2. Select the zone you wish to program using INCREASE or DECREASE and then press ENTER. The "no"
means "not operational" and indicates the zone is currently off. Any zone not programmed should
be set to "no" and therefore turned off.
3. Based on the chart (Figure 2), select the proper sensor type using INCREASE or DECREASE and press ENTER.
AUX OUT
Zone 1
(On-Board
Sensor)
Zone 2
(External
Probe)
EA200

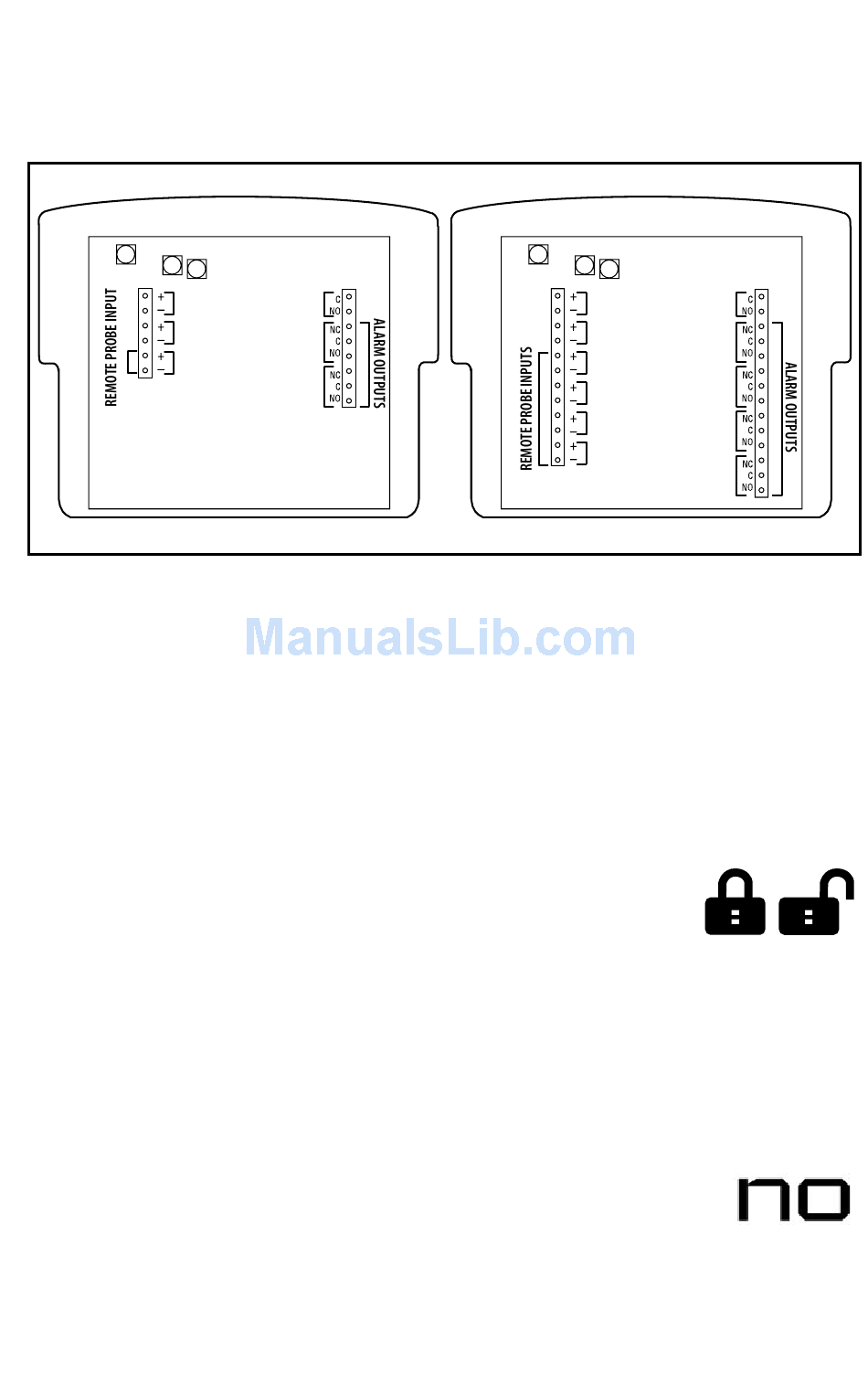

Figure 1 - EA200 and EA400 Wiring
EA400-12: 11 to 14 VDC @ 200mA
EA400-24: 23 to 26 VDC @ 200mA
PWR IN
PWR OUT
Zone 1
Zone 2
Zone 3
Zone 4
EA400
AUX OUT
Zone 1
Zone 2
Zone 3
Zone 4
Lock Unlock
