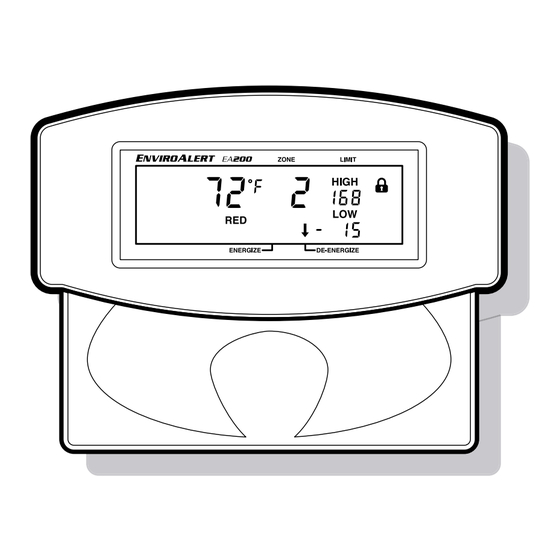

Winland Electronics ENVIROALERT EA200 Quick Start Manual

Q S G
UICK TART UIDE
Tech Support 8:00am - 5:00pm Central Time
(800) 635-4269 • +1-507-625-7231 P
www.winland.com
A T S
LWAYS EST THE YSTEM
Test the system to ensure proper operation prior to leaving the job site. To test the system, either change the probe's
temperature so it exceeds your limits, or change the limits to simulate an alarm. If a delay has been programmed, take the
delay out, test the unit, and then put the delay back in.
F /C M
REEZER OOLER
Never install the EnviroAlert console in a cooler or freezer (condensing environment). Instead, use a remote probe (TEMP-L-S
or TEMP-L-W) and program your zone accordingly. Extend the length of probe wiring up to 1,000' (304.8m) using 22-18 AWG
twisted pair.
A F A
VOIDING ALSE LARMS ON A
Both the EA200 and EA400 offer an alarm delay from 0-120 minutes for each zone. When a cooler or freezer door is opened,
the temperature will rise and the probe will detect that rise. Freezers periodically need to enter a defrost cycle which may
also cause the temperature to rise above your limits. Set delays to avoid nuisance alarms under these normal circumstances.
We cannot advise you on what to set for delays or limits.
O -B T S
N OARD EMP ENSOR
The EA200 has an on-board ambient temperature sensor and it is programmed on Zone 1.
More information and product manuals can be found at: www.winland.com
ONITORING
C
OOLER OR
(EA200
ONLY
F
REEZER
)
© 2012 Winland Electronics, Inc.
D-011-0099 Rev E (08/2012)
