Summary of Contents for Winland Electronics EA200

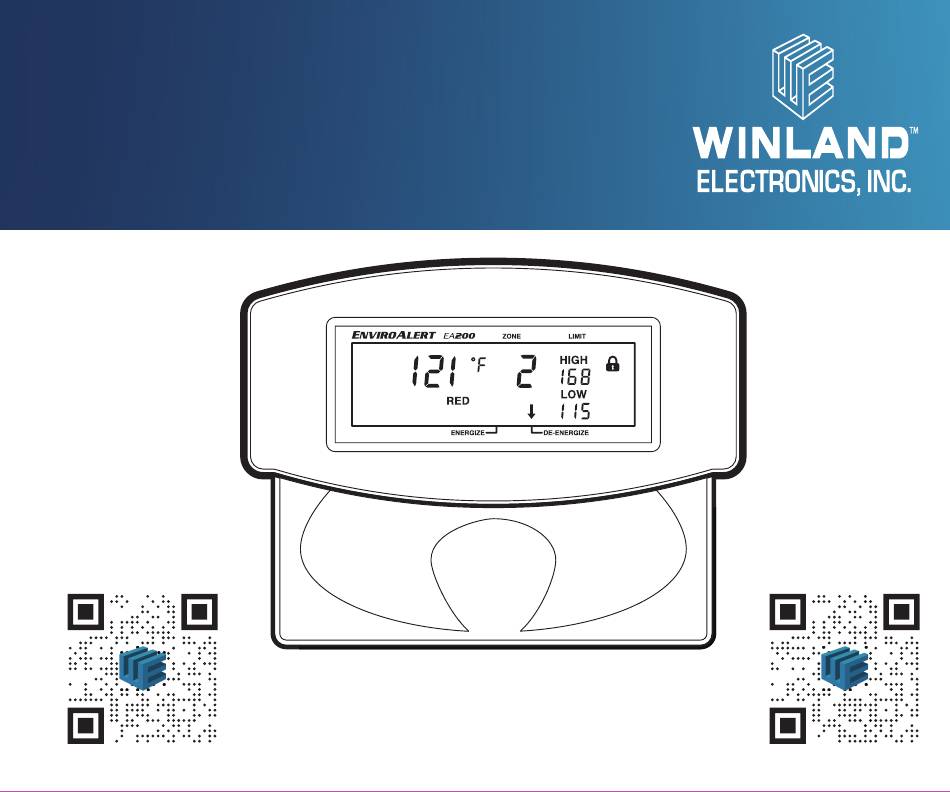

- Page 1 EA200/EA400 QUICK START GUIDE EA200 EA400 DOCUMENTATION DOCUMENTATION...
- Page 2 Limitations of the Alarm System or Device This quick start guide is NOT a substitute for the EA200/EA400 User Manual. All documentation related to operations should be followed. For further guidelines and safety information, please read the entire EA200/EA400 User Manual prior to installation and operation of this unit.
-
Page 3: Front Panel
FRONT PANEL OFFSET INCREASE TIME/DATE ENTER ALARM SILENCE ALARM HISTORY DECREASE... -
Page 4: Back Plate
BACK PLATE EA200 EA400 POWER CONNECTIONS PWR IN PWR IN AUX OUT AUX OUT Zone 1 PWR OUT PWR OUT Zone 1 (On-Board Sensor) Zone 2 Zone 1 Zone 2 Zone 2 (External Zone 2 Sensor) Zone 3 Zone 3... - Page 5 UNLOCK To UNLOCK the unit, press the ALARM SILENCE and ENTER key at the same time and release at the same time. Padlock indicates devices lock status. Closed padlock indicates device is locked. Open padlock indicates device is unlocked. ENTER ALARM SILENCE...
- Page 6 PROGRAMMING SENSOR This table depicts the type of zone to program based on your sensor.
- Page 7 PROGRAMMING SENSOR UNLOCKED NOTE Device MUST be unlocked to program/edit/delete sensors. Not all screens shown in quick start guide. Once the device is unlocked. Press ZONE to enter programming. You can verify you are in program mode when the zone number is flashing. NOTE When changing setting while in programming you will use the INCREASE/DECREASE buttons and...
- Page 8 PROGRAMMING SENSOR Set desired HIGH limit. Use INCREASE/DECREASE buttons to set high limit, then press ENTER button. Set desired LOW limit. Use INCREASE/DECREASE buttons to set low limit, then press ENTER button. Set desired time delay. Number depicts the amount of minutes before alarm goes off. Use INCREASE/DECREASE buttons to set time delay, then press ENTER button.
-
Page 9: Troubleshooting
-50°C or -58°F. (Blue Sensor) correct. Make sure Terminal Block Adapter is • Bare wire end not properly inserted into properly connected to the EA200/EA400 header Terminal Block Adapter. • Flashing Zone digit and ashing temperature connector pins.
