Connections

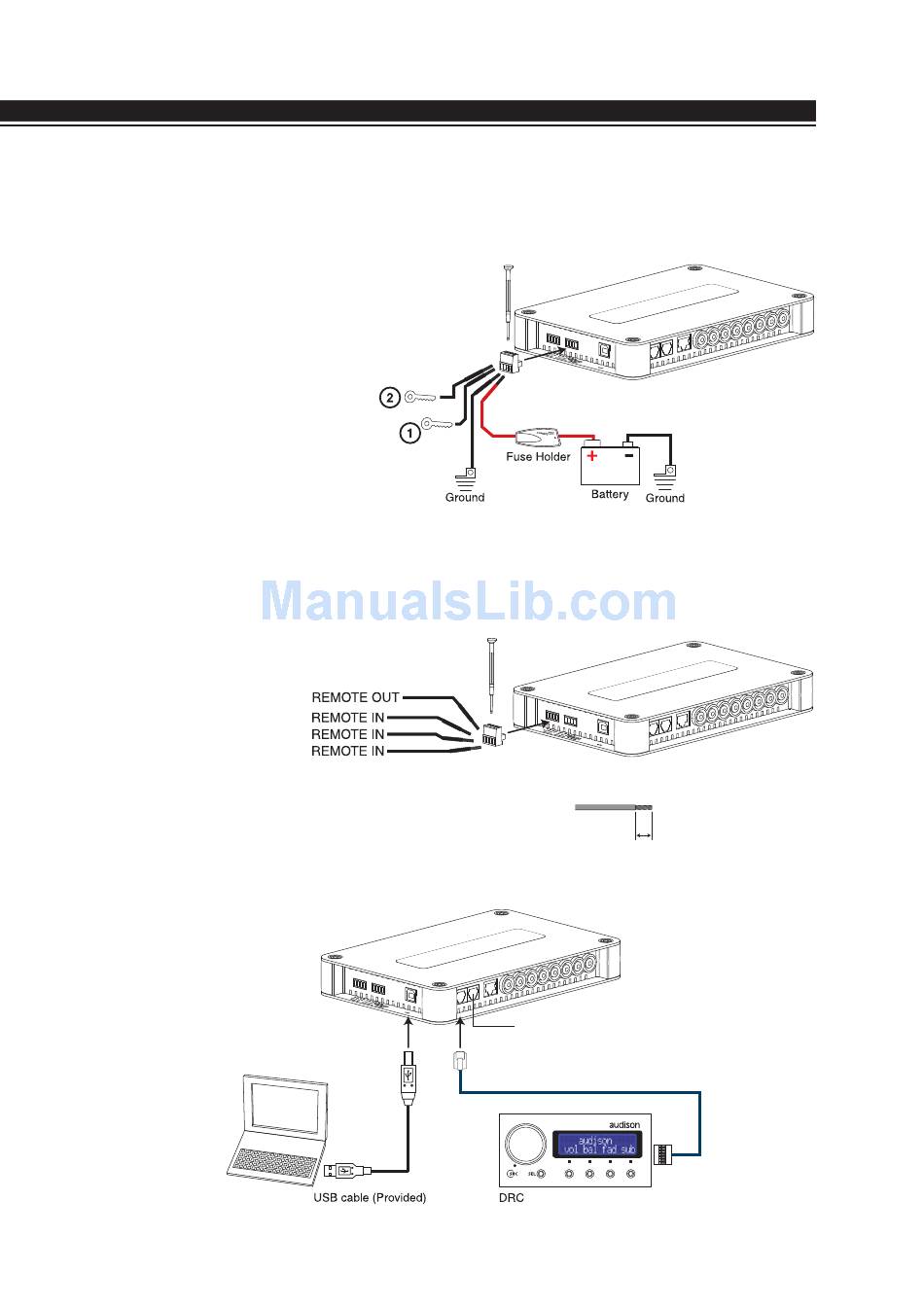

POWER SUPPLY and REMOTE IN connection
WARNING:
OPTIONAL controls:
Use turn on control 1 or
turn on control 2.
REMOTE ON/OFF (IGNITION SWITCH)
1. Ignition switch Remote on/off control.
2. Ignition switch Remote on/off command with memory: recalls how it has been shut off; if the proces-
sor was turned off by DRC unit (optional) you can turn it on by proper DRC control. If the processor was
turned off by ignition switch, you can turn it on with the ON operation of the ignition switch.
WIRES FOR CONNECTION TO THE PROCESSOR
PERSONAL COMPUTER and DIGITAL REMOTE CONTROL connection
ADVANCED MANUAL / Bit One
ADVANCED MANUAL / Bit One
TO AC Link PROVIDED AMPLIFIER
DRC IN
5
5
L: 7 mm (5/16")
MAX: 16 AWG
