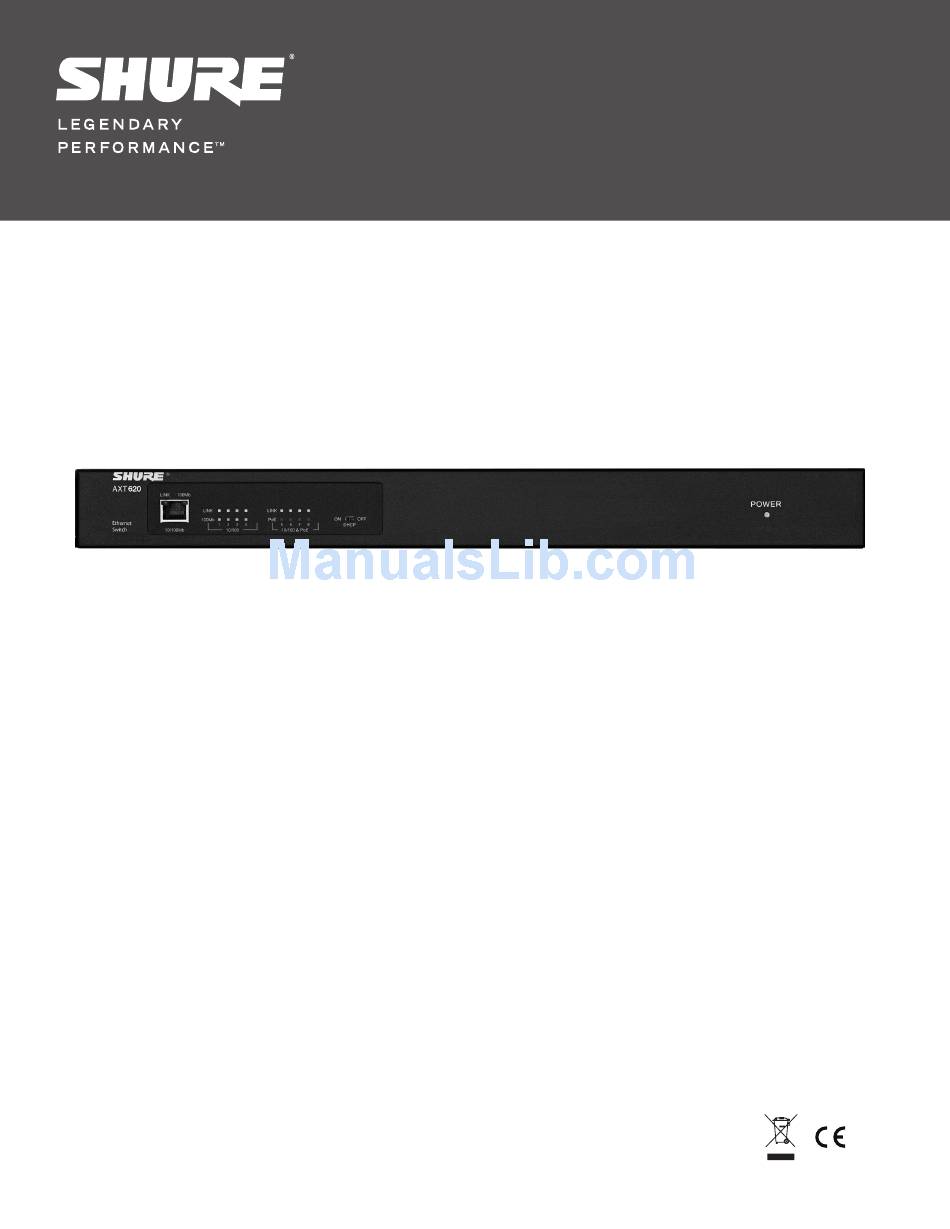

- Page 1 AXT620 Ethernet Switch ©2011 Shure Incorporated 27A15022 (Rev. 2) Printed in Taiwan...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been 1. READ these instructions. exposed to rain or moisture, does not operate normally, or has been dropped. 2. KEEP these instructions. 15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with 3. HEED all warnings. liquids, such as vases, on the apparatus. 4. FOLLOW all instructions. 16. The MAINS plug or an appliance coupler shall remain readily operable. 5. DO NOT use this apparatus near water. 17. The airborne noise of the Apparatus does not exceed 70dB (A). 6. CLEAN ONLY with dry cloth. 18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s protective earthing connection. instructions. 19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other moisture. apparatus (including amplifiers) that produce heat. 20. Do not attempt to modify this product. Doing so could result in personal injury and/or 9. DO NOT defeat the safety purpose of the polarized or groundingtype plug. A polarized product failure. -
Page 3: Included Components
AXT620 Ethernet Switch The AXT620 Ethernet Switch is a rugged, rack-mountable 9-port switch that simplifies the networking of Shure systems and minimizes network con- figuration setup. It is equipped with Power over Ethernet (PoE) ports for enabled devices and a DHCP server to automatically assign IP addresses to components. -
Page 4: Web-Based Management
Web-Based Management The switch is managed from an embedded web server, which offers advanced management features and lets you manage the switch from anywhere on the network through a standard web browser. The Web-Based Management supports Internet Explorer 6.0 or later version. Default Values Change your user name and password for increased security. -
Page 5: System Information
Factory Default on the left-hand side of the Main Page of the switch. NOTE: Before doing a firmware upgrade, either unplug or power off all devices connected to the AXT620 except the computer. DHCP Server - Client Entries When the DHCP server function is enabled, you can view DHCP client information here. -
Page 6: Troubleshooting
Example Configuration: Multiple Ethernet Switch Setup • Any AXT620 switch (but only one) can be set as the DHCP server • Each networked device needs an individual connection to the switch • Connect them via any port AXT620 with front... -
Page 7: Specifications
The Switch shall have four ports providing Power over Ethernet for Class 1 Ethernet powered devices. The Switch features can be managed using a web-based interface. The Ethernet Switch shall be the Shure AXT620. - Page 8 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
