Thank you for choosing the Snapfōn
"ez ONE". Please read this user
manual thoroughly before use.
We reserve the right to change the software, product, and manual without
prior notice. The images in this user manual may differ slightly from your
phone. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ez ONE and is the answer not in the manual?

Questions and answers

Related Manuals for Snapfon ez ONE

Summary of Contents for Snapfon ez ONE

  • Page 1 Thank you for choosing the Snapfōn “ez ONE”. Please read this user manual thoroughly before use. We reserve the right to change the software, product, and manual without prior notice. The images in this user manual may differ slightly from your...

  • Page 2: Safety Instruction

    1. Safety Instruction Switch on Phone Safely Please use your Snapfōn “ez ONE” phone in a responsible and safe way. Respect all posted signs restricting cell phone use. Pay attention to traffic safety According to the recent research, cell phone use may be a distraction while driving.

  • Page 3: Emergency Calling

    Using phone correctly Please use phone in the way it was designed. Do not let small children use phone unattended. The SIM card can be taken out from phone and could be a swallowing hazard. Accessories and batteries Use only the approved accessories and batteries. Failure to do so could damage the phone and void the warranty.

  • Page 4: Insert Battery

    Insert battery Press down as shown to open the battery cover 2. Put battery into the battery slot. Line up three metal points of battery with contact area located in the upper left of battery slot. Gently press down. 3. Put on battery cover. Slide cover up until a slight “click” is heard.
  • Page 5 To remove battery Open battery cover. Press the battery side and lift it up to remove.

  • Page 6: Insert/Remove Sim Card

    Note Shut down all devices and disconnect the charger before removing battery. Please use only approved batteries Insert/Remove SIM card 1. Insert SIM card Remove battery cover, Insert and slide the SIM card with the metal part facing downward as shown below. 2.

  • Page 7: Battery Charging

    out. Note Phone must be turned off when inserting/ removing battery. SIM card and the contact point can be easily scratched and damaged. Please be careful when inserting and removing the SIM card. Battery Charging Phone can be charged when phone is either on or off. Make sure that battery is inserted in phone before charging.

  • Page 8: Low Battery Alarm

    2. After the phone is charged, unplug the charger from the outlet first, then unplug charger from phone. Battery Level Indication Display Charging Charged Low battery alarm Phone will make a tone and display a message of low battery when power is nearly depleted.

  • Page 9: Switch Off

    Power On /Off phone Power On Press and hold the End key for 2 seconds to turn on. Enter PIN to unlock phone (if required) press green key. Then phone default PIN code is 1234. Warning SIM card will be locked if you type wrong code for three times.

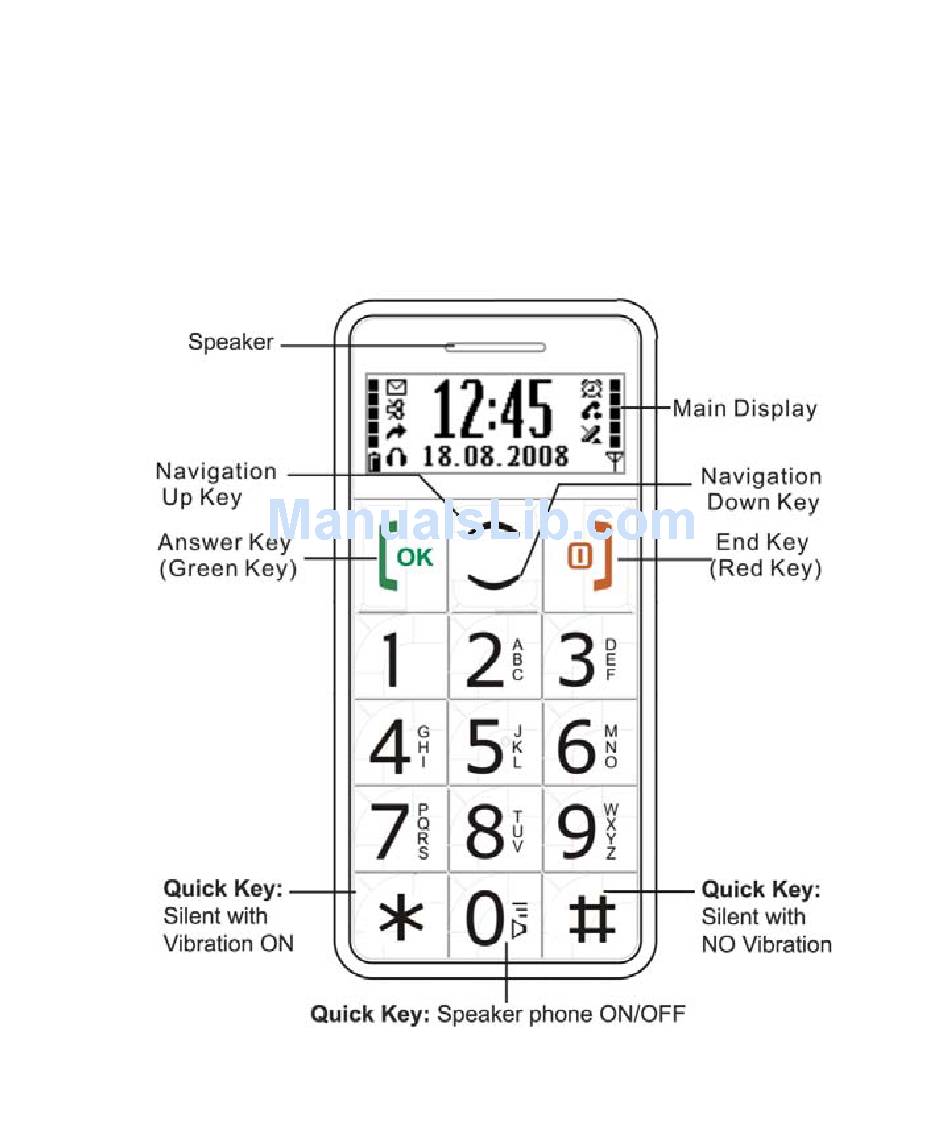

  • Page 12: Key Functions

    Key Functions Functions Press to call out: press to answer phone when there is incoming call. Answer Key Standby mode press to enter call list (Green key) Operating Press to confirm the function you choose. Phone Off Press and hold to turn phone on. Phone On Press and hold to turn off.
  • Page 13 Standby mode press to enter main menu Navigation Operating press to move cursor left. Up key Standby mode press to enter phonebook Navigation Operating press to move cursor right. Down key Silent Mode Press and hold for 3 seconds to enter SILENT mode.

  • Page 14: Main Display

    Main Display 1. Network Signal 2. Battery Level Indication 3. Function Icons 4. Function Icons 5. Time 6. Date Icons on Screen Icons might be displayed on screen. Battery status Signal status Alarm Unread SMS SMS inbox full Voicemail on the network Call transfer Missed call Silent Mode ON...

  • Page 15: Emergency Dialing

    4. Dialing To Dial Out Enter area code and phone number and press Send/Green key to dial out. Use End key to delete if there is wrong number. Press and hold End key to clear all numbers. Emergency Dialing How to set emergency dialing status Press menu up 3 times to Phone Book and press “ok”...

  • Page 16: Adjusting Volume

    Make an International Call Press ” ” key for twice and sign “ ” will come out. Then enter country code, area code and phone number (without a zero in front of mobile phone number) Press Send key. To dial a land line: “ ”country code + entire phone number + Send key. Receiving a Call Press Send key to receive incoming call.

  • Page 17: Input Method

    You also can use Aid Volume Key to set volume level as you like. 5. Messages When there is on screen, then it means there is a new message. It will show on screen when mail box is full. Please delete old messages to free up space.

  • Page 18: Delete Message

    Read and Reply SMS Press “ok” to read message. Press end key to exit and read it later. Navigate up once to select [SMS], press “ok” then down once for [Inbox] and press “ok”. To check message press up and down key to select the message you want.

  • Page 19: Call History

    To check SMS memory status press navigation up to select press “ok”. Then up once to “Storage status” and press “ok” to view. 6. Call History All Received, Dialed, and Missed calls will only show the last 20 entries. Press navigate up four times to select “call history” press “ok” then navigate up or down through “received, missed, or dialed calls”.

  • Page 20: Copy Contact

    Note: To save new record, a phone number must be entered. Delete contact If you want to delete the contact information in phone or SIM card, you can select  Delete contact  delete or delete all. Selecting delete all, will prompt you to choose between from the SIM card or phone.
  • Page 21 “ok”. Navigate up or down to select On or Off. Once On is selected you can choose a time limit (up to 24 hours) or choose “0” for no time limit. Personalize Under Settings  Personalize there are several custom menu options such Tone &...

  • Page 22: Reset Factory

    Navigate to On and press “ok”. Enter time by navigating up/ down or use number pad. Press “ok” to enter hour then enter minutes finally, press “ok” to confirm. Reset factory You can restore the phone to the default factory settings. Go to Settings  up one to Reset factory.
  • Page 23 known as the Specific Absorption Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 watts/kilogram (W/kg)*. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network.
