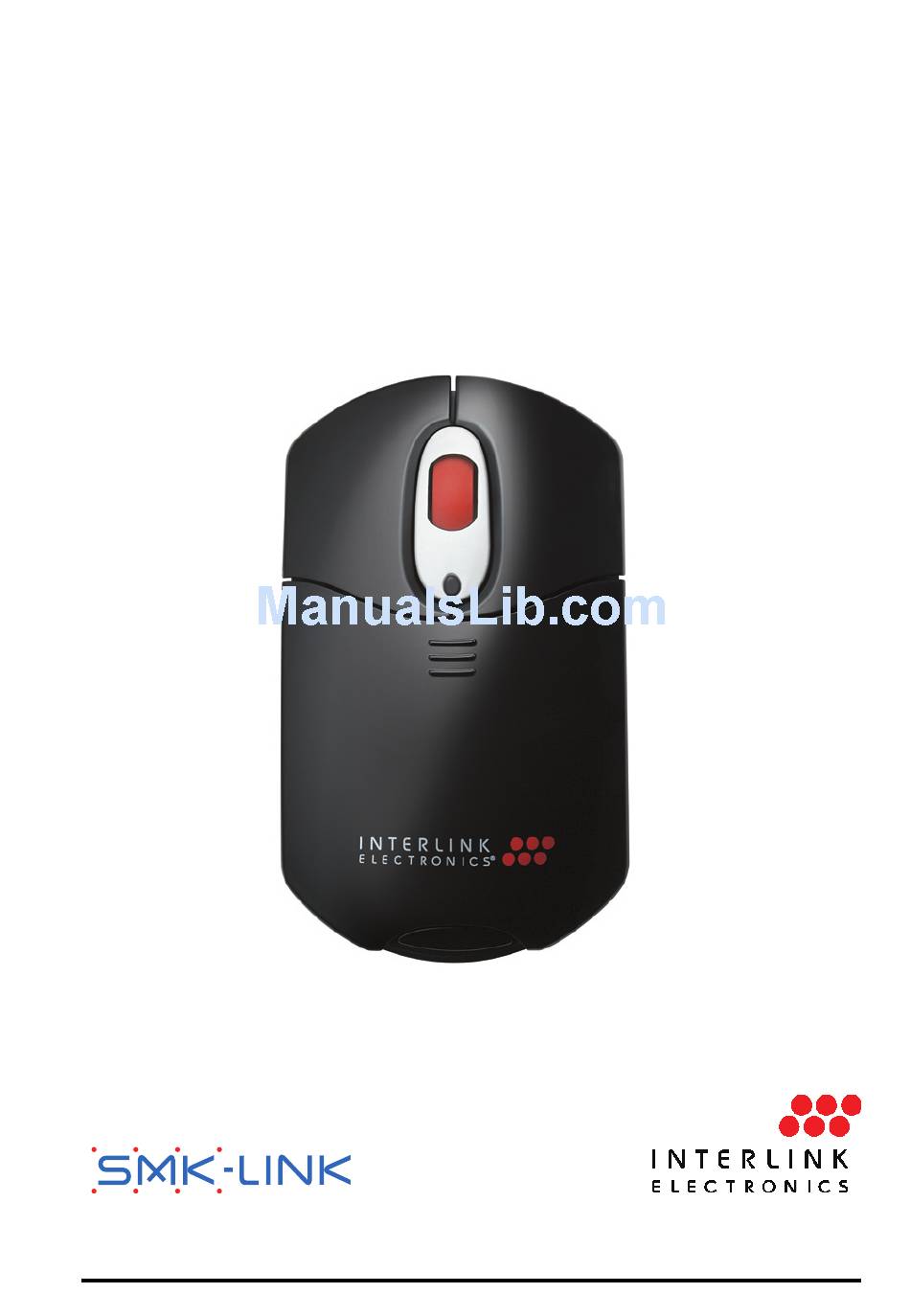

- Page 1 User’s Manual Rechargeable Wireless Presenter Mouse Page ...
-
Page 2: Regulatory Compliance
Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Declaration Of Conformity
• Consult the dealer or an experienced radio/TV technician for help. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Extension cables are not recommended, if used, they must be shielded in order to comply with the emission limits. -
Page 4: System Requirements
Operating System: Windows 2000, XP or Vista Macintosh OS X or above (Mouse Mode fully compatible; F5 and Application Switch in Presenter Mode not supported) Package Contents • Wireless presenter mouse • Micro USB receiver dongle (stored inside battery compartment) • USB charging cable •... - Page 5 Micro USB receiver dongle storage 2 AAA Rechargeable Ni-MH Batteries • Open the battery compartment by pressing down the cover latch located at the end of the mouse. Please note that the micro USB receiver dongle also stores in this compartment when traveling.
-
Page 6: Charging The Batteries
Charging the Batteries Power Indicator (Power Low: Green LED flashing; Fully Charged: LED turns to solid green) • It’s recommended that you fully charge the batteries before initial use; nevertheless the mouse is functional anytime during charging. • Plug the USB connector of the charging cable (included in the box) into the computer’s available USB port. - Page 7 of the batteries. • The mouse is operational during charging; you can continue to use the mouse while charging it via the USB charge cable. • The mouse is designed with a sleep mode to save power. When the mouse is inactive for approximately 10 minutes it will automatically shot off the optical sensor.
- Page 8 Connecting the Mouse to the Computer Connect Button On/Off Switch • Retrieve the micro USB receiver dongle stored inside the battery compartment by opening the battery door as shown in Installing the Rechargeable Batteries section. Close the door. • Connect the micro USB receiver dongle to an available USB port on your computer.
- Page 9 • The radio frequency (RF) codes are factory preset for your convenience; the mouse should be functional at this point. • If for any reason the mouse does not function correctly, i.e. no cursor movements or sluggish cursor movements, there may be other wireless devices in the vicinity operating in the same radio frequency channel.
- Page 10 Using the Presenter Mouse Connect Button On/Off Switch Cover Working in mouse mode – the sliding door on the top is closed • The mouse functions as a standard 3-button mouse: right click, left click and the scroll wheel as the 3rd button.
- Page 11 Working in presenter mode – the sliding door in open position • Open the sliding door by pressing on the top cover with 2 thumbs and gently glide the door toward the back of the mouse, away from the 2 mouse buttons, until it stops and clicks. Do not force the door open or pull the door beyond the open position.
-
Page 12: Operating Tips & Trouble Shooting
Laser Warning Light (Green LED) Previous Page Next Page Application Switch Dark Screen/ Resume F5(Slide Show)/ Laser Pointer Trigger Sliding Door (Mode Switch) Operating Tips & Trouble Shooting • Make sure the mouse is turned on by checking the on/off switch located at the bottom of the mouse before using it. -
Page 13: Warranty
flashing for power-low; and follow the instructions in Charging the Batteries section to recharge the batteries. The mouse is functional during charging. • The mouse stays connected to your computer even when it’s turned off. If for any reason the connection to the system is lost or interference is detected (erratic cursor movements), first check if the micro USB receiver dongle is plugged in to the... -
Page 14: Product Support
either repair or replace it with a more current or upgraded model if the originally purchased model is not available. This warranty does not cover products which have been subjected to misuse, accident, physical damage, improper installation, abnormal operation or handling, neglect, inundation or fire, or when product regulatory label has been removed, altered or rendered illegible;... - Page 15 The LASER button located under the sliding door of the presenter mouse activates a laser which emits a red laser beam from the front of the presenter mouse unit. It is typically used as a pointer during presentations. The laser beam emits for the duration that you press the button.
- Page 16 Thank you for purchasing the Rechargeable Wireless Presenter Mouse. We know you had other choices and we appreciate that you chose Interlink Electronics Wireless Presenter Mouse by SMK-LINK for your product needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
