Summary of Contents for Interlink electronics VP6700

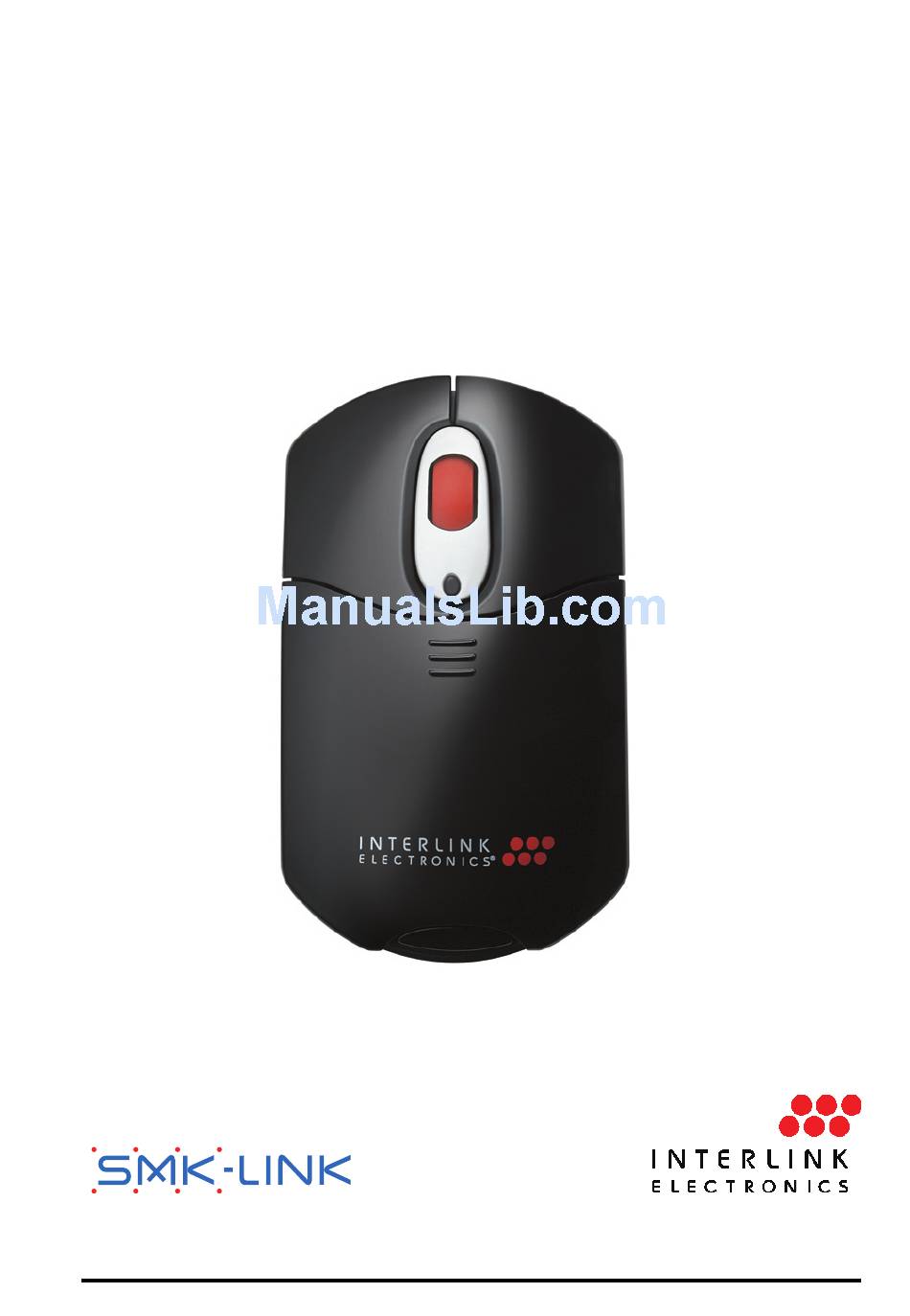

- Page 1 User’s Manual Rechargeable Wireless Presenter Mouse Page ...
-
Page 2: Regulatory Compliance
Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Declaration Of Conformity
The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Declaration of conformity Hereby, SMK-LINK Electronics Corporation, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 4: System Requirements
Operating System: Windows 2000, XP or Vista Macintosh OS X or above compatible; F5 and Application Switch in Presenter Mode not supported) Package Contents • Wireless presenter mouse • Micro USB receiver dongle (stored inside battery compartment) • USB charging cable •... - Page 5 • Open the battery compartment by pressing down the cover latch located at the end of the mouse. Please note that the micro USB receiver dongle also stores in this compartment when traveling. • Insert the two supplied AAA rechargeable Ni-MH batteries (included in the package) to the battery slots.
-
Page 6: Charging The Batteries
USB port. • Connect the barrel-tip end of the USB chargimg cable to the mouse’s charge port located at the front end of the mouse. • The power-indicator LED flashes green indicating the battery power is low and turns to solid green when fully charged. - Page 7 USB charge cable. • The mouse is designed with a sleep mode to save power. When the mouse is inactive for approximately 10 minutes it will automatically shot off the optical sensor. To wake it up just click on the right- or left-button.
- Page 8 Wait for the computer to go through its default process of recognizing the new hardware and installing the built-in native mouse driver. You don’t need to do anything while your computer is going through the installation of a new device.
- Page 9 USB receiver dongle while it’s plugged in to the computer’s USB port, and pressing the connect button located at the bottom of the mouse. This will switch the mouse and the receiver to a different channel to avoid interference. This step can be repeated when needed.
- Page 10 Using the Presenter Mouse Cover Working in mouse mode – the sliding door on the top is closed • The mouse functions as a standard 3-button mouse: right click, left click and the scroll wheel as the 3rd button. •...
- Page 11 Open the sliding door by pressing on the top cover with 2 thumbs and gently glide the door toward the back of the mouse, away from the 2 mouse buttons, until it stops and clicks. Do not force the door open or pulling the door beyond the open position.
-
Page 12: Operating Tips & Trouble Shooting
Sliding Door (Mode Switch) Operating Tips & Trouble Shooting • Make sure the mouse is turned on by checking the on/off switch located at the bottom of the mouse before using it. • Conserve the battery power by switching the on/off switch to “off”... -
Page 13: Warranty
(90) days from the date of service or return shipping, whichever is longer. If the Product becomes defective in materials or workmanship during the warranty period, SMK-LINK Electronics will, at its option, Page ... -
Page 14: Product Support
In no case shall SMK-LINK Electronics be liable for any indirect special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict tort or any other legal theory. - Page 15 The LASER button located under the sliding door of the presenter mouse activates a laser which emits a red laser beam from the front of the presenter mouse unit. It is typically used as a pointer during presentations. The laser beam emits for the duration that you press the button.
- Page 16 Wireless Presenter Mouse. We know you had other choices and we appreciate that you chose Interlink Electronics Wireless Presenter Mouse by SMK-LINK for your product needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
