Summary of Contents for Interlink electronics VP6150

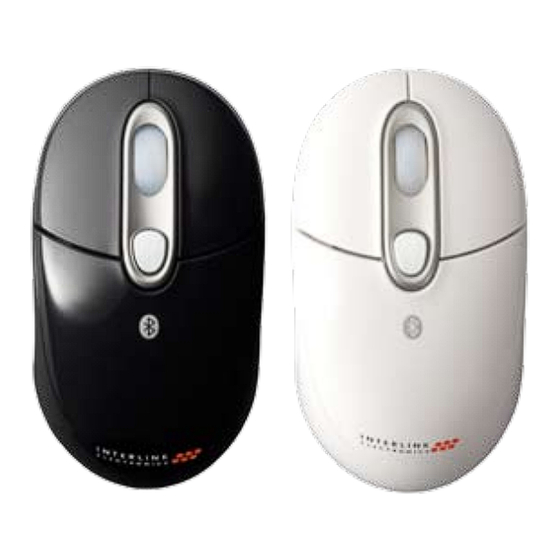

- Page 1 Users Manual Rechargeable Bluetooth Notebook Mouse Page ...
-
Page 2: Regulatory Compliance
Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Declaration Of Conformity
TThe term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Declaration of conformity Hereby, SMK-LINK Electronics, Inc. declares that this Bluetooth Rechargeable Notebook Mouse is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 4: System Requirements
1 available USB 1.1 or 2.0 port Operating System: • Windows 2000, XP or Vista; • Mac OS 10.4.6+ Package Contents • Bluetooth notebook mouse • USB charging cable • 2 x AAA rechargeable Ni-MH batteries • User’s manual •... - Page 5 Step 1: Place the mouse on a flat surface and remove the battery cover from the top of the mouse by pressing the release button located below the scroll wheel. The mouse will automatically eject the battery cover. Step 2:...
-
Page 6: Charging The Batteries
(included in the box) into the computer’s available USB port. • Connect the mini-USB tip of the cable to the mouse charge port located at the front end of the mouse. • The mouse scroll wheel glows indicating the battery power is low and continues to glow while the batteries are being charged. - Page 7 USB charge cable. • You are now ready to set up the mouse to work with your Bluetooth system. (Note: it’s not necessary to wait for the batteries to be fully charged before setting up Bluetooth connection to your system.) Turn on the...
- Page 8 Setting up Bluetooth Connection On/Off Switch Connect button Optical Sensor Before you can use Bluetooth devices for the first time you must connect your devices through a standard discovery mode and pairing process. During the process, depending on the system and the Bluetooth software used, it may ask you whether you want to use a passkey;...
- Page 9 Mouse is designed to work with the three major Bluetooth software stack (protocol) standards: WIDCOMM (Broadcom), Microsoft and Toshiba. In addition, this mouse supports Macintosh OS with Bluetooth capability. Please review the documentation that come with your computer system for any...
- Page 10 Click Next. Turn your mouse on. Press the connect button located at the bottom of the mouse until the red LED mouse sensor lights up and the scroll wheel of the mouse flashes.
- Page 11 Next. The Confirmation Required window appears. At this point your Bluetooth mouse should be able to move the cursor. Use your mouse to click on the Click here box. Your Bluetooth mouse has been successfully installed. Page ...
- Page 12 TOSHIBA Bluetooth Software Make sure your computer’s Bluetooth radio is turned on. Double click on the Bluetooth Manager icon in the system tray and then click New Connection. The Add new Connection Wizard window Page ...
- Page 13 Choose the Express Mode and click Next. Turn your mouse on. Press the connect button located at the bottom of the mouse until the red LED mouse sensor lights up and the scroll wheel of the mouse flashes. The computer will search for new...
- Page 14 Select the Interlink Bluetooth Rechargeable Notebook Mouse. Click Next. The system starts installing drivers. After installation is done, the New Hardware Wizard window appears. It will offer to search for Windows updates, select No and click Next.
- Page 15 MICROSOFT Bluetooth Software Make sure your computer’s Bluetooth radio is turned on. Double click on the Bluetooth Manager icon in the system tray. Select Add Bluetooth Device. Select “My device is set up and ready to be found” on the Add Bluetooth Device window and click Next.
- Page 16 Turn your mouse on. Press the connect button located at the bottom of the mouse until the red LED mouse sensor lights up and the scroll wheel of the mouse flashes. The computer will search for new Bluetooth devices in the range and list each device on the screen.
- Page 17 A window appears asking for a passkey. Select “Don’t use a passkey” and click Next. Click Finish. Your Bluetooth mouse is set up and ready to go. APPLE Macintosh Bluetooth Software Make sure your computer’s Bluetooth radio is turned on.
- Page 18 Select Turn Bluetooth On to enable Bluetooth for your Macintosh computer if it’s not already on. Select Set Up Bluetooth Devices. Bluetooth Setup Assistant screen will show up. Click Continue. Select Mouse from the device list and click Continue. Page ...
- Page 19 Turn your mouse on. Press the connect button located at the bottom of the mouse until the red LED mouse sensor lights up and the scroll wheel of the mouse flashes. The computer will search for new Bluetooth devices in the range and list each device on the screen.
-
Page 20: Operating Tips & Trouble Shooting
Conserve the battery power by switching the on/off switch to “off” position while traveling or if the mouse will not be in use for awhile. If you will not use the mouse for a long period of time remove the batteries from the battery compartment. - Page 21 8 minutes of inactivity to save battery power. Click on any mouse button to wake it up. • When the mouse cursor behaves erratically check the scroll wheel for power-low indicator, i.e. LED light glowing; and follow the instructions in Charging the Batteries section to recharge the batteries.
-
Page 22: Warranty
In no case shall SMK-LINK Electronics be liable for any indirect special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict tort or any other legal theory. -
Page 23: Product Support
This warranty does not affect your statutory right and you may also have other rights which vary from state to state. Unless modified in writing, signed by both you and SMK-LINK Electronics, this warranty is understood to be the complete... - Page 24 Thank you for purchasing the Rechargeable Bluetooth Notebook Mouse. We know you had other choices and we appreciate that you chose Interlink Electronics by SMK-Link for your wireless needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
