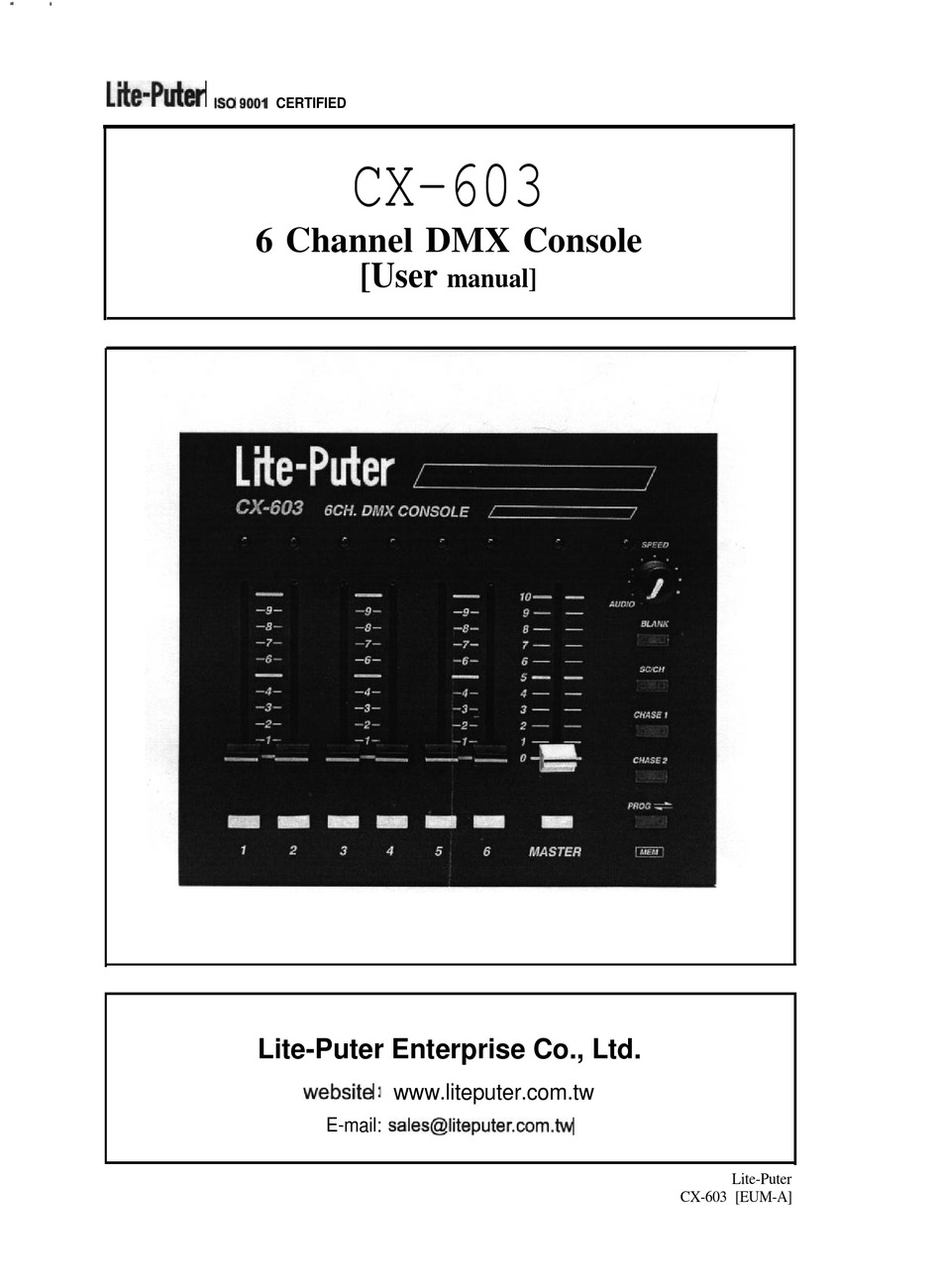

- Page 1 CX-603 6 Channel DMX Console [User manual] Lite-Puter Enterprise Co., Ltd. www.liteputer.com.tw E-mail: sales@liteputer.com.tw CX-603 Function Lite-Puter CX-603 [EUM-A]...
- Page 2 CX-603 Instruction Standard DMX 512 signal control 6 dimming control channel 6 control scene setting Chaser function: 1.) Channel chase 2.) Scene chase 3.) Speeding control 4.) Chase Function Flash Audio input Specification Power supply DC 12Vl IA DMX512 II990...
- Page 3 Scene / Channel control ‘Chase 1 CHASE 1 Chase 2 CHASE 2 Scene/ Chase direction control PROG Signal display Setting I...6 dimming channel VR-1 . . .VR-6 Recall I...6 Scene Channel / Scene setting / FLASH 1 - 6 Lite-Puter CX-603 [EUM-A]...
- Page 4 I Power supply: DC 12V / IA Power switch Audio input: IOOmV DMX connector: XLR SPIN DMX connector: XLR 3-PIN DMX connector: PHONE JACK (RJI 1) 1-5 CX-603 audio sensitivity control Audio sensitivity control www.bluelight.at Lite-Puter CX-603 [EUM-A]...
- Page 5 CX-603 operation 2-1 SCENE setting Select [CH] mode, and move the fader to set the dimming value to save control scene. press [ PROG] + (I-61 (STEP-11 press [SC CH] to select the control channel in CH mode on + in SC mode the SCENE total output dimming value will be 50%.
- Page 6 (1) in [CH] mode Chase by CH mode (2) in [SC] mode Chase by SC mode [CH] mode to select the channel. (LED “off”) press [CHASE I] repeat 2. press [CHASE 21 repeat press [CHASE I] + [CHASE 2) repeat Lite-Puter CX-603 [EUM-A]...
- Page 7 (please refer 2-l / STEP-2) to control [SPEED] to change the chase direction (PROG] key to the bottom and feel click “ which appointed to audio. [SPEED] press for pause, and press once again back to the normal mode. [BLANK] Lite-Puter CX-603 [EUM-A]...
- Page 8 ZUSATZ INFORMATION CX-603 DEUTSCH 02/03 Szene Programmieren SC/CH Taste auf CH-Modus einstellen (rote LED leuchtet nicht). Die gewünschte Szene mit den Fadern 1-6 und dem Masterfader einstellen. Mit gleichzeitigen Drücken der Prog-Taste und der Kanal Taste (wahlweise 1-6) speichern. Für eine neues Abspeichern einer Szene Vorgang wiederholen.
