Manufacturer:
AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue.com
16

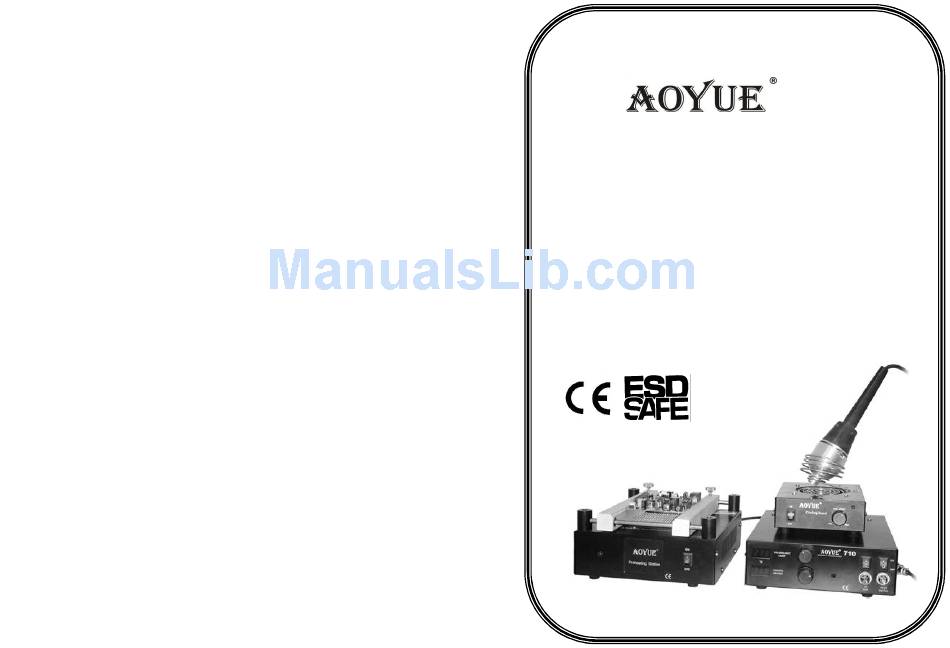

Focused Infrared Welding System
INSTRUCTION MANUAL
Thank you for purchasing the
Aoyue 710 Focused Infrared Welding System
Please read the manual before using the unit.
Keep manual in accessible place for future reference.
710
Advertisement
Table of Contents
Related Manuals for aoyue 710
Summary of Contents for aoyue 710
- Page 1 Focused Infrared Welding System INSTRUCTION MANUAL Thank you for purchasing the Aoyue 710 Focused Infrared Welding System Please read the manual before using the unit. Keep manual in accessible place for future reference. Manufacturer: AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China http://www.aoyue.com 16 ...
- Page 2 OPERATING GUIDE Position the Infrared Gun Tap on the foot switch Wait for a few seconds Remove / attach component This manual is structured to enable a technician with no previous knowledge of the system, to become familiar with GLOSSARY the operation and maintenance of the equipment. The safety section of the manual explains the inherent dangers presented by any type of desoldering/soldering equipment I.R.— ...
-
Page 3: Table Of Contents
TROUBLESHOOTING GUIDE Main Fuse TABLE OF CONTENTS This should be checked first when any malfunction arises. The fuse (20mm, T/Antisurge, l0Amp), is located at the back of the controller adjacent to the . Package Inclusion ………………...………………….. Bulb Error Features ……..…………..…..…………………...….. This may be caused by either a blown fuse, the lamp's age, cor Care and Safety Precaution ………………………..….. roded lamp pins or a defective lamp socket. Specification ……..…………..…..…………………...….. Lamp Age/Life Setting Up the Unit …………..…..…………………...….. A lamp has a life expectancy of 30,000 cycles or 50 hours at full Operation Overview ………..…..…………………...….. -
Page 4: Features
which is the movement of surrounding Note: If the bulb within the lamp is touched then the lamp may components while reworking. fail prematurely. Aoyue 710 brings sophisticated infrared rework systems to the ● simplicity of a hand tool. Closed loop temperature control for instant and precise process ... -
Page 5: Care And Safety Precaution
MAINTENANCE CARE and SAFETY PRECAUTIONS WARNING: CAUTION: All cleaning and/or maintenance should be Misuse may cause injury and physical damage. performed when the machine is switched off and isolated For your own safety, be sure to comply with the following precaution. from the main supply. -
Page 6: Specification
SPECIFICATION REWORKING TIPS Use Flux Gel. When it turns from a gel into a fluid/liquid, this MAIN CONTROL ● indicates that the PCB is preheated and you can apply heat Power Input : available in 110V / 220V using the Solderlight gun. Flux Gel also helps placement of Frequency: 50Hz the component. Weight: 10Kg If the Preheater temperature is too low or preheating time ● ... -
Page 7: Setting Up The Unit
OPERATING PROCEDURE SETTING UP THE UNIT Start Up Working Area Turn on the power switch and check if the main unit displays ● Equipment must be placed on a flat stable surface of at least one a temperature on the read out. square meter and at a height that suits the user. Once the unit is switched on, the fan will operate to cool the ● The lighting should not be so bright. It should not affect the user Solderlight gun. This is normal. Select the correct operating from viewing the I.R. spot. temperatures for the Preheater and the Solderlight gun. The electricity supply must be dedicated and free from interference ... -
Page 8: Technical Description
TECHNICAL DESCRIPTION TECHNICAL DESCRIPTION Continuation InfraRed Lamp The 200 Watt InfraRed (I.R.) lamp is located in the lamp housing Preheater at the front end of the hand unit. The lamp emits mostly short The Preheater's function is to preheat the PCB and component; wave I.R. radiation at approximately 1.0 micron wavelength. this protects the PCB from delaminating and the component from thermal shock. The Preheater also equalizes the conductive effect ...
