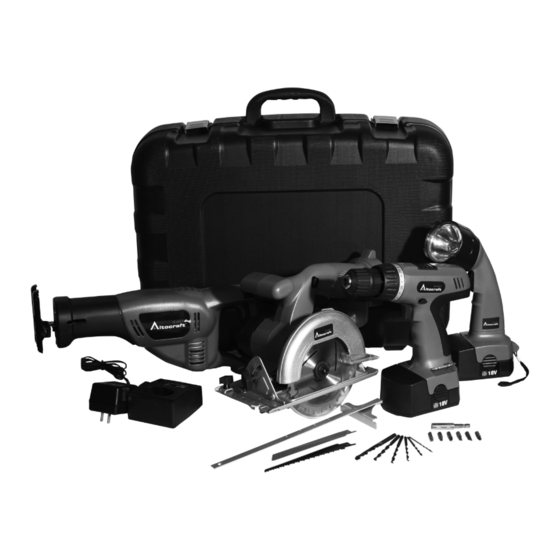

- Page 1 241-9023 18VOLT CORDLESS 4-PIECE COMBO KIT Operator’s Manual SAVE THIS MANUAL You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric tools, machines or equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. READ INSTRUCTIONS BEFORE USING THIS TOOL 1. KEEP WORK AREA CLEAN. Cluttered areas can cause injuries. 2. -
Page 3: Specifications
PRECAUTION FOR BATTERY AND CHARGER CHARGE BATTERY AT LEAST 6 HOURS before initial use. 1. CHARGE AT ROOM TEMPERATURE. The temperature must be higher than 3°F and lower than 1°F. . DO NOT CHARGE IF CHARGER’S CORD OR PLUG IS DAMAGED. Charg- ing with damaged cord may result in fire or electrical shock. - Page 6 OPERATING PROCEDURES FOR BATTERY PACK a charge. They should then be replaced. Dispose of batteries at an appropri- ate waste disposal facility. They contain cadmium, so do not throw batteries away in common trash receptacles. Charge battery 6 hours every 3 month if you do not use it, as battery will discharge slowly over time.
- Page 7 OPERATING PROCEDURES FOR RECIPROCATING SAW WARNING: Before installing or removing saw blade remove battery pack. Installing a saw blade: 1. Using the hex key stored in the right side of the housing in front of the handle, loosen the hex screw on the saw blade clamp. 2.
- Page 8 OPERATING PROCEDURES FOR CIRCULAR SAW CAUTION: Do not put hands directly in front of, behind, or below the saw blade when cutting. 1. Always grasp the saw with both hands on the handles and push the saw through the material. 2.
-
Page 9: Maintenance
OPERATING PROCEDURES FOR LIGHT ON/OFF To turn the worklight ON, simply slide the ON/OFF switch forward. To turn the worklight OFF, simply slide the ON/OFF switch backward. TO SWIVEL THE WORKLIGHT 1. To swivel the head of the worklight, hold the worklight with two hands. One hand should be around the body of the light;... - Page 10 PARTS LIST FOR CIRCULAR SAW NO. DESCRIPTION Saw blade Housing (Left) Flange Switch Screw Battery Clip Movable Guard Switch Lock Button Spring Spring Screw Housing (Right) Guide Plate Motor Cover Screw Washer Plastic nut DC Motor Gear Box Screw Pivot Stop Position Button Plastic Screw Spring...
- Page 11 PARTS LIST FOR RECIPROCATING SAW NO. DESCRIPTION 1,2,3 Bracket Battery clip Screw Housing (A) Gear box Housing (B) Blade holder Spring washer Screw Bushing Shaft Bushing Bushing Link Plate Circlip Washer Gear Bearing Gear Motor Screw Spring washer Plate Cover Sping Safety release Switch...
- Page 12 TOOL SHOP® 4PC 18V CORDLESS TOOL SET WARRANTY 1-YEAR LIMITED WARRANTY: This brand power tool carries a 1-Year Limited Warranty to the TOOL SHOP® original purchaser. If the tool fails within one (1) year from the date of purchase, simply bring this tool with your original sales receipt back to your nearest retail store.
