Pro-face ST-3400 Series Installation Manual
Hide thumbs Also See for ST-3400 Series:

Advertisement

Quick Links

ST-3400 Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

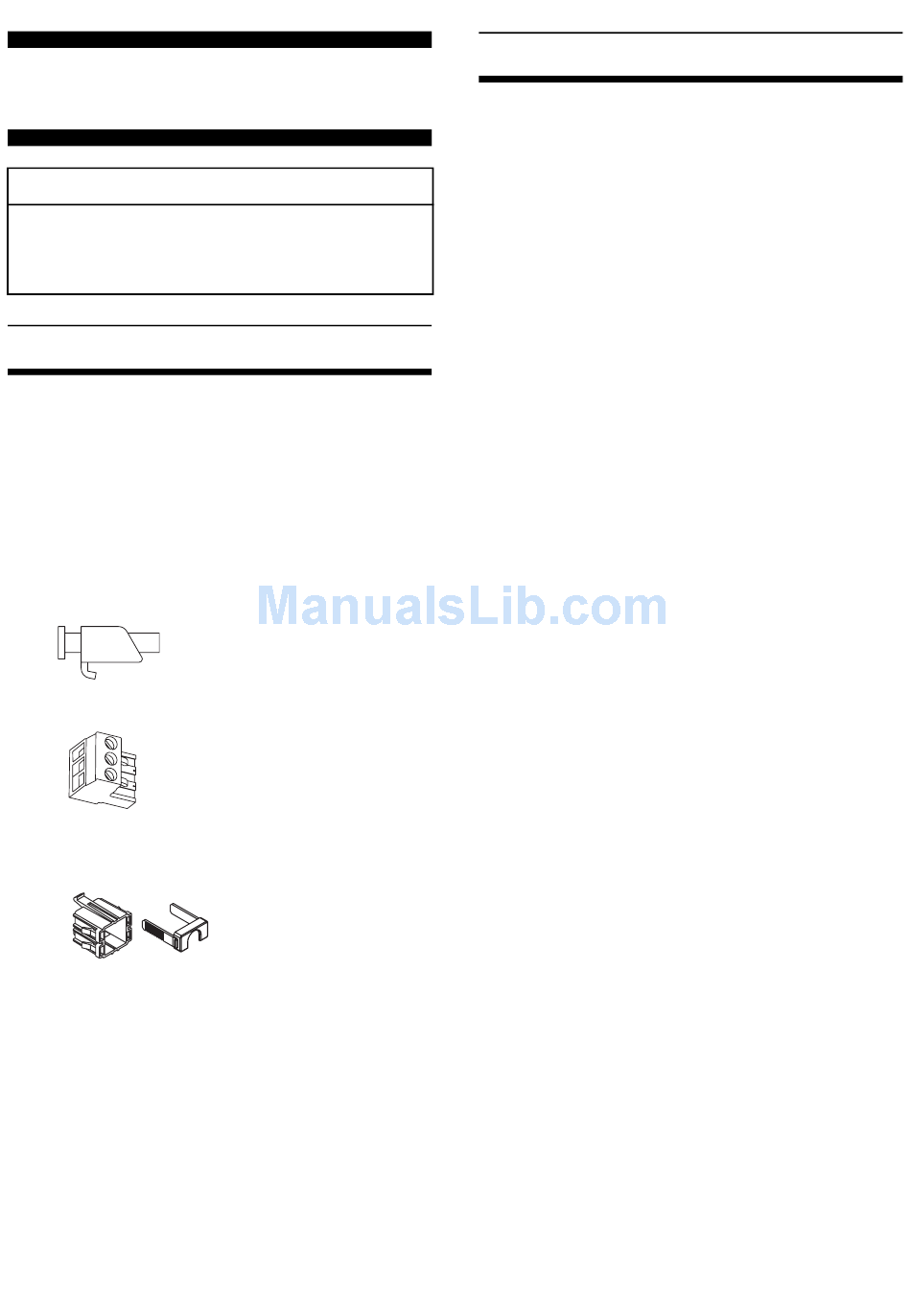

Package Contents
(1) ST Unit (1)
(2) English and Japanese Installation Guides
(one of each) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (1)
(Attached to the ST unit)
(5) Installation Fasteners (Set of 4)
(6) Power Connector (1)
(7) USB Cable Clamp (1 set)
(Holder: 1, Cover: 1)
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local ST distributor
immediately.
About the Manual
For the detailed information on ST3000
series, refer to the following manual.
• ST3000 Series Hardware Manual
• Maintenance/Troubleshooting
ST3000 Series Hardware Manual can be
selected from the help menu of GP-Pro EX or
downloaded from Pro-face Home Page.
URL
http://www.pro-face.com/otasuke/
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-3400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pro-face ST-3400 Series

  • Page 1 ST3000 Series Hardware Manual can be Information” on the attached sheet before selected from the help menu of GP-Pro EX or using the product. downloaded from Pro-face Home Page. Package Contents http://www.pro-face.com/otasuke/ (1) ST Unit (1) (2) English and Japanese Installation Guides (one of each) <This Guide>...
  • Page 2: Part Names And Functions

    F Serial Interface (COM2) Dsub 9-pin plug type. RS422/RS485 is supported. G CF Card Cover H Dip Switches Located inside the CF Card Cover. *1 RS485 is compliant with ST-3400 series units with revision code “A” or later. Revision (page 11)
  • Page 3: General Specifications

    General Specifications Electrical Specifications Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable 10ms (max.) Voltage Drop Power 22W (max.) Consumption In-Rush 30A (max.) Current Voltage Endurance AC1000V 20mA for 1minute (between charging and FG terminals) Insulation Resistance DC500V 10MΩ (min.) (between charging and FG terminals) Environmental Specifications Surrounding Air 0 to +50°C...
  • Page 4: External Interfaces

    External Interfaces • This ST unit’s serial interface is not isolated.When the host (PLC) unit is also not iso- lated, and to reduce the risk of damaging the RS232C/RS422/RS485 circuit, be sure to connect pin #5 SG (Signal Ground) terminal. •...
  • Page 5 Signal Ground Clear to Send B(-) Send Data B(-) Clear to Send A(+) Data Terminal Ready B(-) Frame Ground Shell (Common with SG) *1 RS485 is compliant with ST-3400 series units with revision code “A” or later. Revision (page 11)
  • Page 6: Installations

    ST Installation Installations (1) Create a Panel Cut following the dimen- sions in the table below. Installation Requirements Unit: mm [in.] Under Panel • For easier maintenance, operation, and 4-R3[0.12] thickness improved ventilation, be sure to install the ST at least 100 mm [3.94 in.] away from adjacent structures and other equipment.
  • Page 7 Power Connector (Plug) Specifications Insertion Direction Grounding Terminal connected to the ST chassis • The power connector (plug) is CA5- DCCNM-01 made by Pro-face or MSTB2,5/3-ST-5,08 made by Phoenix Contact.
  • Page 8 When connecting the Power Cord, use the Power Supply Cautions following items when performing wiring. (Items are made by Phoenix Contact.) • Input and Output signal lines must be sepa- rated from the power control cables for Recommended SZF 1-0.6x3.5 operational circuits.
  • Page 9: To Prevent The Usb Cable From Coming Off

    Grounding Cautions Input/Output Signal Line Cautions • All ST Input and Output signal lines must • Be sure to create an exclusive ground for be separated from all operating circuit the Power Cord’s FG terminal. Use a (power) cables. grounding resistance of 100Ω , a wire of •...
  • Page 10 (4) Attach the USB cover to fix the USB UL/c-UL Approval cable. Insert the USB cover into the tab of the USB holder. The ST-3400 Series units are UL/c-UL listed USB Holder products. (UL File No.E220851) UL/c-UL Product Model No.
  • Page 11 EN55011 Class A, EN61131-2 Please access our site anytime that directives. you need help with a solution. http://www.pro-face.com/otasuke/ Revision The revision code of the ST is shown in the Note label affixed to the ST. In the example shown Please be aware that Digital Electronics below, an asterisk "*"...
