ST-3500 Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

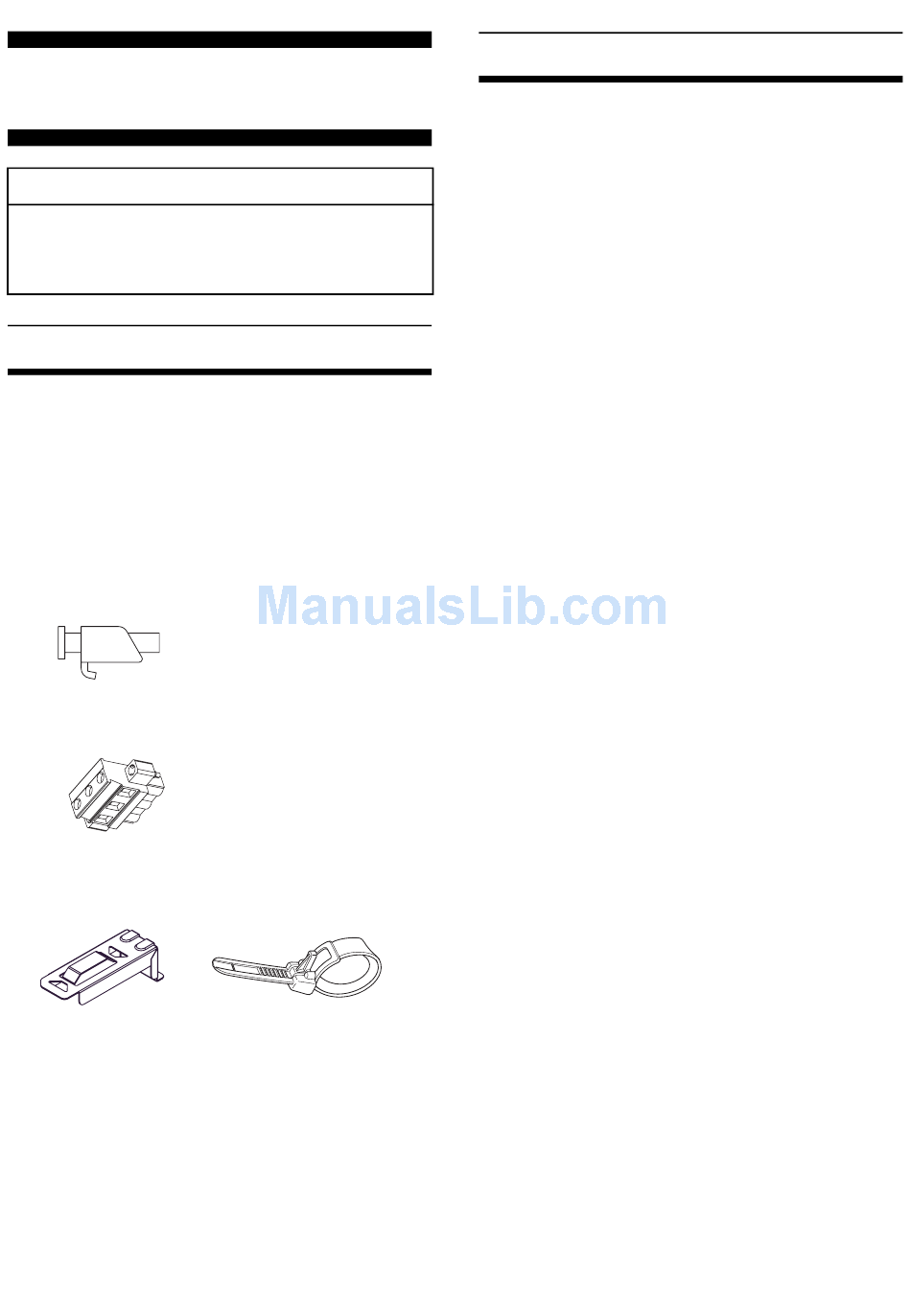

Package Contents
(1) ST Unit (1)
(2) English and Japanese Installation Guides
(one of each) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (1)
(Attached to the ST unit)
(5) Installation Fasteners (Set of 4)
(6) Power Connector (1)
(Attached to the ST unit for DC model)
(7) USB Cable Clamp (1 set)
(Holder: 1, Clamp: 1)
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local ST distributor
immediately.
About the Manual
For the detailed information on ST3000
series, refer to the following manual.
• ST3000 Series Hardware Manual
• Maintenance/Troubleshooting
ST3000 Series Hardware Manual can be
selected from the help menu of GP-Pro EX or
downloaded from Pro-face Home Page.
URL
http://www.pro-face.com/otasuke/
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AST-3501T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-face AST-3501T

Summary of Contents for Pro-face AST-3501T

  • Page 1 ST3000 Series Hardware Manual can be Information” on the attached sheet before selected from the help menu of GP-Pro EX or using the product. downloaded from Pro-face Home Page. Package Contents http://www.pro-face.com/otasuke/ (1) ST Unit (1) (2) English and Japanese Installation Guides (one of each) <This Guide>...

  • Page 2: Part Names And Functions

    Part Names and Functions Front Rear AST-3501T (AC model) Bottom (With CF Card Cover open) AST-3501T (AC model) Name Description ST Status Normal operation (power is ON.) or Green (lit) OFFLINE operation. A Status LED Orange During software startup. (blinking) Red (lit) When power is turned ON.

  • Page 3: General Specifications

    General Specifications Electrical Specifications DC model AC model Input Voltage DC24V AC100 to 240V Rated Voltage DC19.2 to 28.8V AC85 to 265V 1 cycle or less Allowable Voltage Drop 10ms (max.) (Voltage drop interval must be 1s or more.) AC100V 0.90A or less (TYP 0.48A) Power Consumption 45W (max.)

  • Page 4: External Interfaces

    External Interfaces • This ST unit’s serial interface is not isolated.When the host (PLC) unit is also not iso- lated, and to reduce the risk of damaging the RS232C/RS422/RS485 circuit, be sure to connect pin #5 SG (Signal Ground) terminal. •...
  • Page 5 COM2 Recommended Cable XM2D-0901 <made by OMRON Corp.> Connector Recommended Jack Screw XM2Z-0073 <made by OMRON Corp.> Recommended Cable Cover XM2S-0913 <made by OMRON Corp.> Interfit Bracket #4-40 inch screws are used. RS422/RS485 Pin # Signal Name Meaning Receive Data A(+) Receive Data B(-) Send Data A(+) Data Terminal Ready A(+)

  • Page 6: Installations

    ST Installation Installations (1) Create a Panel Cut following the dimen- sions in the table below. Installation Requirements Unit: mm [in.] Under Panel • For easier maintenance, operation, and 4-R3[0.12] thickness improved ventilation, be sure to install the ST at least 100 mm [3.94 in.] away from adjacent structures and other equipment.

  • Page 7: Power Cord Specifications

    Wiring Insertion Slot Recess Hook the fastener on the Recess, Panel To avoid an electric shock, prior to Installation Fastener connecting the ST unit’s power cord terminals to the power terminal block, confirm that the ST unit’s power supply is and secure the fastener completely turned OFF, via a breaker, or on the panel with a...
  • Page 8 • The torque required to tighten these screws are as follows: • The power connector (plug) is CA5- Terminal Block: 0.5 to 0.6 N•m. DCCNL-01 made by Pro-face or FG (Frame Ground) Terminal: 0.6 to GMVSTBW2,5/3-STF-7,62 made by 0.7 N•m.

  • Page 9: Power Supply Cautions

    Connecting the ST Power Cord Power Supply Cautions (1) Confirm that the ST unit’s Power Cord is unplugged from the power supply. • Input and Output signal lines must be sepa- (2) Remove the power connector (plug) rated from the power control cables for from the main unit.

  • Page 10: Grounding Cautions

    Grounding Cautions Input/Output Signal Line Cautions • All ST Input and Output signal lines must • Be sure to create an exclusive ground for be separated from all operating circuit the Power Cord’s FG terminal. Use a (power) cables. grounding resistance of 100Ω , a wire of •...
  • Page 11 <Cautions> UL/c-UL Approval Be aware of the following items when building the ST into an end-use product: The following units are UL/c-UL recognized • The ST unit’s rear face is not approved as components. an enclosure. When building the ST unit (UL File No.E171486) into an end-use product, be sure to use an enclosure that satisfies standards as the...
  • Page 12 Please access our site anytime that position where "A" should be, meaning "Rev. you need help with a solution. A". http://www.pro-face.com/otasuke/ Note Please be aware that Digital Electronics Corporation shall not be held liable by the user for any damages, losses, or third party claims arising from the uses of this product.
