Summary of Contents for B&B Electronics iMcV-DS3

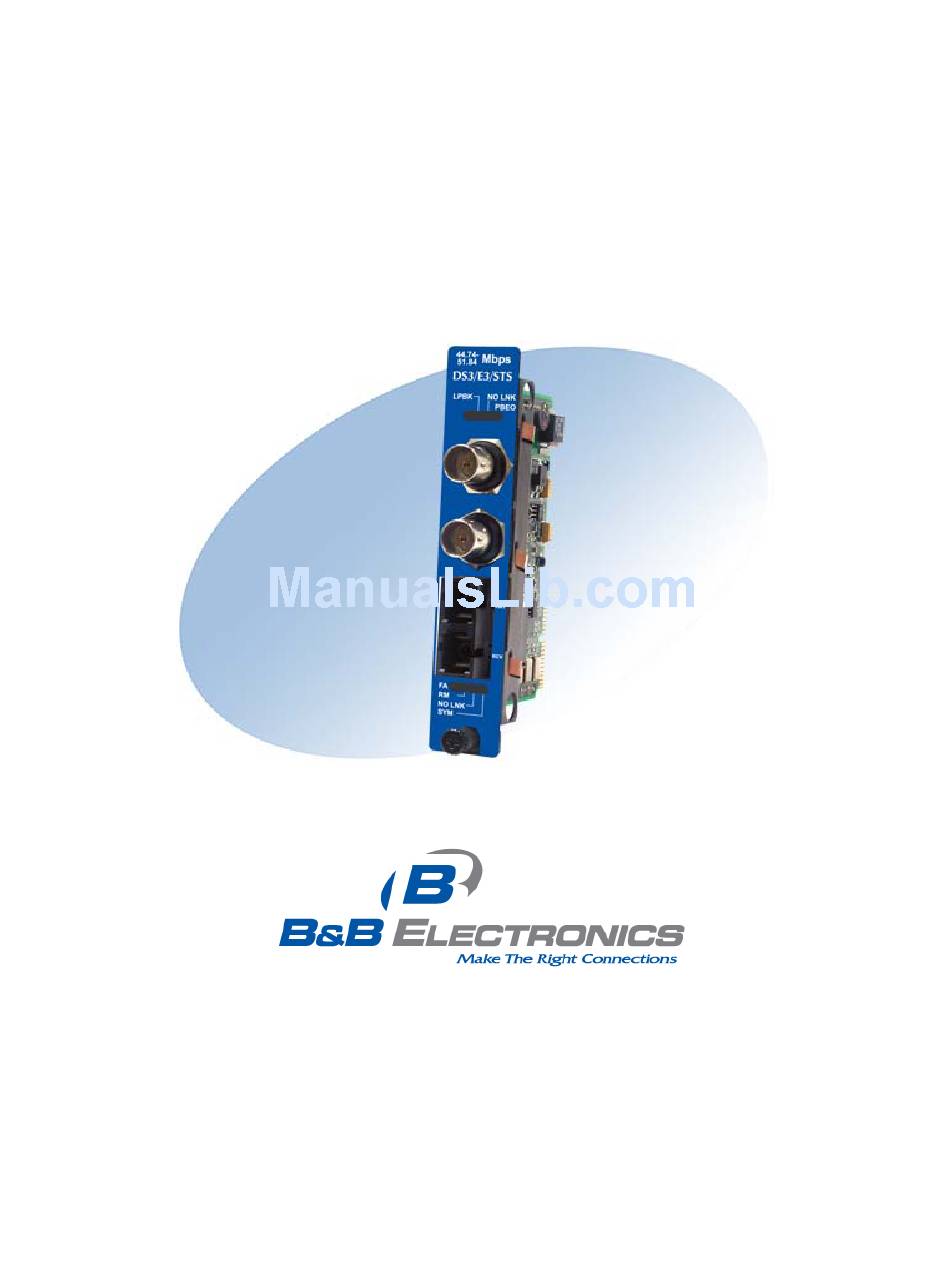

- Page 1 Repeater Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. - Page 3 BUSINESS, LOSS OF USE OR OF DATA INTERRUPTION OF BUSINESS, LOST PROFITS OR GOODWILL OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES. B&B ELECTRONIC SHALL DISREGARD AND NOT BE BOUND BY ANY REPRESENTATIONS, WARRANTIES OR INDEMNITIES MADE BY ANY OTHER PERSON, INCLUDING WITHOUT LIMITATION EMPLOYEES, DISTRIBUTORS, RESELLERS OR DEALERS OF B&B ELECTRONIC WHICH ARE INCONSISTENT WITH THE WARRANTY, SET FORTH ABOVE.
-
Page 4: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement .... ii Limited Lifetime Warranty ......ii About the iMcV-DS3/E3/STS ......1 Installating an iMcV-DS3/E3/STS ......1 Configuration Instructions ......1 Requirements ........... 2 DIP Switches ........... 4 LED Operation ......... 13 Troubleshooting ........ -
Page 5: About The Imcv-Ds3/E3/Sts
(1310 nm and 1550 nm) to share one fiber strand, essentially doubling the capacity of installed fiber. iMcV-DS3/E3/STS modules must be deployed in pairs (one at each end of a conversion). The data transmitted on the fiber ports can only be received and interpreted by the receive fiber of another iMcV-DS3/E3/STS. -
Page 6: Requirements
• Distance of the coax run • Distance of the fiber run • Troubleshooting requirements. Managed Modules To manage iMcV-DS3/E3/STS modules, an SNMP agent must be present; the iMediaChassis requires an SNMP management module. For a managed environment, first manually... - Page 7 iView supports the following platforms: Windows 2000 Windows XP Windows Vista Windows 7 Please see the SNMP Management Module installation guide for software configuration options.
-
Page 8: Dip Switches
In an unmanaged configuration, none of the DIP Switch settings can be overridden by software. DIP Switches The iMcV-DS3/E3/STS DIP Switches are located on S1 and S2 on the PCB. The S2 DIP Switches are factory configured and must not be moved. - Page 9 Remote Unit S1-10: OFF Remote Unit Disabled (D) S1-10: ON Remote Unit Enabled Feature Descriptions The iMcV-DS3/E3/STS module includes several features that allow it to be configured for varying DS3/E3/STS-based environments. Loopback This switch enables or disables the loopback feature. When this feature is enabled, the data line (Coax or Fiber) set by the Loopback Type DIP Switch is looped back.
- Page 10 This feature can be controlled by SNMP management software (iView ) when the iMcV-DS3/E3/STS module is installed in a managed chassis.
- Page 11 By default this feature is set to COAX. This feature can be controlled by SNMP management software (iView ) when the iMcV-DS3/E3/STS module is installed in a managed chassis. Jitter Attenuation This switch selects the jitter attenuation location on the coax transceiver.
- Page 12 This feature can be controlled by SNMP management software (iView ) when the iMcV-DS3/E3/STS module is installed in a managed chassis. ** WARNING ** Enabling FiberAlert on both of the iMcV-DS3/E3/STS modules will cause them both to stop transmitting unrecoverably when a fault occurs.
- Page 13 DS3, E3 and STS Selection This switch selects the data rate to use on the coax line. The data rate selections available include the following: • 45 Mbps (DS3) • 34 Mbps (E3) • 52 Mbps (STS) By default this feature is set to 45 Mbps (DS3). This feature can only be selected by setting the DIP Switches manually.
- Page 14 This feature can only be selected by setting the DIP Switches manually. Loopback Testing The iMcV-DS3/E3/STS includes two loopback test modes: Coax Loopback and Fiber Loopback. The following illustrations show the path that a signal takes in each of the loopback test modes.
- Page 15 Remote loopback tests isolate problems on the coax run between an iMcV-DS3/E3/STS module and the connected device, while local loopback tests can isolate problems on the fiber connected to the module.
- Page 16 Pseudorandom Bit Sequence (PRBS) Testing To test using Pseudorandom Bit Sequence, configure the iMcV-DS3/E3/STS modules for No Loopback, then configure the Transmit Data Source to “Transmit Pseudorandom Bit Sequence.” Configure the local device for loopback, conduct the test, then check the PBEO LED to verify errors were not received (Refer to the LED section for more information).
-
Page 17: Led Operation
LED Operation The iMcV-DS3/E3/STS module features several diagnostic LEDs per port. The LED functions are as follows: LEDs Next to Coax (BNC) Port LPBK Glows green when module is in a Loopback mode. NO LNK Glows green when a link is NOT PBEO established. -
Page 18: Troubleshooting
3. Verify that you have a valid connection for both the BNC and fiber ports on your media converter. • If there is trouble with link connectivity, make sure the connection is made using 75W Coax cable. NOTE iMcV-DS3/E3/STS Repeater modules cannot be connected iMcV-DS3/E3/STS LineTerm modules successfully. -
Page 19: Specifications
Specifications Power Consumption (Typical) 0.550 Amps @ 5 V Operating Temperature +32°F to +122°F (0°C to +50°C) Storage Temperature 0°F to +160°F (-20°C to +70 C) Humidity 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions 4.19” x .78” x 2.75” (106.4 mm x 19.81 mm x 69.85 mm) -
Page 20: B&B Electronics Technical Support
B&B Electronics Technical Support Tel: (800) 346-3119 (in the U.S. and Canada) Monday-Friday, 7:00am-7:00pm CST +353 91 792444 (Europe) Monday through Friday 8:00am - 5:00pm GMT Fax: (815) 433-5109 E-Mail: support@bb-elec.com Web: www.bb-elec.com... - Page 21 Fiber Optic Cleaning Guidelines Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. 1. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;...
-
Page 22: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products 1. Do not remove unit from its protective packaging until ready to install. -
Page 23: Safety Certifications
Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 24 The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for any errors that may appear in this document. iMcV-DS3/E3/STS Repeater is a trademark of B&B Electronics. Other brands or product names may be trademarks and are the property of their respective companies.
