- Page 2 INTRODUCTION This User Manual will help you to operate your receiver in a safe manner while enjoying all the features and benefits it provides for your entertainment This User Manual must be read by every person that is: • Installing •...
-
Page 3: Table Of Contents
Table of contents Safety Instructions Positioning Front Panel / Rear Panel Remote Control Unit Connecting your STB Main Menu 1. Channel Manager 2. Installation 3. Settlings 4. Timer 5. STB Update Trouble Shooting Specification Safety precautions Before operating the receiver, please thoroughly read the following safety precautions. You are required to read all the notes, instructions and warnings contained in this User Manual... -
Page 4: Safety Instructions
· Please make sure that the power supply (socket) is easily accessible. · Do not damage the mains cable. · If the mains cable is damaged, refer to a qualified DGTEC technician for repair before using the receiver again otherwise there is the risk of electric shock. -
Page 5: Positioning
Positioning Place the receiver on a stable, even surface. Avoid placing it near: Sources of heat Naked flames, like candles, Devices with strong electromagnetic fields, like speakers. Do not place objects filled with liquids (such as vases) on the receiver. ·... -
Page 6: General Introduction
General Introduction UNPACKING Unpack the unit and check to make sure that all of the following items are included in the packing: 1X Remote Control Unit (RCU) 1X User’s Manual 2X AAA batteries 1X Digital Terrestrial Receiver 1X Composite cable 1X Component Cable... -
Page 7: Front Panel/ Rear Panel

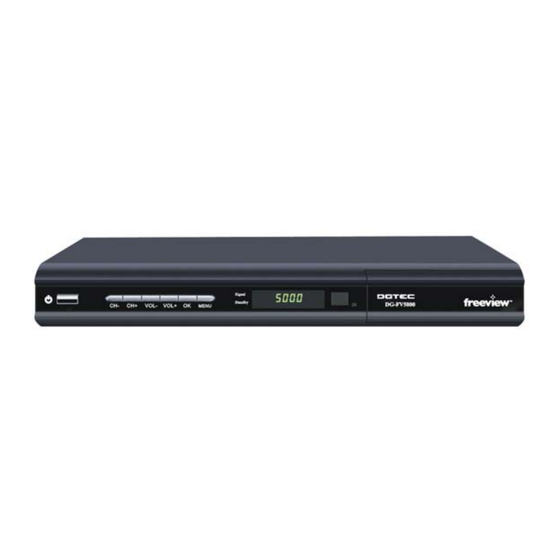

Front Panel/ Rear Panel Front Panel （1） STANDBY: Switches the STB between operation and standby modes. （2） CH (-/+): Change channel or items from top to bottom on the menu. （3） VOL (-/+): Turns up/down volume or changes the page of channel list. （4）... - Page 8 S-VIDEO: S-VHS Video output Y/Pb/Pr RCA A/V: Component connection (Y/Pb/Pr) POWER: Power ON/OFF switch A/V RCA: To connect the Audio/Video RCA output to TV. (10) RS-232: To connect to your PC for software upgrade (only used by qualified DGTEC technician)
-
Page 9: Remote Control Unit
Remote Control Unit... -
Page 10: Remote Control Unit
Remote Control Unit Switch between Operation and Standby mode STANDBY Turn off volume MUTE Changes channels or selects the menu NUMBERIC options. BUTTONS Press to select the video output mode of 1080I, FORMAT 720P and 576P. When change a video format, there will be flicker for second when change format. -
Page 11: Connecting Your Stb
Connecting your STB Step 1: Connect to the antenna Connect the antenna lead coming from the wall plate to the AERIAL IN socket. Step 2: Choose your Connection There are a number of methods for connecting your STB to the television, depending on your preference and the connection types on your TV. - Page 12 Connecting you STB How do I connect to an external audio device? Connect the AUDIO R/L socket of the STB to the Audio System e.g. HI-FI, Amplifier, etc. Alternatively an optical cable can be used from the rear S/PDIF to a surround sound system.
-
Page 13: Main Menu
Main Menu Plug in the STB. The Main Menu screen will appear as shown in the following picture. The Main Menu displays various functions of the STB. You can select menu options with the “CH” buttons and the numeric buttons on the remote control. To proceed to the next stage, press the “OK”... -
Page 14: Installation
Setting Favorite Channels: Press the GREEN button to save channels as favorites. A love heart will appear when channel is tagged as a favorite. Favorite channels are accessible by pressing on the FAV button when exiting from the menu. Press the BLUE button to enter LCN Sort menu. -
Page 15: Settlings
2.1.3 INPUT FREQ you can input the Frequency which you want then press Colour key into the Manual Search. If any program is detected when scanning process is finished, system will exit the scanning page and save the program. 3.SETTINGS 3.1 AV Setting Using the AV Setting menu, you can set the user interface display mode to your own satisfaction. - Page 16 3.2.5Sleep Switch between Lower Power and Normal by pressing left and right buttons. Press UP, DOWN Key to select items that you want . Press LEFT, RIGHT Key to change Settings 3.3 Parent Control Default Pin code is 0000. Please enter this number when requested.
-
Page 17: Timer
5.2 USB Update USB port is only to be used for a software upgrade. If required, an upgrade will be authorized by a DGTEC technician. 5.3STB Information System Info provides you current hardware and software information for your STB. - Page 18 EPG (Electronic Program Guide): Press EPG on the remote control and select the channel of your choice. Please be patient as it takes some time for information to load. 1. Highlight the channel of your choice (at the bottom left). The EPG detail information is shown on the upper left.
-
Page 19: Troubleshooting
Troubleshooting If a problem does occur with this STB, please check the table below to begin troubleshooting. Alternatively you can contact the DGTEC Technical support hotline on 1800 189 941. Problem Probable reasons Resolution Power on, but no Please carefully check the... -
Page 20: Specification
Specification Tuner Demodulator Input Frequency Range 176MHz–860MHz Input socket IEC 169-2 Female Output socket IEC 162-2 Male Demodulator Coding COFDM Mode 2K or 8K Code rate 1/2,2/3,3/4,5/6,7/8 Guard 1/4,1/8,1/6,1/32 Video decoder Profile Lever MPEG-2 MP@ML Bit rate Max 15Mbps Aspect Ratio 4:3, 16:9, Auto Output PAL/NTSC...
