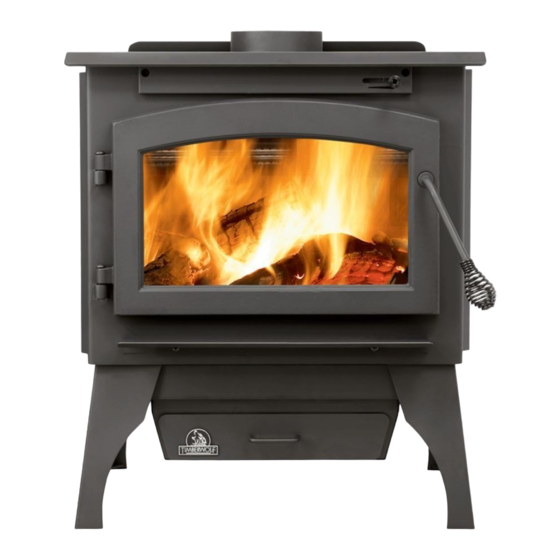

Timberwolf 2100 Installation And Operating Instructions Manual
Leg models & pedestal models
Hide thumbs
Also See for 2100:
- Installation and operating instructions manual (40 pages) ,
- Installation and operating instructions manual (84 pages) ,
- Installation and operation manual (84 pages)
Table of Contents
Advertisement
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60 AND THE OREGON DEPARTMENT OF
ENVIRONMENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY OMNI
2100 & 2200
LEG MODELS &
PEDESTAL MODELS
SAFETY INFORMATION
WARNING
!
If the information in these instructions is not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or death. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property
damage, bodily injury or even death. Please read entire
manual before you install and use your appliance.
- This appliance can be very hot when burning.
- Combustible materials such as fi rewood, wet clothing, etc. placed too
close can catch fi re.
- Children and pets must be kept from touching the appliance when it
is hot.
- The chimney must be sound and free of cracks. Before installing
this unit, contact the local building or fi re authority and follow their
guidelines.
- Operate only with the door tightly closed.
- Burn wood behind the log retainer directly on the fi rebricks.
- Do not use an elevated grate or otherwise raise the fi re.
- At least 14 square inches of outside air must be admitted to the room
or directly to the unit through a 4" diameter pipe.
- This appliance is designed to burn natural wood only. Higher
effi ciencies and lower emissions generally result when burning air
dried seasoned hardwoods, as compared to softwoods or to green or
freshly cut hardwoods.
- Do not start a fi re with chemicals or fl uids such as gasoline, engine
oil, etc.
- Do not burn treated wood, coal, charcoal, coloured paper, cardboard,
solvents or garbage.
- Do not let the appliance become hot enough for any part to glow red.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C).
Attempts to achieve heat output rates that exceed design
specifi cations can result in steel distortion and damage.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
OPERATING INSTRUCTIONS
TESTING SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
2 1 0
I L L
0 L
E G
M O
U S
D E
T R
L
A T E
D
1.14
1
W415-0842 / 07.28.09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timberwolf 2100
Summary of Contents for Timberwolf 2100
-
Page 1: Safety Information
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60 AND THE OREGON DEPARTMENT OF ENVIRONMENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY OMNI TESTING SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482. 2100 & 2200 LEG MODELS & PEDESTAL MODELS... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION WARRANTY DIMENSIONS SPECIFICATIONS INSTALLATION OVERVIEW GENERAL INFORMATION GENERAL INSTRUCTIONS INSTALLATION CLEARANCE TO COMBUSTIBLES FLOOR PROTECTION CHIMNEY 2.3.1 CHIMNEY CONNECTION 2.3.2 TYPICAL THROUGH THE CEILING 2.3.3 ADDING SECTIONS 2.3.4 TYPICAL THROUGH THE WALL 2.3.5 TYPICAL EXISTING MASONRY ASH LIP INSTALLATION LEG INSTALLATION PEDESTAL INSTALLATION... -
Page 3: Introduction
1.0 INTRODUCTION Before installing this unit, contact the Operate only with the doors tightly local building or fire authority and closed. follow their guidelines. THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE This appliance must be installed by a SEVERE BURNS IF CONTACTED. - Page 4 WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •...
-
Page 5: Warranty
After the fi rst year, with respect to the TIMBERWOLF’S President’s Limited Warranty, Wolf Steel may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective parts. -
Page 6: Dimensions
DIMENSIONS 2100 26” 13” 6 1/2” O 6” 19 3/4” 21 5/8” 31 5/8” 2200 26” 13” 6 1/2” O 6” 22 3/4” 24 5/8” 31 5/8” SPECIFICATIONS Specifi cations 2100 2200 WIDTH 26” 26” DEPTH 21 5/8” 24 5/8”... -
Page 7: Installation Overview
INSTALLATION OVERVIEW Venting, see “INSTALLATION - CHIMNEY” section See “DRAFT” section Blower, see “OPTIONAL BLOWER INSTALLATION” Handle, see “DOOR section HANDLE INSTALLATION” section Heat sheild, see “LEG Ash Drawer, see “OPTIONAL ASH INSTALLATION” section DRAWER KIT (EP20LAD)” section for the leg model and “OPTIONAL ASH PAN KIT (EP20PAD)”... -
Page 8: General Information
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE FRONT FACE OF THE APPLIANCE. DO NOT INSTALL IN A MOBILE HOME. Both models 2100 and 2200 are similar in design and use the same burning AIR INLET PATH principles. -
Page 9: General Instructions
GENERAL INSTRUCTIONS WARNING DO NOT OPERATE THIS APPLIANCE WITHOUT THE LEGS OR PEDESTAL INSTALLED. • Before beginning your installation, consult with your local building code agency or fi re offi cials and insurance representative to ensure compliance. • Non-toxic smoke will be emitted during the paint curing process, to help dissipate the smoke open a window near the appliance. -
Page 10: Clearance To Combustibles
CLEARANCE TO COMBUSTIBLES WARNING DO NOT INSTALL INTO ANY AREA HAVING LESS THAN 7 FEET (CEILING TO APPLIANCE BOTTOM, EXCLUDING HEARTH HEIGHT). BACK WALL BACK WALL PARALLEL & CORNER SINGLE WALL CONNECTOR DOUBLE WALL CONNECTOR SIDEWALL (A) 19” 19” SIDEWALL TO FLUE (B) 28 7/8”... -
Page 11: Chimney
ULCS629 (Canada) or UL103 (USA) standards. It must therefore be a 6” HT Type (2100°F) chimney. It is extremely important that it be installed according to the manufacturer’s specifi cations. The manufacturer’s installation instructions and specifi ed clearances should always be followed in accordance with local and national codes. -
Page 12: Chimney Connection
This room appliance must be connected to: A chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory- Built, Residential Type and Building Heating Appli- ance, or MALE END OF A code-approved masonry chimney with a fl ue liner. CONNECTOR TOWARD Vent the stove into a masonry chimney or an ap-... -
Page 13: Typical Through The Ceiling
2.3.2 TYPICAL THROUGH THE CEILING Move the stove into position with the fl ue centered, midpoint between two joists to prevent having to cut them. Use a plumb bob to line up the center. Cut and frame an opening in the ceiling to provide a 2” clearance between the outside of the chimney and any combustible material. -
Page 14: Adding Sections
2.3.3 ADDING SECTIONS Add chimney sections, according to the manufacturers installation instructions, securely, to the required height. The chimney must extend at least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof or building within 10 feet horizontally. -
Page 15: Typical Through The Wall
2.3.4 TYPICAL THROUGH THE WALL If possible, design the installation so that the connector does not pass through a combustible wall. If during your installation you must pass through a combustible wall, check with your building inspector before you be- gin. -
Page 16: Typical Existing Masonry
2.3.5 TYPICAL EXISTING MASONRY You can also install your appliance using your existing masonry chimney. To do so, follow the guidelines below. You may want to use a factory- built thimble, or construct your own brick thimble. If you are using a masonry chimney, it is important that it be built in compliance with the specifi... -
Page 17: Leg Installation
LEG INSTALLATION WARNING KNOCKOUT NOT TO BE REMOVED EXCEPT WHEN INSTALLING THE OPTIONAL ASH DRAWER KIT. To avoid being damaged during shipping, the appliance has been bolted to the pallet and must be unbolted before the appliance can be installed. NOTE: If installing the optional ash drawer, see “OP- TIONAL ASH DRAWER KIT (EP20LAD)”... -
Page 18: Pedestal Installation
PEDESTAL INSTALLATION NOTE: If an optional ash drawer kit is to be in- stalled, ensure open side of pedestal is at the front of the appliance. If not, opening should be at the back. To avoid being damaged during shipping, the appliance has been bolted to the pallet and must be unbolted before the appliance can be installed. -
Page 19: Secondary Air Tubes
Start at the back work- ing forwards by slid- ing the secondary air tube in the fi rebox and inserting the tube into TUBE the hole, as illustrated in 2100 RETAINER “A”. ILLUSTRATED HOLE COTTER PIN 2.8.2 Slide the tube into the opposite hole. -
Page 20: Brick And Baffle Installation
(model 2100 only). 2.9.2 Install two (2100) or four (2200) bricks along both sides of the appliance. Install the fi ve bricks along the back wall by pivoting the bricks up under the brick retainer. NOTE: Place narrow brick in centre. -
Page 21: Optional Blower Kit Installation
2.10.3 Install the blower and housing as shown using the 4 screws supplied. 2.10.4 Loosen the thermal disc bracket (2 screws) and slide the bracket until the thermal disc is touching the rear of the fi rebox and secure. SCREWS THERMAL DISC 2100 PEDESTAL BRACKET MODEL ILLUSTRATED W415-0842 / 07.28.09... -
Page 22: Outside Air
2.11 OUTSIDE AIR The following are signs that fresh air for combustion may be required to operate the appliance: • There are other devices that exhaust house air. • When the appliance is burning, wood burns poorly, smoke rollouts occur, back-draft takes place and your appliance does not draw steadily. -
Page 23: Optional Ash Pan Kit (Ep20Pad)
2.13 OPTIONAL ASH PAN KIT (EP20PAD) WARNING FAILURE TO ACHIEVE A GOOD SEAL BETWEEN THE ASH OPENING AND ASH PLUG WILL RESULT IN AN OVER FIRE CONDITION THAT COULD CAUSE DAMAGE TO THE APPLIANCE Provisions have been made on the appliance to install an optional ash drawer kit. The kit allows for convenient removal of excess ash. -
Page 24: Operation
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE. Your Timberwolf EPA listed product is a Hi-tech appliance, designed with the most advanced technology. The appli- ance is extremely airtight. -
Page 25: Draft
You can now add larger pieces of wood and operate the appliance normally. Once the appliance is entirely hot, it will burn very effi ciently with little smoke from the chimney. There will be a bed of orange coals in the fi rebox and secondary fl... -
Page 26: Lighting A Fire
LIGHTING A FIRE 3.4.1 FLASH FIRE A fl ash fi re is a small fi re burned quickly when you don’t need much heat. After your kindling has “caught”, load at least 3 pieces of wood, stacked loosely. Burn with the draft control fully open or closed only slightly. 3.4.2 EXTENDED FIRE Load your larger pieces of wood compactly, packed close enough to prevent the fl... -
Page 27: Creosote Formation And Removal
CREOSOTE FORMATION AND REMOVAL When wood is burned slowly, it produces tar and other organic vapours which combine with expelled moisture to form creosote. These vapours condense in the relatively cooler chimney fl ue of a slow burning fi re and when ignited, make an extremely hot fi... -
Page 28: Care Of Glass
CARE OF GLASS If the glass is not kept clean permanent discolouration and / or WARNING blemishes may result. Normally a hot fi re will clean the glass. The most common reasons for dirty glass include: not using HOT GLASS WILL suffi... -
Page 29: Glass Replacement
GLASS REPLACEMENT WARNING DO NOT USE SUBSTITUTE MATERIALS. GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN GLASS OR DAMAGED COMPO- NENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE APPLIANCE BEFORE OPERATION. DO NOT STRIKE, SLAM OR SCRATCH GLASS. -
Page 30: Replacements
Finish RESULT IN PROPERTY DAMAGE OR * IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR PERSONAL INJURY. FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.1 COMPONENTS REF NO. 2100 2200 DESCRIPTION W325-0042 W325-0042 SPRING HANDLE - SMALL BLACK W325-0043 W325-0043 SPRING HANDLE - LARGE BLACK... - Page 31 2100 2200 ACCESSORIES REF NO. 2100 2200 DESCRIPTION EP65 EP65 BLOWER KIT EP20LAD EP20LAD ASH DRAWER KIT - LEG MODEL c/w ASH PLUG EP20PAD EP20PAD ASH PAN KIT - PEDESTAL MODEL c/w ASH PLUG W415-0842 / 07.28.09...
-
Page 32: Trouble Shooting
6.0 TROUBLE SHOOTING SMOKES WHEN DOOR IS OPEN Always fully open damper before opening door, is the brick baffl e positioned correctly? Has the chimney been suffi ciently heated to establish a proper draft? Is there a negative air pressure surrounding the appliance? APPLIANCE EMITS ODOUR Paint is curing, see “GENERAL INSTRUCTIONS”... -
Page 33: Service History
7.0 SERVICE HISTORY 43.1 W415-0842 / 07.28.09... -
Page 34: Notes
8.0 NOTES 44.1 W415-0842 / 07.28.09... - Page 35 44.1 W415-0842 / 07.28.09...
