DeLOCK 86215 User Manual

1. Description
The Delock 10/100 Mb/s Fast Ethernet Media Converter
series is designed to extend a copper based Fast Ethernet
network via fiber cable to a maximum distance up to 20 km.
The 10/100 Mb/s Fast Ethernet Media Converter series is
fully compliant with IEEE802.3,
10/100Base-TX, and 100Base-FX
installation and operation procedures are simple and
straightforward. Operation status can be locally monitored
through a set of diagnostic LEDs located in the front panel.
2. Package content
• Media Converter
• AC-DC Power Supply
• User Manual
3. Installation
• Fiber interface
Connect a fiber cable from the media converter to the fiber
network. The fiber connections must be matched - transmit
socket to receive socket, the TX, RX fiber cable must be
paired at both ends.
• TP interface
Connect a TP cable from the 10/100BASE-T network to
the RJ-45 port on the media converter.
• Power
Connect the power adapter to the media converter and
check that the Power LED lights up. The TP-LINK/ACT
and FP-LINK/ACT LEDs will light up when all the cable
connections are correctly installed.

4. LED Description

LED indicator lamps serve as device monitoring and
troubleshooting display. The following is the explanation
for each LED indicator lamp.
IEEE802.3U,
standards. The

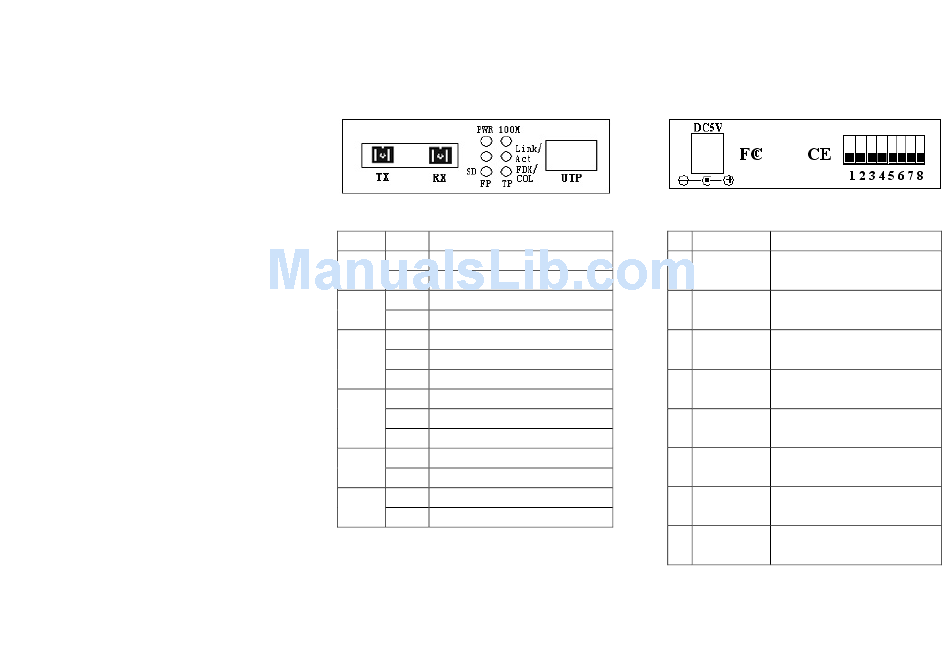

Fig. 1: Front panel for dual fiber media converter
LED
PWR
100M
TP
Link/Act
FP
Link/Act
FDX/
COL
SD
Status Description
On Power supply is normal
Off Check power supply
On TP Port Link speed is 100 Mb/s
Off TP Port Link speed is 10 Mb/s
On TP Link connected
Blink Data transmission
Off TP Link fail
On Fiber Port Link connected
Blink Data transmission
Off Fiber Port Link fail
On TP Port works in full duplex mode
Off TP Port works in half duplex mode
On Fiber Port signal detected
Off Fiber Port signal not detected

5. DIP Switch settings

The DIP switch can be used to configure the TP and fiber
interfaces. Top position is OFF, low position is ON. The
default configuration is all DIP switches set to OFF.
Fig. 2: Back panel for dual fiber media converter
No. Function Description
ON: Link fault passthrough
1 LFP
OFF: LFP disabled
ON: Pure converter mode
2 Direct Wire
OFF: Store and Forward Switch
ON: Fast Forward disabled
3 Fast FWD
OFF: Fast Forward enabled
ON: Force TP speed
4 TP_ Force
OFF: 10/100M Autonegotiation
ON: IEEE802.3x disabled
5 IEEE 802.3x
OFF: IEEE802.3x enabled
ON: 10M
6 Speed_Mode
OFF: 100M
ON: TP Port half duplex
7 Duplex_Mode
OFF: TP Port full duplex
ON: Fiber Port half duplex
8 FX-Full
OFF: Fiber Port full duplex
