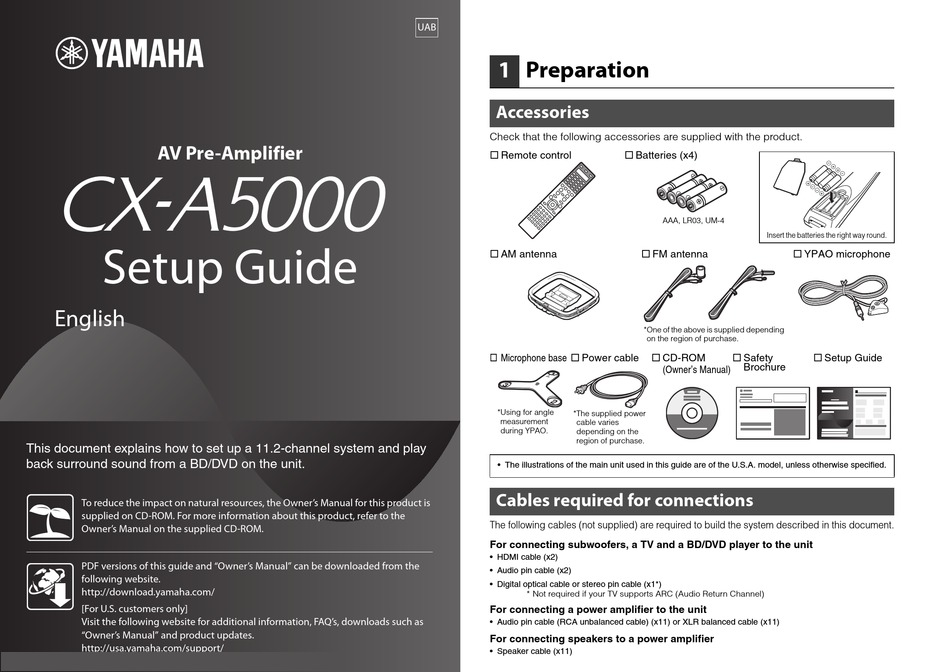

Yamaha CX-A5000 Setup Manual

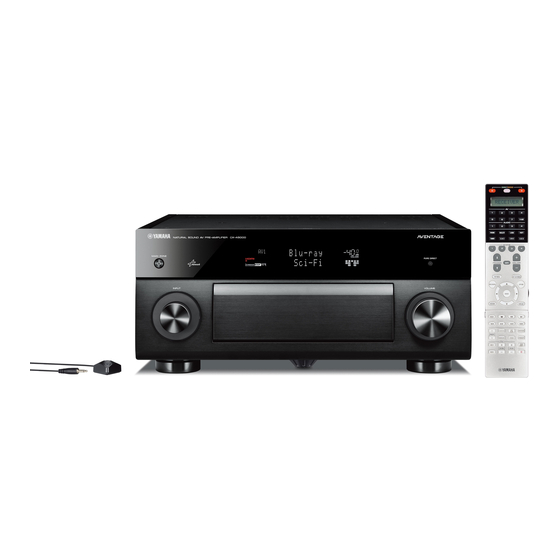

AV Pre-Amplifier
Setup Guide
English
This document explains how to set up a 11.2-channel system and play
back surround sound from a BD/DVD on the unit.
To reduce the impact on natural resources, the Owner's Manual for this product is
supplied on CD-ROM. For more information about this product, refer to the
Owner's Manual on the supplied CD-ROM.
PDF versions of this guide and "Owner's Manual" can be downloaded from the
following website.
http://download.yamaha.com/
[For U.S. customers only]
Visit the following website for additional information, FAQ's, downloads such as
"Owner's Manual" and product updates.
http://usa.yamaha.com/support/
UAB
1 Preparation
Accessories
Check that the following accessories are supplied with the product.
 Remote control
 AM antenna
 Microphone base  Power cable
*Using for angle
*The supplied power
measurement
cable varies
during YPAO. depending on the
region of purchase.
• The illustrations of the main unit used in this guide are of the U.S.A. model, unless otherwise specified.
Cables required for connections
The following cables (not supplied) are required to build the system described in this document.
For connecting subwoofers, a TV and a BD/DVD player to the unit
• HDMI cable (x2)
• Audio pin cable (x2)
• Digital optical cable or stereo pin cable (x1*)
* Not required if your TV supports ARC (Audio Return Channel)
For connecting a power amplifier to the unit
• Audio pin cable (RCA unbalanced cable) (x11) or XLR balanced cable (x11)
For connecting speakers to a power amplifier
• Speaker cable (x11)
 Batteries (x4)
AAA, LR03, UM-4
Insert the batteries the right way round.
 FM antenna  YPAO microphone
*One of the above is supplied depending
on the region of purchase.
 CD-ROM  Safety
Brochure
(Owner's Manual)
 Setup Guide
