Procedure to Confirm the Current Mode
1. Press and hold down Push-buttons 2 and 4 at the same time until the LED flashes,
release the Push-buttons.
2. After three seconds the Red Power LED indicates the Mode:
In "Dynamic Code Transmission Mode" the LED flashes rapidly.
a.
In "Standard Mode" the LED illuminates steady Red.
b.
Connection Requirements for Utilization of Four Buttons
When used in conjunction with the ImproX RF 4-Channel UHF Receiver
(UHR903-0-1-GB-XX) and a single ImproX (PT) Portal Terminal, only two Push-buttons
on the Quad Transmitter are available for use.
In order to utilize all four of the Quad Transmitters Push-buttons, connect two
ImproX (PT) Portal Terminals to the ImproX RF 4-Channel UHF Receiver
(UHR903-0-1-GB-XX), refer to Figure 3.

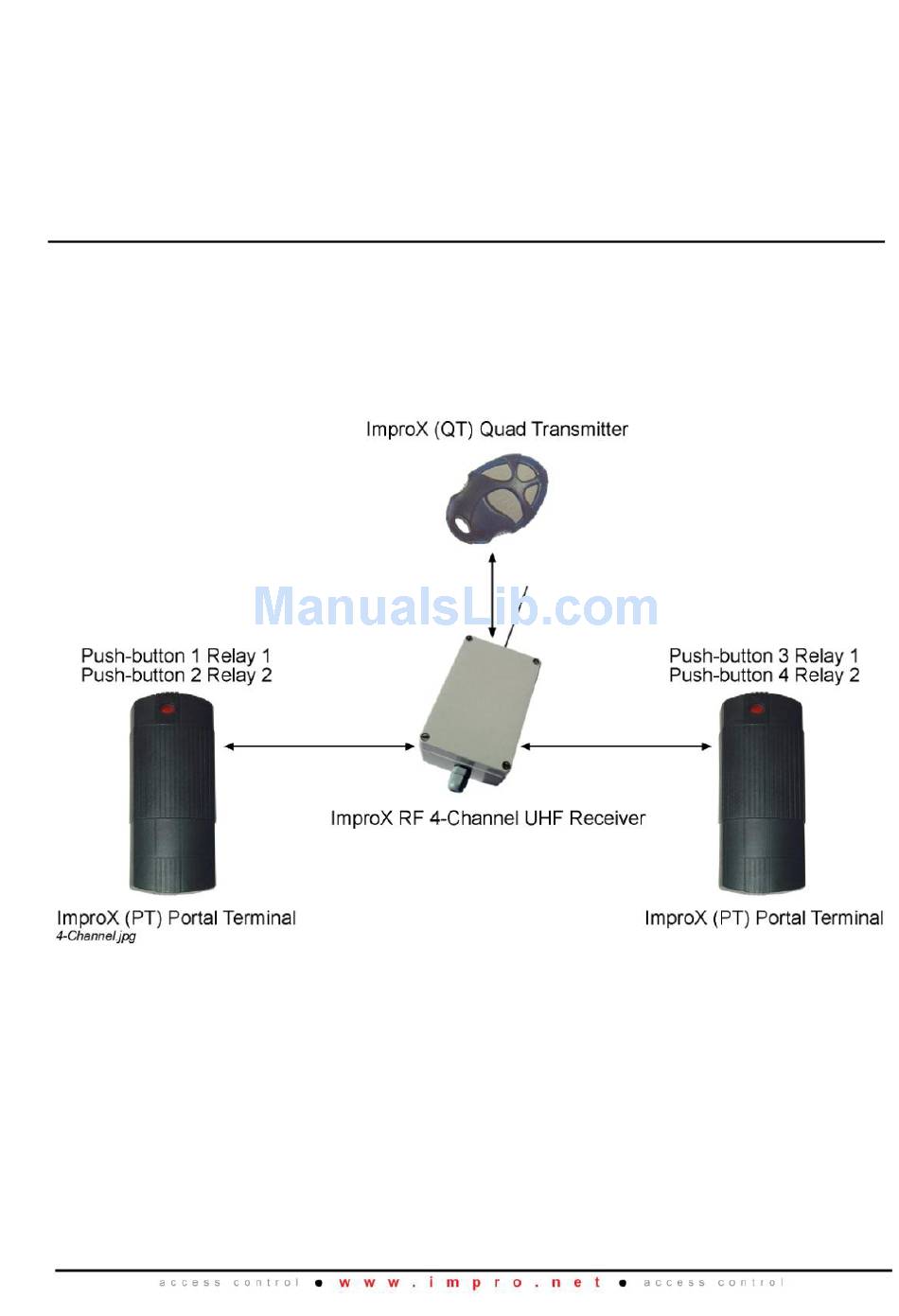

Figure 3: Connection Requirements for Utilization of Four Buttons
XQT300-0-0-GB-06
