USER INFORMATION

Accessories
Find the following when unpacking the Transmitter:
An ImproX Quad Transmitter housed in an opaque Dark Blue, Polycarbonate
Plastic housing. The Transmitters housing consists of a Lid and Base, secured
with 3 Self-tapping Screws (M2 x 6 mm).
A 3 V CR2032 lithium coin cell Battery (installed in the Transmitter).
A 25 mm Key-ring.
Channel (Push-button) Allocation

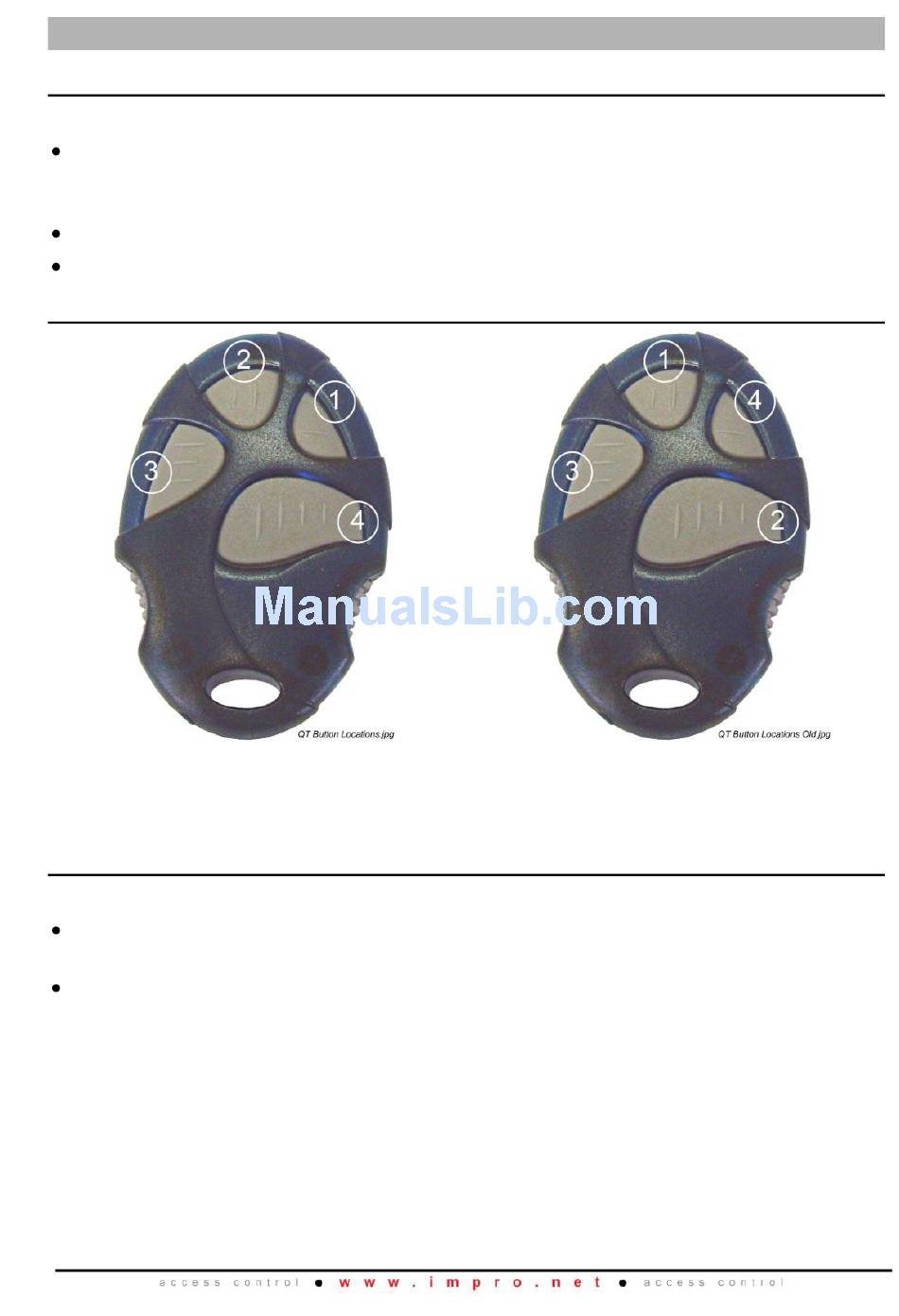

Figure 1: Button Configuration for Tag
Programmed in "Dynamic Code
Transmission Mode"
Operating Modes
The Quad Transmitter can be configured in one of two modes:
Default, "Dynamic Code Transmission Mode" compatible with the ImproX RF 4-
Channel UHF Receiver (model UHR903-0-1-GB-XX).
"Standard Mode" compatible with the legacy ImproX RF 4-Channel UHF Receiver
(model UHR900-0-1-GB-XX).
Procedure to Change Modes
1. Press and hold down Push-buttons 2 and 4 at the same time until the LED flashes,
release the Push-buttons.
2. Press Push-button 1 within three seconds to change to the new Mode.
3. The Red Power LED indicates the Mode:
In "Dynamic Code Transmission Mode" the LED flashes rapidly.
a.
In "Standard Mode" the LED illuminates steady Red.
b.
XQT300-0-0-GB-06
Figure 2: Button Configuration for Tag
Programmed in "Standard Mode"
