Summary of Contents for Sven Grand

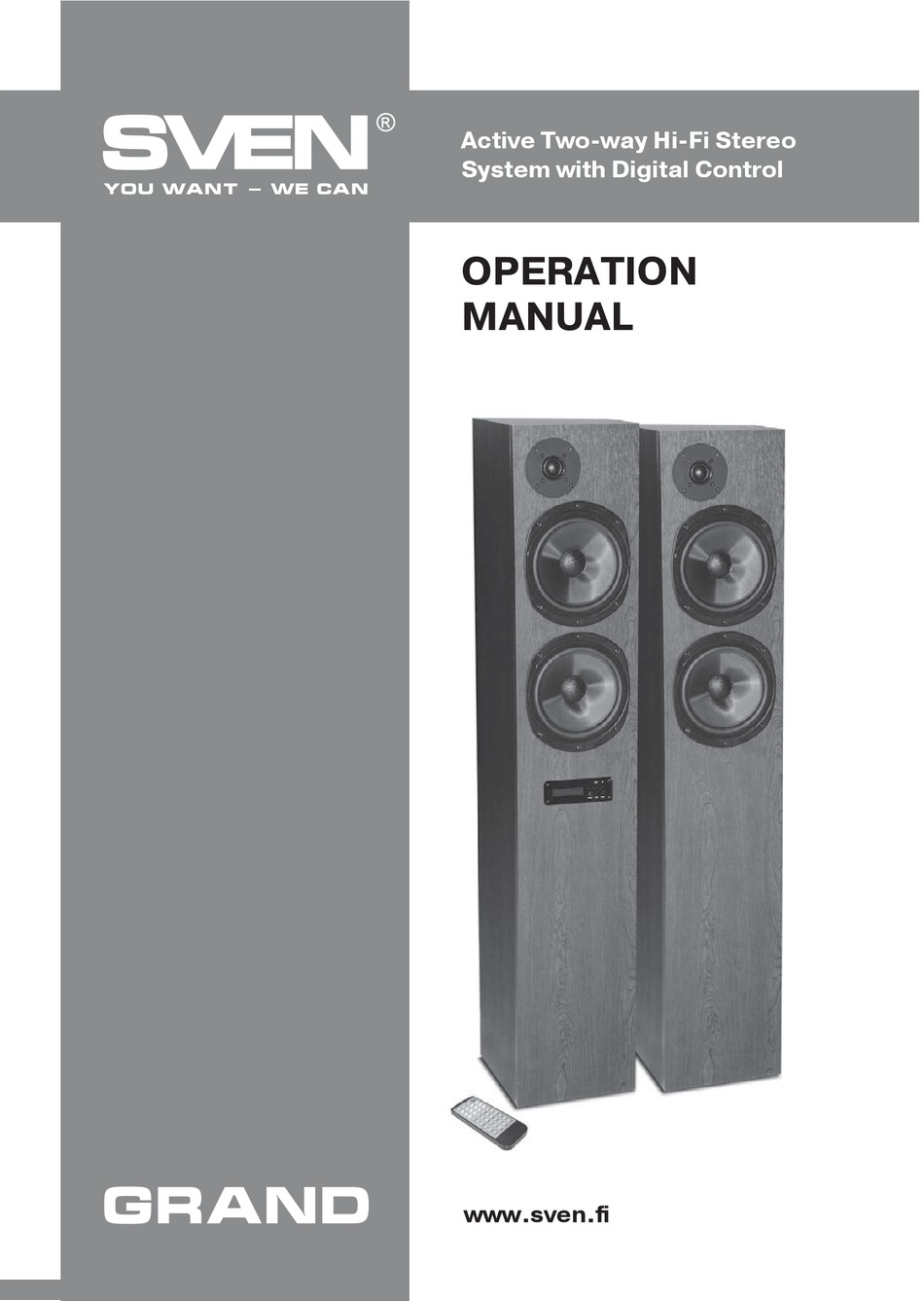

- Page 1 Active Two-way Hi-Fi Stereo System with Digital Control OPERATION MANUAL grand www.sven.
-
Page 2: Table Of Contents
Operation Manual grand Congratulations on your purchase of the Sven speaker system! Please read this operation manual before using the unit and retain this operation manual in a safe place for future reference. COPYRIGHT © 2011. SVEN Company Ltd. Version 1.0 (V 1.0). -
Page 3: Description

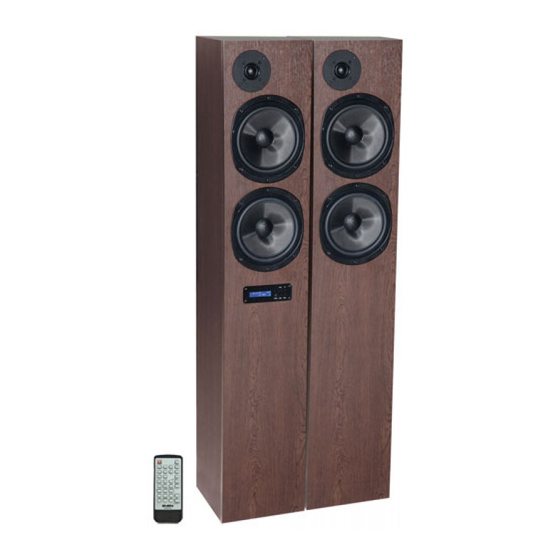

System with Digital Control 1. DESCRIPTION GRAND active two-way Hi-Fi multimedia speaker system (MSS) with digital control and FM tuner is made of superior materials with implementation of advanced technologies. The MSS is designed to play music, sound games, movies, Karaoke, etc. The device is equipped with a high-power bridge ampli er. -
Page 4: Special Features
• Built-in high quality surge protector • MDF case of speakers 5. SPEAKER SYSTEM PLACEMENT • Installation of GRAND speaker system graded as Hi-Fi (High Fidelity) class system is one of the most 0,7 x important factors in achieving the best sound of the system. -
Page 5: Control Panel
Active Two-way Hi-Fi Stereo System with Digital Control 6. CONTROL PANEL a Display screen b IR receiver c IINPUT: audio source selection button d UP: volume level up button, radio station switch button (in Tuner mode) e PHONES: headphone jack f MODE: mode selection button g DOWN: volume level down button, radio station switch button (in Tuner mode) -
Page 6: Remote Control
Operation Manual grand 8. REMOTE CONTROL a STANDBY: standby mode button b 0-9: numeric keyboard buttons for selecting preset radio stations c ST: MONO/STEREO mode selection button d MEM: button for presetting radio stations in the memory of the tuner e INPUT: audio source selection button f MODE +/–: buttons for setting parameters... -
Page 7: Connection
Active Two-way Hi-Fi Stereo System with Digital Control 9. CONNECTION MSS Connection GRAND Hi-Fi MSS 2.0 can be connected to virtually any audio source (see Fig. 5). 2RCA to mini-jack signal cable FM-antenna USB cable Passive speaker COMPUTER 2RCA to 2RCA... -
Page 8: Operation
Operation Manual grand • To connect the MSS to a PC or an 3/CD-player, rst insert the RCA-jacks of the 2RCA to Ø 3.5 input l of the active speaker, and then insert the mm mini-jack signal cable (included) into the... - Page 9 Active Two-way Hi-Fi Stereo System with Digital Control V O L - 2 0 U S B T R E B A S S T U N I N G > Fig. 8. USB input Fig. 9. FM input V O L - 2 0 U S B MSS setting with audio sources connected T R E...
- Page 10 T U N I N G > the control panel. Fig. 16 FM-tuner settings • GRAND multimedia speaker system has a built-in FM tuner with RDS facility. RDS function allows to receive and display additional infor- H I T mation transmitted simultaneously with the radio station signal, for example, HIT FM (Fig.
- Page 11 Active Two-way Hi-Fi Stereo System with Digital Control Manual tuning. You can search radio stations manually by successively pressing TUNING –/+ buttons l on the remote control. Short (less A U T P R E S E T > than 0.5 sec) pressing of the button allows to adjust the frequency to 0.1 MHz.
- Page 12 Operation Manual grand Headphone usage. GRAND active two-way Hi-Fi stereo system has a built-in high quality headphone ampli er, which allows to enjoy music from a player or tuner without distracting others’ attention. In order to switch on the headphones, connect them to the PHONES input e on the active speaker front panel.
-
Page 13: Trouble Shooting
Active Two-way Hi-Fi Stereo System with Digital Control • To give the sound of the voice a desirable colouring, switch on reverberation mode. Using REVERB–/+ buttons i on the remote control, adjust the desired reverberation level. The LCD dis- play will show the following: if it is a USB input, you’ll see an inscription like in Fig. 28, and if it is an FM station, you’ll see an inscription like in Fig. -
Page 14: Technical Specification
Tuner sensitivity, dB S/N ratio, dB Notes: • Technical speci cation given in this table is supplemental information and cannot give occasion to claims. • Technical speci cation is subject to change without notice due to improvement of SVEN production. - Page 15 , 15. : GRAND « ». , 31. www.sven. « », 48310, , 15. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN grand Scandinavia Ltd. Finland.
