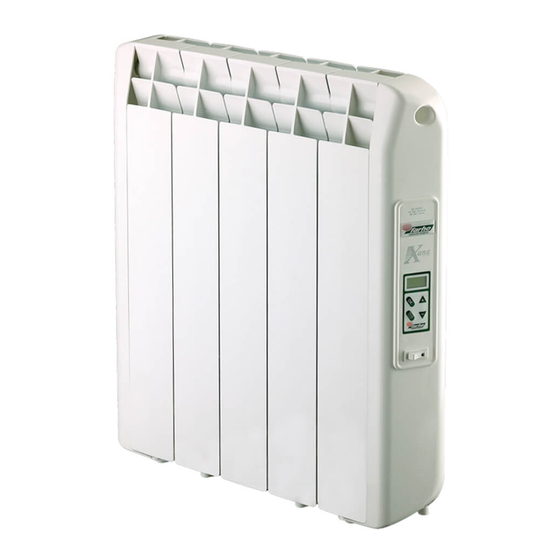

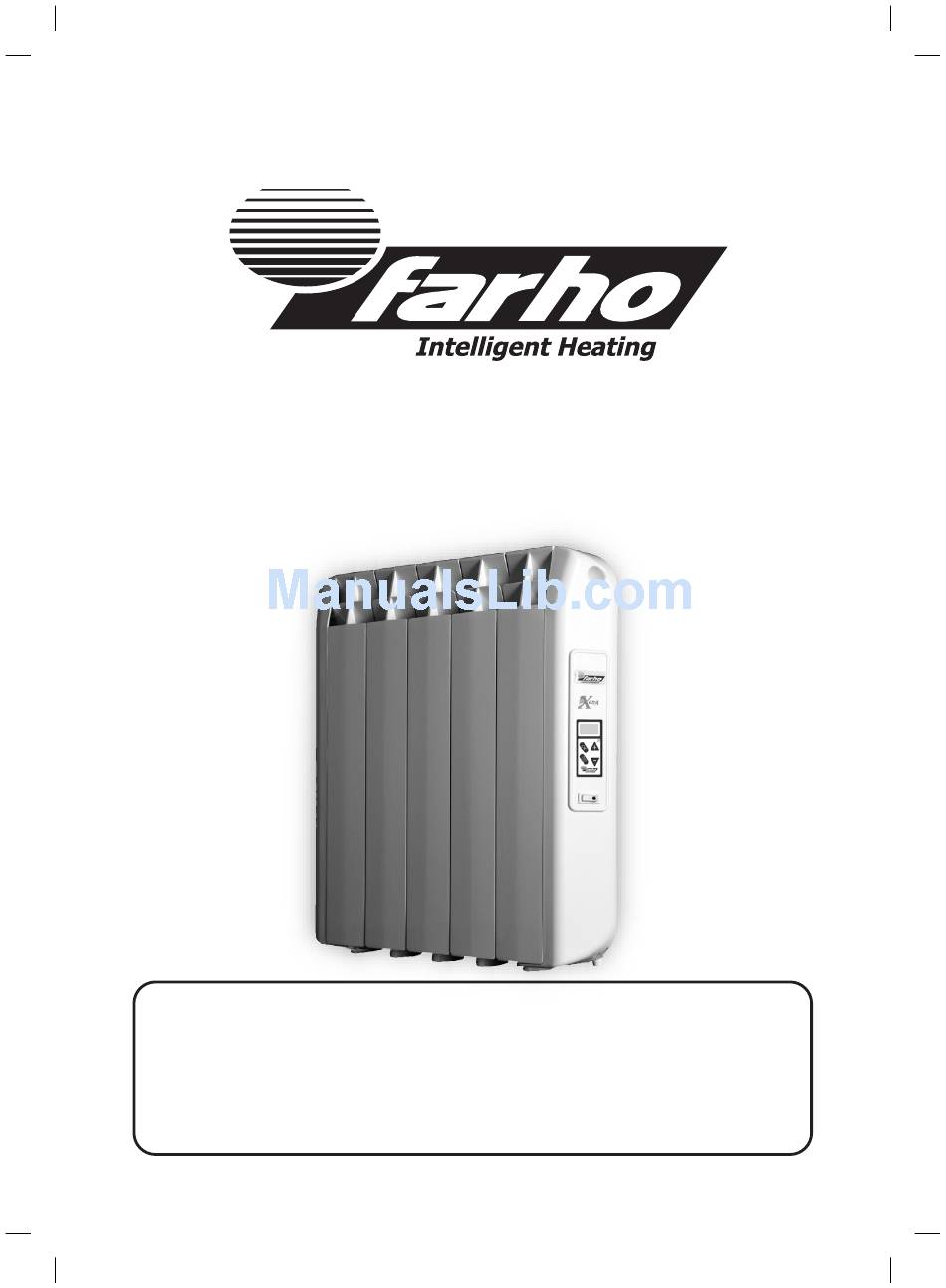

Fitting and Operating Instructions
XANA PLUS
Warning
Please read these instructions carefully and keep them for future consultation.
This heater must be installed by an accredited, qualified electrician and must
observe Low Voltage Regulations. The installation as a whole should meet the
provisions of aforesaid regulation. Any claim presented will be deemed invalid
if the prevailing regulations have not been met.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Farho XANA PLUS
Summary of Contents for Farho XANA PLUS
- Page 1 Fitting and Operating Instructions XANA PLUS Warning Please read these instructions carefully and keep them for future consultation. This heater must be installed by an accredited, qualified electrician and must observe Low Voltage Regulations. The installation as a whole should meet the provisions of aforesaid regulation.
-
Page 3: Table Of Contents
How to activate or deactivate programmes How to display the memorised programmes How to customise programmes How to reset the radiator TROUBLESHOOTING The Farho Xana Plus radiator is not responding to the controls The radiator is not giving off heat FITTER’S INSTRUCTIONS Power Supply Position... -
Page 5: Instructions For Use
IINSTRUCTIONS FOR USE Información general General Information Thank you for purchasing a FARHO heater. This item has been manufactured in an ultra-modern, production-line process. It is noteworthy for its elegant shape, its user friendliness, its great heating power and the safety of its use and operation. -
Page 6: Description Of The Keypad And Display
25 cm of the heater. Información general DESCRIPTION OF THE KEYPAD AND DISPLAY The XANA PLUS model is controlled by means of intuitive menus, thus greatly facilitating the use of same. 1.OPERATION CONFIRMATION KEY. 2.UP KEY 3.MENU/CANCEL KEY. -
Page 7: How To Select A Language
Go to the “Settings” menu and select the language you require in the “Language” section. The FARHO XANA PLUS model enables you to select the language that best suits you as regards handling the radiator. The following languages are available in this model: Spanish, Catalan, Basque, Galician, German, French, Hungarian, English, Italian and Portuguese. -
Page 8: How To Set The Clock
To raise or lower the room temperature all you have to do is to simply press the keys until the temperature indicator displays the desired heat level. The FARHO heater will automatically adjust the heat emission efficiently until reaching the temperature level you have set. -
Page 9: How To Know Whether Or Not A Radiator Is Consuming Power
Press on the key for four seconds in order to block or unblock the keypad. The FARHO XANA PLUS model heaters have a keypad blocking function to avoid its handling by children, or unauthorised persons. How to block the keypad: Press on the key for four seconds. -
Page 10: How To Activate Or Deactivate Programmes
HOW TO ACTIVATE OR DEACTIVATE PROGRAMMES Go to the “Programmes” menu, select “Activate” or “Deactivate”. If the programmes are active, only the “Deactivate” option will come up on the menu, and vice versa. To activate programmes follow the steps given below: Press the key. - Page 11 ” symbol will come up on the start menu display screen. The FARHO XANA PLUS model has default programmes stored in its memory. These can be modified by the user should he or she so wish. (See the section entitled “HOW TO CUSTOMISE PROGRAMMES” in this manual).
-
Page 12: How To Display The Memorised Programmes
HOW TO DISPLAY THE MEMORISED PROGRAMMES? Go to the “Programmes” menu and then to the “Display” menu. Choose the day of the week for which you wish to display the pre-set programmes and after selecting same, scroll up an down the menu in order to see the different time zone settings. -
Page 13: How To Customise Programmes
The FARHO XANA PLUS model enables you to customise, in a centralised fashion, operating programmes of radiators so that these may better meet your heating needs. You can customise radiator programmes for every day of the week, and include up to six operating time zones for each one, with its own associated operating temperature. - Page 14 Repeat Step 5 and Step 6 until you have selected all of the days of the week on which you wish to implement the programme in question. Press the key until positioning the “ ” indicator in front of “Accept”. Press the key.
-
Page 17: How To Reset The Radiator
HOW TO RESET THE RADIATOR? IF YOU RESET THE XANA PLUS RADIATOR MODEL ALL OF THE CUSTOMISED PROGRAMMES THAT YOU MAY HAVE STORED IN THE MEMORY WILL BE DELETED, AND WILL BE REPLACED BY THE PRE-SET, EX-FACTORY DEFAULT PROGRAMMES. IF YOU HAVE AN CENTRAL UNIT AND... -
Page 18: Troubleshooting
THE FARHO XANA PLUS IS NOT RESPONDING TO THE CONTROLS Possible causes are: If on pressing any of the FARHO XANA PLUS model keys the expected action is not brought about, and the word blocked comes up on the display screen, the radiator keypad has been blocked. To eliminate the keypad blocking function, consult the section entitled “HOW TO BLOCK OR UNBLOCK THE KEYPAD”... - Page 19 Perhaps you have set the radiator operating output and this is not receiving permission from any central unit to come into operation. If you have a FARHO LIFE STATION Central Unit, or this is disconnected, and have set the radiator output on the menu of the FARHO XANA PLUS model radiator, go to the “Power”...
-
Page 20: Fitter's Instructions
POWER SUPPLY The FARHO radiator needs 230 V input. It must be pointed out that the lead cable used to fit the FARHO XANA PLUS model must be of appropriate diameter in accordance with the length, type and power of the radiator in question (See Low Voltage Regulations). -
Page 21: Position
POSITION The ideal position for the FARHO heater is to fit it as close as possible to the facing that suffers most heat loss. We do not recommend fitting it to non-insulated walls that give onto the exterior. Should this be necessary, the insulation of the surface onto which the heater is to be fitted needs to be increased. -
Page 22: Fitting
F I T T I N G The FARHO heater will be mechanically secured to the wall at its top by means of the brackets that have been specially designed to this end, and which are supplied with the appliance. -
Page 23: Technical Characteristics
Width x depth x heigth Description XANA PLUS of Elements (Kg.) (mm.) Digital / 360 / 393 XANA PLUS - 3 370 x 95 x 590 Programmable Digital / 601 / 655 XANA PLUS - 5 530 x 95 x 590 11,5... - Page 25 Fitting Instructions that accompany each product must be read carefully. The Farho factory is at your complete disposal for any repairs that might need to be carried out, as well as to ensure that your appliance works correctly throughout its useful life.
- Page 26 Over the first six months after the purchase date, this GUARANTEE covers the repair at FARHO installations, of all flaws or defects and any damages arising thereof, or the replacement of any defective...
- Page 27 In the 18 months following the period of cover mentioned above, FARHO will replace any part, or defective component, free of charge, including carriage expenses to the factory, as well as the corresponding labour costs involved in repairing the appliance at our installations.
- Page 28 Polígono Industrial Tabaza II, Parcelas 9 a 13 Tlf.: (+34) 985 514 082 - (+34) 985 514 605 Fax: (+34) 985 514 164 33439 Carreño (Asturias) www.farho.com LOW-CONSUMPTION FARHO ELECTRIC HEATERS Xana Plus Alejandria AN Heating Plus Elegance TDE Towel Rack...
- Page 32 FARHO S.L.U. Polígono Industrial Tabaza II, Parcelas 9 a 13 Tlf.: (+34) 985 514 082 - (+34) 985 514 605 Fax: (+34) 985 514 164 33439 Carreño (Asturias) www.farho.com...
