Instructions for Use and Care

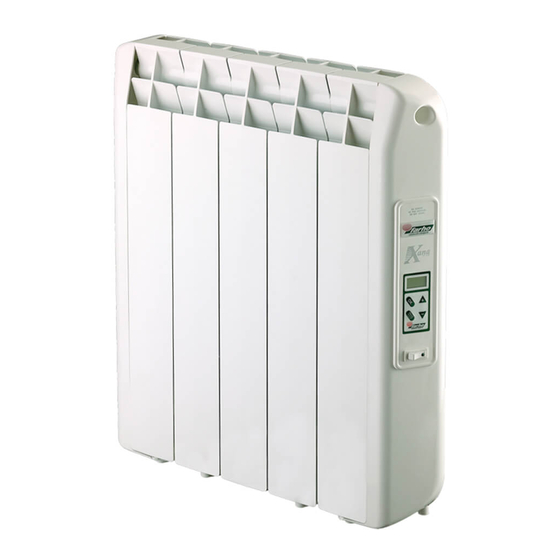

XANA PLUS
WARNING
Please read all instructions carefully before installing or using this heater and keep
them for future reference. This heater must be installed by qualified personnel
only and according the regulations. Otherwise, all claims will be dismissed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XANA PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Farho XANA PLUS

Summary of Contents for Farho XANA PLUS

  • Page 1 Instructions for Use and Care XANA PLUS WARNING Please read all instructions carefully before installing or using this heater and keep them for future reference. This heater must be installed by qualified personnel only and according the regulations. Otherwise, all claims will be dismissed.

  • Page 3: Table Of Contents

    How to customize programs? ............16 How to reset the heater? ..............20 TROUBLESHOOTING................21 The FARHO XANA PLUS is not responding to the controls ....21 The FARHO XANA PLUS is not heating ..........21 TECHNICAL CHARACTERISTICS............23 CARE AND MAINTENANCE ..............24...

  • Page 4: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

  • Page 5: Save These Instructions

    11. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. 12.

  • Page 6: Installation

    INSTALLATION Power supply FARHO heaters are for use on 120 V. The cord has a plug as shown at A. An adapter as shown at C is available for connecting three-blade grounding- type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box.

  • Page 7: Position

    Position The heater should be placed by the wall with high heat losses. It is not recommended to place the heater by non-insulated facing outdoor walls. If required, the insulation of the wall behind the heater must be reinforced. Radiators should not be fitted within the safety protection area limit in bathrooms (i.e.

  • Page 8: Fitting

    For more information see Figure 2 Fitting of Header Brackets Model Distance (A) Distance (B) XANA PLUS-3 6,30 in 23,62 in XANA PLUS -5 12,60 in 23,62 in XANA PLUS -7 18,90 in 23,62 in XANA PLUS -9 25,20 in...
  • Page 9 Figure 2 Once the heater is properly fitted, place and screw the safety bracket as shown in Figure 3. Figure 3...

  • Page 10: Operating Instructions

    To fulfill with the user's heating requirements, the number of heaters of the room shall be properly sized. Think FARHO as a heating system not as an isolated heater. A properly sized heating system provides great comfort with low power consumption.

  • Page 11: Description Of The Keypad And Display

    Do not disassemble and do not depose of in fire Description of the Keypad and Display The handling of the heater FARHO Xana Plus (XP) is performed through intuitive menus. There are only four buttons: 1. OK Key 2.

  • Page 12: How To Select A Language

    Go to the “Configuration” menu and select your preferred   language from the “Language” section. The FARHO Xana Plus heater, lets you choose from the following languages: English, Spanish, French, German, Italian, Portuguese, Hungarian, Galician, Basque and Catalan. Follow the steps below to change the language: 1.

  • Page 13: How To Set The Time

    How to set the time   Go to the “Configuration” menu. Select “Time”. Use the keys to set the correct time. In order to set the time in the radiator, follow the steps given below: 1. Press the key. 2. Press the key once, so the indicator points to “Configuration”.

  • Page 14: How To Switch Between ºf And ºc

    How to switch between ºF and ºC ? Go to the “Configuration” menu and select your preferred scale   of temperature from the “ºF->ºC” or “ºC->ºF" section. The FARHO Xana Plus heater lets you choose between two temperature scales (Fahrenheit or Celsius). 1. Press the key.

  • Page 15: How To Know Whether Or Not A Radiator Is Consuming

    While in standby screen, press the key and hold on a few seconds till the screen shows “Blocked” or “Unblocked”. The FARHO XANA PLUS heaters have a keypad blocking function to avoid its handling by children, or unauthorized persons. How to block the keypad:...

  • Page 16: How To Activate Or Deactivate The Programs

    How to activate or deactivate the programs Go to the “Programs” menu, select “Activate” or “Deactivate”.   If the programs are active, only the “Deactivate” option will appear on the menu, and vice versa. To activate the programs follow the steps given below: 1.

  • Page 17: How To See The Saved Programs

    How to see the saved programs? Go to “Programs” menu and then to “See” menu. Choose the   day of the week you wish to see. Scroll up and down in order to see the different program blocks of that day. If you wish to see the previously saved programs follow the next steps: 1.

  • Page 18: How To Customize Programs

    Xana Plus heater allows to set 6 different program blocks for each day of the week. Each block includes the start time, the end time and the temperature required for that time period.
  • Page 19 1. Press the key. 2. The indicator points to “Programs”. Press the key. 3. Press the key twice, the indicator points to “Edit”. 4. Press the key. 5. Press in order to scroll down the menu to set the indicator in front of the day of the week you wish to customize.
  • Page 20 17. Press the key. 18. Press the keys to enter the desired operating temperature for that block. 19. Press the key. 20. Repeat steps 10 to 19 to customize all the blocks you wish. 21. If you press at the begin of a block with no time selected (--:--), the heater saves the previously customized blocks and finish the customization process.

  • Page 22: How To Reset The Heater

    How to reset the heater?   If you reset the heater, all of your customized programs will be deleted. If you have any control device, such as Nexho UC, Nexho RM or Nexho NT, you should uninstall that heater in it too. Otherwise the control device will show errors when you send orders to the zone in which the heater was previously installed.

  • Page 23: Troubleshooting

    TROUBLESHOOTING If your heater is not working properly, or if you are having troubles with the new FARHO home automated system, you may find a solution in the following list: The FARHO XANA PLUS is not responding to the controls ...
  • Page 24 heater stop heating so it release some power and, if it is enough, the control device allows a new heater to start heating.  If you have a control device and the power control is not active, or if you don´t have a control device, go to the configuration menu of the heater and look for "Power".

  • Page 25: Technical Characteristics

    TECHNICAL CHARACTERISTICS Technical Characteristics Model XANA PLUS Model Power Dimension Weight Nº of XANA PLUS Rating Width x Depth x Heigth Elements 120V XANA PLUS-3 14,57 x 3,74 x 23,23 16.50 XANA PLUS -5 20,87 x 3,74 x 23,23 25.35...

  • Page 26: Care And Maintenance

    CARE AND MAINTENANCE WARNING: THE APPLIANCE MUST NOT BE COVERED UNDER ANY CIRCUMSTANCE! Leave the “DO NOT COVER” warning on the upper face of the radiator, as it will constantly remind the end user. Air must be freely able to enter into contact with all heater surfaces. Before cleaning, make sure the power has been turned off and that the heating element is cool.

  • Page 27: Guarantee Terms And Conditions

    Further to the aforementioned, FARHO extends the term of the guarantee 3 more years, except for carriage costs which will be paid by the customer. FARHO may, at its own discretion, require the customer to ship the unit back to the factory for diagnosis before making a determination as to whether it is covered by this warranty.
  • Page 28 The seller will have the property of parts replaced. Farho will not be liable for damages such as the possible appearance of stains on walls and ceilings of the house motivated by dirt, dusty ambiance, or other circumstances of lack of hygiene on the room where the heater is located.
  • Page 29 In the case where FARHO is responsible for defective products, the compensation may not exceed the amount of the purchase price of such defective products.
  • Page 30 FARHO USA 12800 N.W. 38 Avenue – Miami FL 33054-4525 Tlf.: (305) 777-7262 Fax: (305) 777-7261 www.farho.com LOW- CONSUMPTION FARHO ELECTRIC HEATERS HEATER MODEL XP Nº:……………………………………..………………………………......W:…………………………….…………… A …………………….……..…………… Voltage 120V 50/60 Hz SELLER/INSTALLER:……………………………………..……………….………… Name:……………………………...…………. Town/City:………...…………………. Address:…….……………………………………... Phone:…...………..…………. USER Name:…………………………………………. Town/City:……..………………….
  • Page 32 FARHO USA 12800 N.W. 38 Avenue – Miami FL 33054-4525 Tlf.: (305) 777-7262 Fax: (305) 777-7261 www.farho.com...
