Elko RF Touch-B User Manual

Wireless touch control unit
Hide thumbs Also See for RF Touch-B:
Table of Contents

Advertisement

Quick Links

Download this manual

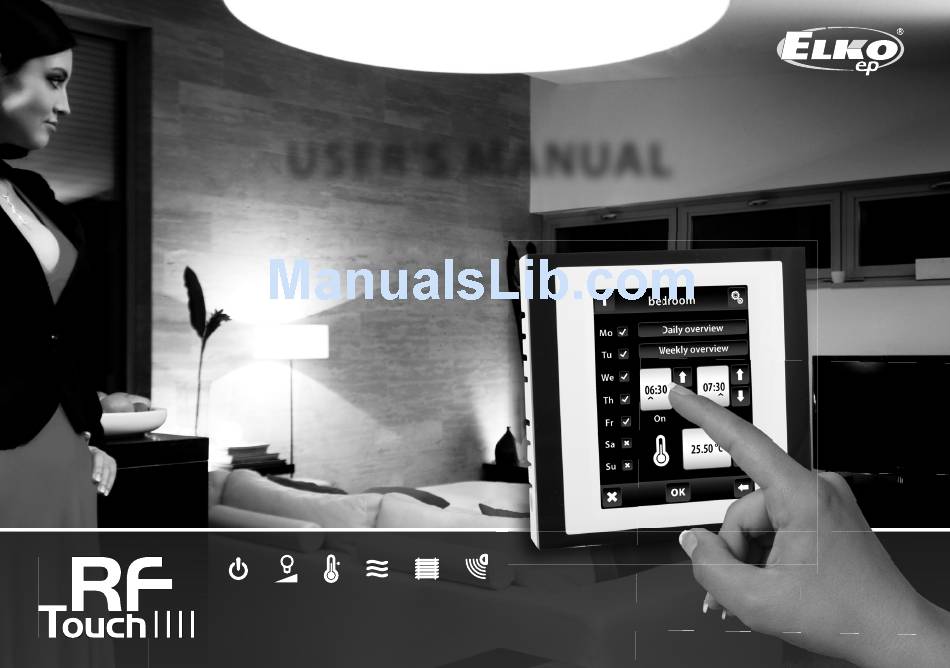

USER'S MANUAL
W I R E L E S S T O U C H
CO N T R O L U N I T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF Touch-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elko RF Touch-B

Summary of Contents for Elko RF Touch-B

  • Page 1 USER'S MANUAL W I R E L E S S T O U C H CO N T R O L U N I T...
  • Page 2 RF Touch user manual We want to thank you for your purchase of the RF Touch control unit, which is an element of wireless RF Control system. RF Touch allows: you to control many devices trough touch screen - heating control - dimming lights - switching of electrical appliances and equipment - blinds...

  • Page 3: Table Of Contents

    RF Touch user manual Contents: Before you start ....... Settings Control - Default setting ......- Temperature regulation ..Overview of wireless devices ... - Menu(creating and naming) ... - Switching ......... Characteristics of RF Touch ..- Programming ......- Dimming ........

  • Page 4: Overview Of Wireless Devices

    Overview of wireless RF Control devices RF Control system CENTRAL WIRELESS UNIT CONTROLLER All actuators of the RF Control RF Touch-W RF Touch-B RF Pilot System can be controlled by for surface mounting for mounting remote controller, wireless central unit and all...
  • Page 5 Overview of wireless RF Control devices SWITCHING ACTUATORS RFSA-11B RFSA-61B RFSAI-61B RFSA-62B single channel single channel single-channel 2 channel single function multifunction multi-function multifunction switching actuator switching actuator switching actuator switching actuator 1 x switching 1 x switching with option of 2 x 8A switching contact 16 A contact 16A...
  • Page 6 Overview of wireless RF Control devices TEMPERATURE ACTUATOR RFSTI-11B RFSTI-11/G RFTI-10B RFTC-10/G wireless switching actuator wireless switching actuator wireless temperature sensor digital temperature with temperature sensor with temperature sensor 1 x CR 2477 3V battery controller in design to installation box, with manual 2 x 1.5V AAA batteries 230V AC...

  • Page 7: Characteristics Of Rf Touch

    Design: RF Touch-B fi ts in the round installation box with a supply voltage of 100 - 230 V AC RF Touch-W for surface mounting with power supply from the back side: 100 - 230 V AC or from the side (via jack): 12 V DC 3.5 inch color touch screen - no mechanical buttons...

  • Page 8: Technical Specifications

    Technical specifications Technical parameters RF Touch-B RF Touch-W Technical parameters RF Touch-B RF Touch-W Display Connection screwless terminal push-in or jack Type: color TFT LCD push-in 2.1 mm Resolution: 320 x 240 pixels / 262,144 colors Max. cross section of wires: max.
  • Page 9 RF Touch-W POWER SUPPLY OVER TERMINALS POWER SUPPLY OVER ADAPTER 100 - 230V AC FITTING ON THE SURFACE adapter included with RFTouch-W...
  • Page 10 RF Touch-B POWER SUPPLY OVER TERMINALS FITTING TO THE INSTALLATION BOX AC 230V...

  • Page 11: Description Of Control Icons

    Description of Control Icons Basic Main menu Heating Dimming RF Touch version Information Temperature regulation temperature switch ON and number of assigned units settings Switching switch OFF Switching back to the home screen Dimming switch ON dimming step back Blinds switch OFF light inclination Detectors...

  • Page 12: Basic Steps

    Basic Steps for Successful Programming 1st Step – Placing of the RF Touch and RF units 2nd Step - Fill Installation Form Keep in mind that the radio signal range of RF installation - device name that you want to manage (to create a menu) depends ON building construction, materials and placing of all - the names of units (for the correct classification of the units.
  • Page 13 SETUP fig. 1 fi 1 fig. 1 Initial setup When the RF Touch is switched on for the fi rst time, you will be automatically redirected to the display calib- ration screen. Touch screen can be controlled by the light touch (of about0.5-1s) in the desired location. On the screen (Fig.

  • Page 14: Detectors

    SETUP Menu (create name) Menu (create name) is used to add, edit or remove the names of the controlled device. In this menu (Figure 1) you need to first create your own device names for the sections you want to control. Creating names is important for successful programming of the RF Touch.
  • Page 15 SETUP Menu (create name) / Edit Menu (create name) / Remove Edit button is used to change or modify the name in the crea- Remove button can delete unit name. ted menu. Press the Remove icon (Fig. 5) following menu appears, se- Press the Edit icon (Fig.1), a menu appears, select the se- lect the section from which you want to remove the name (Fig.

  • Page 16: Temperature Regulation

    SETUP Programming Programming is used to assign or remove the actuators / detectors to menu you created. The Programming Menu can be entered by entering a password (default - 1111). Actuators are divided into sections for which they are intended. According to the actuator's type you have to select appropriate section - see table (eg programming actuator RFSTI-11B - find it in the Temperature regulation section).
  • Page 17 SETUP Programming / Assign new It is used to assign a name to the actuator in the menu. In the required section (heating, dimming ...) select Assign new (Fig. 1). A list of selected sections actuators will be shown. (Fig. 2). Select the name of the actuator which you want to associate with the RF Touch.

  • Page 18: Assigned Receiver

    SETUP fig. 7 fi 7 fig. 7 Programming / Associated Receivers It serves to control or remove the actuator from the name of the menu you created. In the selected section (Figure 1 - Temperature regulation, dimming ...) select Assigned receivers (Fig.
  • Page 19 SETUP Programming / Temperature regulation / Assigned receivers / RFTI-10B, RFTC-10/G and RFATV-1 Function Assigned receivers in Temperature reg. - RFTI-10B, RFTC-10/G and RFATV-1 are used to pair or remove temperature units from the actuator. In the Temperature regulation section, press the screen to select Assigned receivers; the list of names assigned in this section will be displayed Press the name to display the assigned actuator.
  • Page 20 SETUP Programming / Temperature regulation / Assigned receivers / RFTI-10B, RFTC-10/G and RFATV-1/ Pair with... Serves to combine the RFTI-10B, RFTC-10/G or RFATV-1 temperature unit with the RFSA-61M or RFSA-61B or RFDAC-71B multifunction actuator, where the temperature unit measures the current temperature and the multifunction actuator switches on the Temperature regulation based on the measured temperature.
  • Page 21 SETUP Programming / Detectors Section detectors (Fig. 1) is intended for assign or remove OASIS detectors to menu. Select Assign detector (Fig. 2). The list of detectors will be shown. Select the detector you want assign to the RF Touch unit (Fig. 3). RF Unit Touch will enable search (Fig.
  • Page 22 SETUP fig. 1 fi 1 fig. 1 Programming / Detectors / Remove Used for deleting link between the detector and the name given in the detector menu (Fig. 1). Note: Two state JA-81M and JA-82M can be used in two ways: information about the status (open / close) - eg window is open(without pairing with a switching actuator) pairing with the multifunction switching actuator, which responds to the detector status (open / close) - eg light is switched on when you open the door.
  • Page 23 SETUP Programming / Quick Control Quick control is used for creating a group command, where one-touch control multiple actuators. For each name of group command you can assign a combination of up to 20 different actors. Note: Quick control can be set only when all actuators are programmed in different sections of switching, dimming and blind control. In the Quick Menu control(Fig.
  • Page 24 SETUP fig. 1 fi 1 fig. 1 Setup / Display (fig. 1-2) Background: select the type of screen background color (black, blue, green, purple). fig. 2 fi 2 fig. 2 Screensaver: the desired brightness (25%, 50%, 75%, 100%) will be activated after preset time since the last touch (15s, 30s, 1min, 3min).
  • Page 25 SETUP fig. 1 fi 1 fig. 1 Setup / Others (fig. 1) Keyboard lock: activation serves to prevent accidental or unwanted control of RF Touch (Fig. 2). For unlocking locked Home screen press the lock icon twice (Figure 3). View menu: you can set to display only those sections that you want to see in the main menu. (eg: only Dimming, Switching and Detectors - fig.4-5).
  • Page 26 CONTROL / TEMPERATURE REGULATION fig. 1 fi 1 fig. 1 Control / Temperature regulation Temperature regulation Menu (Fig.1) is designed for setting controls over heating equipment. Touch the heating you enter the menu of additional circuits (image 2). Standard mode Economic mode Party mode Anti-freezing mode...
  • Page 27 CONTROL / TEMPERATURE REGULATION Temperature regulation / Heating program By touching the Setting, you go into editing mode of a certain heating circuit or program (Fig. 1). Chose Heating Program for AUTO which you can set the time program and temperature (Fig. 2). Touch-hour time interval (or minutes) to indicate the information you want to change (Fig.
  • Page 28 CONTROL / TEMPERATURE REGULATION Temperature regulation / holiday mode Holiday mode is used for temporary interruption of the heating program. Touch holiday mode (Fig. 1) to open Switch ON screen where you set the date, month and year when your holiday mode should start.
  • Page 29 CONTROL / TEMPERATURE REGULATION Temperature regulation / RFATV-1 To edit the mode, first select the setting button (image 1) and then the applicable mode to be modified (image 2) - Standard, Energy-saving, Party or Antifreeze mode. The open window detection function (image 4) monitors a sharp drop in temperature in the event of an open window and closes the thermo-valve to a preset period.
  • Page 30 CONTROL / SWITCHING Main menu / Switching Switching menu is for all the devices you want to switch. Touch Switching (Fig. 1) displays the names of your choice created in menu. Red / Green LED indicates contact status: green -ON, red switched - off.
  • Page 31 CONTROL / SWITCHING Main menu / Switch on / RFDAC-71B Upon selecting the Switching on menu to which the RFDAC-71B actuator is assigned, the basic function are displayed: Switch on Switch off . 0-10V Press shortly the arrows at the Regulation icon to set the desired value (Fig.
  • Page 32 CONTROL / SWITCHING Switching / Weekly Program Weekly program provides weekly settings for the automatic mode switching. Touch Weekly program icon (Fig. 1), setup menu will appear. Touch-hour time interval (or minutes) to mark information you want to change. Arrows will set the time of switch On and switch Off .
  • Page 33 CONTROL / DIMMING Main menu / Dimming Dimming Menu is for all the lights where you want to control the brightness (load R L, C - 250V). Touch-Dimming (Fig. 1)to display a selection of names you created in menu (Fig. 2). Red / Green LED indicates contact status: green- On red -Off.
  • Page 34 CONTROL / DIMMING DIMMING/ RFDA-73M, RF RGB LED-550 The control screen RGB comprises of several elements and buttons. Long pressing (touch) of button ON/OFF controls the central setting of RGB elements and the light brightness - on/off The buttons in the screen upper part include the light brightness setting function from 0-100% in step 5% (see the indicator of adjustable brightness %).
  • Page 36 CONTROL / BLINDS Main Menu / Blinds Blinds Menu is designed to control all shutters, blinds, awnings, gates and garage doors that have a built-end switch. Touch the Louvre (Fig. 1)to display selection of names you created in menu (Fig. 2). Red / Green LED indicates device status: green- closed blinds red –...
  • Page 37 CONTROL / BLINDS Blinds / Weekly program Weekly program can adjust automatic weekly mode. Touch Weekly program icon (Fig. 1), setup menu will appear. Touch-hour time interval (or minutes) to mark information you want to change. Arrows will set the time of switch On and switch Off Note: longer press of arrow is accelerate shift of figures.
  • Page 38 CONTROL / DETECTORS fig. 1 fi 1 fig. 1 Main Menu / Detectors fig. 2 fi 2 fig. 2 The menu Detectors is used for the visualisation and switching of devices using detectors. By touching the option Detectors (Fig. 1) you will display the list of names on the detector menu that you have created (Fig.
  • Page 39 CONTROL / QUICK CONTROL Main Menu / Quick control Quick control menu serves to the group control of devices. Touch Quick control l to display the name selection of your custom menu (Fig. 2). Touch the name to display the following options (Fig.
  • Page 40 What to do when ... RF Touch Unit Warnings Warning is displayed in case of incorrect or incomplete entry. Warning Procedure Up to 40 rooms may be defined. no more than 40 device names may be entered Saving failed. repeat entry Delete failed.
  • Page 41 What to do when ... RF Touch Unit Warnings Warning Procedure No unit allocated to the room. allocate actuator This group has already been allocated. enter new settings Display incomplete - control impossible. calibrate the device (disconnect the power supply, after reconnecting hold the logo RF Touch, finish the calibration by touching twice the cross signs that appear in each corner of the screen) EPROM memory error!

  • Page 42: Installation Form

    Installation Form Description / Serial no.: Actuator name Actuator address Name of the controlled device...
  • Page 43 Installation Form Description / Serial no.: Actuator name Actuator address Name of the controlled device...
  • Page 44 ELKO EP, s.r.o. Palackého 493 | 769 01 Holešov | Všetuly,CZ, tel.: +420 573 514 211 | fax: +420 573 514 227 elko@elkoep.com | www.elkoep.com rev.2...
