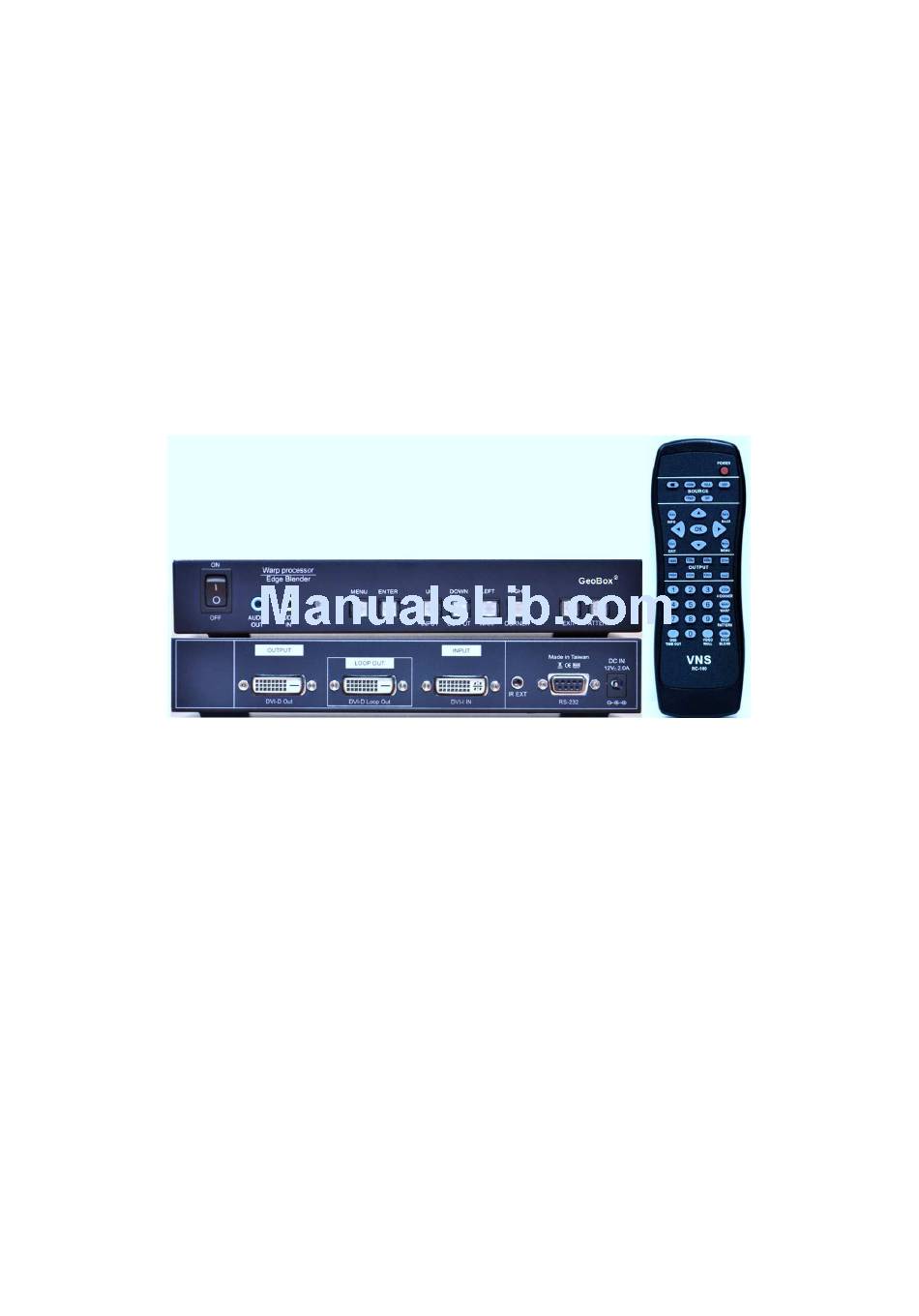

G-202 User Manual V 1.03
Document: G-202102
------------------------------------------------------------------------------------------------------------------------------------------------
G-202 Operation Manual
(Single channel warping box with edge blending)
Technical support:
E-mail: support@vnstw.com
Tel: +886-2-8751-2785 ext. 301
Cell: +886-935-678-033
Version: 1.03
1
Advertisement
Table of Contents
Related Manuals for VNS G-202
Summary of Contents for VNS G-202
- Page 1 G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ G-202 Operation Manual (Single channel warping box with edge blending) Technical support: E-mail: support@vnstw.com Tel: +886-2-8751-2785 ext. 301 Cell: +886-935-678-033 Version: 1.03...
-
Page 2: Table Of Contents
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Table of Contents Introduction………………………………………………………………………………………….… Outlook and Function………………………………………………………………………………… Helpful Tips…………………………………………………………………………………………….. Internal Grid Pattern for Geometry Adjustment……………………………………………….….. 6 [Picture] Color Adjustment……………………………………………………………….……….….. 6 [Image Setup] for PC graphics from VGA input…………………………………………………… 6 [Image Properties]……………………………………………………………………………………….. 6 Passive 3D Display…………………………………………………………………….………………. - Page 3 G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Limited Warranty This device is designed and tested to the highest standards and backed by a one year parts and labor warranty. Warranties are effective upon the first delivery date to the end customer and are non-transferable.
-
Page 4: Introduction
(Single channel Warp & High Resolution Edge blending) 1. Introduction G-202 is an advanced single channel video processor with patented warp technology, passive 3D decoding and edge blending function. It is designed to work with PC display card (with overlap setting) for high resolution edge blending and capable of image warp, stacking &... -
Page 5: Outlook And Function
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ 2. Outlook and Functions 3. Helpful tips Please Reset GeoBox when start a new application to avoid unexpected setting inside the system. Procedures to do system Reset: OSD Menu [Options] [Reset] [Reset All] OSD Lock / Unlock: Continuously press [MENU] key on Front Panel or IR Remote Controller for 12 seconds, the OSD function will be locked to prevent from the setting changes by other people. -
Page 6: Internal Grid Pattern For Geometry Adjustment
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ 4. Internal Grid Pattern for Geometry Adjustment To press [PATTERN] key in Remote Controller or front panel, it will show Cross Hatch grid pattern. To press [PATTERN] key again, different colors of Grid pattern will appear cyclically from White... -
Page 7: Passive 3D Display
G-202 can decode 3D format from different 3D video sources, including Blue Ray DVD, STB, Media player, Game and PC… 3D signal will be decoded by G-202 into signal for Right or Left eyes. One G-202 can only provide signal for one projector. RH/LH 3D signals need be displayed through two projectors. -
Page 8: Procedures For 3D Display Setting In Geobox
2. Are the Glasses and polarizer filters the same types and paired for the RH & LH eyes? 3. G-202 for RH eye should connect to RH eye projector and LH G-202 should connect to LH eye projector. Please check from [Output Format] menu and make sure to have correct settings. If the connection is incorrect, please use [Output Frame] setting to change the connection for RH/LH eyes. -
Page 9: Keystone] Correction
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Activate [Anyplace] Menu for Warp and Geometry correction of the image. [Warp] & [4 Corner] short cuts are available in remote controller. 9.1 [Keystone] Correction If the projection direction from projector is not perpendicular to the screen, the image on the screen will have keystone as below. -
Page 10: Image [Edge Blending]
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ [4 Corner] shortcut 9.3.1 Use OSD MENU to activate [4 Corner] adjustment or Press [4 CORN] hot key in Remote Controller as showed above. 9.3.2 Maximum adjustment range for each corner is ±256 pixels horizontally (max. 300 pixels in Left + Right) and ±200 pixels vertically (max. -
Page 11: Image Curved Display
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ 9.4.5 Set [Edge Blend] value based on the overlap pixels (each overlap grid represents 50 pixels) to the correct edge(s) in each edge blending image. 9.4.6 After above procedures, user can see the result of the edge blending. If the performance is not satisfied, then below procedures can be tried. -
Page 12: Edge] Curve Adjustment
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Under [Corner] curve menu, user can adjust the curve in each corner. While adjusting one corner, the other corresponding corner will be adjusted simultaneously. Example: Curve adjustment in all Corners 9.5.2 [Edge] Curve adjustment User can adjust the curve in each edge of the image independently. -
Page 13: Shift] Adjustment (Corner Position Adjustment)
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Under [Center] Menu user can adjust the positions of the axis center of the image to get non-symmetrical curved image. The axis center can be adjusted horizontally and vertically with the range of ±256 pixels in horizontal position and ±200 pixels in vertical... -
Page 14: Edge Mask]
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ [Order] function is to decide the order for both [Shift] and [Curve] adjustments. For the correction of image distortion from source side, user can select [Curved First]. For normal curved screen projection, [Shift First] is defaulted and user can start with 4 corner adjustment. -
Page 15: Osd Language: [Language]
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ In [Information] menu, it will show the information in GeoBox, such as input mode, output mode, Network, Model name and Microcode (firmware) version. 10.2 OSD Language: [Language] In [Language] menu, three languages can be... -
Page 16: Menu Time Out]
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ [Slow]: OSD behavior is similar to [Default] but the response speed will be slower than Default. OSD [Button Repeat Rate]: It controls the speed of the response of the OSD button while user presses OSD button continuously. -
Page 17: Box Id]
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Audio Mute: [Mute Off] will enable audio output. [Mute On] will disable audio output. [Mute] hot key in remote controller is available 10.5.2 [Box ID] [Box ID] is the identification No of each... - Page 18 OFF/ON the system. If VGA signal must be used, user needs to add video distributor at front of G-202 and connect one projector directly to video distributor and another video distributor output shall be connected with G-202 input port with DVI-I to VGA adapter.
-
Page 19: Specifications
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ Specifications Main items Features G-202 Video processor 10 bits processing channel Single Image Stacking to amplify brightness Brief comparison Passive 3D Active 3D Warp/geometry alignment Edge Blending (with Matrox card) Video Input Ports... - Page 20 G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ High quality video and graphics scaling up and scaling down Color adjustment (RGB color adjustment, Hue, saturation, sharpness, contrast, brightness, preset color modes) Full function Front Panel Keypads & IR Remote controller...
-
Page 21: Revision History
G-202 User Manual V 1.03 Document: G-202102 ------------------------------------------------------------------------------------------------------------------------------------------------ 13. Revision History Revision Date Originator Comments V 1.01 2012-12-20 Steve Wang First revision V 1.02 2013-03-08 Steve Wang Add case study V1.03 2013-05-10 Steve Wang Support rotation up to 128 degrees...
