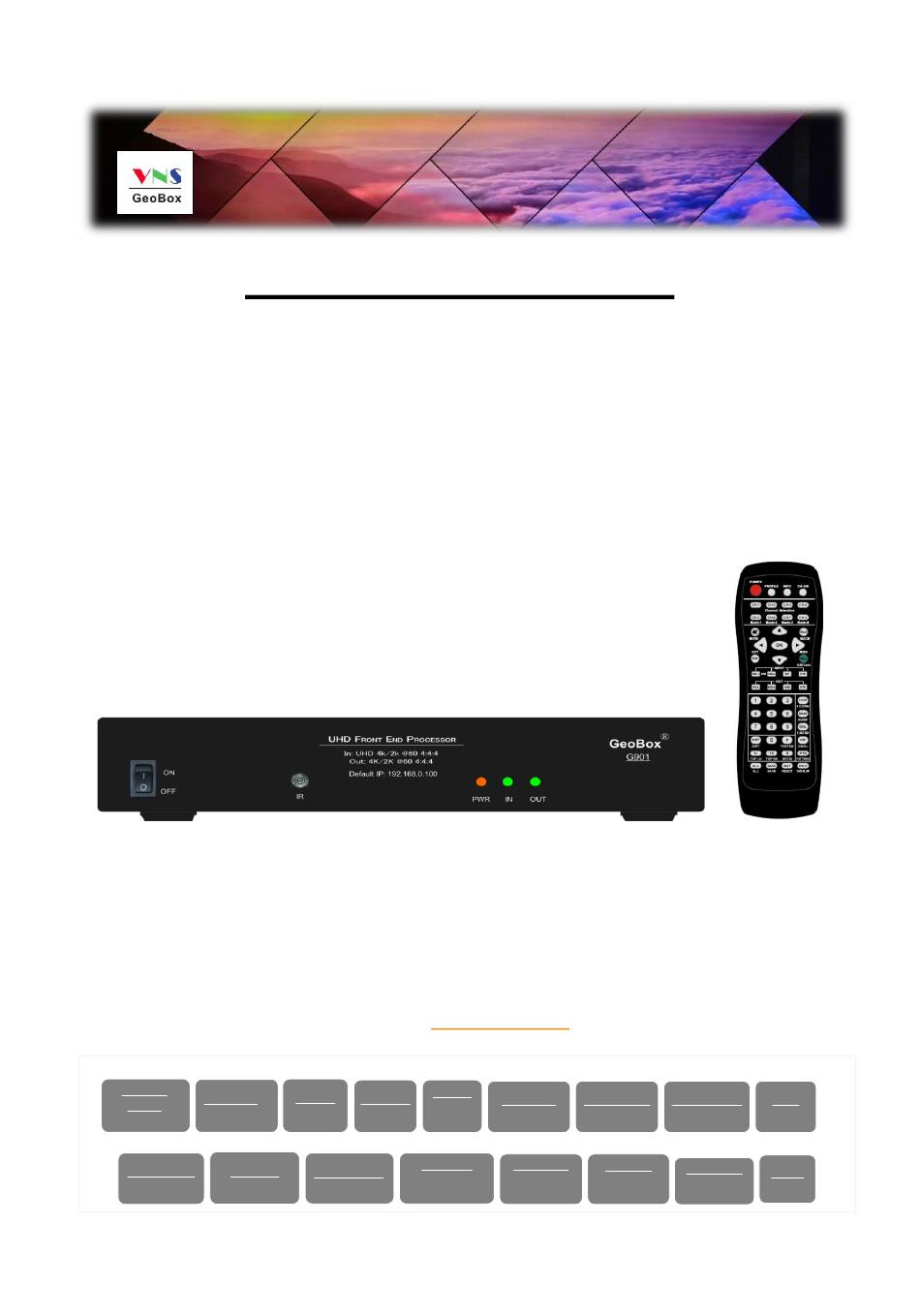

VNS GeoBox G901 Quick User Manual

Hide thumbs Also See for GeoBox G901:
Table of Contents

Advertisement

Quick Links

Download this manual
G901 User Guide
----------------------------------------------------------------------------------------------------------------------------- ----------------
G901 Quick User Guide
Input: up to 4096*2160 @60Hz, 4080*3840 @30Hz, 4:4:4 chroma sampling
Programmable Output: up to 4096*2400 @60Hz, 10 bits, RGB 4:4:4
Tel: +886-2-2792-2819
DCi/UHD
HDMI 2.0
In/Out
DP 1.4
4k/60/4:4:4
Mosaic
Deep Color
xvYCC/12-bit
Irregular wall
The absolute opposite of ordinary
True 10-bit color and up/down scaling
Image any place cropping
PIP/POP dual content display
Image flip and rotation
Multi-functions in one box, simple, easy-of-use
with matrix SW function
Technical support:
E-mail: sales@vnstw.com
Skype: vns-inc
Version: Draft
Website:
www.vnstw.com
HDCP
HDR
10
High-end
2.2/1.4
Ready
Flexible
Multi-Unit
Aspect Ratio
Cacade
Bezel Correction
Cell: +886-935-678-033
10-bit
Cadence
Video wall
Film 3:2 / 2:2
Embedded
scaler
Rotation
Control
Landscape
IR/USB/RS232
Protrait
/Ethernet
0
Document: G901-2
3D Motion
H&V
De-interlace
PIP/POP
Didpla
Projector
RoHS
yP
Output
CE FCC
overlap
1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GeoBox G901 and is the answer not in the manual?

Questions and answers

Related Manuals for VNS GeoBox G901

Summary of Contents for VNS GeoBox G901

  • Page 1 Image any place cropping PIP/POP dual content display Image flip and rotation Multi-functions in one box, simple, easy-of-use with matrix SW function Technical support: E-mail: sales@vnstw.com Tel: +886-2-2792-2819 Cell: +886-935-678-033 Skype: vns-inc Version: Draft Website: www.vnstw.com 10-bit DCi/UHD HDCP HDMI 2.0 Cadence...

  • Page 2: Table Of Contents

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Table of Contents Disclaimer/Copyright statement....................... Warranty/RMA and FCC/CE statement..................... Introduction……………………………………………………………………………........ Quick User Guide....................……......How to use IR Remote Controller....................System Setup……………......................... Connecting the Inputs..………………………………………….…........Connecting the Outputs............…………......... System setting: Box ID, RS232, Ethernet................LED Indicators..…………………………………………………………………………………….

  • Page 3: Disclaimer/Copyright Statement

    This information contained in this document is protected by copyright. All rights are reserved by VNS Inc. VNS Inc. reserves the right to modify this document without any obligation to notify any person or entity of such revision. Copying, duplicating, selling, or otherwise distributing any part of this document without signing a non- disclosure agreement with an authorized representative of VNS Inc.

  • Page 4: Introduction

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Introduction G901 is multiple purpose video processor for video source switching, format conversion, scaling up and down, image flip/rotation, video wall and PIP/POP functions. It supports various input sources and input timings, including non-VESA standard input timings. It is an ideal front end processor for big display system required 4k/60 input and output.

  • Page 5: Quick User Guide

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Quick User Guide How to Use IR Remote Controller ➢ IR remote controller has all the functions for the operation of G901. ➢ IR receiver is on Front Panel. One 3.5ø mm audio connector for IR extender is located at Back Panel of G901.

  • Page 6: System Setup

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- System Setup Connecting the Inputs User can connect signal source to any of the input ports for PIP/POP operation. Input Ports, HDMI 2.0 & DP 1.4 Connecting the Output Output Port, HDMI 2.0 System setting: Box ID, RS232, Ethernet Box ID is required for the application with multiple units of GeoBox.
  • Page 7 ➢ UWM PC Tool is another web tool that has full function for system setting and operation. It can also update Firmware or MCU code. UWM can be downloaded from VNS website. ➢ Each G901 can set different IP address for independent operation and control.

  • Page 8: Led Indicators

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Step 6 - LED Indicators Power LED indicator Input LED Output LED Input LED ➢ Input LED will light up when G901 has detected input signal. ➢ Output LED will light up when G901 has detected the monitor in each output. ➢...

  • Page 9: System Information

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- System Information Main Input status Model # PIP/POP FW version Input status MCU code version Output status Select input port and set output resolution ➢ G901 has 5 input ports. System default input is HDMI-1. ➢...

  • Page 10: Image Rotation And Flip

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Image rotation and flip ✓ There are two image Orientation OSD menu. One for main input and the second is for second input for PIP/POP. ✓ Image can be rotated at 90/180/270 degrees and flipped at Right/Left, Top/Bottom or Front/Rear. This function can support up to 4k/60Hz input signal.
  • Page 11 G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- ➢ POP: Picture outside Picture (side by side) - POP to fit full screen or maintain original source aspect ratio - POP1: Two images are placed at side by side position. POP2: Two images are at top/bottom position POP1 POP1 POP2...
  • Page 12 G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- User can swap the position in Main and PIP image--to select main image from [Input Signal] Menu and PIP image from [Source] under [PIP Settings] menu. - User can save different settings into [Profile] under [Options] menu and recall at any time. ➢...

  • Page 13: Video Wall Applications

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 10 Video Wall applications ➢ User can add one HDMI splitter before G901 and build creative 4k video wall. If add HDMI matrix switcher, user can build 4k video wall with one big content across entire video wall or some monitors display discrete content with true 4k quality.

  • Page 14: Pan] - Assign Image Position

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- For 3x1 video wall displays Horizontal Zoom= 3, Vertical Zoom = 1 For 3x3 video wall displays Horizontal Zoom = 3, Vertical Zoom =3 10.2 [Pan] [Pan] will assign the location of each split image in the display in both horizontal and vertical directions.

  • Page 15: Overlap] - Bezel Compensation And Position Alignment

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 10.3 [Overlap] – Bezel Compensation and Position Alignment [Overlap] adjustment changes the cropping area of the image so that image position in each monitor will be shifted. It can compensate Bezel Size of the monitor and correct misalignment in monitor installation.

  • Page 16: Save System Settings Through Remote Controller

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Back ground color can be black or Blue color 12 Save System Settings through Remote Controller ➢ After finishing system settings, user can save the setting by OSD menu through [Menu]→ [Options]→ [Setting]→ [Profile]→ [Save]→ [Index 1-5]. ➢...

  • Page 17: Load Profile Index Through Remote Controller

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 13 Load Profile Index through Remote controller ➢ to recall Index 1 – Index 5. Press [Profile] shortcut key→ Select number keys 1-5 Load Number Index Hotkey 14 OSD Lock and Unlock To press MENU on remote controller for 5 seconds will LOCK the OSD. To press another 5 seconds on MENU key will UNLOCK OSD.

  • Page 18: Webgui

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 15.2.1 WebGui WebGui is embedded inside G901. Once user connects G901 with PC through Ethernet, user can access WebGui and execute all operations similar to OSD menu via Virtual Keys and OSD Menu. ✓...

  • Page 19: Uhdwall Manager (Uwm) Pc Tool

    15.2.2 UHDWall Manager (UWM) PC Tool ✓ UWM is a PC tool executed through PC. User needs to download this tool from VNS website. Once user connects G901 with PC through Ethernet or USB and open UWM, user can access UWM and execute all operation similar to OSD menu through PC keyboard and mouse.

  • Page 20: Change Background Color

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 15.4 Change Background Color in Blue or Black ➢ When no signal input, user can select either blue color background with [Power Saving Mode] message on the screen or black background color without message. ➢...

  • Page 21: Specifications

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Specifications   Input: 3x HDMI 2.0b, 2x DP1.4, Max. input: 10-bit processor, 3:2/2:2 cadence, low angle 4096x2160 60fps, 4080*3840 30Hz, supports smooth algorithm  interleaved and progressive input signals with High quality scaling engine for image scaling up 4:4:4 10-bit color and down among XGA to UHD ...

  • Page 22: Revision History

    G901 User Guide Document: G901-2 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Revision History Revision Date Originator Comments V1.0 2019-11-15 Steve Wang First version...
