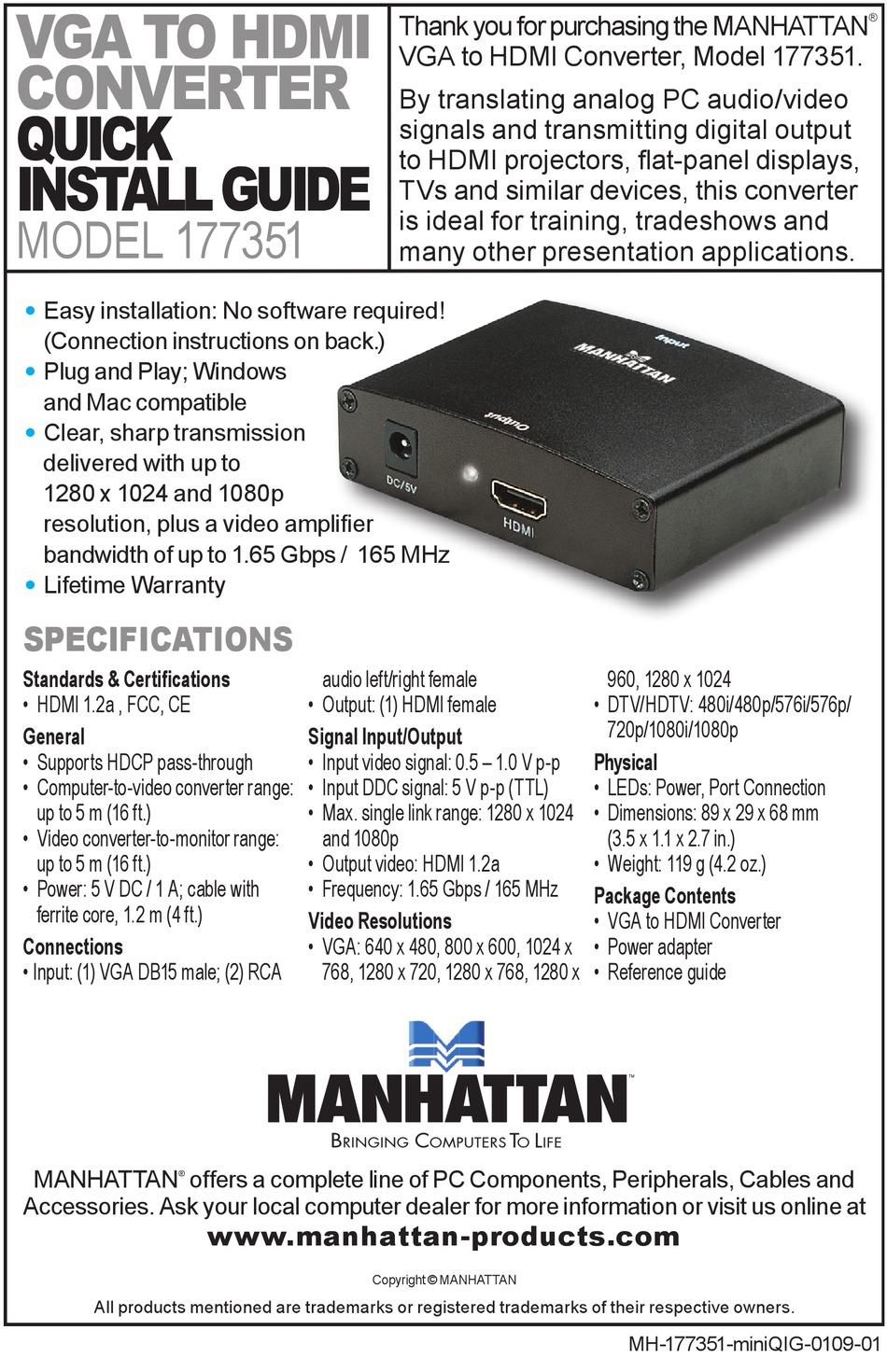

Manhattan 177351 Quick Install Manual

VGA to HDMI
ConVerter
QUICK
InStALL GUIDe
Model 177351
•
Easy installation: No software required!
(Connection instructions on back.)
•
Plug and Play; Windows
and Mac compatible
•
Clear, sharp transmission
delivered with up to
1280 x 1024 and 1080p
resolution, plus a video amplifier
bandwidth of up to 1.65 Gbps / 165 MHz
•
Lifetime Warranty

SpeCIfICAtIonS

Standards & Certifications
• HDMI 1.2a , FCC, CE

General

• Supports HDCP pass-through
• Computer-to-video converter range:
up to 5 m (16 ft.)
• Video converter-to-monitor range:
up to 5 m (16 ft.)
• Power: 5 V DC / 1 A; cable with
ferrite core, 1.2 m (4 ft.)
Connections
• Input: (1) VGA DB15 male; (2) RCA
MANHATTAN
®
Accessories. Ask your local computer dealer for more information or visit us online at
All products mentioned are trademarks or registered trademarks of their respective owners.
audio left/right female
• Output: (1) HDMI female

Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Max. single link range: 1280 x 1024
and 1080p
• Output video: HDMI 1.2a
• Frequency: 1.65 Gbps / 165 MHz

Video Resolutions

• VGA: 640 x 480, 800 x 600, 1024 x
768, 1280 x 720, 1280 x 768, 1280 x
offers a complete line of PC Components, Peripherals, Cables and
www.manhattan-products.com

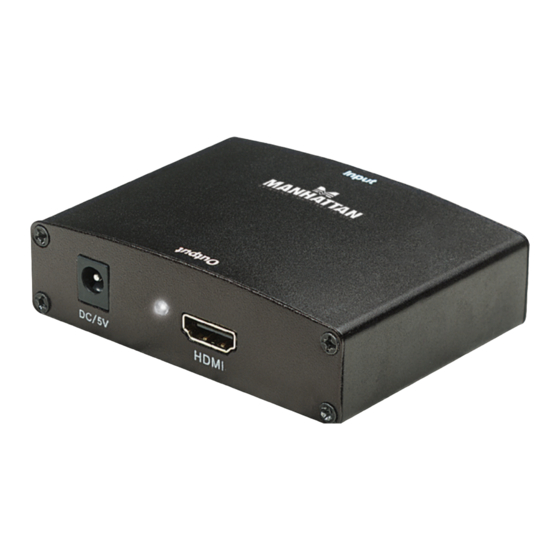

Thank you for purchasing the MANHATTAN
VGA to HDMI Converter, Model 177351.
By translating analog PC audio/video
signals and transmitting digital output
to HDMI projectors, flat-panel displays,
TVs and similar devices, this converter
is ideal for training, tradeshows and
many other presentation applications.
Copyright © MANHATTAN
960, 1280 x 1024
• DTV/HDTV: 480i/480p/576i/576p/
720p/1080i/1080p

Physical

• LEDs: Power, Port Connection
• Dimensions: 89 x 29 x 68 mm
(3.5 x 1.1 x 2.7 in.)
• Weight: 119 g (4.2 oz.)

Package Contents

• VGA to HDMI Converter
• Power adapter
• Reference guide
MH-177351-miniQIG-0109-01
®
