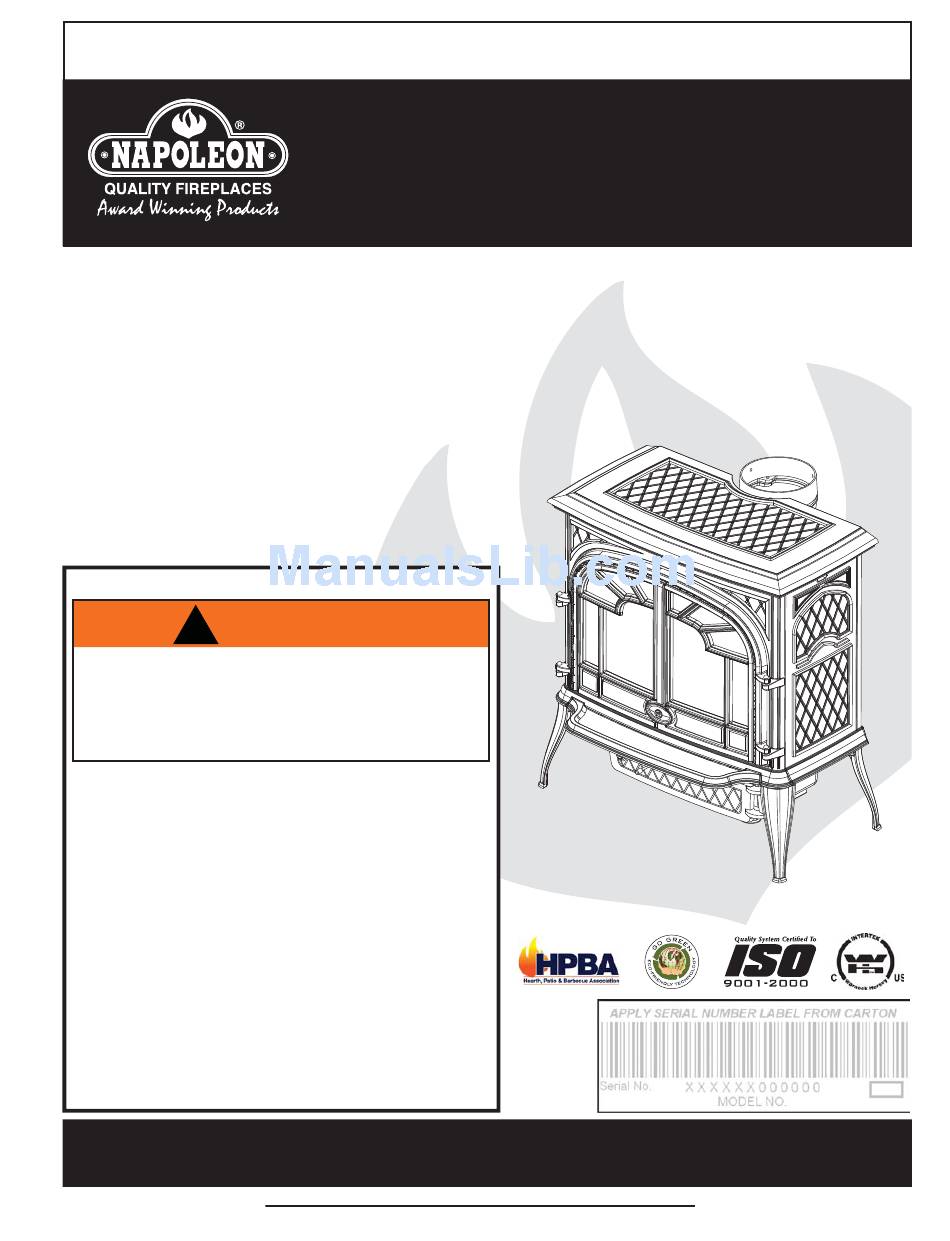

Napoleon 1600C-1 Installation And Operating Instrictions
Hide thumbs
Also See for 1600C-1:
- Installation and operation instructions manual (28 pages) ,
- Installation and operating instructions manual (29 pages) ,
- Installation and operating instructions manual (36 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 AND THE OREGON DEPARTMENT OF ENVIRONMENTAL QUALITY (D.E.Q.)
PARTICULATE EMISSION STANDARDS BY E.E.M.C. THESE STOVES HAVE BEEN TESTED AND LISTED BY WARNOCK HERSEY LTD. TO STANDARDS : UL 1482 / ULC-S627.
MODEL
1600C-1
SAFETY INFORMATION
WARNING
!
If the information in these instructions are not followed exactly, a
fi re or explosion may result causing property damage, personal
injury or death.
Please read entire manual before you install and use your heater.
This heater has not been tested with an unvented gas log set. To
reduce risk of fi re or injury, do not install an unvented gas log set
into the heater.
- This heater can be very hot when burning.
- Combustible materials such as fi rewood, wet clothing, etc. placed too
close can catch fi re.
- Children and pets must be kept from touching the heater when it is
hot.
- The chimney must be sound and free of cracks. Before installing
this unit, contact the local building or fi re authority and follow their
guidelines.
- Operate only with the doors tightly closed.
- Burn wood behind the log retainer directly on the fi rebricks.
- Do not use an elevated grate or otherwise raise the fi re.
- This heater is designed to burn natural wood only. Higher effi ciencies
and lower emissions generally result when burning air dried seasoned
hardwoods, as compared to softwoods or to green or freshly cut
hardwoods.
- Do not start a fi re with chemicals or fl uids such as gasoline, engine
oil, etc.
- Do not burn treated wood, coal, charcoal, coloured paper, cardboard,
solvents or garbage.
- Do not let the heater become hot enough for any part to glow red.
- KEEP STOVE TOP TEMPERATURES BELOW 700°F (371°C). Attempts
to achieve heat output rates that exceed design specifi cations can
result in metal distortion and damage.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
OPERATING INSTRUCTIONS
MODEL 1600C-1 HAS BEEN TESTED AND LISTED FOR INSTALLATION IN MOBILE HOMES.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1.11
W415-0721 / A / 06.25.09
1
Advertisement
Table of Contents
Related Manuals for Napoleon 1600C-1
Summary of Contents for Napoleon 1600C-1
-
Page 1: Safety Information
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 AND THE OREGON DEPARTMENT OF ENVIRONMENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C. THESE STOVES HAVE BEEN TESTED AND LISTED BY WARNOCK HERSEY LTD. TO STANDARDS : UL 1482 / ULC-S627. MODEL 1600C-1 HAS BEEN TESTED AND LISTED FOR INSTALLATION IN MOBILE HOMES. MODEL... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION WARNINGS & SAFETY PRECAUTIONS WARRANTY DIMENSIONS SPECIFICATIONS INSTALLATION OVERVIEW GENERAL INFORMATION GENERAL INSTRUCTIONS CALIFORNIA PROP 65 INSTALLATION CLEARANCE TO COMBUSTIBLES WITHOUT REAR SHIELD 2.1.1 ALCOVE INSTALLATION 2.1.2 STOVE INSTALLATION CHIMNEY 2.2.1 CHIMNEY CONNECTION 2.2.2 ADDING CHIMNEY SECTIONS 2.2.3 TYPICAL THROUGH THE CEILING 2.2.4... -
Page 3: Introduction
1.0 INTRODUCTION WARNINGS & SAFETY PRECAUTIONS Before installing this unit, contact the Operate only with the doors tightly local building or fire authority and closed. follow their guidelines. This appliance can be very hot when burning. This appliance must be installed by a Children and pets must be kept from qualified installer. -
Page 4: Warranty
After the fi rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses are not covered by this warranty. -
Page 5: Dimensions
6.000” O heat shield*** Rear Shield 24.000” 28.000” 18.500” 18.750” 24.000” SPECIFICATIONS SPECIFICATIONS MODEL 1600C-1 WIDTH X DEPTH 27.000" X 24.000" HEIGHT 28.000" REAR FLUE HEIGHT 27.750" CHAMBER (D.W.H.) 11.900" X 20.400" X 10.400" CAPACITY (CUBIC FEET) 1.460 FT³ APP. AREA HEATED * 600-1200 FT²... -
Page 6: Installation Overview
INSTALLATION OVERVIEW See the section “INSTALLATION - CHIMNEY” See the section “EPRS OPTIONAL REAR SHEILD INSTALLATION” See the section “EP65 OPTIONAL BLOWER INSTALLATION” See the section “ASH FENDER INSTALLATION” See the section “DRAFT” See the section “OPTIONAL OUTSIDE AIR INSTALLTION” Ash Pan Door See the section “ASH REMOVAL”... -
Page 7: General Information
THE APPLIANCE. The 1600C-1 was specifi cally designed over many months of research to meet the 1990 U.S.A. EPA particulate emission standards and has been extensively tested in Canadian laboratories. This system is the most effi cient, simple and trouble free... -
Page 8: General Instructions
GENERAL INSTRUCTIONS • Before beginning your installation, consult with your local building code agency or fi re offi cials and insurance representative to ensure compliance. • Non-toxic smoke will be emitted during the paint curing process, to help dissipate the smoke open a window near the appliance. -
Page 9: Alcove Installation
DO NOT INSTALL INTO ANY AREA HAVING LESS THAN 7 FEET (CEILING OF ENCLOSURE TO APPLI- ANCE BOTTOM, EXCLUDING HEARTH HEIGHT). 2.1.1 ALCOVE INSTALLATION Model 1600C-1 may be installed into an alcove having a depth of not more than 4 feet and a 16”... -
Page 10: Chimney
CHIMNEY WARNING NEVER INSTALL A SINGLE WALL SLIP SECTION OR SMOKE PIPE IN A CHASE STRUCTURE. THE HIGHER TEMPERATURE OF THIS SINGLE WALL PIPE MAY RADIATE SUFFICIENT HEAT TO COMBUSTIBLE CHASE MATERIALS TO CAUSE A FIRE. DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY SYSTEM SERVING ANOTHER APPLIANCE. TO AVOID DANGER OF FIRE, ALL INSTRUCTIONS MUST BE STRICTLY FOLLOWED, INCLUDING THE PROVISION OF AIR SPACE CLEARANCE BETWEEN CHIMNEY SYSTEM AND ENCLOSURE. -
Page 11: Chimney Connection
2.3.1 CHIMNEY CONNECTION Your chimney connector and chimney must have the same diameter as the appliance’s exhaust outlet. The appliance pipe must be made of aluminized or cold roll steel with a minimum 24 gauge thickness. It is strictly forbidden to use galvanized steel. For installation of your chimney connector, the following recommendations may be useful. -
Page 12: Adding Chimney Sections
2.2.2 ADDING CHIMNEY SECTIONS Add chimney sections, according to the manufacturers installation instructions, securely, to the required height. The chimney must extend at least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof or building within 10 feet. -
Page 13: Typical Through The Ceiling
2.2.3 TYPICAL THROUGH THE CEILING Move the stove into position with the fl ue centered, midpoint between two joists to prevent having to cut them. Use a plumb bob to line up the center. Cut and frame an opening in the ceiling to provide a 2” clearance between the outside of the chimney and any combustible material. -
Page 14: Typical Through The Wall
2.2.4 TYPICAL THROUGH THE WALL If possible, design the installation so that the connector does not pass through a combustible wall. If during your installation you must pass through a combustible wall, check with your building inspector before you be- gin. -
Page 15: Typical Existing Masonry
2.2.5 TYPICAL EXISTING MASONRY You can also install your appliance using your existing masonry chimney. To do so, follow the guidelines below. You may want to use a factory- built thimble, or construct your own brick thimble. If you are using a masonry chimney, it is important that it be built in compliance with the specifi... -
Page 16: Ash Fender Installation
ASH FENDER INSTALLATION To avoid damage during transport, the ash fender has been stored behind the main door. Pivot the ash fender onto tab “A” and lower into place. HEAT SHIELD INSTALLATION The heat shield stored in the appliance must be installed under the appliance with the 2 provided screws. -
Page 17: Ep65 Optional Blower Installation
DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENT COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE LIMITED LIFETIME WARRANTY. The 1600C-1 may only be operated with the doors open when spark screen EP90-K is used and installed properly. -
Page 18: Optional Outside Air Kit Installation
DO NOT INSTALL THE APPLIANCE IN ANY WAY THAT MIGHT COMPROMISE THE STRUCTURAL IN- TEGRITY OF THE MOBILE HOME FLOOR, WALLS, CEILING, OR ROOF. MODEL 1600C-1 IS APPROVED FOR INSTALLATION IN MOBILE HOMES IN BOTH CANADA AND THE UNITED STATES. - Page 19 2.9.2 VENTING Connect the appliance to a chimney system using a listed double wall connector with a minimum RAIN CAP clearance rating of 12" or less. Use chimney sys- tem listed to ULC S629 in Canada or UL 103HT in the USA.
-
Page 20: Operation
CAUSE SKIN BURNS. WEAR GLOVES TO OPERATE YOUR APPLIANCE. NEVER OPERATE THE STOVE WITH THE GRATE COVER REMOVED. Your Napoleon® EPA listed product is a Hi-Tech appliance, designed with the most advanced technology. The appliance is extremely airtight. It has an exclusive direct outside air supply (optional kit), a safety fea-... -
Page 21: When Lit For The First Time
WHEN LIT FOR THE FIRST TIME The appliance will emit a slight odour for a few hours. This is a normal temporary condition caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and will not occur again. Simply open a window to suffi... -
Page 22: Draft
DRAFT WARNING ALWAYS OPERATE THIS APPLIANCE WITH THE DOOR CLOSED AND LATCHED EXCEPT DURING START-UP AND RE-FUELING. BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE. Draft is the force which moves air from the appliance up through the chimney. -
Page 23: Extended Fire
3.5.2 EXTENDED FIRE Load your larger pieces of wood compactly, packed close enough to prevent the fl ames from penetrating it completely. After approximately 30 minutes, depending on the size of the load, close the draft control completely making sure that the fi re is not extinguished. DO NOT OVERFIRE THE APPLIANCE! Overfi... -
Page 24: Creosote Formation And Removal
CREOSOTE FORMATION AND REMOVAL When wood is burned slowly, it produces tar and other organic vapours which combine with expelled moisture to form creosote. These vapours condense in the relatively cooler chimney fl ue of a slow burning fi re and when ignited, make an extremely hot fi... -
Page 25: Care Of Glass
CARE OF GLASS If the glass is not kept clean permanent discolouration and / or WARNING blemishes may result. Normally a hot fi re will clean the glass. The most common reasons for dirty glass include: not using HOT GLASS WILL suffi... -
Page 26: Glass Replacement
GLASS REPLACEMENT WARNING DO NOT USE SUBSTITUTE MATERIALS. GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN GLASS OR DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE APPLIANCE BEFORE OPERATION. -
Page 27: Replacements
5.0 REPLACEMENTS Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM. - Page 28 AXLE, DOOR LATCH W562-0052 GASKET, DOOR W562-0053 GASKET, ASH PAN DOOR W562-0056 GASKET, FLUE COLLAR W562-0051 GASKET, TOP PLATE W570-0126 SHOULDER SCREW W385-0334 ALUMINUM NAPOLEON ® LOGO ACCESSORIES PART NUMBER DESCRIPTION EP65 BLOWER KIT EP90-K SCREEN KIT 113KT OUTSIDE AIR...
