Summary of Contents for HCIFitness PhysioStep LXT

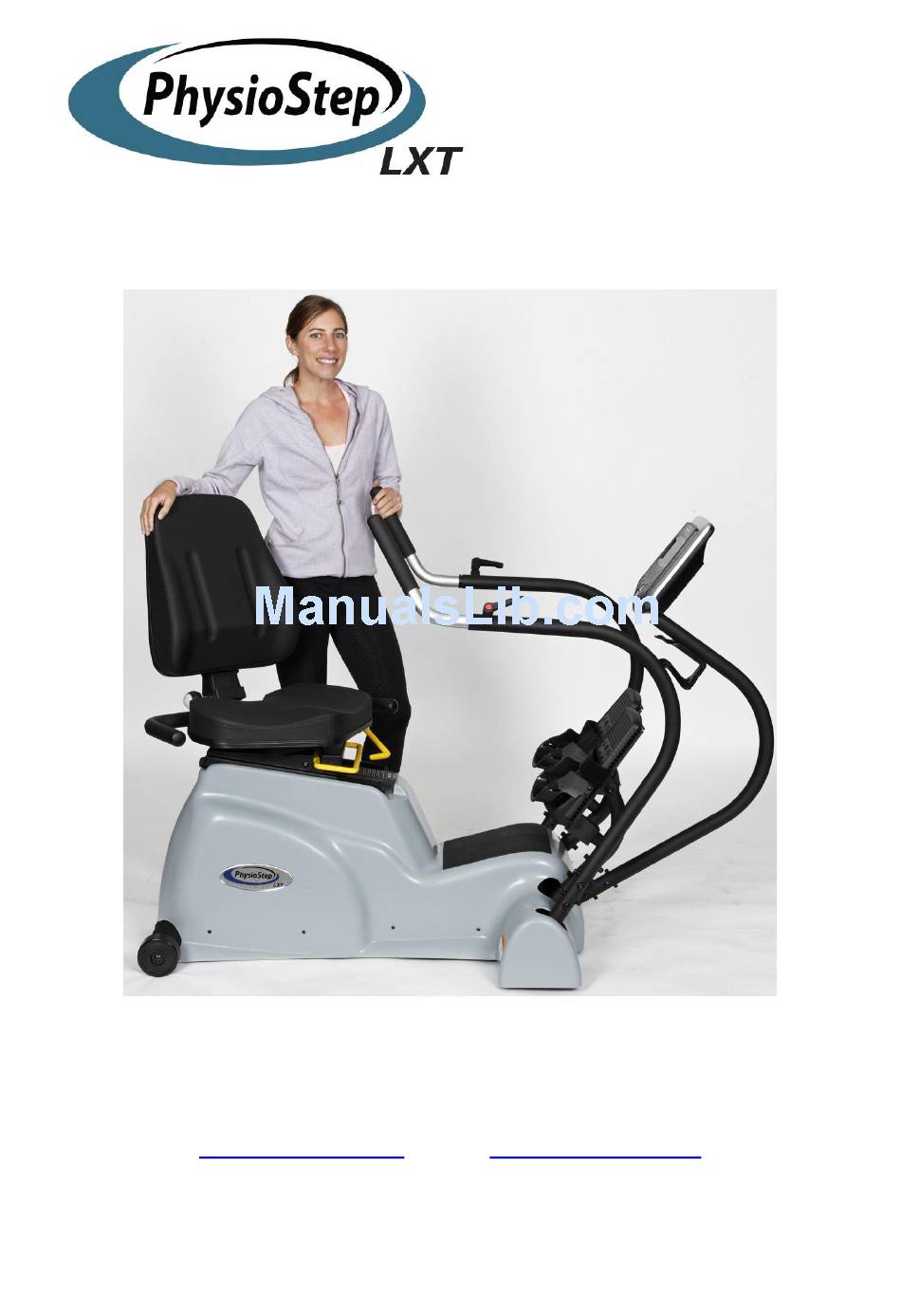

- Page 1 ______________________________Owner’s Manual HealthCare International, Inc. PO Box 1509, Langley, WA 98260 – email. www.HCIFitness.com sales@hcifitness.com p.360.321.7090 or 206.285.5219...
-
Page 2: Safety Precautions
9. Keep hands and feet away from any moving parts. Do not insert any objects into any openings. 10. Keep clothes, jewelry or loose items away from moving parts. NOTE: Maximum weight capacity for the PhysioStep LXT is 400 lbs (182 kgs) WARNING BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PEOPLE WITH PRE-EXISTING HEALTH PROBLEMS. -
Page 3: Exploded Drawings
EXPLODED DRAWINGS... -
Page 4: Parts List
PARTS LIST Description Qt'y No. Description Qt'y Chain Cover Magnetic Flywheel Main Frame Screw Hole Clip Belt Pulley "+" Bolt ST4*12L Pulley Axle Ball Bearing 6004ZZ Ball Bearing 6204ZZ Connecting Parts (R) Hexagonal Bolt M6*15L Connecting Parts (L) Lock Nut M6 Moving Handle Axis( R ) Ball Bearing 6004ZZ Moving Handle Axis ( L ) - Page 5 PARTS LIST Description Qt'y No. Description Qt'y Handle Sponge Clockwise Spring Place control Chemistry Spring Hand fixed block Compass tube Knob Stoppage Screw M6*6 Pedal Strap Nylon Nut M10 Curved Washer Ø8.5*Ø22*1.5T Hexagonal Bolt M8*100L Shaft For Pedal Bracket Spring Bushing Ø19.1*Ø32*Ø25.5*15L Back Cushion Rubber Cushion...
-
Page 6: Warranty Information
Dear Valued Customer, Thank you for your recent purchase of the PhysioStep LXT – Recumbent Linear Stepper from HCI Fitness. We believe that you have purchased one of the highest quality and affordable recumbent steppers on the market today. Prior to using your new PhysioStep LXT please review the operators manual and product tips to maximize your workout experience. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS: STEP 1 Hold Knob (78) and pull to release the Back Cushion Support (44) place it in an upright position. Make sure the Knob (78) is then fixed firmly back in place to secure the Back Cushion Support (44) STEP 2 Assembly of Back Cushion (86) secure the Back Cushion Support (44) by using Hexagonal Bolt M8*15L (65) make sure the bolts are securely tightened. - Page 8 ASSEMBLY INSTRUCTIONS: STEP 3 1. Install Moving Handle R (47) to Moving Handle Axis R(33) by using the Hexagonal Bolt M8*15L (66) and Spring Washer SW8 (15) and Curved Washer Ø8.5*Ø22*1.5T (58) and make sure the bolts are securely tightened. 2.
- Page 9 ASSEMBLY INSTRUCTIONS: STEP 5 (101) feed it through the (51) attach the (51) to Taking Control Wire Computer Post Computer Post (2), using the (93), (94) and ain Frame Curved Washer Ø6.2*Ø13*1T Spring Washer SW6 Hexagonal (95 make sure the bolts are securely tightened. Bolt M6*10L STEP 6 Remove Bolts M5*10L(A) from the back of the...
- Page 10 For example, if the right pedal is furthest from the seat, pull on the left handle to release the extension. Heart Rate: If you would like to monitor your heart rate while using the PhysioStep LXT, simply use any chest belt. There is a wireless heart rate receiver in the display and it will automatically connect with all common brands of chest belts (i.e.
-
Page 11: Key Functions
Key Functions There are a total of 6 keys on the monitor; UP, DOWN, ENTER, START/STOP, RECOVERY AND MODE. A. UP (▲): Selects or increases the values of PROGRAMS, TIME, WATT, CALORIES, TARGET HEART RATE, AGE, DISTANCE. B. DOWN (▼): Selects or decreases the values of PROGRAMS, TIME, WATT, CALORIES, TARGET HEART RATE, AGE, DISTANCE. -
Page 12: Operating Ranges
H. CAL/WATT/BMR Display: Indicates only one value of CAL, OR WATT displayed depending on the program. I. TARGET H.R./AGE Display: Indicates only one value of TARGET HEART RATE, or AGE displayed depending on the program. J. HEART RATE Display: Indicates only one value of HEART RATE displayed. K. -
Page 13: Operating Instructions
Program 8 & 17) 5. HEART RATE: If you would like to monitor your heart rate while using the PhysioStep LXT, simply use any chest belt- there is not contact heart rate, so you must be using a heart rate monitor to show your pulse on the display. - Page 14 D. Heart Rate Control Programs: Programs 8 through 11 are the Heart Rate Control Programs. In program 8, press “Enter” key to select TIME, DISTANCE, CALORIES and TARGET H.R. Users may setup a target heart rate to exercise in a period of time or a certain distance. In Program 9 to Program 11, press “Enter”...
-
Page 15: Things You Should Know Before Exercising
For Optional Heart Rate Chest Strap: This is equipped with Telemetry, the heart rate monitoring system in which electrodes, pressed against the skin, transfer heart rate signals to the console. These electrodes are attached to a chest strap that the user wears during the workout. -
Page 16: Maintenance Tips
MAINTENANCE AND TECHNICAL DATA 1.1 Maintenance Tips Keep the PhysioStep LXT well maintained to ensure peak performance and safety. Clean the display console and all exterior surface parts routinely. Use a soft cotton cloth and a soft cleaner for best results. Do not use Ammonia or acid based cleaners. - Page 17 1.3 Trouble Shooting Guide for the PhysioStep LXT Symptom Possible Cause Solution The Adaptor is not plugged in? Check that the Adaptor is correctly The LCD Screen does not connected to the Main Power display anything when in use Socket and is correctly connected to the Computer.
- Page 18 (1)Review the Assembly Instructions and check that all the No signal from motor gear Computer Plugs and Sockets are FIRMLY and correctly connected. (2)Review the unit’s Magnetic Resistance System to ensure that it is set correctly and they be at it can freely be adjusted.
