Sony TA-FA5ES Service Manual

TA-FA50ES/FA70ES
SERVICE MANUAL
TA-FA50ES and TA-FA70ES is the integrated stereo amplifier.
The mechanical and electrical specifications of TA-FA50ES/FA70ES is almost same as
TA-FA5ES/FA7ES.
So, this manual contains only the points which differ from TA-FA5ES/FA7ES.
For the informations not contained in this manual, please refer to the TA-FA5ES/FA7ES
service manual (9-959-828-∏) previously issued.
1. DIAGRAMS
w
•
: Difference portion

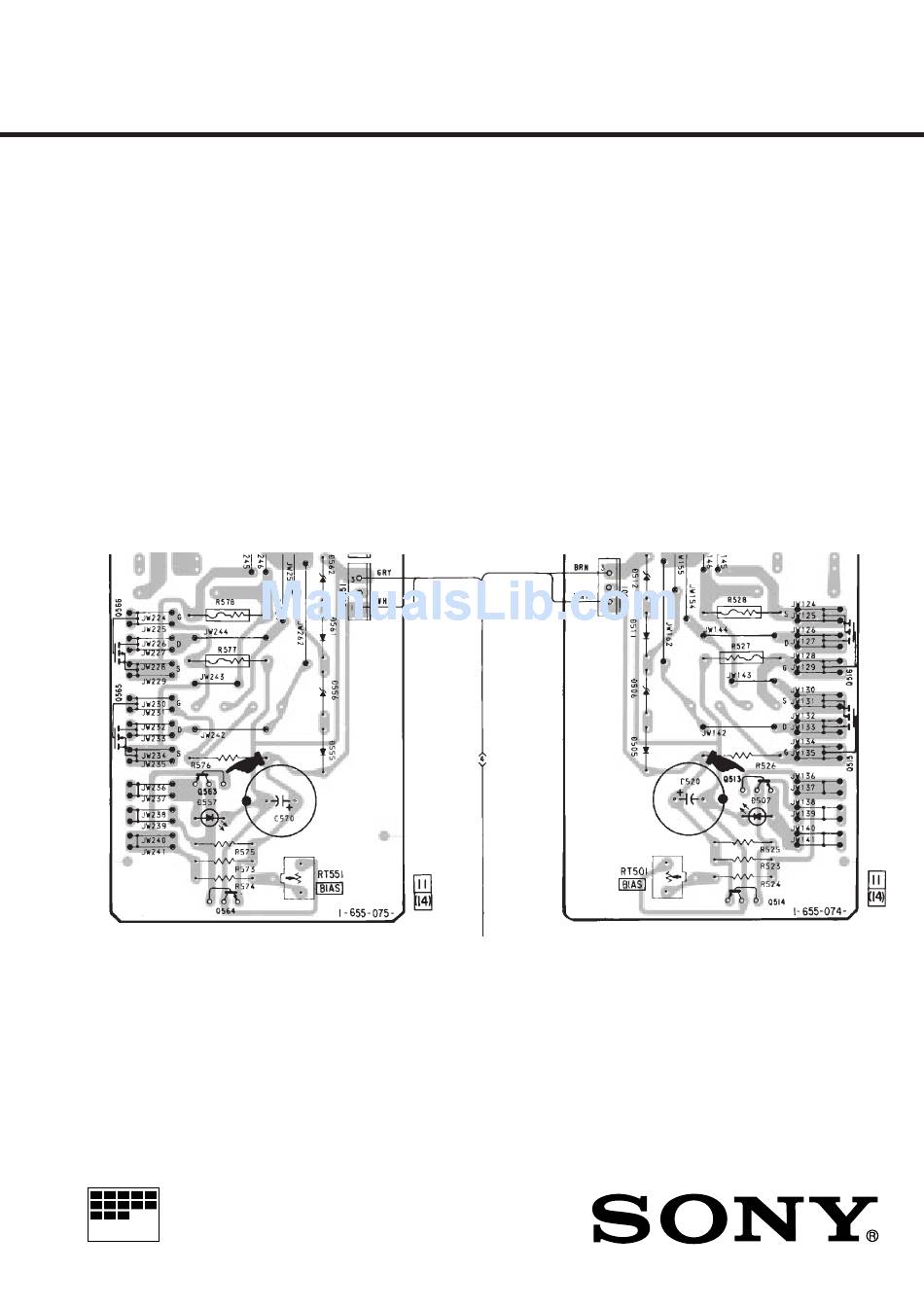

PRINTED WIRING BOARDS — MAIN Section —
(Refer to the TA-FA5ES/FA7ES service manual page 16)
• Location E-11 to H-17
MICROFILM
INTEGRATED STEREO AMPLIFIER
AEP Model
