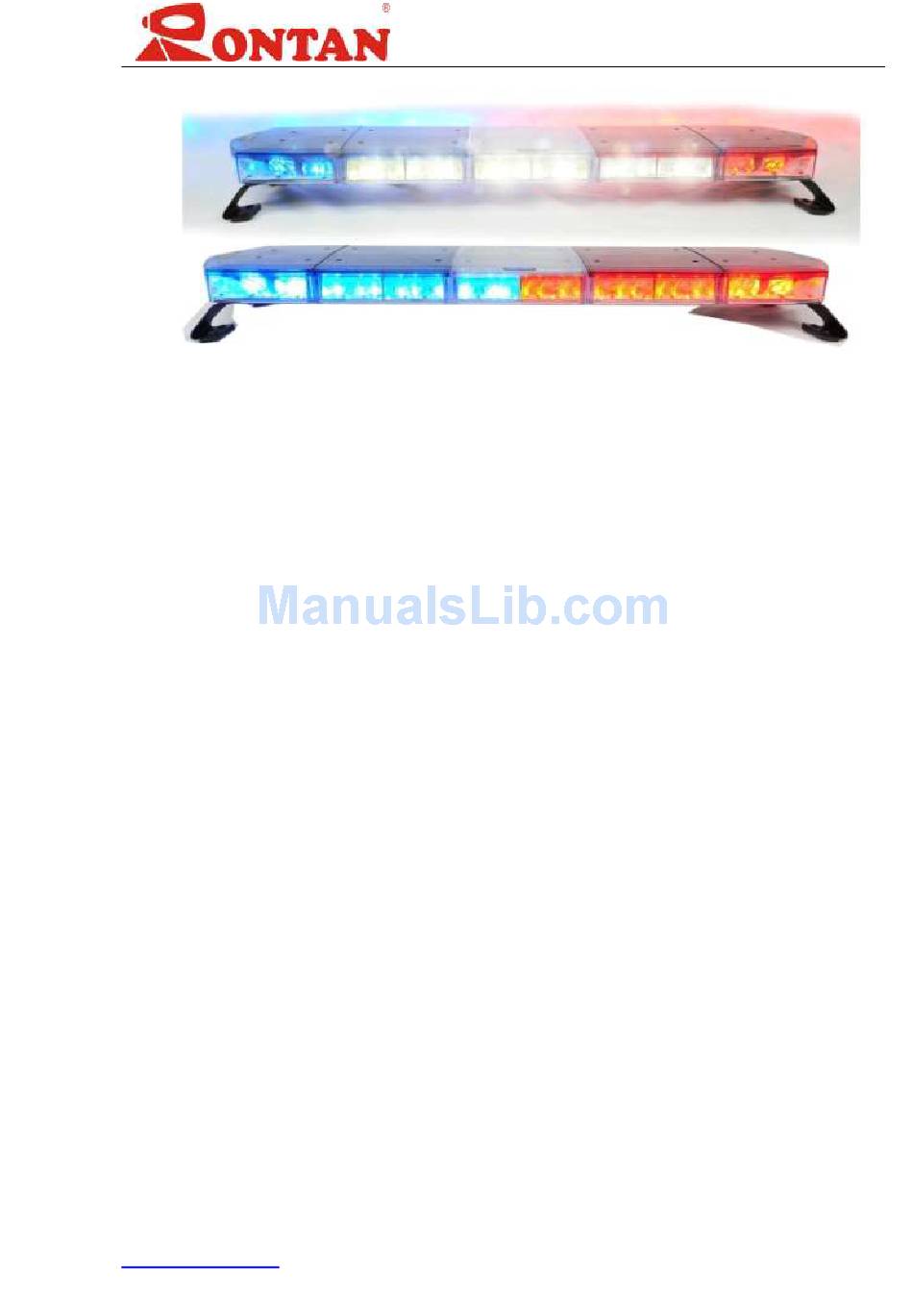

The Maximum Super Takedown Lightbar:
 Designed for multiple vehicle applications.
 Available in 5 and 6 dome models
 Designed and intended to function as an emergency warning light, with super
takedown, alley and directional stick options.
 Assembled on SMD technology.
 Intended for roof mount application.
 Operated independently or in conjunction with Rontan light controllers (ICM40®,
DSC40®, Intelligent Siren – IS3000, etc.).
 Stores all flash patterns in the light assembly intelligence.
 Plug and Play operability and modular design of the light heads facilitate
installation, quick color changes, and field upgradeability.
 Engineered with Rontan two-wire technology for ease of installation and quick
programming.
 6 takedown modules in the 45" and 8 takedown modules in the 54" lightbars.
Note:
All Rontan North America products are SAE compliant and meet Calif. Title 13
standards.
www.rontan.com
Maximum Super Takedown
Installation, Operation & Programming Instructions
Rev. 0.3
Page 1
