Rontan QuasarBlaze 7x3 Installation & Operation Manual

The 7x3 QuasarBlaze® lights are indicated to be used for perimeter lighting. Their 8
high power LEDs form a high efficiency optical set, suitable for installations on service vehicles
like ambulances, fire trucks, rescue and others.
The 7x3 QuasarBlaze® case is injected with high-strength polycarbonate. The hardware
assembly is made out of several parts. The electronic circuits and the LEDs are assembled on
a single board on the back of an internal transparent lens. This set fits into a polycarbonate
bezel and is attached to the vehicle´s surface with a rubber gasket, as on figure 1.
The external lens can be supplied either clear or with the same LED color (red, blue,
green, amber and white). The LED assembly can also be either single or dual color. The
external lens is always clear if two different LED colors are assembled.
The light activations can be done in some different ways. Figures 2 and 3 show how to
use the steady lighted connections and figure 4 through the selection of a flash pattern. See
the further explanations on this manual.
www.rontan.com

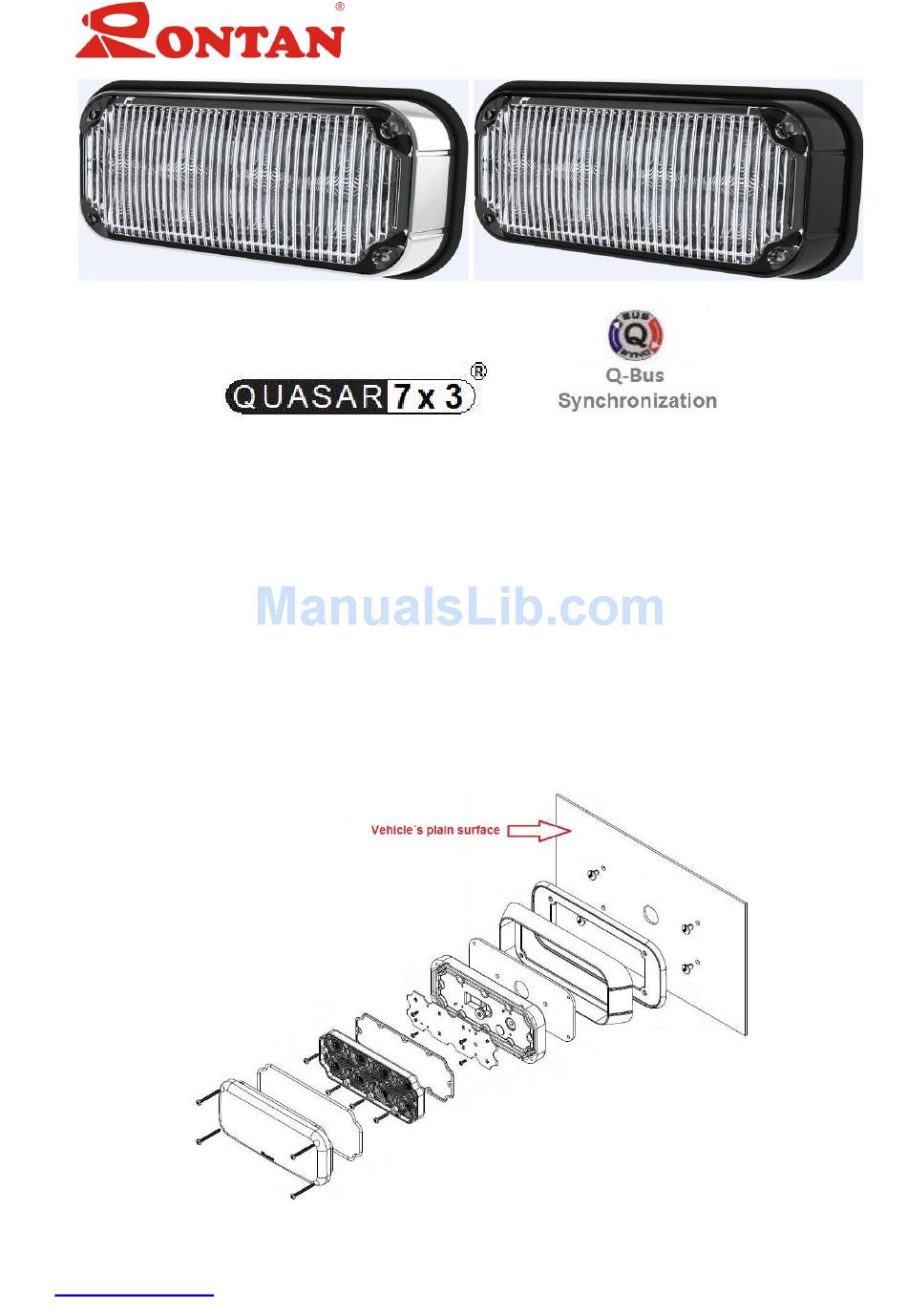

Figure 1: Exploded view
Rev. 1.1
7x3 QuasarBlaze®
Installation & Operation Manual
Page 1
