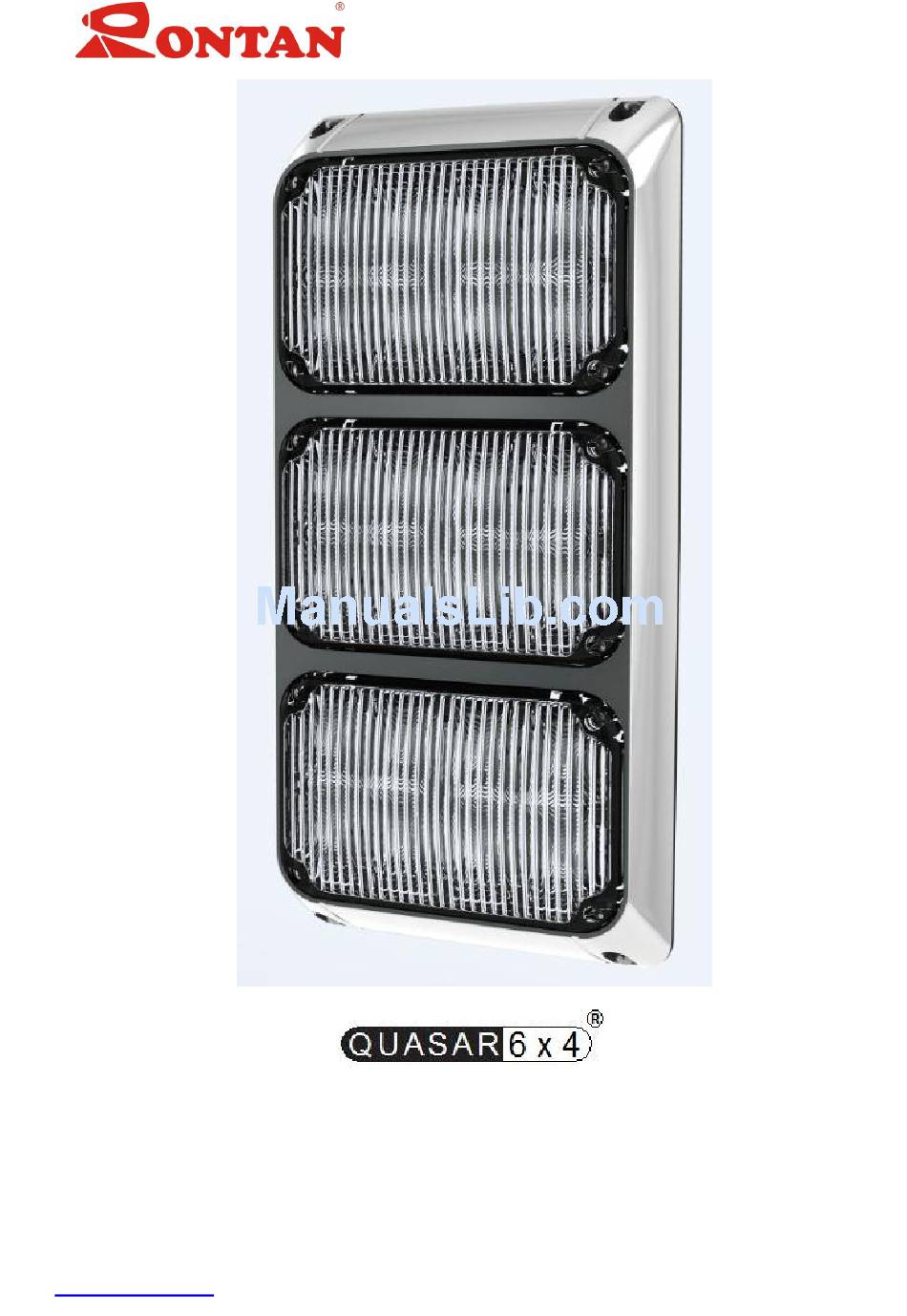

6x4 BTR QuasarBlaze®
Installation & Operation Manual
The 6x4 BTR QuasarBlaze® lights are indicated to be used as a warning for Brake,
Turn and Rear signaling lights. Their high power LEDs are assembled underneath an internal
lens, forming a high efficiency optical set. They are optimized for automotive applications for
medium and heavy sized vehicles, like ambulances, fire trucks, rescue and others.
www.rontan.com
Rev. 1.0
Page 1
Advertisement
Table of Contents
Related Manuals for Rontan 6x4 BTR QuasarBlaze
Summary of Contents for Rontan 6x4 BTR QuasarBlaze
- Page 1 6x4 BTR QuasarBlaze® Installation & Operation Manual The 6x4 BTR QuasarBlaze® lights are indicated to be used as a warning for Brake, Turn and Rear signaling lights. Their high power LEDs are assembled underneath an internal lens, forming a high efficiency optical set. They are optimized for automotive applications for medium and heavy sized vehicles, like ambulances, fire trucks, rescue and others.
- Page 2 6x4 BTR QuasarBlaze® Installation & Operation Manual The plastic parts are injected polycarbonate and high-strength ABS. The hardware assembly is made out of several parts. The electronic circuits and the LEDs are assembled on a single board on the back of an internal transparent lens. This set fits into a polycarbonate bezel and attached to the vehicle´s surface with a rubber gasket, as on figure 1.
- Page 3 3. Interconnections Figure 2: Interconnections Figure 2 shows how to activate the 6x4 BTR QuasarBlaze® light. Note that if both wires on the red light are connected to +12VDC, the high intensity activation will occur. 4. Dimensions in mm (in) Figure 3: Dimensions www.rontan.com...
