Summary of Contents for VIORE LED22VH50

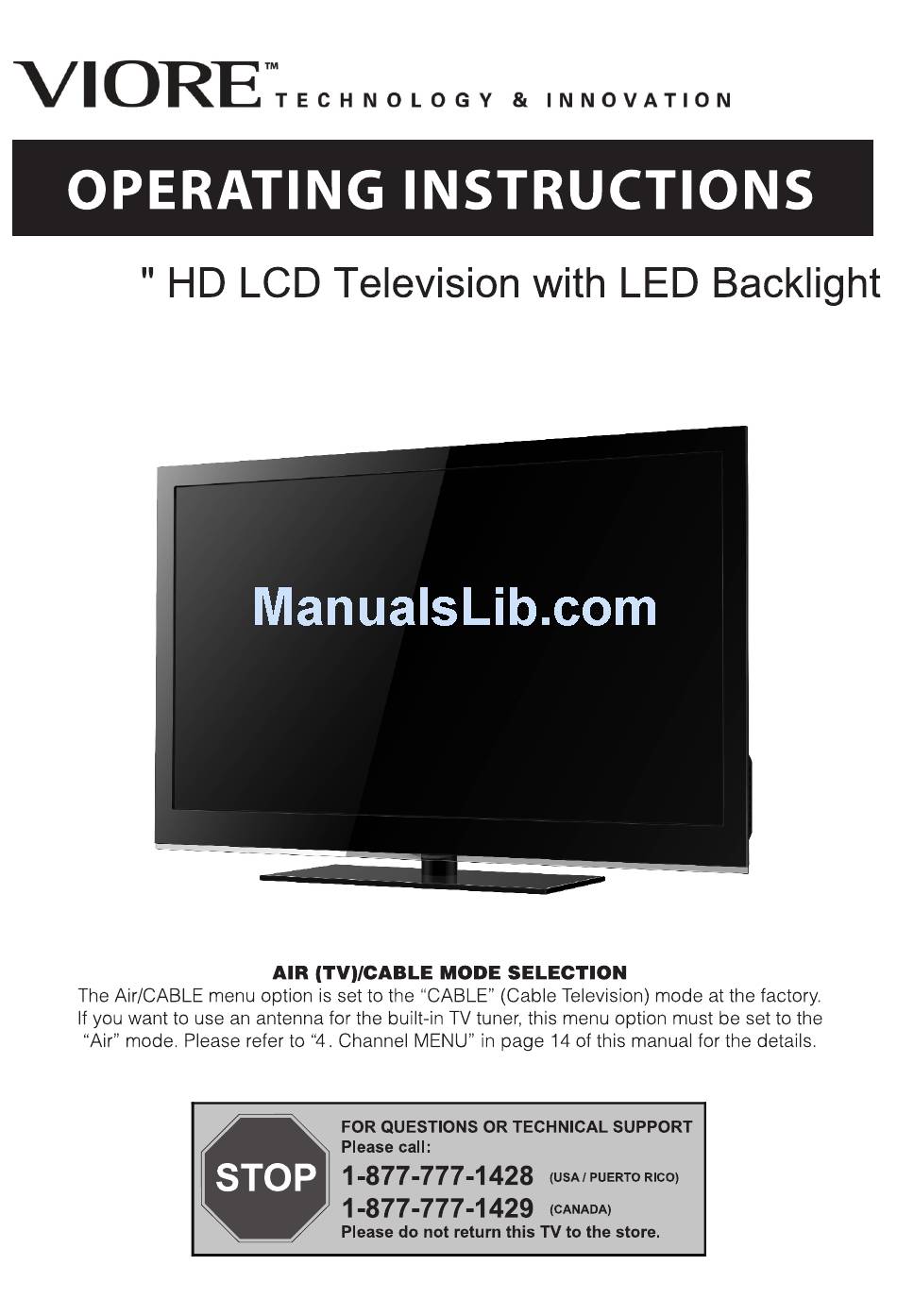

- Page 1 LED22VH50...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction....................4 Installation....................5-8 Wall Mount ....................9 Remote Control...................10 Operation.....................11-15 Trouble Shooting..................16... - Page 3 SAFETY AND WARNINGS Important Safety Instructions WARNING: 1) Read these instructions. To reduce the risk of fire or electric shock, do 2) Keep these instructions. not expose this apparatus to rain or moisture. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water.
-
Page 4: Safety And Warnings
SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. -
Page 5: Introduction
INTRODUCTION Main features Accessories Accessories 21.6” wide screen for a complete home theater experience Adapter........Super slim LCD TV with LED backlight Infrared Remote Control... User’ s M anual ......1366x 768 native resolution for HD performance Battery(AAA)......Integrated ATSC TV tuner for HDTV broadcast reception QSG........ -
Page 6: Installation
INSTALLATION KEYBOARD Front panel SOURCE MENU VOL+ VOL- STANDBY 1．SOURCE： Display the input source menu.In MENU mode,press“SOURCE”to confirm the selected item. 2．MENU： Display main MENU. 3．CH+/CH- 1: Remote control sensor. In TV mode，press“CH+”or“CH-” 2: Indicator LED: to change the channel up and down. In MENU mode, press “CH+”or BLUE POWER ON. - Page 7 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC. This sequence is very important.
- Page 8 INSTALLATION POWER CVBS PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 37.50 640*480 800*600 37.88 800*600 46.88 48.36 1024*768 1024*768 56.48 1024*768 60.02 1280*1024 63.98 1280*1024 80.00...
- Page 9 INSTALLATION AV EQUIPMENT You can use the input terminals on TV set rear as follows. HEADPHONE PC AUDIO COAXIAL HDMI1 HDMI2 HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) POWER CVBS VIDEO EQUIPMIENT TO VIDEO OUTPUTS TO AUDIO OUTPUTS...
-
Page 10: Wall Mount
- 4 pcs of type M4 screws are required for installing the wall mount bracket to your VIORE TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. -
Page 11: Remote Control
REMOTE CONTROL 1: POWER To set the TV standby or on. 2: NUMBER KEY For direct access to program. Displays the main on-screen menu. 4: CURSOR To move within the menu. 5: EXIT Used to exit menu. 6: VOL+/- To adjust sound level. 7: P.M To switch picture mode. -
Page 12: Operation
OPERATION 1.SETUP WIZARD 2)If "Retail" mode is selected, the following menu will be displayed to confirm your selection. Select The Setup Wizard is provided so that you can select "Yes" by using "left/right arrow" keys on your remote "Home" mode or "Retail" mode for the initial picture control, and press "ENTER"... -
Page 13: Setup Menu
OPERATION 3. SETUP MENU 1. PICTURE MENU The first item of the MENU is PICTURE MENU. The third item of the MENU is SETUP MENU. You can adjust picture effect here, such as contrast, brightness, etc. You can setup system here. Press to select and press to adjust. -
Page 14: Change Password
OPERATION Change Password: Press button and the screen will display as follows: Content Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) language) suggestive dialog) TV-Y (All children) ---- TV-Y7(Direct to Old password order children) ---- Suggested New password TV-G(General ---- audience) Confirm password... - Page 15 OPERATION 3.2 Timer Description Rating You can adjust timer here. Press to select, and press to adjust. Press MENU Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. to exit. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.
-
Page 16: Channel Menu
OPERATION 3.4 Menu Settings You can adjust Menu Settings here. Press to select. Press to adjust. Press MENU to exit. Are you sure? < > Transparency Press“ENTER”Key To Select < > Menu Language English Adjust Select Menu Exit Select“yes”and press the ENTER button. You will see the following screen that shows progress of Auto Scan. -
Page 17: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... - Page 18 Ver.111007-1 Viore,Inc. 7801 Hayvenhurst Avenue, Van Nuys,CA 91406 Printed in China...
