26" HD LCD Television
LC26VH56

Advertisement

Table of Contents
loading

Related Manuals for VIORE LC26VH56

Summary of Contents for VIORE LC26VH56

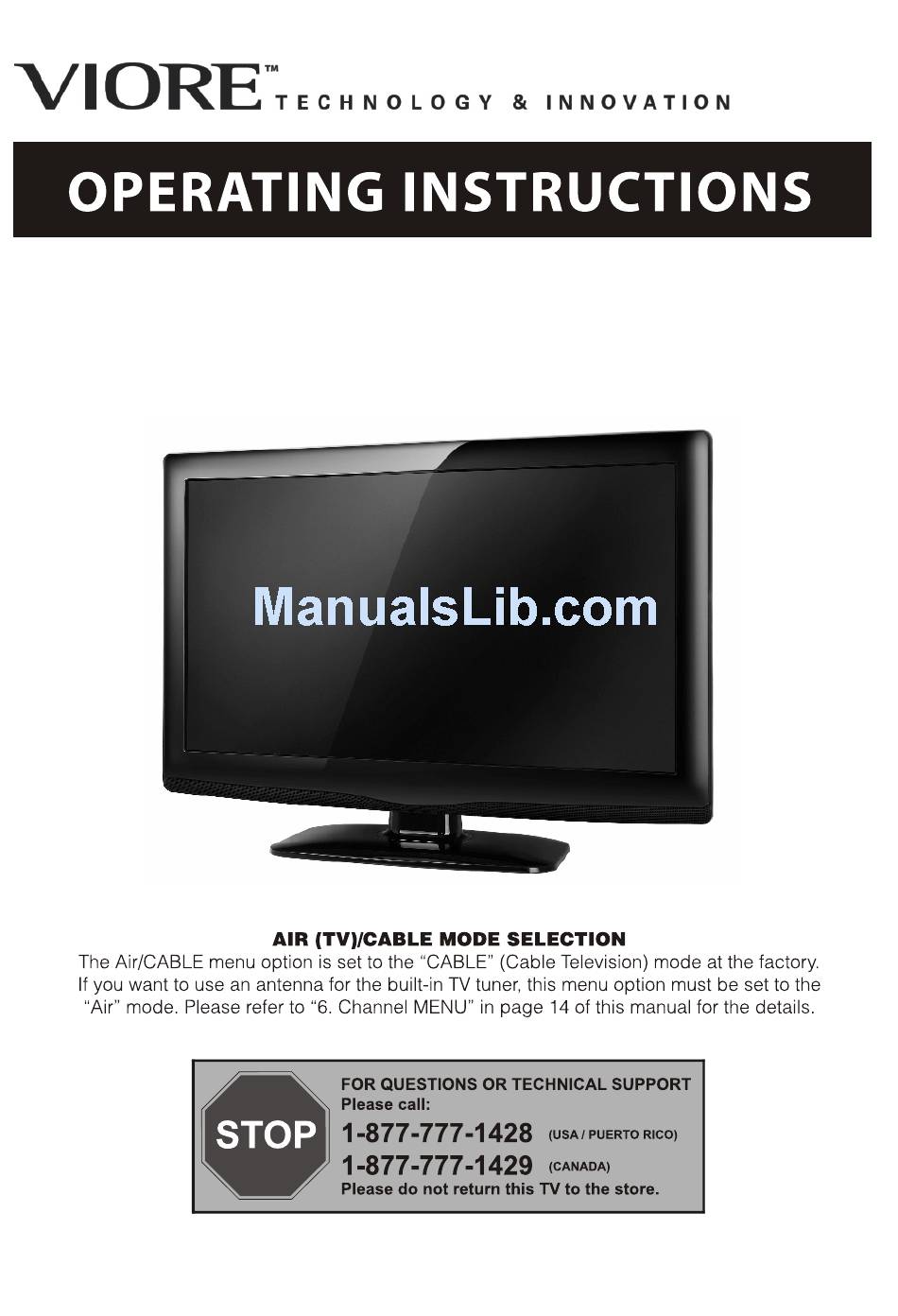

  • Page 1 26" HD LCD Television LC26VH56...

  • Page 2: Table Of Contents

    Contents Safety and warnings..................2-4 Introduction....................5 Installation....................6-9 Remote Control..................10 Operation.....................11-14 Trouble Shooting..................15...

  • Page 3: Safety And Warnings

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. CAUTION 3.Heed all warnings. RISK OF ELECTRIC SHOCK DO NOT OPEN! 4.Follow all safety instructions. CAUTION 5.Do not use this apparatus near water. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER 6.Clean only with dry cloth.
  • Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS television reception, which can be determined by turning Thank you very much for purchasing this TV. To enjoy the equipment off and on, the user is encouraged to try to your product from the very beginning, read this manual correct the interference by one or more of the following carefully and keep it handy for easy reference.

  • Page 6: Introduction

    INTRODUCTION Main features Accessories Accessories 1366 x 768 native resolution for HD performance AC Power Cord......Integrated ATSC TV tuner for HDTV broadcast reception High brightness provides a vivid and brilliant picture Infrared Remote Control... Deeper blacks and brighter whites with high contrast Wide Screen aspect ratio (16:9) for a complete home User s M anual ......

  • Page 7: Installation

    INSTALLATION Side panel Front panel SOURCE MENU VOL+ VOL- VIDEO STANDBY Video 1 SOURCE Display the input source menu. 2 MENU Display main MENU. 3 CH+/CH-:In TV mode press CH+ or CH- to change the channel up and down.In MENU mode, press CH+ or CH- to select items .In standby mode, press CH+ or CH- to turn on the TV.
  • Page 8 INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. HDMI2 INPUT HDMI1 INPUT RF INPUT...
  • Page 9 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.

  • Page 10: Installation

    INSTALLATION AV EQUIPMENT This TV provides one group of AV ,one group of YPbPr for convenient connectionto VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L)

  • Page 11: Remote Control

    REMOTE CONTROL 1: POWER To set the TV standby or on. 2: NUMBER KEY POWER MUTE For direct access to program. 3: MENU RECALL To display TV menu or to return to the previous menu. 4: CURSOR To move within the menu. 5: EXIT Used to exit menu.

  • Page 12: Operation

    OPERATION 3.TIMER MENU 1. PICTURE MENU The third item of the MENU is TIMER MENU. The first item of the MENU is PICTURE MENU. You can adjust time here. Y ou can adjust picture effect here, such as contrast, Press to select, press to adjust, press MENU brightness, etc.
  • Page 13 OPERATION 1). Advanced: In PC Mode is available. 5. V-CHIP MENU The fifth item of the MENU is V-CHIP MENU. Press button to select Advanced ,Press You can setup Parental Control here. button, the screen will display as follow: Press to select, press to adjust, press MENU to exit.
  • Page 14 OPERATION 2).MPAA:switch the movie-rating control level; N/A, 5.2 V-CHIP switch: G,PG, PG-13,R,NC-17,X. When the Parental Control switch is ON, the below options can be adjusted. Rating US: Press button, the screen will display as Description follow: General audiences, All Ages admitted Parental Guidance suggested.

  • Page 15: Operation

    OPERATION 1). Air/Cable: select Air TV signal and cable TV signal. 2).Canada French: switch the French-rating control 2). Auto Scan: If it's the first time you use the TV , you level: E, G,8ANS+,13 ANS+,16ANS+,18ANS+. should scan all the TV channels first, press the button to confirm, you will see below menu :...

  • Page 16: Trouble Shooting

    Trouble shooting Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute...
  • Page 17 Viore,Inc. 7801 Hayvenhurst Avenue, Van Nuys,CA 91406 Printed in China...
