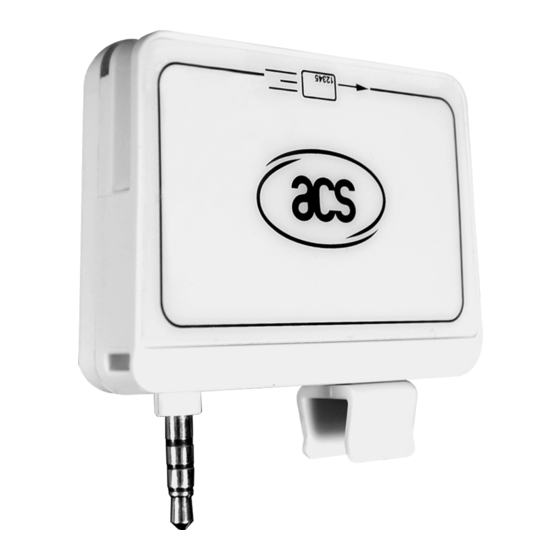

Mobile card reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ACR3x
Mobile Card Reader
User Manual V1.00
Subject to change without prior notice
info@acs.com.hk
www.acs.com.hk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIIX 3-1030 and is the answer not in the manual?

Questions and answers

Related Manuals for ACS MIIX 3-1030

Summary of Contents for ACS MIIX 3-1030

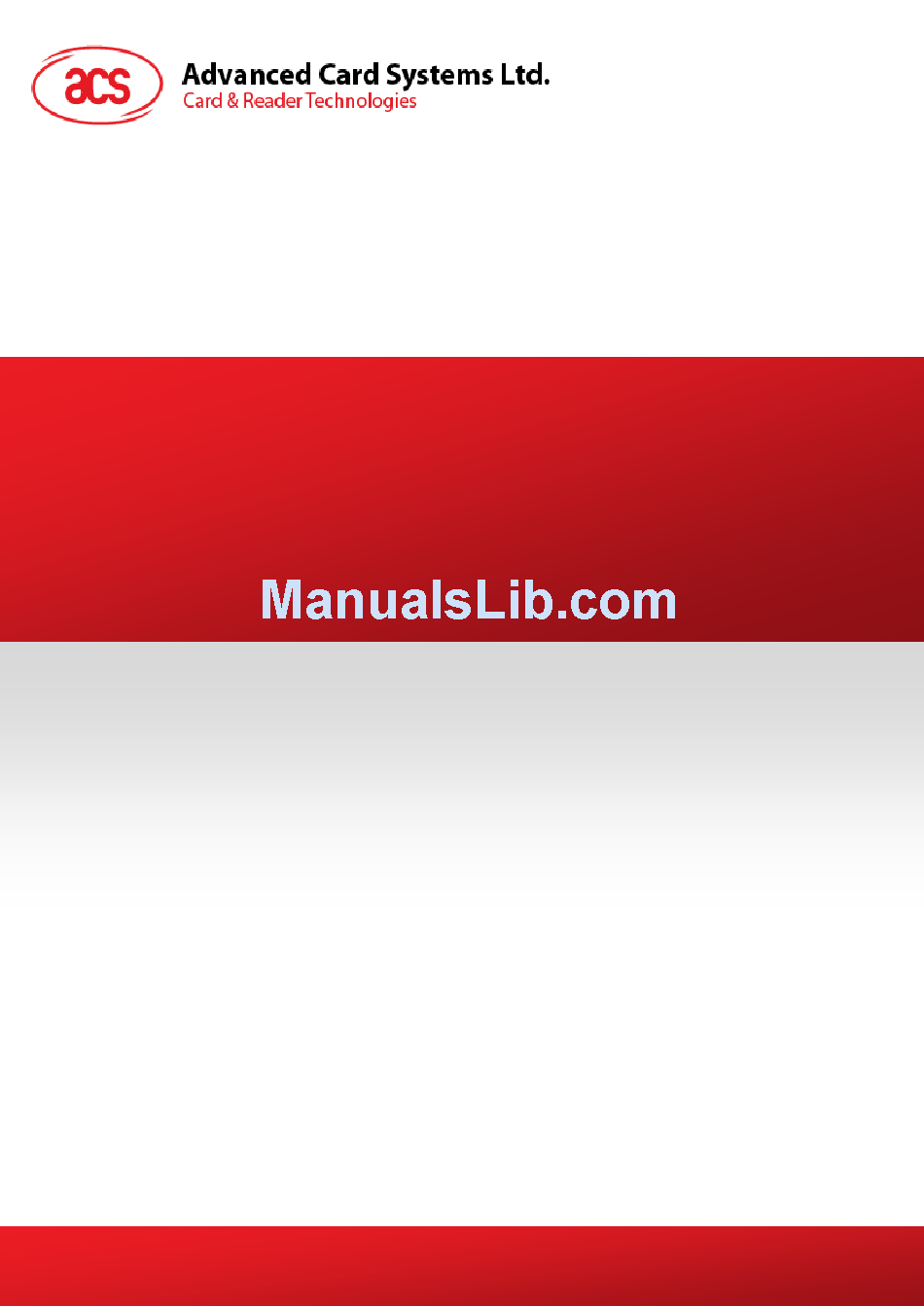

  • Page 1 ACR3x Mobile Card Reader User Manual V1.00 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...

  • Page 2: Table Of Contents

    Using a contactless smart card (PICC) ................28 5.2.1. Changing the timeout setting ..................29 5.2.2. Getting the ATR ......................30 5.2.3. Transmitting command APDU ..................32 5.2.4. Configuring radio frequency ..................34 Page 2 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 3: Introduction

    This document contains information regarding the installation and workflow of demo included in the Android™ and iOS library of the ACR3x Mobile Card Reader. Page 3 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 4: Installing The Demo Application

    2.0. Installing the demo application 2.1. For iOS 1. Download the device library from the link below: http://acs.com.hk/en/products/227/acr31-swipe-card-reader/. 2. Using XCode application, open the AudioJackDemo.xcodeproj. 3. Transfer the AudioJackDemo.xcodeproj to your mobile device by choosing your mobile device and then clicking the play button.

  • Page 5: For Android

    1. Connect your mobile device to the computer. 2. In the internal storage of your device, create a folder where the ACR31 Android demo will be placed. 3. Download the ACR31 Android library from the link below: http://www.acs.com.hk/index.php?pid=product&prod_sections=0&id=ACR31 Page 5 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk...
  • Page 6 4. Copy the AudioJackDemo.apk file from the downloaded ACR31 Android library into the previously created folder. 5. Disconnect your mobile device from the computer, and then locate the AudioJackDemo.apk using a file manager application. Page 6 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 7 6. Tap the AudioJackDemo.apk file to start the installation process. 7. Complete the action using Package Installer. Page 7 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 8 8. A prompt will ask for hardware control access. Tap Install to proceed. 9. Once the installation is complete, you may now open the AJ Demo application. Page 8 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 9: Using The Application With Acr31 Mobile Card Reader

    3. The reader is in sleep mode by default. Tap Reset to wake up the reader. Note: By default, the reader will enter sleep mode if there is no operation after 4 seconds. Page 9 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 10 4. Swipe your magnetic stripe card to the reader. The reader and card details will be displayed on the screen. 5. Tap About reader to know more about the firmware version, battery status and sleep timeout. Page 10 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 11: Getting The Firmware Version

    3.1.1. Getting the firmware version To get the reader’s firmware version: 1. Go to About reader, and then tap Get firmware version. Page 11 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 12: Getting The Battery Status

    3.1.2. Getting the battery status To get the battery status: 1. Go to About reader, and then tap Get status. Page 12 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 13: Setting The Sleep Timeout

    Setting the sleep timeout To set the sleep timeout: 1. Go to About reader, and then tap Sleep timeout. 2. Enter a value between 4 and 20, and then tap OK. Page 13 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 14 Customizing ID To change the Custom ID: 1. Go to Reader ID, and then tap Set custom ID. 2. Type in your preferred ID text, and then tap OK. Page 14 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 15 3.1.3.2. Getting the Device ID To get the Device ID: 1. Go to Reader ID, and then tap Get device ID. Page 15 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 16 To change the master key: 1. Go to Cryptographic keys, and then tap Master key. 2. Type in your preferred value (in hexadecimal format), and then tap OK. Page 16 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 17 3. To set the keys back to its default value, tap Use default key. Page 17 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 18 To change the AES key: 1. Go to Cryptographic keys, and then tap AES Key. 2. Type in your preferred value (in hexadecimal format), and then tap OK. Page 18 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 19 3. To set the keys back to its default state, tap Use default key. Page 19 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 20: Using The Application With Acr32 Mobile Card Reader

    Note: Make sure that the volume is set to its maximum level to allow communication between the ACR32 reader and your mobile device. 2. Tap ICC to explore the functions of a contact smart card. Page 20 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 21: Changing The Timeout Setting

    Changing the timeout setting To change the timeout setting of the reader: 1. Go to ICC, and then tap Wait timeout. 2. Type in your preferred value, and then tap OK. Page 21 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 22: Getting The Atr

    4.2.2. Getting the ATR To get the ATR of the card: 1. Go to ICC. 2. Tap Reset, and then tap Power to wake up the smart card. Page 22 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 23 3. Insert the smart card to the ACR32 to display the ATR. Page 23 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 24: Transmitting Command Apdu

    3. Type in the command (in hexadecimal format), and then tap OK. Note: For the list of APDU commands, please refer to the Reference Manual of the card in use. Page 24 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 25 4. Tap Reset, and then tap Power to wake up the smart card. 5. Under Function, tap Transmit to execute the APDU command. The reponse will be displayed under Response APDU. Page 25 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 26: Executing A Command

    2. Type in the command (in hexadecimal format), and then tap OK. Note: For a list of APDU commands, please refer to the Reference Manual of ACR32 mobile card reader. Page 26 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 27 3. Tap Reset, and then tap Power to wake up the smart card. 4. Tap Control to execute the APDU command. The reponse will be displayed under Control Response. Page 27 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 28: Using The Application With Acr35 Mobile Card Reader

    Note: Make sure that the volume is set to its maximum level to allow communication between the ACR31 reader and your mobile device. 2. Tap PICC to explore the functions of a contactless smart card. Page 28 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 29: Changing The Timeout Setting

    Timeout is the value of response time (in seconds) before a card starts to poll. To change the timeout setting of the reader: 1. Go to PICC, and then tap Timeout. 2. Type in a value between 1 to 5, and then tap OK. Page 29 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 30: Getting The Atr

    5.2.2. Getting the ATR To get the ATR of the card: 1. Go to PICC. 2. Tap Reset, and then tap Power ON to power up the reader. Page 30 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 31 3. Quickly tap the contactless smart card to the ACR35 to display the ATR of the card. Page 31 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 32: Transmitting Command Apdu

    2. Type in the command (in hexadecimal), and then tap OK. Note: For a list of APDU commands, please refer to the Reference Manual of the card in use. Page 32 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 33 3. Tap Reset, and then tap Power ON to wake up the reader and start polling. 4. Tap Transmit, and then quickly tap the contactless smart card to the ACR35 to send the APDU command. The response will be displayed under Response APDU. Page 33 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 34: Configuring Radio Frequency

    5.2.4. Configuring radio frequency The RF Configuration sets the antenna setting parameter. For more information, please contact ACS. Android is a trademark of Google Inc. Page 34 of 34 ACR3x – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
