Sharp CD-BA300 Service Manual

Sharp CD-BA300 Service Manual

Mini component system
Hide thumbs Also See for CD-BA300:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Quick Manual
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY) ....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 2
NAMES OF PARTS ........................................................................................................................................................... 3
OPERATION MANUAL ...................................................................................................................................................... 5
DISASSEMBLY .................................................................................................................................................................. 9
REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12
ADJUSTMENT ................................................................................................................................................................. 13
BLOCK DIAGRAM ........................................................................................................................................................... 17
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 20
VOLTAGE ........................................................................................................................................................................ 38
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 39
TYPES OF TRANSISTOR AND LED ................................................................................................................................ 39
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 40
TROUBLESHOOTING ..................................................................................................................................................... 41
FUNCTION TABLE OF IC ................................................................................................................................................ 45
LCD DISPLAY ................................................................................................................................................................... 51
REPLACEMENT PARTS LIST/EXPLODED VIEW
SERVICE MANUAL
CONTENTS
SHARP CORPORATION
- 1 -
MINI COMPONENT SYSTEM
CD-BA300
MODEL

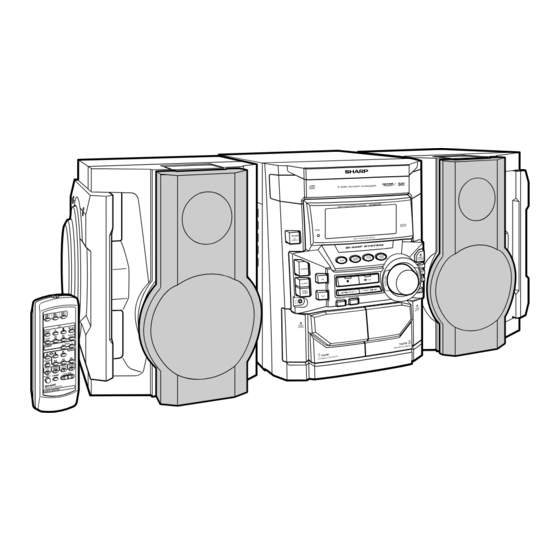

CD-BA300 Mini Component System consisting of
CD-BA300 (main unit), CP-BA300 (speaker system).
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CD-BA300
No. S1104CDBA300/
Page

Advertisement

Table of Contents
loading

Related Manuals for Sharp CD-BA300

Summary of Contents for Sharp CD-BA300

  • Page 1: Table Of Contents

    MINI COMPONENT SYSTEM CD-BA300 MODEL CD-BA300 Mini Component System consisting of CD-BA300 (main unit), CP-BA300 (speaker system). • In the interests of user-safety the set should be restored to its original condition and only parts identical to those specified be used.

  • Page 2: Important Service Notes (For U.s.a. Only)

    CD-BA300 FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL. IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY) BEFORE RETURNING THE AUDIO PRODUCT (Fire & Shock Hazard) Before returning the audio product to the user, perform the following safety checks.

  • Page 3: Names Of Parts

    CD-BA300 NAMES OF PARTS CD-BA300 Front panel Disc Tray Timer Set Indicator Power On/Stand-by Button Tape 2 Cassette Compartment Tape 1 Cassette Compartment Equalizer Mode Select Button Volume Control Extra Bass/Demo Mode Button Disc Tray Open/Close Button Disc Number Select Buttons...

  • Page 4: Equalizer Mode Select Button

    CD-BA300 CD-BA300 Rear panel FM/AM Loop Antenna Jack Video/Auxiliary (Audio Signal) Input Jacks Speaker Terminals AC Power Cord Remote control Remote Control Transmitter Disc Number Select Buttons CD Pause Button CD Memory Button CD Fast Reverse Button CD Clear Button...

  • Page 5: Operation Manual

    CD-BA300 CP-BA300 Left speaker Subwoofer Bass Reflex Duct Tweeter Woofer Speaker Wire for SUBWOOFER Terminals Speaker Wire for MAIN Terminals Right speaker OPERATION MANUAL Setting the Clock Press the TUNING/TIME ( ) button to adjust the hour and then press the MEMORY/SET button.

  • Page 6: Troubleshooting Chart

    Many potential “problems” can be resolved by the owner without calling a service tech- Cassette deck nician. If something is wrong with this product, check the following before calling your Symptom Possible cause authorized SHARP dealer or service center. Cannot record. Is the erase-protection tab removed? General Cannot record tracks with proper Is it a normal tape? sound quality.
  • Page 7 CD-BA300 – 7 –...
  • Page 8 CD-BA300 – 8 –...

  • Page 9: Disassembly

    CD-BA300 DISASSEMBLY CD-BA300 Caution on Disassembly Follow the below-mentioned notes when disassembling (A1)x2 Top Cabinet the unit and reassembling it, to keep it safe and ensure ø3x12mm excellent performance: 1. Take cassette tape and compact disc out of the unit.
  • Page 10 CD-BA300 (H1)x1 (H3)x1 Clamp Lever Display PWB CD Player Unit (H2)x12 (Top View) ø3x10mm Tape Mechanism Cam Gear Rib Open (J1)x5 ø3x10mm Cassette Holder Figure 10-1 (K1)x1 (E2)x2 ø3x10mm Headphones Figure 10-4 Power PWB (L2)x1 (E2)x1 (E3)x1 Turntable Transformer Main PWB...
  • Page 11 CD-BA300 (P2)x3 Mechanism (N1)x1 Slide CD Servo ø3x8mm Chassis (N3)x2 Loading Motor (N2)x2 (P1)x1 (P1)x1 (N3)x2 (Q1)x5 Figure 11-1 Figure 11-2 CP-BA300 STEP REMOVAL PROCEDURE FIGURE Side Panel/ 1. Screw ..... (A1) x4 11-3 Front Panel 2. Net ......(A2) x1 3.

  • Page 12: Removing And Reinstalling The Main Parts

    CD-BA300 REMOVING AND REINSTALLING THE MAIN PARTS TAPE MECHANISM SECTION TAPE 2 Perform steps 1 to 7 and 9 of the disassembly method to Record/Playback remove the tape mechanism. Head How to remove the record/playback and erase heads (TAPE 2) (See Fig. 12-1) 1.

  • Page 13: Adjustment

    CD-BA300 CD MECHANISM SECTION CD Player Loading Motor Perform steps 1, 2, 3, 11,12,13 and 14 of the disassembly Chassis method to remove the CD mechanism. How to remove the loading motor (A1)x1 (A1)x2 (See Fig. 13-1) 1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
  • Page 14 CD-BA300 • FM RF TUNER SECTION Signal generator: 1 kHz, 75 kHz dev., FM modulated fL: Low-range frequency fH: High-range frequency Test Stage Frequency Frequency Setting/ Instrument • AM IF/RF Display Adjusting Connection Point Signal generator: 400 Hz, 30%, AM modulated FM Band —...
  • Page 15 CD-BA300 TEST MODE ·Setting the test mode Any one of test mode can be set by pressing several keys as follows. <X-BASS> + <CD> + <POWER> TEST:CD operation test Function:-CD test mode. -Enter test mode. T E S T IL isn't done OPEN/CLOSE operation is using manual.
  • Page 16 CD-BA300 Standard Specification of Stereo System Error MessageDisplay Contents Error Contents DISPLAY Notes Output while Device Protection Operation 'PROTECT' 00: While in Protect Circuit Operate 01: Over Current Detection 02: DC Detection TAPE Mechanism Error 'ER-TA**' 00: Tape Mechanism Error...

  • Page 17: Block Diagram

    CD-BA300 DISC CLAMP NUMBER OPEN/ CLOSE T/T UP DOWN LOADING TO MAIN SECTION TO DISPLAY SECTION 43 44 LC78645E CD SERVO XOUT 17 25 CONT5 SLDO SPDO VCC1 M63001FP VCC4 FOCUS/TRACKING/ VCC2 SPIN/SLED +3.3V DRIVER VCC3 26 27 CONSTANT LASER...
  • Page 18 CD-BA300 FM IF 10.7MHz CNP301 IC301 CF303 T302 TA7358AP BF301 CF351 X351 FM FRONT END 450kHz B.P.F 456kHz T351 CF352 AM IF 17 13 AM MIX AM IF FM+B MO/ST L312 T301 IC303 LA1832S FM/AM FM/AM IF MPX. MPXIN FM/AM...
  • Page 19 CD-BA300 FL701 FL DISPLAY JOG701 15 20 35 53 56 57 58 Q701-Q703 Q710-Q712 RX701 REMOTE SENSOR VLOAD IC701(1/2) IX0398AW AVDD SYSTEM MICROCOMPUTER SW701-SW703 SW709-SW716 SW722-SW729 SW731-SW734 9 10 11 12 13 15 16 17 20 21 22 23 24...

  • Page 20: Schematic Diagram / Wiring Side Of P.w.board

    CD-BA300 PICKUP UNIT CD SERVO PWB-C CD SIGNAL VREF VREF 0.047(ML) CNP1 100P 0.0047 (CH) 10/50 100/10 TR– TR– 0.22/50 FO– FO– 100P FO– TR– 0.01 100/10 CD MOTOR PWB-G MUTE SPINDLE SPIN MOTOR SP– – SLED SLIDE SL– MOTOR –...
  • Page 21 CD-BA300 R38 1K 100P R37 1K 100P R36 1K 100P R35 1K R34 1K 100P R33 1K R32 1K 100P 0.022 CNS703 2.2K FROM CD RES DISPLAY PWB P21 10-A CLAMP SW 47(ML) 2.2K 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61...
  • Page 22 CD-BA300 R_CH A_GND L_CH R601 1 CD_GND CNP7 R602 1 CD_+B TO CD R603 1 SERVO PWB A_+B P17 12-C BI11 C602 VREF CNS11 INTERFACE – C607 22/50 C608 0.1(ML) C610 0.1(M LOUT ROUT 0.1(ML) C609 LBASS RBASS C613 R607...
  • Page 23 CD-BA300 MAIN PWB-A (1/2) FM SIGNAL PLAYBACK SIGNAL R601 1K RECORD SIGNAL R602 1K R603 1K CD SIGNAL IC601 VIDEO SIGNAL C602 VREF AUDIO PROCESSOR R633 22/50 C608 C614 L-CH R631 C631 C610 0.1(ML) 10/50 ROUT JK601 3.3K 390P 0.1(ML)
  • Page 24 CD-BA300 R731 R732 100K 100K R733 FL701 100K VVKBJ744GNK-1 Q710 Q711 Q712 KTC3199 GR KTC3199 GR KTC3199 GR R701 R704 100K R716 100K 100K Q703 KTC3199 GR C715 C714 22/50 47/50 VLOAD CS701 270P IC702 KIA4558P CS702 RS701 OPE AMP.
  • Page 25 CD-BA300 HEADPHONES PWB-B2 TO CD SERVO PWB P17 12-B CNP8 JK701 HEADPHONES CNP705 CNS703 BI703 C722 47/50 FM SIGNAL C726 220/10 C725 0.022 R773 –20dBATT R774 R775 T-BIAS R776 T-T1/T2 R777 REC/PLAY R778 RES OUT R779 R780 R781 RESET P_IN...
  • Page 26 CD-BA300 IC902 STK4029S(2CH) POWER AMP. +VCC C940 C907 0.22/50 220P C926 R902 R995 220P C906 0.22 220P (2W) C910 C903 R910 100/50 C928 R918 R901 R904 R976 C901 C902 C911 10/50 10/50 47/50 R-CH R928 R908 R911 D903 L-CH R912 Q904 0.1(1W)
  • Page 27 CD-BA300 AMP PWB-D2 IC901 STK40271(2CH) POWER AMP. +VCC C939 C927 0.22/50 220P C926 R986 220P R926 0.22 (2W) C922 C928 100/50 R924 R976 C931 C920 C921 1/50 10/50 10/50 R928 R932 R-CH R934 0.1(1W) D906 Q908 L-CH R938 KTC3199 GR...
  • Page 28 CD-BA300 T303 AM TRACKING C401 15P(UJ) C330 C331 C323 0.047 0.022 C332 0.022 AM ANT. T306 C335 VD301 AM OSC. 560P(SL) KDV147B R358 3.9K C334 BF301 BAND PASS AM BAND (UJ) FILTER COVERAGE fL IC301 AM FM TA7358AP FM FRONTEND C306 0.022...
  • Page 29 CD-BA300 MAIN PWB-A (2/2) FM SIGNAL AM SIGNAL C373 TP302 0.015 C371 R361 1/50 R350 2.7K R362 C372 C367 1/50 1/50 C369 20 19 18 15 14 13 IC303 C358 1/50 R352 R353 R355 3.3K T351 C357 2.2/50 AM IF...
  • Page 30 CD-BA300 TO CD SERVO PWB P32 5-A CNP7 CNS11 1 2 3 4 5 6 MAIN PWB-A COLOR TABLE BROWN R372 R378 X352 R D ( R ) R373 R388 R359 C382 ORANGE 1 2 3 4 5 6 7 8 9 1011...
  • Page 31 CD-BA300 DISPLAY PWB P28 2-A CNP701 FC701 Q110 R114 Q128 Q109 R113 Q111 R160 R167 L103 P33 11-F R166 R168 R115 Q106 C150 R155 Q126 1 2 3 FROM 2 4 6 8 10 12 14 16 18 C154 2022...
  • Page 32 CD-BA300 TO MAIN PWB P27 8-A CNP601 FC701 FL701 23 21 19 17 15 13 11 9 22 20 18 16 14 12 10 8 CNP701 D721 IC701 R748 R753 SW701 LED722 POWER R721 R767 R758 R768 R766 SW714 DIMMER...
  • Page 33 CD-BA300 TO CD SERVO PWB P32 4-A CNP8 CNS703 1 2 3 4 5 6 7 8 9 BI703 R727 C722 R728 R729 R702 R705 R719 Q709 C714 C728 R774 1 2 3 D718 R797 C723 R781 C732 C724 R799...
  • Page 34 CD-BA300 SO902 SPEAKER TERMINAL R-CH R-CH L-CH L-CH (HI) (LOW) (HI) (LOW) AMP. PWB-D2 L902 L904 CNP803 L905 L903 CNS803 R951 R950 Q910 M901 R949 Q909 FAN MOTOR E C B R948 R980 R979 C960 R960 C910 R912 C957 R908...
  • Page 35 CD-BA300 TRANSFORMER PWB-D3 AC POWER SUPPLY CORD AC120V/60Hz POWER PWB-D1 F806 2A/125V R822 F804 F802 R821 R803 5A/125V 4A/125V F803 F801 5A/125V 4A/125V C807 ZD804 ZD802 D803 C811 Q801 R804 E C B C806 C809 C834 R814 C832 C803 F805...
  • Page 36 CD-BA300 P29 10-A P26 6-A FROM FROM DISPLAY PWB MAIN PWB CD SERVO PWB-C CNS601 CNS702 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 CNP7 CNP8 B C E 25 30 35 CNP3...
  • Page 37 CD-BA300 P29 9-G TAPE MECHANISM TO DISPLAY PWB ASSEMBLY CNS703 FC702 TAPE MECHANISM PWB-F SOLENOID SOLENOID TAPE MOTOR TAPE 1 TAPE 2 PLAYBACK HEAD RECORD/PLAYBACK ERASE HEAD HEAD 7 6 5 4 3 2 1 CNP101 P27 11-D CNP102 TO MAIN PWB...

  • Page 38: Voltage

    CD-BA300 VOLTAGE IC101 IC601 IC701 NO. VOLTAGE NO. VOLTAGE NO. VOLTAGE NO. VOLTAGE NO. VOLTAGE NO. VOLTAGE 3.7V 2.0V 1.6V 4.7V 3.7V 12.6V 1.0V 12.6V 1.6V 0.5V 12.6V 1.8V 2.0V 5.3V 3.7V 3.8V 3.3V 5.3V 4.7V 3.2V 4.7V 1.3V 5.0V 4.7V...

  • Page 39: Notes On Schematic Diagram

    CD-BA300 NOTES ON SCHEMATIC DIAGRAM • Resistor: • The indicated voltage in each section is the one measured To differentiate the units of resistors, such symbol as K and by Digital Multimeter between such a section and the chas- M are used: the symbol K means 1000 ohm and the symbol sis with no signal given.

  • Page 40: Waveforms Of Cd Circuit

    CD-BA300 WAVEFORMS OF CD CIRCUIT Stopped Stopped 1999/04/05 17:33:17 CH1=500mV CH3=500mV 500ms/div CH1=500mV CH3=1V CH4=1V 500ms/div DC 10:1 DC 10:1 (500ms/div) DC 10:1 DC 10:1 DC 10:1 (500ms/div) NORM:20kS/s NORM:20kS/s PDO1 IC1 73 IC1 21 PDO2 IC1 74 IC1 20...

  • Page 41: Troubleshooting

    CD-BA300 TROUBLE SHOOTING When the CD does not function When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check the following items.
  • Page 42 CD-BA300 Stopped (1) Focus-HF system check CH1=500mV CH3=500mV 500ms/div DC 10:1 DC 10:1 (500ms/div) NORM:20kS/s Although a CD is inserted and the cover is closed, "NO DISC" is displayed. Press the OPEN/CLOSE switch (SW1) without inserting a disc, and try starting the playback operation.
  • Page 43 CD-BA300 (2) Tracking system check Check the TE waveform at pin 15 on IC1. The tracking servo is not activated. If the waveform shown in Figure 43-1 appears and soon after Check the peripheral circuits at pins 14, 15 and 20 on IC1, and NO DISC appears.
  • Page 44 CD-BA300 (4) PLL system check Stopped 1999/04/05 17:33:17 CH1=500mV CH3=1V CH4=1V 500ms/div DC 10:1 DC 10:1 DC 10:1 (500ms/div) NORM:20kS/s When a disc is loaded, start play operation. PDO1 The HF waveform is normal, but the TOC data cannot be PDO2 read.

  • Page 45: Function Table Of Ic

    CD-BA300 FUNCTION TABLE OF IC IC1 VHiLC78645E-1: CD Servo (LC78645E) (1/2) Terminal Name Input/Output Setting in Reset Pin No. Function SLC0 Output – Control output. For slice level SLCIST Input – Resistor connection terminal for SLCO output current setting. control.
  • Page 46 CD-BA300 IC1 VHiLC78645E-1: CD Servo (LC78645E) (2/2) Terminal Name Input/Output Setting in Reset Function Pin No. RVSS – – GND for Right channel. Must be connected to 0V. Right channel RCHO Output LVDD /2 Right channel output. D/A converter RVDD –...
  • Page 47 CD-BA300 IC1 VHiLC78645E-1: CD Servo (LC78645E) 75 74 72 71 69 68 66 65 63 62 SLC0 DATA SLCIST DATACK EFMIN LRSY ASDFIN RFVDD ASDACK RFVSS ASLRCK FIN1 16MOUT FIN2 EFLG TIN1 TIN2 XVSS LC78645E VREF FSX/16MIN REFI XOUT XVDD...
  • Page 48 CD-BA300 IC701 RH-iX0398AWZZ: System Microcomputer (IX0398AW) (1/2) Pin No. Port Name Terminal Name Input/Output Function — (+) POWER SUPPLY -20d BATT Output -20dB ATTENUATOR NO USE Output T_BIAS Output TAPE RECORD BIAS T_T1/T2 Output TAPE T1/T2 CHANGE REC/PLAY Output TAPE REC/PLAY CHANGE...
  • Page 49 CD-BA300 IC701 RH-iX0398AWZZ: System Microcomputer (IX0398AW) (2/2) Pin No. Port Name Terminal Name Input/Output Function P120 PLAY SW_B Input PLAY SWITCH FOR T2 P119 Input TAPE 2 A-SIDE FULL PROOF P116 STOP LED Output STOP LED P115 PLAY FWD LED...
  • Page 50 CD-BA300 IC601 VHiLC75341/-1: Audio Processor (LC75341) ROUT LOUT LBASS RBASS 0.1uF 0.1uF LTRE RTRE LSEL0 RSEL0 R1 R2 24 23 22 21 20 19 18 17 16 15 14 13 LC75341 10 11 12 Figure 50 BLOCK DIAGRAM OF IC...

  • Page 51: Lcd Display

    CD-BA300 LCD DISPLAY FL701 VVKBJ744GNK-1: FL Display (1G~8G) PIN CONNECTION PIN NO. 20 19 18 17 16 15 14 13 12 11 10 CONNECTION 9G 8G 7G 6G 5G 4G 3G 2G NP NP F1 F1 F1 30 29 28 27 26 25 24 23 22 21 PIN NO.
  • Page 52 CD-BA300 –– MEMO –– – 52 –...
  • Page 53 “HOW TO ORDER REPLACEMENT PARTS” To have your order filled promptly and correctly, please furnish the For U.S.A. only following information. Contact your nearest SHARP Parts Distributor to order. 1. MODEL NUMBER 2. REF. No. 3. PART NO. 4. DESCRIPTION For location of SHARP Parts Distributor, Please call Toll-Free;...
  • Page 54 CD-BA300 PRICE PRICE DESCRIPTION PARTS CODE DESCRIPTION PARTS CODE RANK RANK ZD851 VHEDZ2R4BSB-1 AB Zener,2.4V,DZ2.4BSB CD-BA300 FILTERS INTEGRATED CIRCUITS BF301 RFILR0008AWZZ AE Band Pass Filter VHILC78645E-1 AY CD Servo,LC78645E CF303 RFILF0124AFZZ AD FM IF,10.7 MHz VHIM63001FP-1 AX Focus/Tracking/Spin/Sled CF351 RFILF0003AWZZ...
  • Page 55 CD-BA300 PRICE PRICE PARTS CODE DESCRIPTION PARTS CODE DESCRIPTION RANK RANK AA 0.001 µF,50V,Mylar C106 VCKYMN1HB181K J AA 180 pF,50V C603 VCQYKA1HM102K J AA 0.022 µF,25V C107,108 VCKYMN1HB561K J AA 560 pF,50V C604 VCTYMN1EF223Z AA 0.047 µF,50V AC 100 µF,16V,Electrolytic...
  • Page 56 CD-BA300 PRICE PRICE PARTS CODE DESCRIPTION PARTS CODE DESCRIPTION RANK RANK CS701,702 VCKYMN1HB271K J AA 270 pF,50V R326 VRD-MN2BD820J AA 82 ohms,1/8W AA 0.0068 µF,16V CS703,704 VCTYMN1CX682K J R327 VRD-MN2BD330J AA 33 ohms,1/8W AA 0.022 µF,25V CS705~709 VCTYMN1EF223Z R336 VRD-MN2BD103J AA 10 kohm,1/8W AB 47 µF,25V,Electrolytic...
  • Page 57 CD-BA300 PRICE PRICE DESCRIPTION PARTS CODE DESCRIPTION PARTS CODE RANK RANK R782~791 VRD-MN2BD102J AA 1 kohm,1/8W RD31 VRD-MN2BD392J AA 3.9 kohms,1/8W R795 VRD-MN2BD103J AA 10 kohm,1/8W RD32 VRD-MN2BD562J AA 5.6 kohms,1/8W R796 VRD-ST2CD473J AA 47 kohms,1/6W RD33 VRD-MN2BD103J AA 10 kohm,1/8W...
  • Page 58 CD-BA300 PRICE PRICE DESCRIPTION PARTS CODE DESCRIPTION PARTS CODE RANK RANK SO901 QTANA0810AWZZ J AF Terminal,Speaker 92LCAB3552CASY J Side Panel Ass’y,Right SWMPU10780MLB J AH Switch,Push Type [Open/Close] 203- 1 ———— –– Side Panel,Right SWMPU11470MLB J AE Switch,Push Type [Clamp] (Not Replacement Item)
  • Page 59 CD-BA300 PRICE PRICE PARTS CODE DESCRIPTION PARTS CODE DESCRIPTION RANK RANK XJBSD30P14000 AA Screw,ø3×14mm SP5,6 RSPA10009AW6W J AZ Sub Woofer XJBSF30P10000 AA Screw,ø3×10mm XJSSD30P10000 AA Screw,ø3×10mm PACKING PARTS 92LSC0308MBZI AB Screw,ø3×8mm 92LSC0308RBZI Screw,ø3×8mm SPAKA0294AWZZ Packing Add. XHBSD40P08000 AA Screw,ø4×8mm SPAKZ0696AWZZ...
  • Page 60 CD-BA300 CD-BA300 306-2 306-1 306-3 703x2 305x2 PWB-G Figure 7 CD MECHANISM EXPLODED VIEW – 7 –...
  • Page 61 CD-BA300 BELT CONNECTION CD-BA300 FF/REW FF/REW 202-1 ROLLER 603x2 ROLLER Tape ASS'Y ASS'Y Motor PWB-A FLYWHEEL FLYWHEEL 610x10 ASS'Y ASS'Y MAIN BELT TAPE1 TAPE2 612x2 610x2 610x2 610x3 Q852 603x1 202-2 Q851 Q850 606x12 Silicon PWB-B1 Grease M901 610x1 605x2...
  • Page 62 CD-BA300 CD-BA300 607x2 607x2 MECHANISM PWB-E 243x4 PWB-C 232x4 Figure 9 CABINET EXPLODED VIEW (2/2) – 9 –...
  • Page 63 CD-BA300 CP-BA300 C1,2 SP3,4 SP1,2 Capacitor (N.P.) WOOFER TWEETER 3.3µF,100V Electrolytic SP3,4 WOOFER C1,2 SP5,6 Capacitor (N.P.) 3.3µF,100V WOOFER SP1,2 TWEETER SP5,6 WOOFER SP1,2 911x2 912x4 910x4 914x4 SP5,6 SP3,4 905x4 906x4 (with Capacitor C1,2) 909x4 907x4 913x4 Figure 10 SPEAKER EXPLODED VIEW...

  • Page 64: Packing Of The Set (For U.s.a. Only)

    FRONT SIDE OF SPEAKERS SPAKC1124AWZZ Packing Case Not Replacement Item © COPYRIGHT 2001 BY SHARP CORPORATION SHARP CORPORATION ALL RIGHTS RESERVED. Communication Systems Group Quality & Reliability Control Center No part of this publication may be reproduced, Higashihiroshima, Hiroshima 739-0192, Japan...
