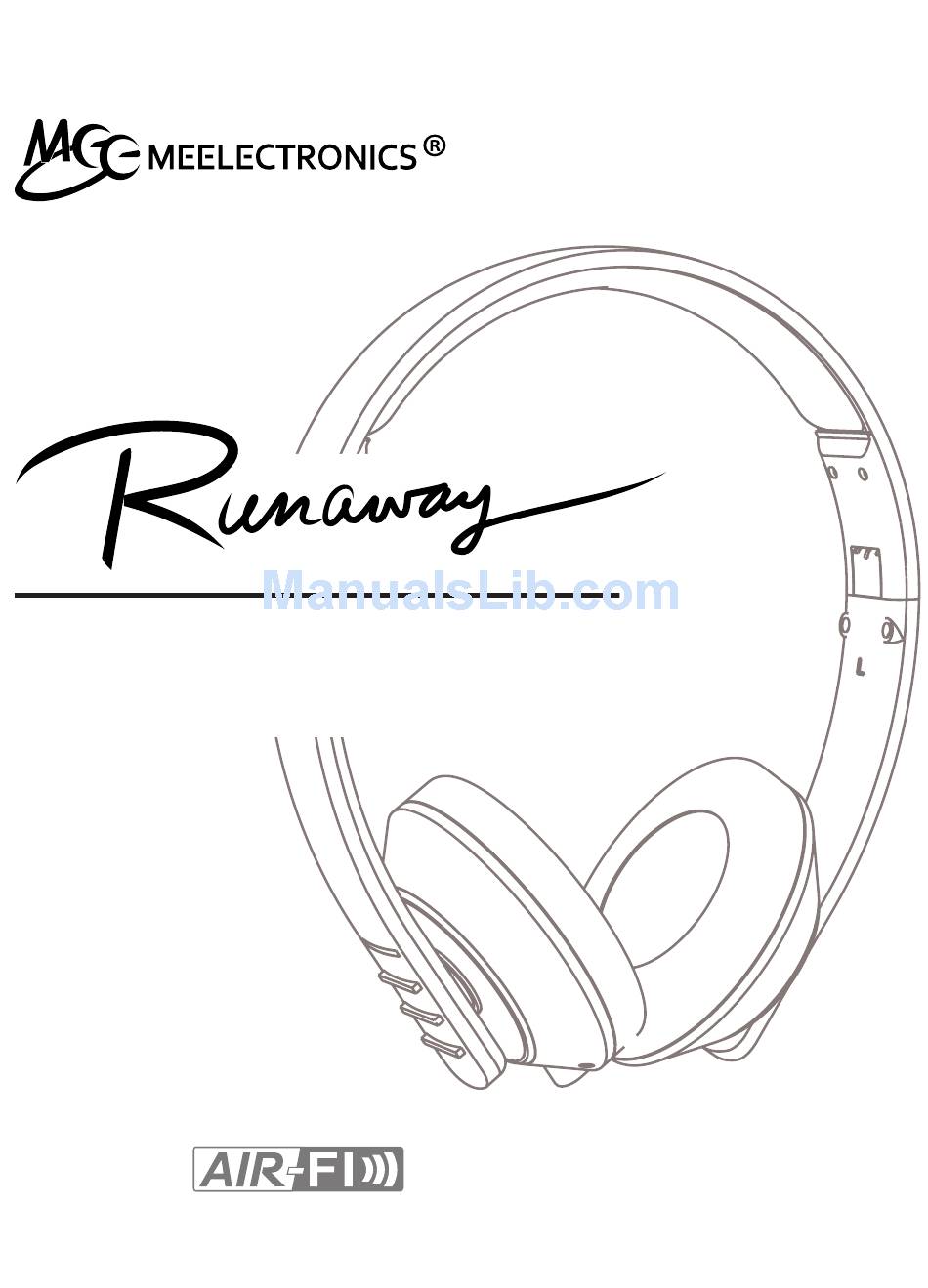

Page 1: User Manual
STEREO BLUETOOTH® WIRELESS HEADPHONES model: AF32 USER MANUAL part of the series... -
Page 2: Package Contents
PACKAGE CONTENTS Runaway AF32 Stereo Bluetooth Wireless Headphones Charging cable (USB – 3.5mm) Stereo audio cable (3.5mm – 3.5mm) Carrying pouch User manual... -
Page 3: Product Overview
PRODUCT OVERVIEW Stereo Bluetooth Wireless Headphones RIGHT EAR CUP LED indicator light Multifunction button ( Previous track button ( Next track button ( Volume down button ( Volume up button ( Headphone / charging jack Microphone... - Page 4 CHARGING *** You must completely charge the headphone before the first use *** Connect the USB charging cable to any powered USB port and to the 3.5mm jack on the right earcup. Make sure it is plugged in fully. Charge time is typically 2-3 hours.
-
Page 5: Turning On And Off
TURNING ON AND OFF To turn on, press and hold the Multifunction button for approximately 3 seconds. The headphones will say “Power on” and the blue LED light will flash. To turn off, press and hold the Multifunction button for approximately 4 seconds. -
Page 6: Connecting With Paired Devices
LOCATING THE BLUETOOTH MENU iPhone, iPad, and iPod Touch a) On your device, go to Settings b) Select Bluetooth. If Bluetooth is not on, turn it on. The iPhone/iPad/iPod will automatically search for new devices Android™ Phones and Tablets a) On your device, go to the Settings menu b) Select Bluetooth (on older Android devices Bluetooth is found in the Wireless &... - Page 7 CONTROLS The Runaway can control media and phone calls from a smartphone or tablet. 1. ADJUSTING THE VOLUME FUNCTION OPERATION NOTES Increase volume Press the Volume Up When the volume reaches button the minimum or maximum level the Runaway will produce a short tone.
- Page 8 CONTROLS (CONTINUED) 2. CONTROLLING PHONE CALLS (CONTINUED) STATUS FUNCTION OPERATION Call in Answer new Press the Multifunction button progress, call and put second current call ncoming call on hold Reject Press and hold the Multifunction button incoming call for 2 seconds until you hear a tone One call active, Switch Press and hold the Multifunction button...
-
Page 9: Additional Functionality
CONTROLS (CONTINUED) 4. ADDITIONAL FUNCTIONALITY FUNCTIONALITY OPERATION NOTES Redial last call* Double press the Headphones will say “Last Multifunction button number redial” when no call is in progress Activate Siri ®/ Press and hold the Headphones will produce voice command/ Multifunction button a tone and media will be voice dialing*... -
Page 10: Multipoint Pairing
MULTIPOINT Multipoint allows two Bluetooth devices to be connected to the Runaway simultaneously, providing additional flexibility for your multimedia experience. 1. MULTIPOINT PAIRING To use two Bluetooth devices with the Runaway, first pair them by following the pairing procedure described in the Pairing with Bluetooth Devices section on Page 4 for each device and then turn off the headphone. -
Page 11: Multipoint Functionality
MULTIPOINT (CONTINUED) 2. MULTIPOINT FUNCTIONALITY STATUS FUNCTION OPERATION Media playing Play media on Pause audio playback on the active on one device other device device and start audio playback on the other connected device. It may take up to 10 seconds for audio to switch Incoming call Answer call Short press the Multifunction button... -
Page 12: Safety And Care
USE AS WIRED HEADPHONE The Runaway can be used as a wired headphone by plugging one end of the included stereo audio cable into the 3.5mm jack on the Runaway and the other end into any audio device with a standard 3.5mm headphone jack. Plugging the audio cable into the headphone will disable Bluetooth functionality until the cable is unplugged. -
Page 13: Specifications
SPECIFICATIONS Bluetooth Version Bluetooth Profiles Supported A2DP, HSP, HFP, AVRCP Driver 40 mm dynamic driver Frequency Response 20Hz to 20kHz Operating Range 10 m (30 ft) Music Playback Time 15 hrs Talk Time 15 hrs Standby Time 150 hrs TROUBLESHOOTING Visit www.meelec.com/bluetooth for additional Bluetooth information and troubleshooting. - Page 14 Windows® Phone is a registered trademark of Microsoft Corporation in the United States and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MEElectronics is under license. Other trademarks and trade names are those of their respective owners.
- Page 16 www.meelec.com...
