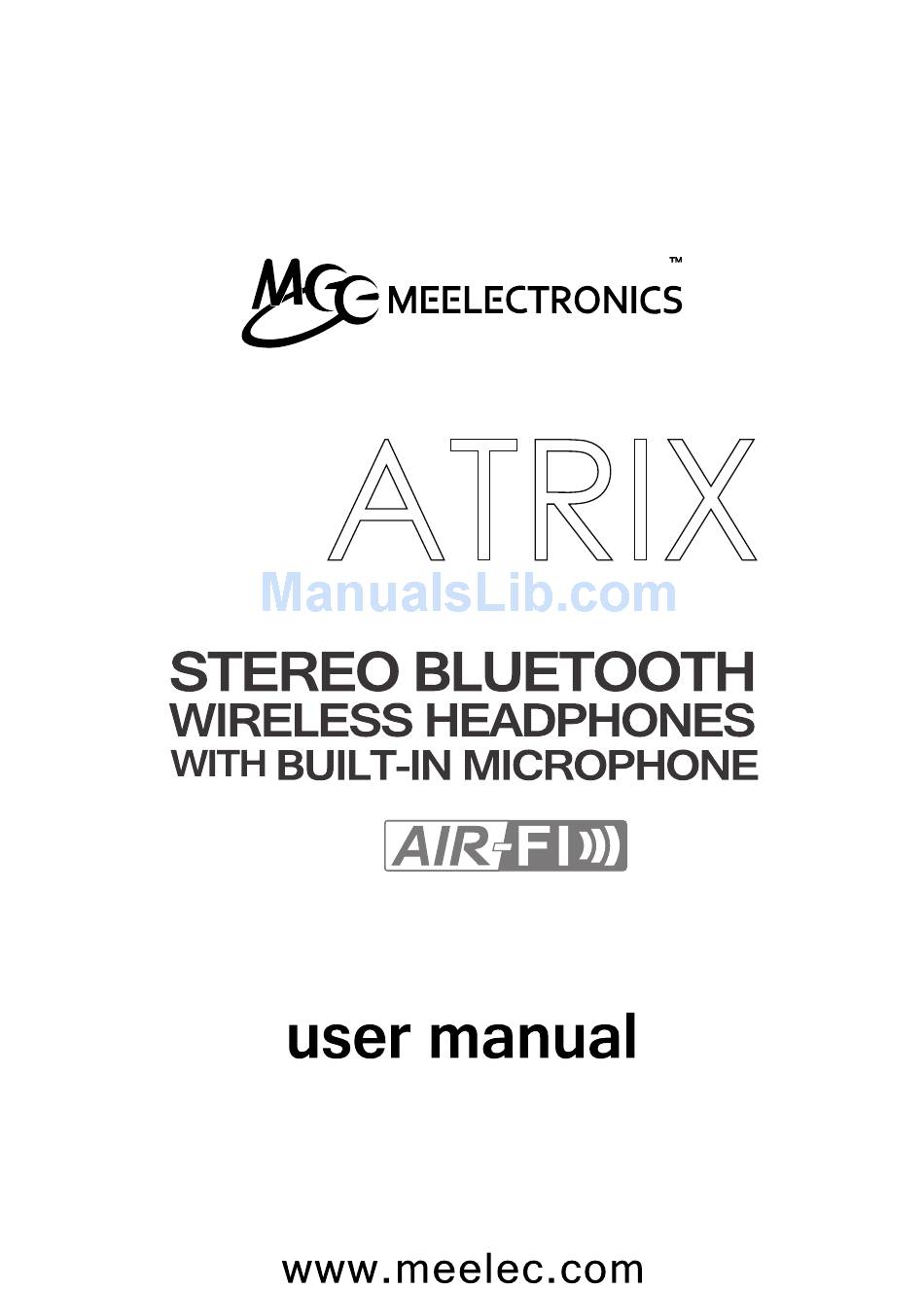

- Page 1 ATRIX model: AF62 part of the series...
- Page 2 ATRIX Thank you for your purchase of the MEElectronics Air-Fi Matrix AF62 Stereo Bluetooth Wireless Headphones with Microphone...
-
Page 3: Table Of Contents
Package Contents Bluetooth and NFC Information Warning FCC Warning Safety and Care Product Overview Charging Turning On and Off Pairing with Bluetooth Devices iPhone, iPad, and iPod Touch Android Phones and Tablets Windows 7 Computers and Laptops Other Phones, Tablets, and Devices Pairing with Bluetooth Devices with NFC Connecting to Paired Devices Multipoint Functionality... -
Page 4: Package Contents
ATRIX Stereo Mini-USB Bluetooth Charging Wireless Cable Headphones Form-fitting Audio Protective Cable Case User Manual Note: An online version of this manual is available on meelec.com... -
Page 5: Bluetooth And Nfc Information
PDAs, computers, media players, and more through a process called pairing. Before you can use your Matrix with your device they will need to be paired. The Matrix is equipped with NFC (Near Field Communication) which can pair the Matrix to a NFC enabled device by placing the two within close proximity. -
Page 6: Fcc Warning
FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Safety And Care
Safety and Care When not in use, power the device off and store it in the included protective case. Clean with a soft, debris-free cloth. If necessary dampen the cloth with a diluted soap water solution. Never use chemical cleaners on the headphone. Leather conditioner and cleaner can be used on the ear pads. -
Page 8: Product Overview
Product Overview AF62 Stereo Bluetooth Wireless Headphones Left Ear Cup Right Ear Cup microphone mini-USB port for charging LED indicator next track power/call button play/pause button volume down previous track volume up 3.5mm audio jack... -
Page 9: Charging
Note: Bluetooth can be active when the unit is charging; however, depending on the power output of the charger, charging may be very slow. The Matrix will work in wired mode via the audio jack while charging. AT&T LTE... -
Page 10: Turning On And Off
Turning On and Off To turn on, press and hold the Power/Call button for approximately 3 seconds. The Matrix will say “power on” and the blue indicator light will flash once every second to show the power is on. To turn off, press and hold the Power/Call... -
Page 11: Pairing With Bluetooth Devices
Pairing with Bluetooth Devices *** It is only necessary to pair your Matrix once with each device *** iPhone, iPad, and iPod Touch On your iPhone/iPad/iPod Touch, go to Settings Select Bluetooth (on devices with iOS 5.1.1 or older, Bluetooth is under the General menu) -
Page 12: Android Phones And Tablets
On your Android phone or tablet, navigate to the Settings menu Select Wireless & Networks Make sure the Matrix is off and within 1 meter of your device Make sure Bluetooth is enabled on your device Initiate pairing mode by pressing the Power/Call button for 6 seconds, until you hear “ready to pair.”... -
Page 13: Windows 7 Computers And Laptops
The Add a device popup window will appear with “Select a device to add to this computer” Make sure the Matrix is off and within 1 meter of your device Initiate pairing mode by pressing the Power/Call button for 6 seconds, until you hear “ready to pair.”... - Page 14 Pairing (Continued) Windows 7 Computers and Laptops (Continued) Now the Matrix must be configured for audio and microphone use (enable Bluetooth audio). Note: Audio device names can vary depending on the Bluetooth device drivers and computer configuration. Right click on the speaker in your notification area, or go to...
-
Page 15: Other Phones, Tablets, And Devices
Matrix will return to standby mode.) Wait until you see “AF62” in the list of Bluetooth devices Select “AF62” to pair and connect your device to the Matrix; if your device asks for a pin, enter “0000”... -
Page 16: Pairing With Bluetooth Devices With Nfc
Devices with NFC Make sure your device has both Bluetooth and NFC turned on Place the Matrix next to the NFC device to connect Some devices display a message for permission to pair and connect. Allow the devices to pair and connect. -
Page 17: Connecting To Paired Devices
Connecting to Paired Devices *** The Matrix must have been paired with your device before it will connect. Pairing only needs to be done before the first use. *** When the Matrix is turned on and not in pairing mode, it should connect to last connected device automatically. -
Page 18: Multipoint Functionality
The Matrix has Multipoint functionality, which allows two Bluetooth devices to simultaneously connect. Devices are identified by the Matrix as “phone 1” and “phone 2”. Multipoint use will be possible after at least two devices have been paired with the Matrix. -
Page 19: Controlling Volume
If the volume is not loud enough, try to increase the volume on your device. Adjusting volume on both the Matrix and your device, you will be able to achieve a more precise volume level. Adjusting the Matrix volume will change the volume level of voice commands and tones. -
Page 20: Controlling Phone Calls
For more information, refer to the user manual for your device. Notes: If you answer a call from your phone instead of the headset, most phones will activate the phone handset, not the Matrix. Single press the Power/call button to switch the phone audio to the Matrix. -
Page 21: Controlling Media Playback
Controlling Phone Calls (Cont.) Additional Functionality: Multipoint - Two Phones Connected Note: The Matrix supports a maximum of 2 simultaneous phone calls. Answering an additional call will hang up the active call. Status Function Operation Answer new call Single press the Power/call... -
Page 22: Using As A Wired Headphone
Using as a Wired Headphone The Matrix comes with a 3.5mm audio jack on the back of the left ear cup and an audio cable for wired use. This is convenient for use where Bluetooth isn’t allowed, such as on an airplane, when the battery is depleted, or just to save battery power. -
Page 23: Change Languages
Press and hold the Volume Up and Volume Down buttons simultaneously for 1-2 seconds while powering on the Matrix to enter the language menu. The Matrix will say “Power on. Ready to pair. This device supports multiple languages. Press Power/Call button to confirm English.”... -
Page 24: Reset Factory Defaults
Press and hold the Volume up and Volume down buttons simultaneously for 4 seconds while the Matrix is turned on until the Matrix says “power on. Ready to pair. Please connect with phone or computer.” The Matrix will continue to offer voice instructions until a device is paired. -
Page 25: Status, Button Functions, Light Patterns
Matrix will say “power on” Power/Call flash for 2 (the first time you turn button for 3 seconds seconds the Matrix on it will say “power on, thank you for buying this headset”) Turn off Press and hold the Red LED flash... - Page 26 Single press the media Play/Pause button Skip to next Press Next button track Restart track Press or skip to Previous button previous track Matrix will say either “phone 1” or “phone 2” depending on which device the operation is taking place on...
- Page 27 2 seconds Low battery Red LED flashes Short beep every 25 for 15 seconds seconds Matrix will say either “phone 1” or “phone 2” depending on which device the operation is taking place on...
-
Page 28: Specifications
Specifications Microphone Specifications Microphone Unit 6.5mm Directivity omnidirectional S.P.L -58±2dB Impedance ≤2.2K Frequency Response 10Hz-20,000Hz Operating Voltage 4.5V Speaker Specifications Speaker diameter 40mm Impedance Sensitivity 103±3dB at 1KHZ Rated power 20mW Maximum power 50mW Frequency response 15Hz-20,000Hz Power Specifications Battery type Built-in 400mAh Lithium-polymer rechargeable battery Mini-USB... -
Page 29: Troubleshooting
If you are using a car USB port, make sure the car is on. Won’t pair Make sure the Matrix is in pairing mode as indicated by red and blue LEDs flashing in an alternating manner Won’t connect Make sure your Matrix is powered on, Bluetooth is enabled on your device, and it is within range. - Page 30 NOTES MEElectronics and its logo are registered trademarks of S2E, Inc. All rights reserved. iPod®, iPhone®, iPad®, and Mac® are registered trademarks of Apple Inc. Android™ is a trademark of Google Inc.
