© Copyright 2000 Roberts-Gordon
ROBERTS GORDON
BZC 100
BZC 300
CONTROLLER

Operation Manual

Roberts-Gordon
1250 William Street
P.O. Box 44
Buffalo, New York 14240-0044
Telephone: 716.852.4400
Fax: 716.852.0854
Toll Free: 800.828.7450
http://www.rg-inc.com
®
&
Roberts-Gordon Canada Inc.
241 South Service Road West
Grimsby, Ontario L3M 1Y7 Canada
Telephone: 905.945.5403
Fax: 905.945.0511
Roberts-Gordon
Oxford Street
Bilston, West Midlands WV14 7EG UK
Telephone: +44 (0) 1902 494425
Fax:
+44 (0) 1902 403200
10031600NA Original Issue
08/00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BZC 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts Gorden BZC 100

Summary of Contents for Roberts Gorden BZC 100

  • Page 1: Operation Manual

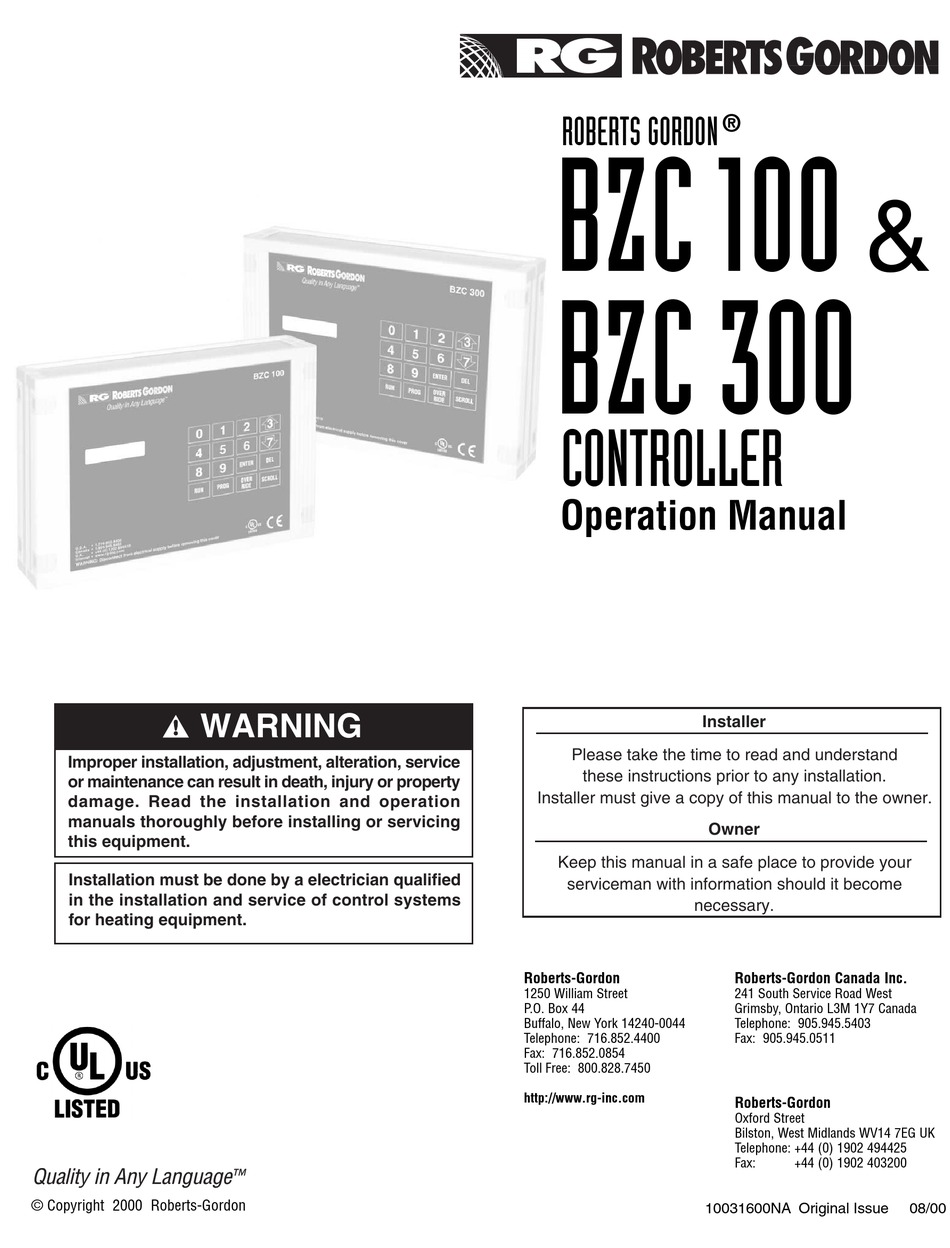

    ® ROBERTS GORDON BZC 100 & BZC 300 CONTROLLER Operation Manual Roberts-Gordon Roberts-Gordon Canada Inc. 1250 William Street 241 South Service Road West P.O. Box 44 Grimsby, Ontario L3M 1Y7 Canada Buffalo, New York 14240-0044 Telephone: 905.945.5403 Telephone: 716.852.4400 Fax: 905.945.0511 Fax: 716.852.0854...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF FIGURES 1. Introduction ......1 Figure 1 Keypad Layout .....2 Figure 2 ROBERTS GORDON ®...

  • Page 5: Introduction

    CONTROLLER? fy you of possible fire, electrical or burn ® The ROBERTS GORDON BZC 100 and BZC 300 hazards. Please pay special attention are micro processor based controllers designed when reading and following the warnings for the most efficient control of CORAYVAC ®...

  • Page 6: Figure

    ® ROBERTS GORDON AND BZC OPERATION MANUAL SECTION 2: SPECIFICATIONS FIGURE 1 - Keypad Layout (BZC 300 and BZC 100 have the same keypad layout) MATERIAL SPECIFICATION PRESET DEFAULT FACTORY SETTINGS Enclosure Material: ABS (UL 94-5VA Rated) Temperature Settings: Weight: 1.6 Kg...
  • Page 7 BZC Controller Quick Programming Guide Read each section carefully before following the programming instructions. 1. DAY and NIGHT Temperature Settings 6.Daylight Savings Time Adjustment 3. Override Time 1.1 From the Normal (Run) Mode. 3.1 From the Normal (Run) Mode. 6.1 From the Normal (Run) Mode. 1.2 Press PROG.

  • Page 8: Viewing Screen Displays

    ® ROBERTS GORDON AND BZC OPERATION MANUAL SECTION 3: VIEWING SCREEN DISPLAYS By selecting 4, the status and recorded tempera- ture for zone 1 can be viewed for a 24 hour period In Normal (Run) Mode, the following options are in 15 minute intervals.

  • Page 9: Programming Options

    Please consult the NIGHT TEMP. : 04 ROBERTS GORDON ® BZC 300 or BZC 100 Controller Installation Manual for initial set up information. Press two digits for the required temperature and Zone choices, when displayed, only apply to then press ENTER.

  • Page 10: Manual Override Temperature

    For Saturday, the switching period is different from calculated by the ROBERTS GORDON BZC 300 the weekday settings. The new settings must be or BZC 100 Controller giving the required temper- entered. ature at the time set. Enter start time 0800, Press ENTER.

  • Page 11: Manual Override Time

    SECTION PROGRAMMING OPTIONS ture manually will only apply to the current switch- date and then the number of days the holiday ing period. lasts. MANUAL OVERRIDE TIME 4.6.2 The screen will now show: 4.5.1 From the Normal (Run) Mode, press the OVER- RIDE key to enter the override program.

  • Page 12: Seasonal Time Adjustment

    ® ROBERTS GORDON AND BZC OPERATION MANUAL Enter the code 0376 and press ENTER. 4.9.4 Press RUN to return to Normal (Run) Mode. 4.7.4 The screen will now show: 4.10 CHANGING THE SECURITY CODE 4.10.1 Press PROG and enter the code 0000. DATE IS :03-15-10 Press ENTER.

  • Page 13: Changing The Override Limits

    SECTION PROGRAMMING OPTIONS 4.11.8 Press RUN again to return to Normal (Run) Mode from the menu. 4.11 CHANGING THE OVERRIDE LIMITS 4.11.1 Press PROG and enter the code 1805. Press ENTER. Enter 1 for DATA. 4.11.2 These are the settings for limit of the override for both time and temperature.

  • Page 15: The Roberts Gordon Bzc Controller Warranty

    5: T ® BZC C ECTION OBERTS ORDON ONTROLLER ARRANTY ® SECTION 5: THE ROBERTS GORDON READ YOUR INSTALLATION MANUAL CONTROLLER WARRANTY If you have questions about your ROBERTS GORDON ® BZC Controller, contact your installing professional. Should ROBERTS-GORDON WILL PAY FOR: you need replacement parts or have additional questions, call or write Roberts-Gordon: For 36 months from the date of purchase by the original...
