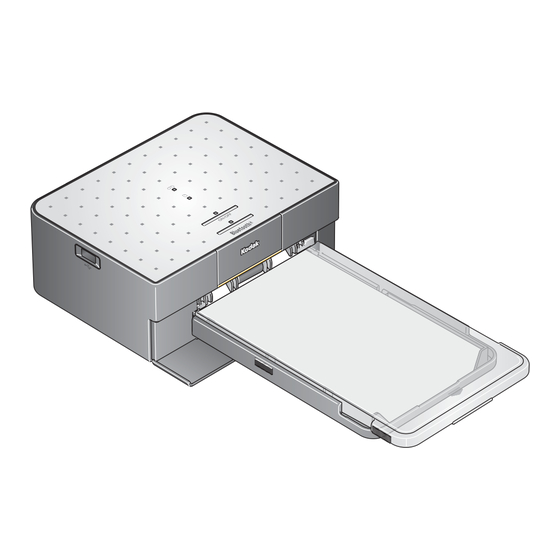

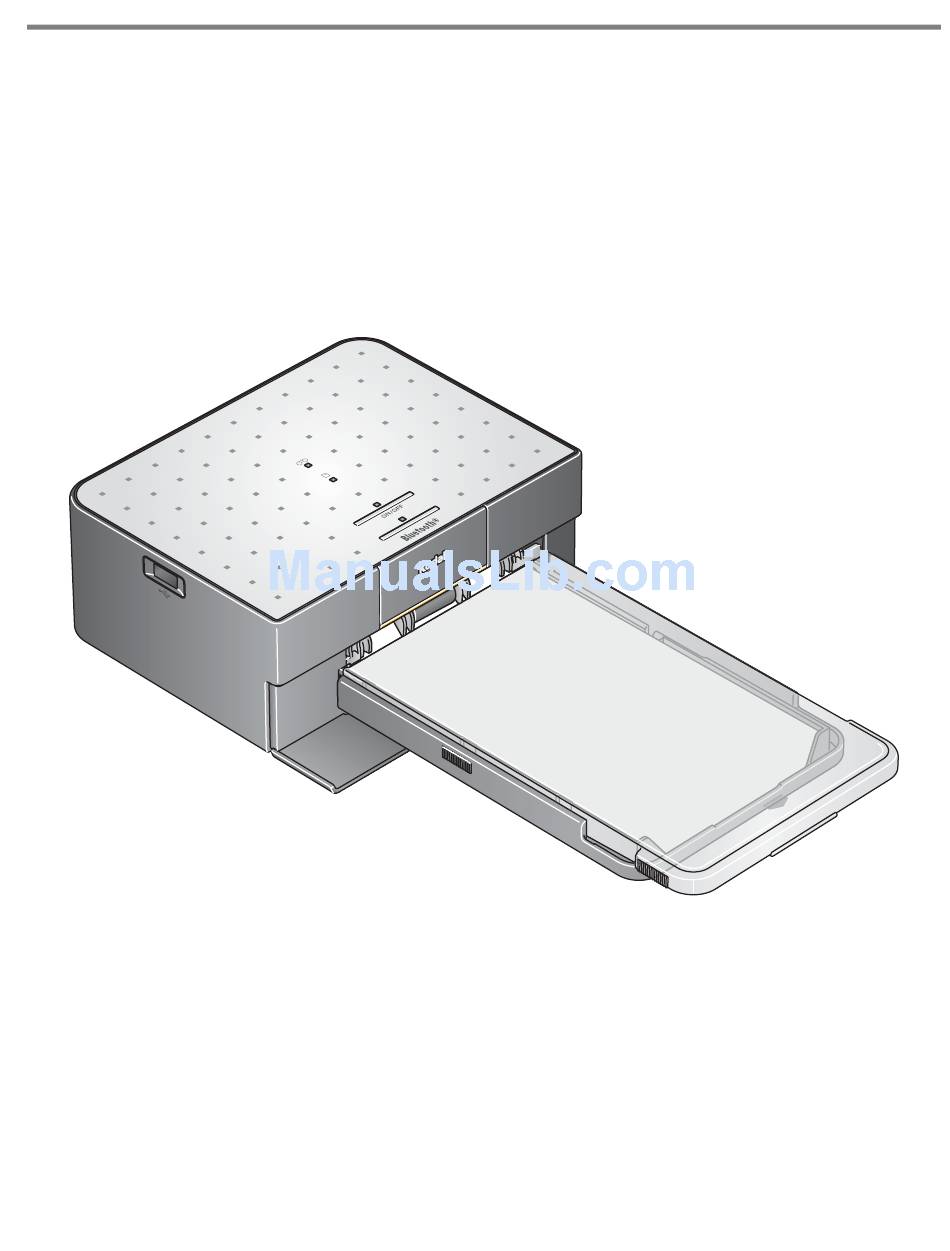

- Page 1 Kodak EasyShare photo printer 350 User’s Guide www.kodak.com For interactive tutorials, www.kodak.com/go/howto...
- Page 2 © Eastman Kodak Company, 2006 All screen images are simulated. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks is under license. Kodak, EasyShare, and XtraLife are trademarks of Eastman Kodak Company. P/N 4J4961_en...
- Page 3 Front/top/side view Cartridge-status light Paper-status light On/Off button/light Bluetooth button/light www.kodak.com/go/support Product features Paper-tray cover Paper tray Paper-tray door USB device connector...
- Page 4 Product features Back/top/side view Power connector (DC-in) USB connector (to computer) Cooling vents Slot for paper path Cartridge-release tab Color cartridge (inserted) Cartridge door www.kodak.com/go/support...
-
Page 5: Table Of Contents
Table of contents 1 Getting started ...1 Finding a location for your photo printer... 1 Handling and storing the cartridge and paper ... 2 Connecting the power... 3 Turning the power on/off... 3 Loading and removing the cartridge ... 4 Loading paper into the tray ... - Page 6 Table of contents 8 Appendix ...35 Photo printer specifications ... 35 Important safety instructions ... 37 Upgrading your software and firmware... 37 Additional care and maintenance ... 38 Warranty... 38 Regulatory compliance ... 41 www.kodak.com/go/support...
-
Page 7: Getting Started
Getting started Finding a location for your photo printer Place the photo printer on a flat, clean, dust-free surface, in a dry location, and ■ out of direct sunlight. 5 in. (12.7 cm) ■ Avoid areas where ventilation ducts, open doors, or frequent passersby might expose the photo printer and paper to high levels of dust and debris. -
Page 8: Handling And Storing The Cartridge And Paper
To avoid fingerprints on the paper, handle it by the edges. Do not touch the glossy side of the paper. To store paper, remove the tray and close the cover ■ and door to keep out dust and debris. Store paper flat. www.kodak.com/go/support... -
Page 9: Connecting The Power
Connecting the power RISK OF ELECTRIC SHOCK: Use only the AC power adapter included with your photo printer. Other adapters or cords can damage your photo printer or computer. Turning the power on/off www.kodak.com/go/support 1 Connect the AC power cord to the AC power adapter, then to the back of the photo printer. -
Page 10: Loading And Removing The Cartridge
Insert the cartridge into the chamber until it clicks into place . Cartridge-release tab Close the door. • Replace the cartridge when the Cartridge light glows red. • To remove the cartridge, push up on the Cartridge-release tab. www.kodak.com/go/support Status lights, Cartridge light... -
Page 11: Loading Paper Into The Tray
Loading paper into the tray IMPORTANT: Use only the PH series Kodak color cartridge & photo paper kit for this printer. Do not use inkjet paper. Purchase Kodak photo paper kits at a retailer of Kodak products, or visit www.kodak.com/go/accessories. -
Page 12: Loading And Removing The Paper Tray
Slide the tray into the chamber until it "snaps" into place. IMPORTANT : When printing, wait until the paper passes 4 times and the print ejects before you remove the print. www.kodak.com/go/support Paper light Red light: refill the paper tray... -
Page 13: Printing From A Bluetooth® Wireless Technology Device
Bluetooth technology enabled devices, including many personal digital assistants (PDAs) and wireless mobile telephones. Use your wireless device to review pictures, choose printing options, and print. Bluetooth wireless technology is ready when the light is on. Bluetooth light www.kodak.com/go/support 30 ft (10 m) or less... -
Page 14: Removing The Perforated Tabs From The Paper
NOTE: If your device requires you to set authentication, enter pin number 0000 (default). 5 Follow prompts to confirm printing. The selected images are sent to the photo printer for wireless printing. Wait until the paper passes 4 times and the print ejects before you remove the print. - Page 15 2 Open the Kodak wireless printer configuration utility. Windows OS a From the Start menu, select Programs (or All Programs). b Open the Kodak folder, then open the EasyShare printer folder. c Select Kodak wireless printer configuration utility. The configuration utility opens on your computer.
- Page 16 To turn the Bluetooth wireless technology off: ■ Press the Bluetooth button. Press again to turn it To turn the default to always off: ■ Press and hold the Bluetooth button for 5 seconds. Repeat to turn the default to always on. www.kodak.com/go/support...
-
Page 17: Printing From A Pictbridge Enabled Device
The paper cycles four times during the printing process before the finished print is ejected. The first three passes apply layers of yellow, magenta, and cyan colors to the print, and the fourth pass applies the Kodak XtraLife coating that protects and preserves the... -
Page 18: Installing The Software
1 Close all software applications that are open on your computer (including anti-virus software). 2 Place the Kodak EasyShare software CD into the CD-ROM drive. 3 Load the software: Windows OS—if the install window does not appear, choose Run from the Start menu and type d:\setup.exe where d is the drive letter that contains the CD. -
Page 19: Uninstalling The Software
5 Restart the computer if prompted. If you turned off anti-virus software, turn it back on. See the anti-virus software manual for details. For more information on installing the software, see the ReadMe file on the Kodak EasyShare software CD. For information on the software applications included on the Kodak EasyShare software CD, click the Help button in the EasyShare software. - Page 20 Mac OS X: 1 Double-click the operating drive for your system. 2 Select Library, then select Printers. 3 Open the Kodak folder, then open the photo printer folder. 4 Double-click the photo printer uninstaller program. 5 Follow the on-screen instructions.
-
Page 21: Printing From A Computer
IMPORTANT: Make sure your camera or other device is NOT connected when you connect the photo printer to the computer. www.kodak.com/go/support 1 Make sure Kodak EasyShare software is installed on the computer (see Installing the software, page 2 Turn the photo printer off. -
Page 22: Printing With Kodak Easyshare Software
Printing from a computer Printing with Kodak EasyShare software We recommend using Kodak EasyShare software (included) for printing pictures from your computer. This software lets you take advantage of a wide range of features: Kodak EasyShare Gallery, full-color enhancement, picture editing, photo-greeting cards, picture organization, and more. -
Page 23: Canceling Printing
3 Select Print or Page Setup from the File menu (depending on your application and operating system). 4 Make sure the photo printer is selected as the current printer. 5 Change any other settings as needed, then click OK or Print. (Depending on your application and operating system, you may first need to return to the main menu and select Print from the File menu.) -
Page 24: Care And Maintenance
IMPORTANT: Always disconnect the power before cleaning. Do not use harsh or abrasive cleaners or organic solvents on the photo printer or any of its parts. ■ To clean, wipe the outside of the photo printer with a clean, dry cloth. Avoid placing objects on the photo printer. ■... -
Page 25: Cleaning The Paper-Feed Roller
IMPORTANT: Unplug the power before cleaning the roller. 1 Unplug the AC power cord from the power outlet. 2 Remove the paper tray from the photo printer, and leave the paper-tray door open. 3 Lightly moisten a lint-free cloth with water. -
Page 26: Traveling With Your Photo Printer
1 Turn off the photo printer. Disconnect all cables. 2 Remove the Paper tray from the photo printer; close the Paper-tray cover and the Paper-tray door on the photo printer. 3 Repack the photo printer in the original packing box, or use the optional photo printer travel bag. -
Page 27: Troubleshooting
Re-load paper tray, then press On/Off button to resume printing. ■ Clean Paper-feed roller www.kodak.com/go/support www.kodak.com/go/photoprinters Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. Do not use inkjet paper. (page (page (page 19). - Page 28 Remove paper supply from Paper tray. Carefully "fan" paper to keep pulled through sheets from sticking together. printer Re-fill Paper tray. Do not exceed fill line. Re-load Paper tray, then press On/Off button to resume printing. (page www.kodak.com/go/support...
- Page 29 Remove cartridge, remove any slack from ribbon, then reload cartridge (page www.kodak.com/go/support Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. Do not use inkjet paper. (page Always check the paper slot on the back of the photo printer for jammed paper.
- Page 30 Paper-tray door to keep dust and debris from collecting on the paper or inside the photo printer ( Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. Do not use inkjet paper. (page (page 19).
- Page 31 Move photo printer from direct sunlight; operate in temperature-controlled environment. ■ Do not block cooling vents; keep them clean www.kodak.com/go/support Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. Do not use inkjet paper. Troubleshooting (page (page...
- Page 32 Troubleshooting Status Possible solution ■ Pictures are Adjust cropped pictures using Kodak EasyShare software on computer. cropped ■ Select proper paper size in print options if printing from an application on computer. ■ A selected Image file may be corrupt. Review picture on camera or computer and delete, if necessary.
- Page 33 —Advancement of cartridge ribbon when reconnecting power to unlock cartridge Supply mismatch likely to occur in continuous use of photo printer. Keep cartridge and paper supply synchronized by discarding unused cartridge or paper when one or other fully depleted.
-
Page 34: Status Lights
Status lights On/Off light Light status Cause Light off Power off. Light glows steady Photo printer ready for printing. None required. Light blinks Photo printer printing. Action/solution Connect power, then press On/Off button to turn power on. None required. www.kodak.com/go/support... - Page 35 Bluetooth light Light status Cause Light off Photo printer not ready to accept image. Light glows steady Photo printer ready to accept image. Light blinks Image being received by the photo printer. Cartridge light Light status Cause IMPORTANT: Light off Cartridge properly installed and working normally.
- Page 36 Light off Paper tray properly loaded with ample supply of paper. Action/solution Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. paper error. Do not attempt to remove the cartridge without first clearing the paper error. Make sure the...
- Page 37 Paper tray empty. Paper tray not loaded or improperly loaded. Remove Paper tray, Paper did not feed; removable tabs may be missing or sheets may be stuck together. Paper-feed roller may be dirty. www.kodak.com/go/support Troubleshooting Action/solution Load paper, then press On/Off button.
- Page 38 Remove loose paper. Check the paper supply. Reload with new paper, then press On/Off button. None required. Use only the PH series Kodak color cartridge & photo paper kit for your photo printer. Helpful links, page 33, or contact your camera www.kodak.com/go/support...
-
Page 39: Helpful Links
Helpful links Photo Email, write, or phone Kodak printer Get support for your product (FAQs, troubleshooting information, etc.) Purchase full range of digital camera and dock accessories. Download latest printer software, firmware and drivers See online tutorials Software Get information on EasyShare... -
Page 40: Telephone Customer Support
03 5540 9002 Korea 080 708 5600 Netherlands 020 346 9372 Photo printer serial number ■ ■ Version of Kodak EasyShare software ■ Exact error message you received New Zealand 0800 440 786 Norway 23 16 21 33 Philippines 1 800 1 888 9600... -
Page 41: Appendix
Print speed Print options Size Weight Print size www.kodak.com/go/support Thermal dye transfer Temperature: 50 to 95 ° F (10 to 35 ° C) Humidity: 10% to 86% RH Output: 24 V DC Input: 100 V to 120 V AC @ 50/60 Hz, via AC power adapter (US and... - Page 42 Paper size with perforated tabs Picture resolution Compatible input devices USB 2.0 port, PictBridge enabled camera, Bluetooth version 2.0 4 x 7.25 in. (10.2 x 18.4 cm) 300 ppi, continuous tone wireless technology enabled—OBEX OPP, FTP, & BPP profiles. www.kodak.com/go/support...
-
Page 43: Important Safety Instructions
Use only a USB-certified computer. Contact your computer manufacturer if you have questions. ■ The use of an accessory attachment that is not recommended by Kodak, such as an AC adapter, may cause fire, electric shock, or injury. CAUTION: Do not disassemble this product; there are no user-serviceable parts inside. -
Page 44: Additional Care And Maintenance
If this does not resolve the problem, contact customer support (see ■ Connect a tripod directly to the camera; do not connect a tripod to the printer. Service agreements are available in some countries. Contact a dealer of Kodak ■ products for more information. ■... -
Page 45: Limited Warranty Coverage
If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. -
Page 46: Outside The United States And Canada
Appendix The option of repair, replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special,... -
Page 47: Regulatory Compliance
Regulatory compliance FCC compliance and advisory Kodak EasyShare photo printer 350 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 48: Fcc And Industry Canada
à la norme NMB-003 du Canada. Australian C-Tick N137 Waste Electrical and Electronic Equipment labeling In the European Union, do not discard the product as unsorted municipal waste. Contact your local authorities or go to program information. Korea Class B ITE www.kodak.com/go/recycle www.kodak.com/go/support for recycling... - Page 49 This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. www.kodak.com/go/support...
